Technical datasheet
GN 479Sensorhouders
Sensorhouders
voor klemverbindingen met draadgaten GN 478 / GN 484
|
Code
|
d
|
k
|
|
|---|---|---|---|
|
|
|
|
|
|
GN 479-B8-16
|
B 8
|
16
|
9
|
|
GN 479-B8-30
|
B 8
|
30
|
20
|
|
GN 479-B12-16
|
B 12
|
16
|
10
|
|
GN 479-B12-30
|
B 12
|
30
|
26
|
|
GN 479-B18-16
|
B 18
|
16
|
13
|
|
GN 479-B18-30
|
B 18
|
30
|
30
|
|
GN 479-B30-30
|
B 30
|
30
|
36
|
Stainless Steel AISI 303
matt-shot blasted

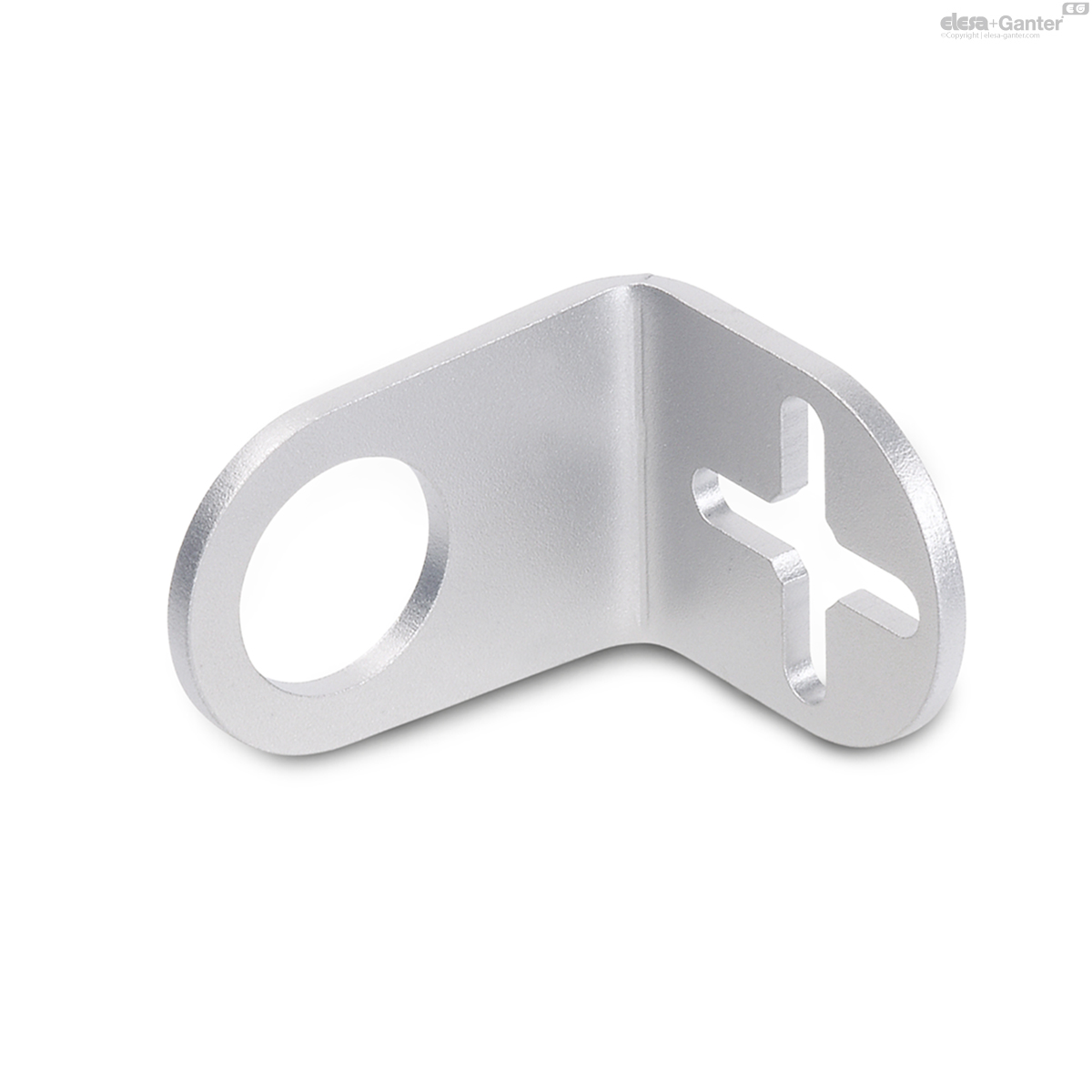

The sensor holders GN 479 are designed for holding sensors attached with two lock nuts.

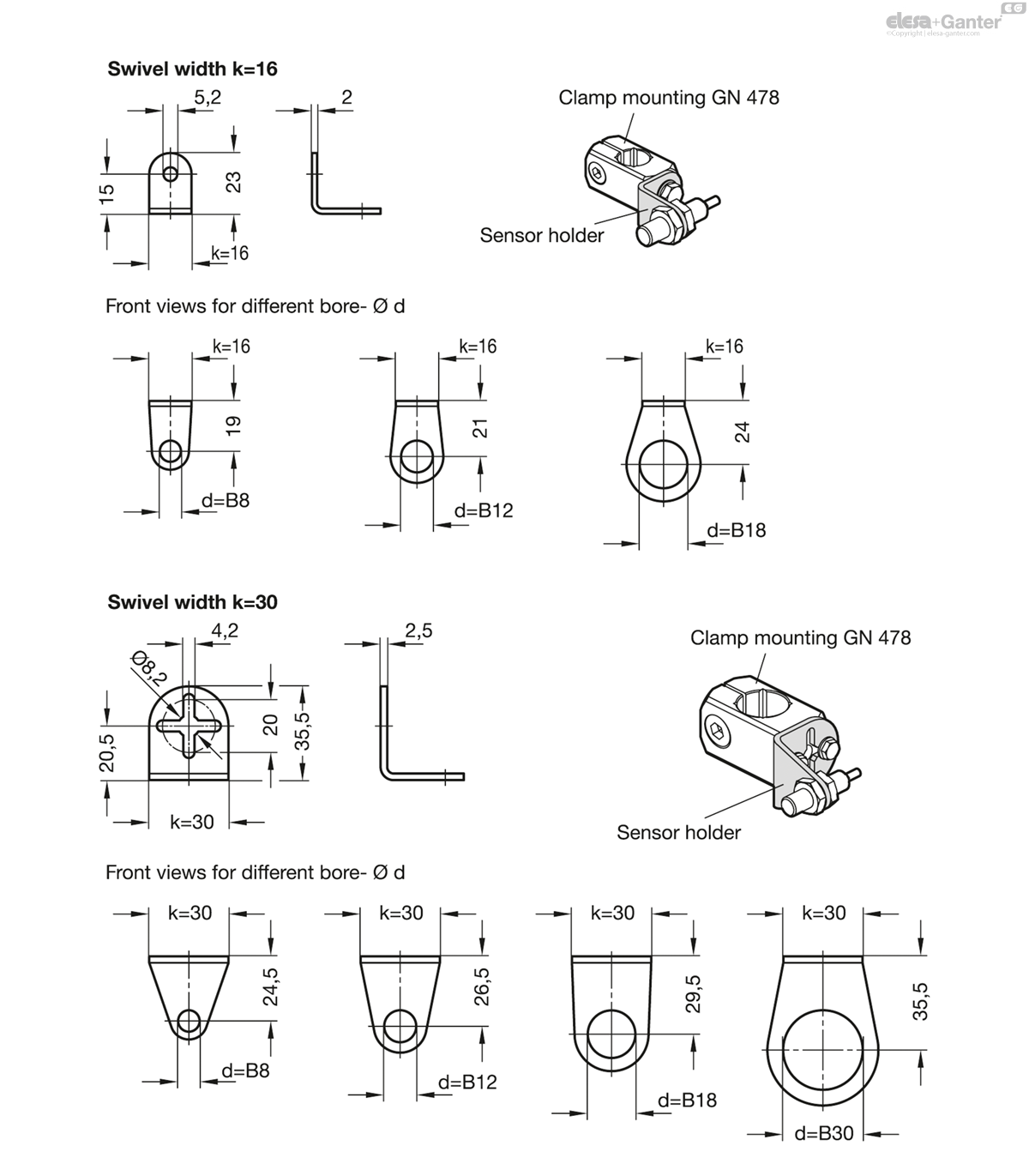

The attachment bore matches the central thread of clamp mountings GN 478 GN 484 and attachment clamp mountings GN 478 GN 484 . For k=30, the cross-shaped slotted holes provide extra adjustability and allow the use of two fixing screws.
Fixing screws have to be ordered separately.
