Technical datasheet
GN 343.5RVS stelvoeten
RVS stelvoeten
Binnendraad
|

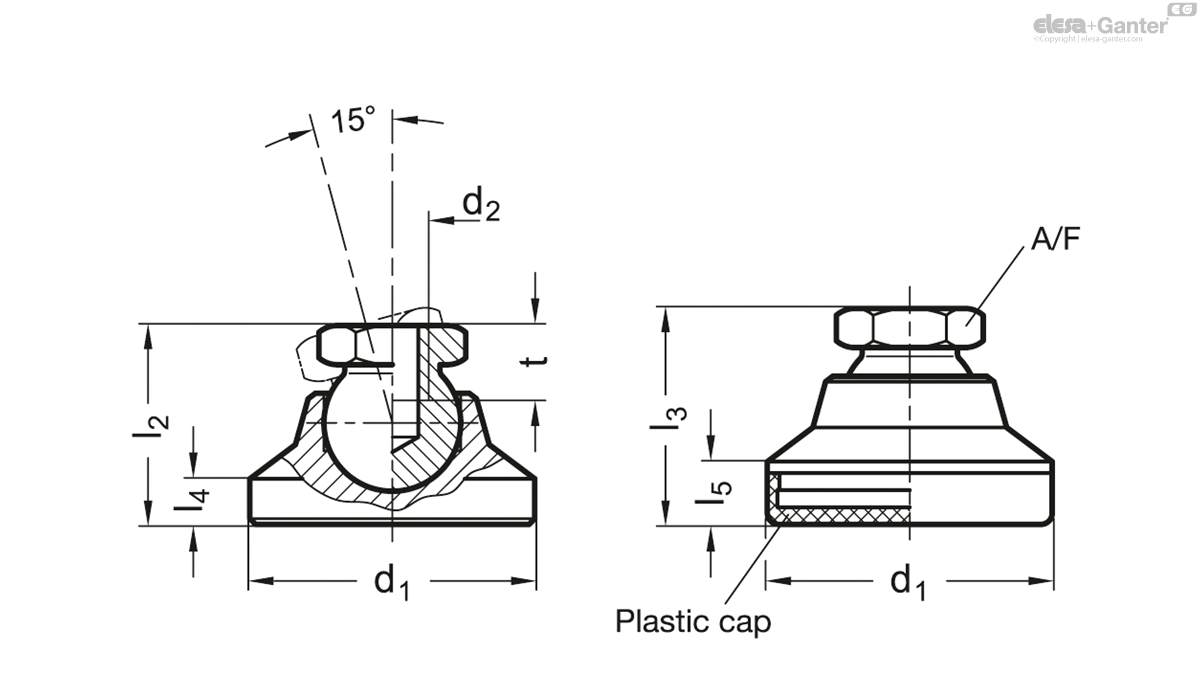

Code
|
d1
|
d2
|
l2
|
l3
|
l4
|
l5
|
A/F
|
t min.
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 343.5-25-M6-KR
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
31
|
|
GN 343.5-25-M8-KR
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
30
|
|
GN 343.5-32-M8-KR
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
57
|
|
GN 343.5-32-M10-KR
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
59
|
|
GN 343.5-40-M10-KR
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
101
|
|
GN 343.5-40-M12-KR
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
99
|
|
GN 343.5-50-M10-KR
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
165
|
|
GN 343.5-50-M12-KR
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
162
|
|
GN 343.5-60-M12-KR
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
315
|
|
GN 343.5-60-M16-KR
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
295
|
|
GN 343.5-25-M6-KRE
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
33
|
|
GN 343.5-25-M8-KRE
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
31
|
|
GN 343.5-32-M8-KRE
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
57
|
|
GN 343.5-32-M10-KRE
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
60
|
|
GN 343.5-40-M10-KRE
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
102
|
|
GN 343.5-40-M12-KRE
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
101
|
|
GN 343.5-50-M10-KRE
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
166
|
|
GN 343.5-50-M12-KRE
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
163
|
|
GN 343.5-60-M12-KRE
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
319
|
|
GN 343.5-60-M16-KRE
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
299
|
|
GN 343.5-25-M6-KS
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
34
|
|
GN 343.5-25-M8-KS
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
32
|
|
GN 343.5-32-M8-KS
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
60
|
|
GN 343.5-32-M10-KS
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
63
|
|
GN 343.5-40-M10-KS
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
107
|
|
GN 343.5-40-M12-KS
|
40
|
M 12
|
-
|
27.5
|
-
|
7.6
|
17
|
11.5
|
106
|
|
GN 343.5-50-M10-KS
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
177
|
|
GN 343.5-50-M12-KS
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
172
|
|
GN 343.5-60-M12-KS
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
338
|
|
GN 343.5-60-M16-KS
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
320
|
|
GN 343.5-25-M6-KSE
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
33
|
|
GN 343.5-25-M8-KSE
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
32
|
|
GN 343.5-32-M8-KSE
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
60
|
|
GN 343.5-32-M10-KSE
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
63
|
|
GN 343.5-40-M10-KSE
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
107
|
|
GN 343.5-40-M12-KSE
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
105
|
|
GN 343.5-50-M10-KSE
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
177
|
|
GN 343.5-50-M12-KSE
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
172
|
|
GN 343.5-60-M12-KSE
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
338
|
|
GN 343.5-60-M16-KSE
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
319
|
|
GN 343.5-25-M6-OS
|
25
|
M 6
|
19
|
-
|
4
|
-
|
12
|
9
|
33
|
|
GN 343.5-25-M8-OS
|
25
|
M 8
|
19
|
-
|
4
|
-
|
12
|
9
|
30
|
|
GN 343.5-32-M8-OS
|
32
|
M 8
|
23
|
-
|
5
|
-
|
12
|
9
|
60
|
|
GN 343.5-32-M10-OS
|
32
|
M 10
|
23
|
-
|
5
|
-
|
15
|
10.5
|
64
|
|
GN 343.5-40-M10-OS
|
40
|
M 10
|
26
|
-
|
6
|
-
|
15
|
10. 5
|
100
|
|
GN 343.5-40-M12-OS
|
40
|
M 12
|
26
|
-
|
6
|
-
|
17
|
11.5
|
100
|
|
GN 343.5-50-M10-OS
|
50
|
M 10
|
28
|
-
|
7
|
-
|
15
|
10.5
|
180
|
|
GN 343.5-50-M12-OS
|
50
|
M 12
|
28
|
-
|
7
|
-
|
17
|
11.5
|
177
|
|
GN 343.5-60-M12-OS
|
60
|
M 12
|
36
|
-
|
8.5
|
-
|
17
|
11.5
|
340
|
|
GN 343.5-60-M16-OS
|
60
|
M 16
|
36
|
-
|
8.5
|
-
|
24
|
16
|
325
|
Types
- Type OS: without plastic cap

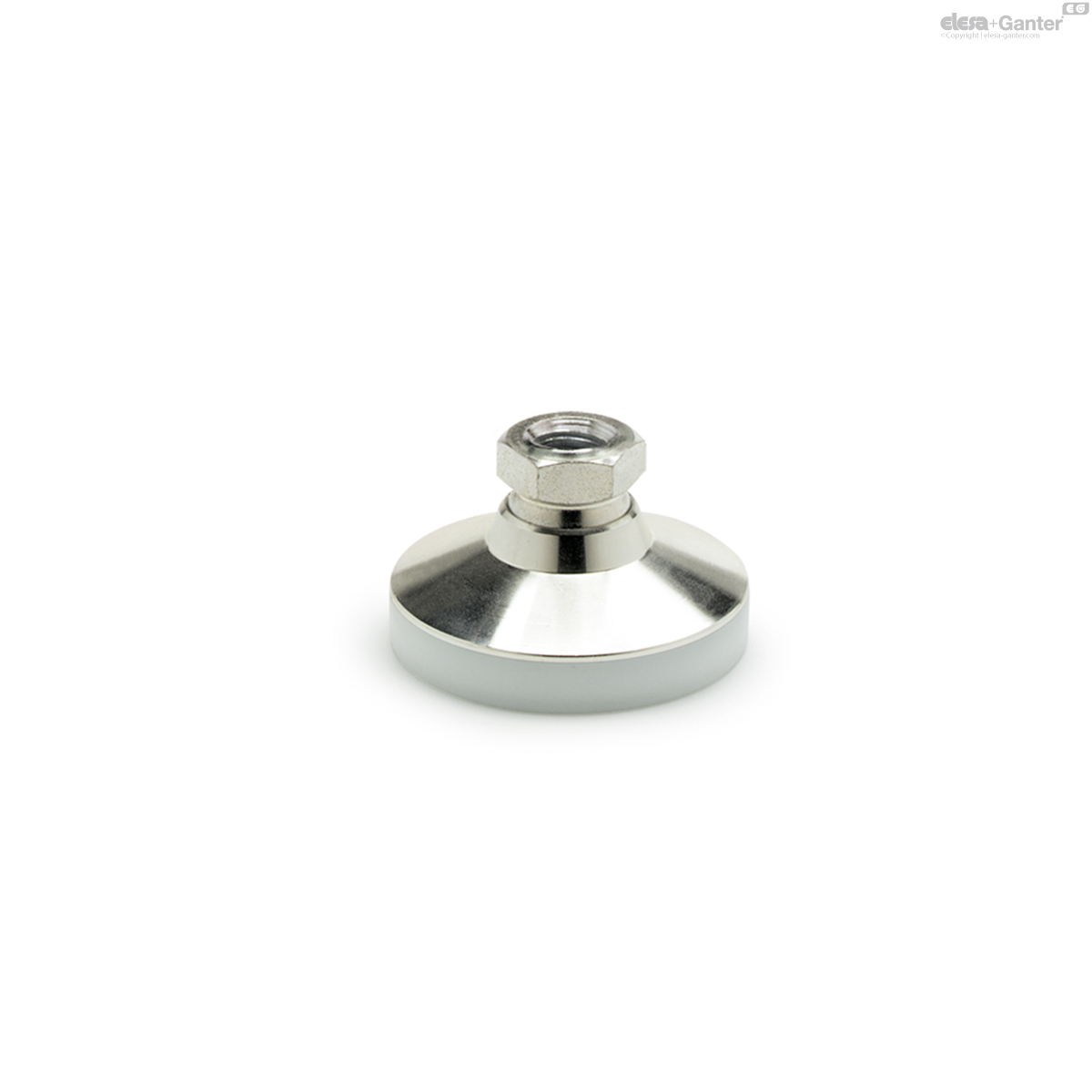

- Type KS: with plastic cap, gliding

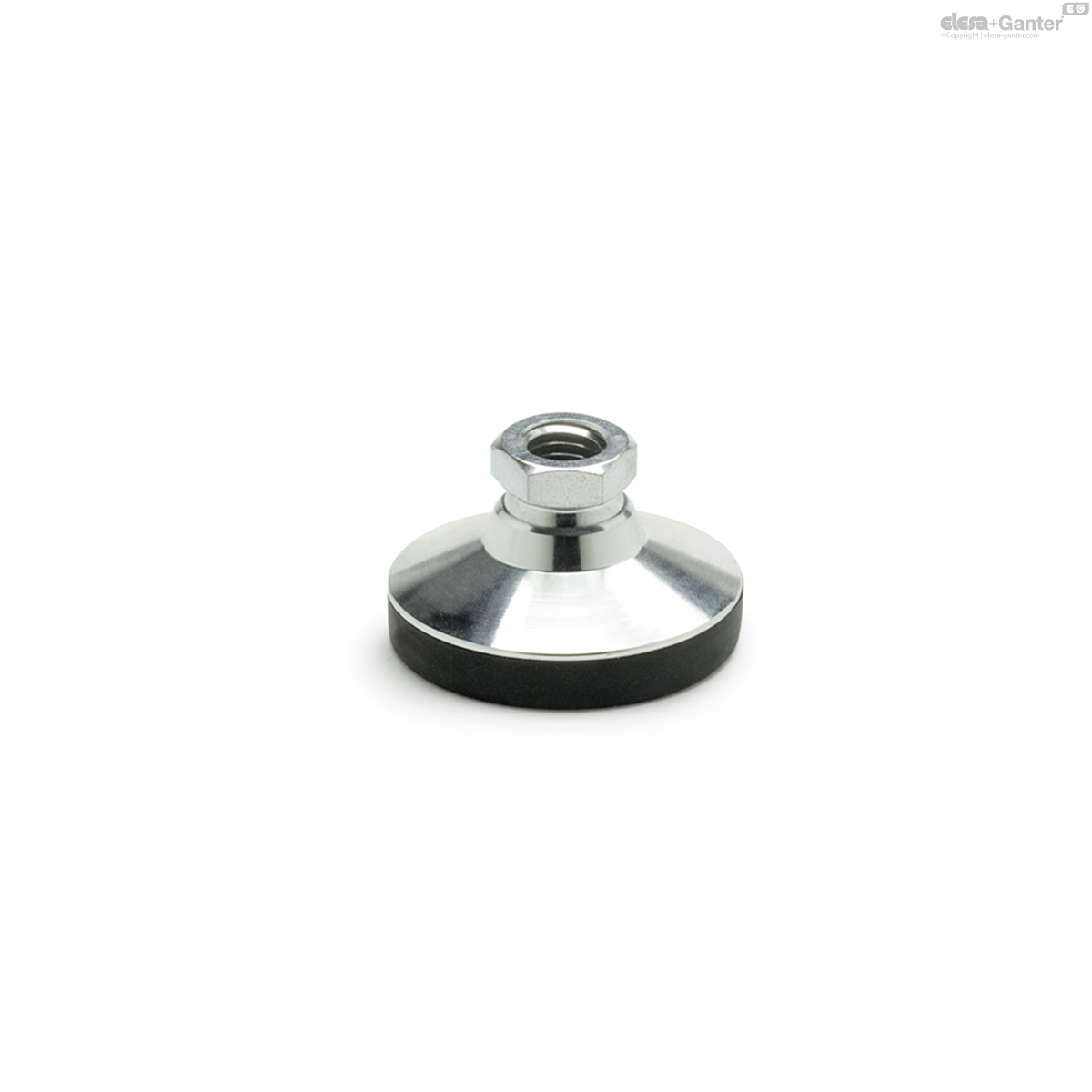

- Type KR: with plastic cap, non-gliding
- Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
- Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)
Stainless Steel AISI 303
Type KS / KSE
Plastic cap Polyacetal (POM)
KS: white (natural colour) RAL 9001
KSE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
Type KR / KRE
Plastic cap elastomer (TPE), 78 Shore A ≈
KR: black
KRE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
The static load of the Stainless Steel-Levelling feet GN 343.5 is limited by the load capacity of the ball joint (AISI 303).
The static load values (only valid for Type OS, KS and KSE) in the above table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
Levelling feet GN 343.5 cannot be disassembled.
Gerelateerde producten
GN 31-S/SK
Machinevoet
Roestvrij staal, met rubberen pad
GN 343.1
Stelelementen
Voet, binnendraad

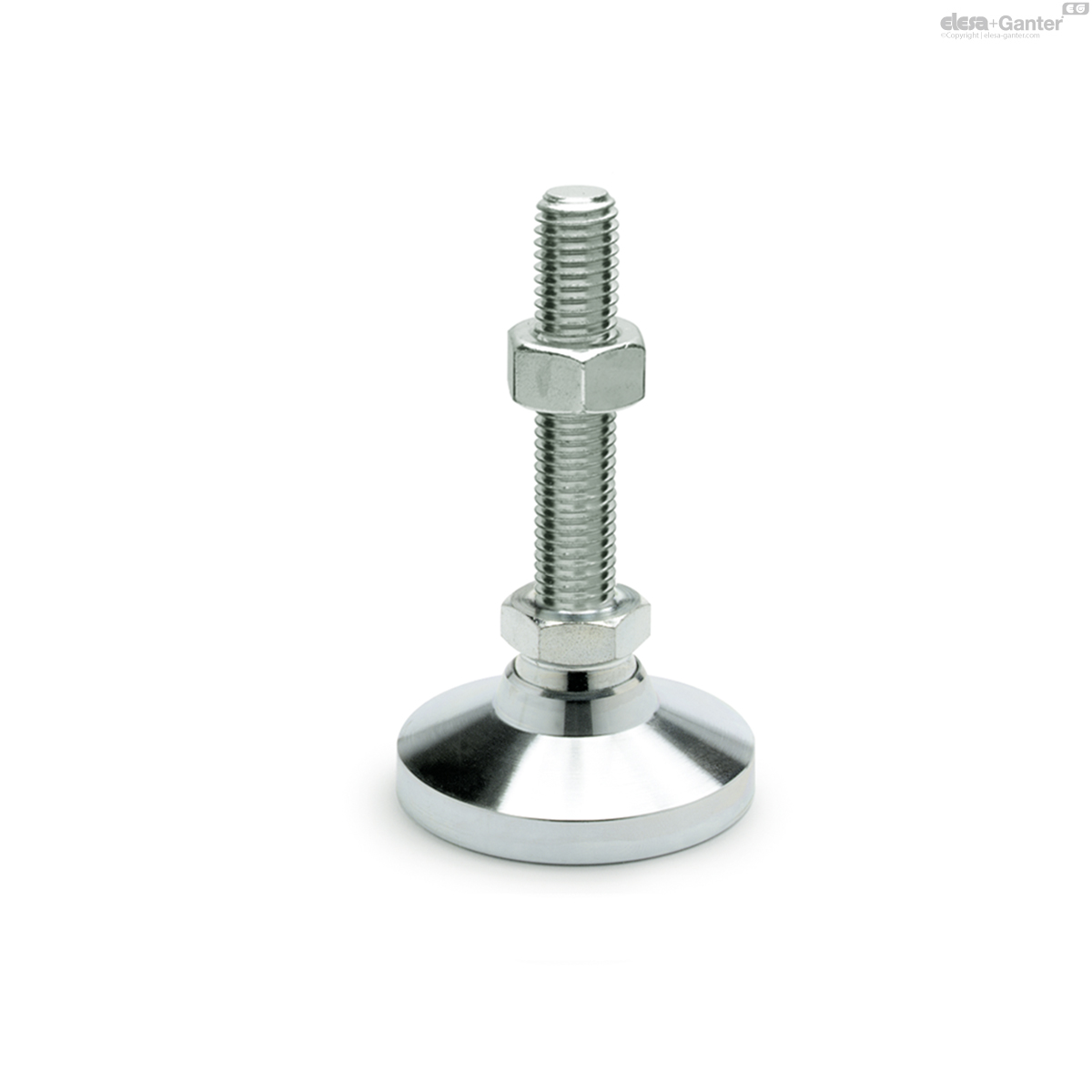

GN 343.2
Machinevoeten
Voet , draadeind staal

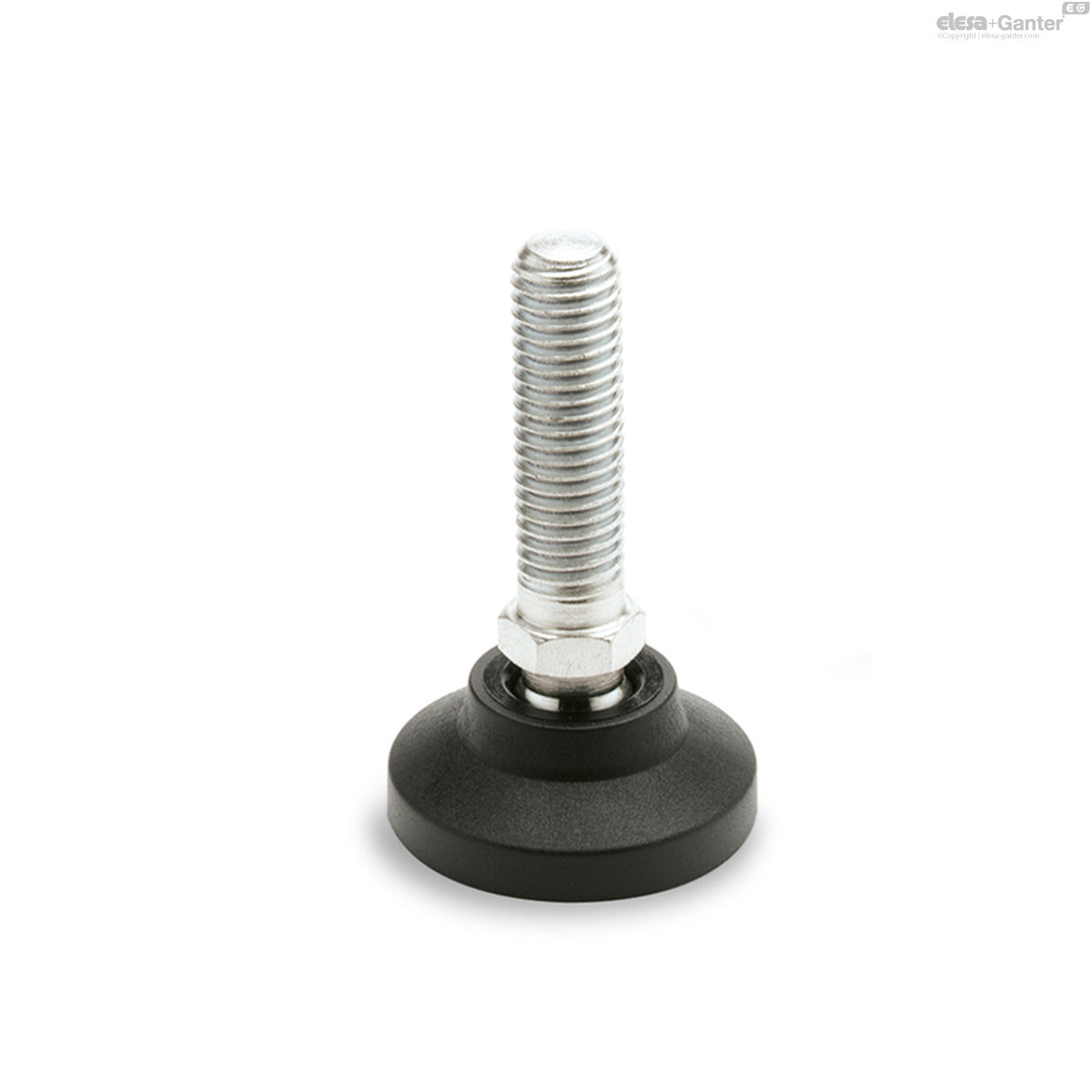

LS.A-SST
Machinevoeten
Voetplaat van technopolymeer , roestvrijstalen draadstift

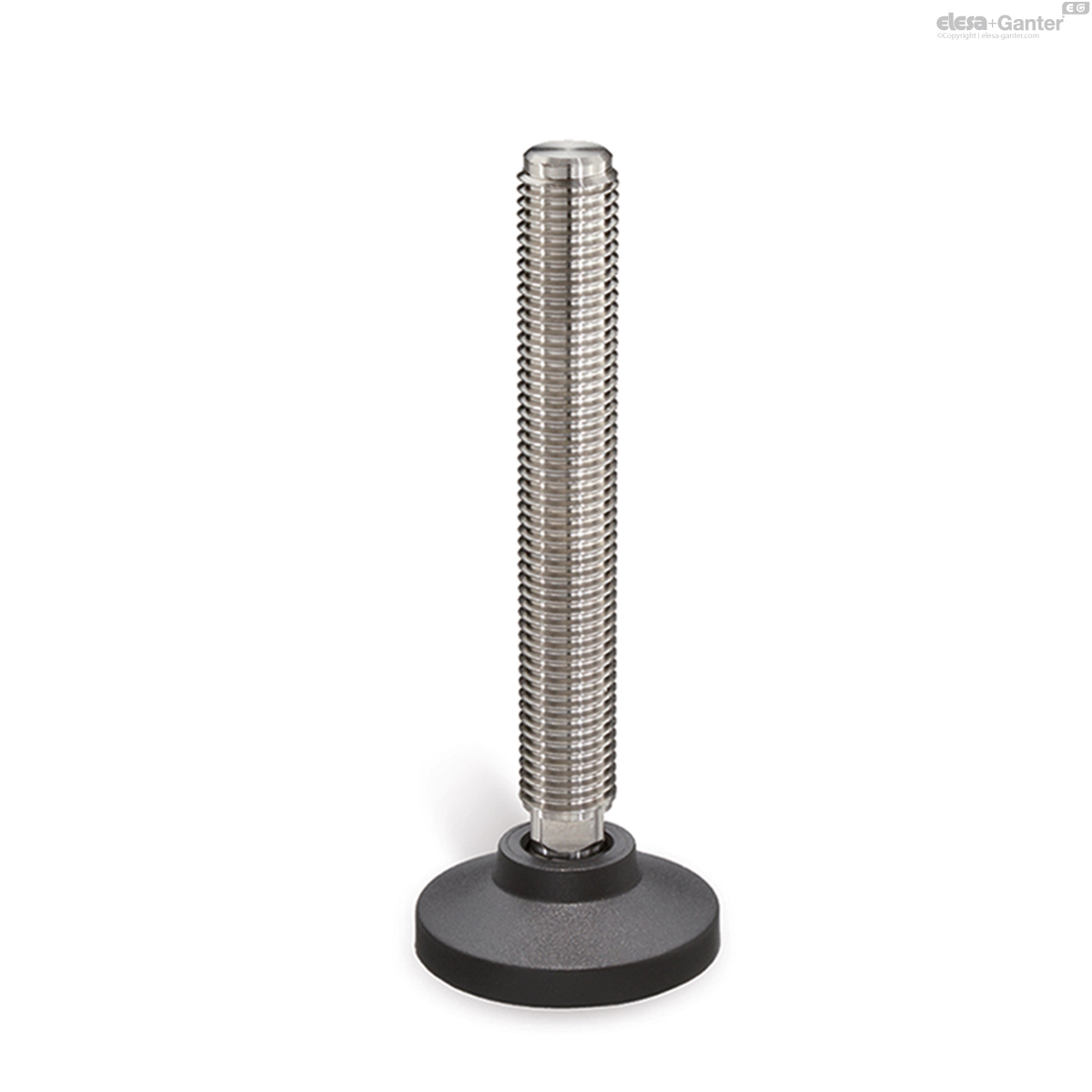

LSQ.A-SST
Machinevoeten
Voetplaat van technopolymeer , roestvrijstalen draadstift

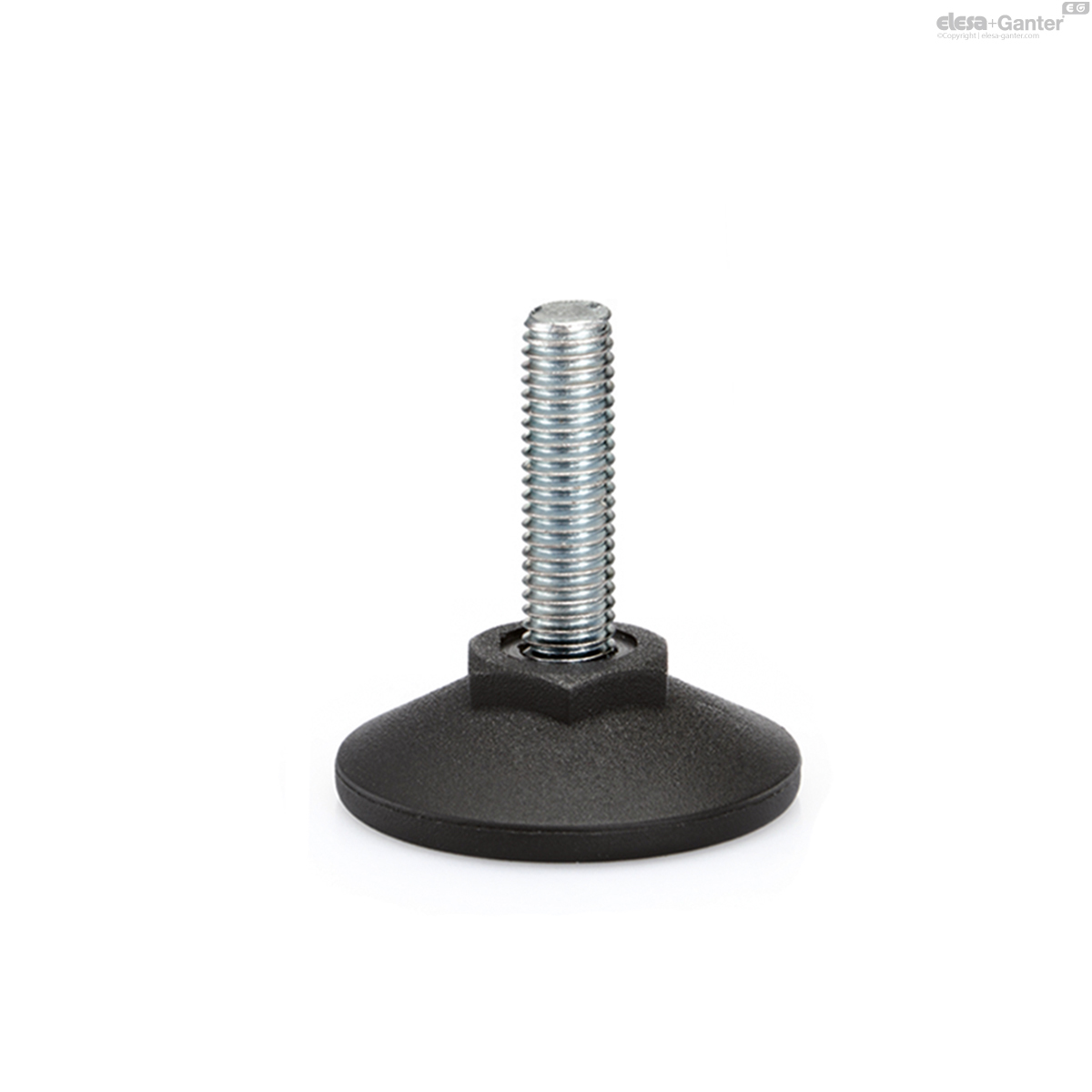

LX
Stelvoeten met vaste spindel
Voetplaat van technopolymeer , stalen draadstift

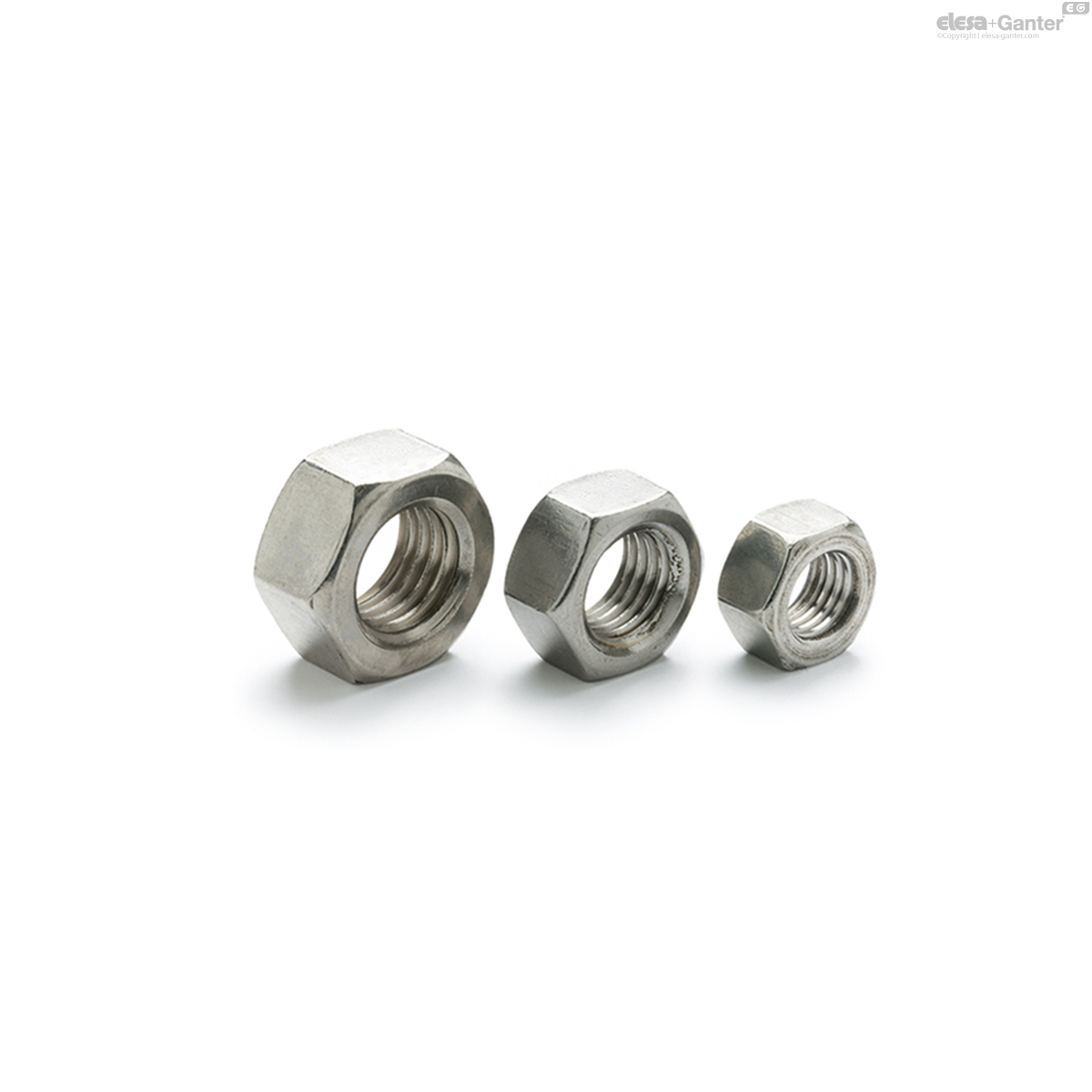

NT
