GN 331-T1-2Buisgrepen

Met 1 knop, met noodstop

met elektrische schakelfunctie

  • Icons/__logo__RoHS__.png
pdf Other documents
Met 1 knop, met noodstop
Met 1 knop, met noodstop
GN 331-T1-2
Met 1 knop, met noodstop
GN 331-T0-2
Zonder knop, met noodstop
GN 331-T2-1
Met 2 knoppen, zonder noodstop
GN 331-T2-2
Met 2 knoppen, met noodstop
GN 331-T1-1
Met 1 knop, zonder noodstop
EL - Anodized, natural color
SW - RAL 9005

GN 331-T1-2

Reset
Code
l ±0.25
d
b1
b2
h1
h2
t min.
GN 331-200-SW-T1-2
200
M 8
27
17
51
68
15
488
GN 331-300-SW-T1-2
300
M 8
27
17
51
68
15
680

Types

  • Type T0: Without button
  • Type T1: With 1 button
  • Type T2: With 2 buttons

Identification no.

  • No. 1: Without emergency stop
  • No. 2: With emergency stop

Handle tube

Aluminum, wall thickness 1,5 mm

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Anodized, natural color EL

Handle legs

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Cover for identification no. 1

(instead of emergency stop)

Plastic, light gray

Operating temperature -25 °C to +55 °C

Tubular handles GN 331 are available with various options for emergency stops and buttons. They can be used for activating individual functions of a machine control, such as unlocking the safety lock of a housing door right on the handle.

The possible switching operations depend on the options and are described below. For types T1 and T2, one set of caps (consisting of the colors red, green, and blue) is supplied for each button.

The red or green LED lights up regardless of whether the button is pressed and can be used to indicate the status of a control, for example.

  • GN 330 Cables with Connector Coupling (12-pole, 5 or 10 meters long)
Characteristics of the standard executions GN 331
The tubular handles have the CE marking, low voltage guideline 2014 / 35 / EU

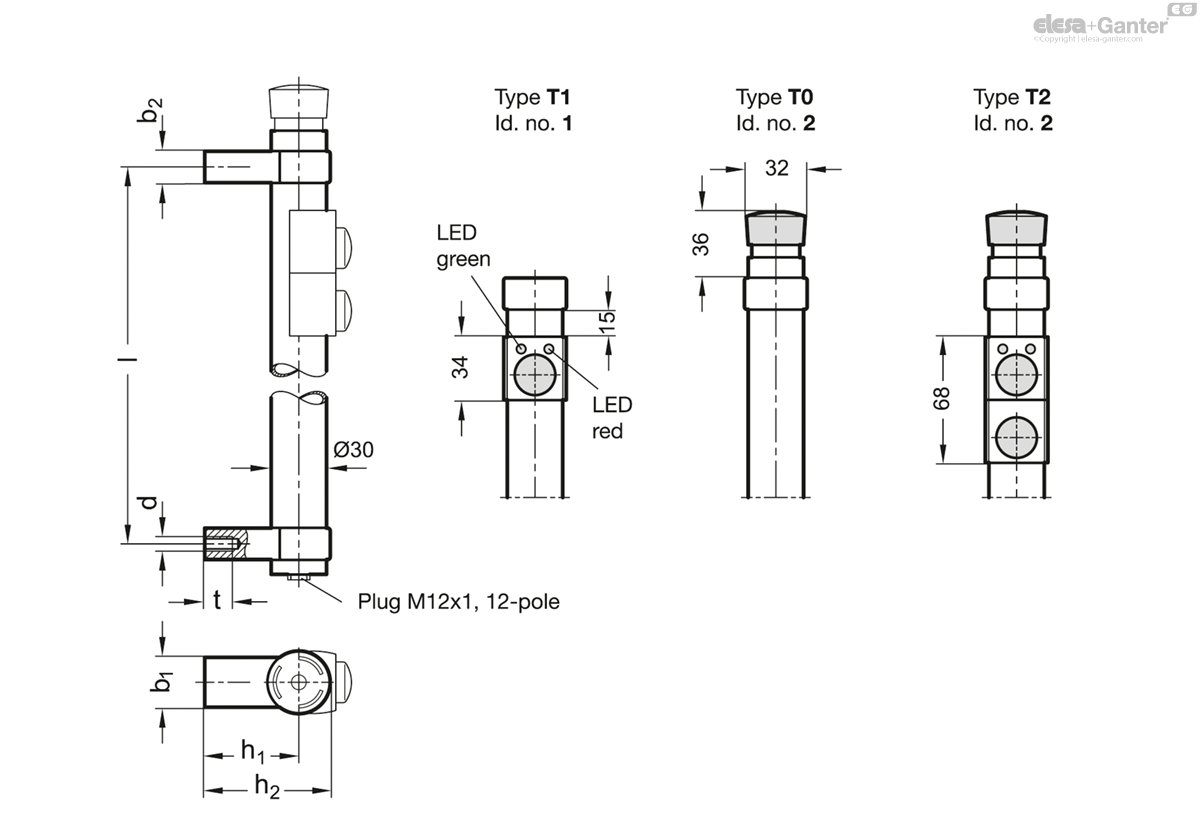

Emergency stop2 channel, normally closed contact____logo__331m2__
1st button with 2 LEDChangover contact____logo__331m3__
LED, red and green____logo__331_SB-12659-0__
2nd buttonNormally open contact____logo__331m5__
Contact termination, Pin configurationPlug M12x1, 12-pole____logo__331m6__
Switching voltage / Switching currentmax. 24 V DC / max. 0.5 A-
Operating voltage (LEDs)24 V DC ± 15 % / 10 mA-
Protection classIdentification no. 1: IP 67 (in screwed condition)-
Identification no. 2: IP 54
Button colorFor each button a set of caps is included, in this colors: red, green, blue-
Additional variations as special application
Emergency stop1 channel____logo__331m7__
Number of buttons > 2 Button optional withNormally open contact____logo__331m8__
Normally closed contact____logo__331m9__
Changeover contact____logo__331m10__
Button with labelling area____logo__331m11__
