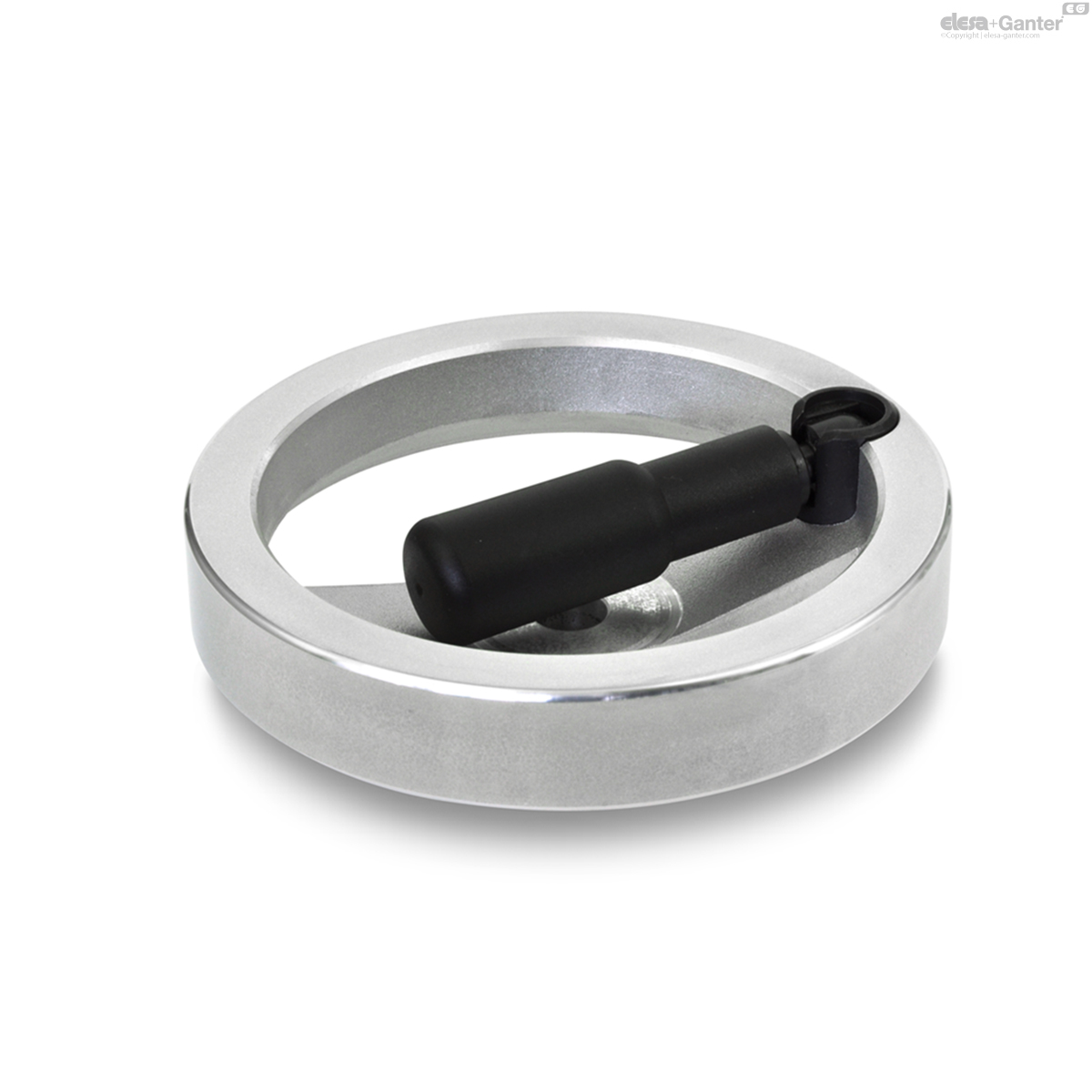

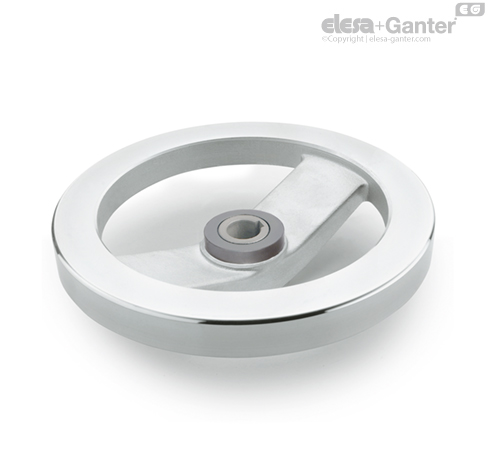

GN 322.7-BHandwielen met Inklapbare handgreep

Zonder spiebaan

Aluminium, handgreep inklapbaar

Technical datasheet

GN 322.7-K

Met spiebaan DIN 6885-1 P9

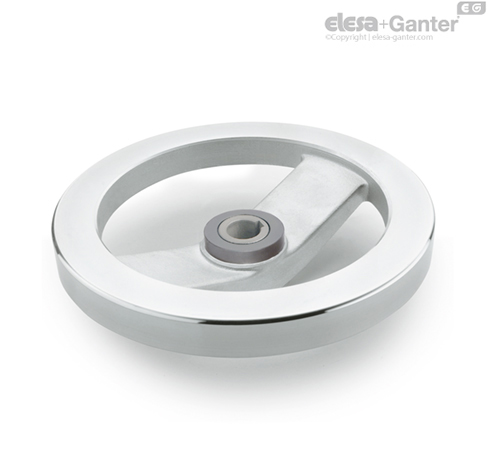

GN 322.7-B

Zonder spiebaan

GN 322.7-B

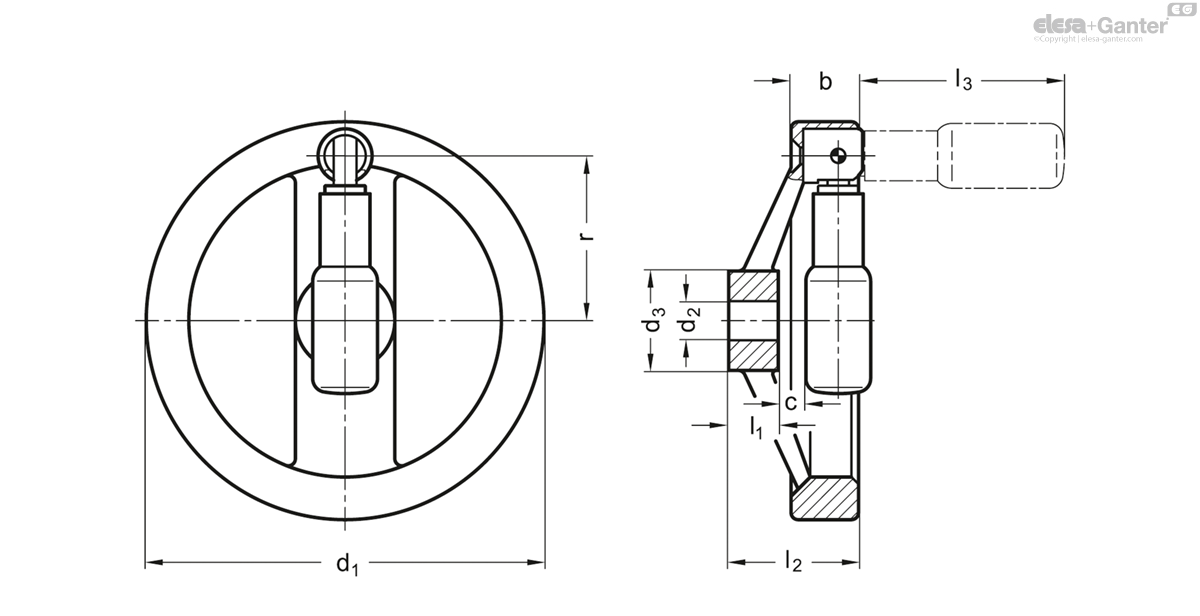

Code	d₁	d₂H7 Bore	b	c	d₃	l₁	l₂	l₃	r	Ø Griff
GN 322.7-125-B12-R	125	12	24.5	7.5	31	18	44	61.5	50	22	438
GN 322.7-140-B14-R	140	14	24.5	7	36	19	45.5	76.5	57.5	24	548
GN 322.7-160-B14-R	160	14	25	7.5	36	20	47	76.5	67.5	24	600
GN 322.7-160-B16-R	160	16	25	7.5	36	20	47	76.5	67.5	24	560
GN 322.7-200-B18-R	200	18	25	8.5	42	24	52.5	86.5	84	25	970
GN 322.7-200-B20-R	200	20	25	8.5	42	24	52.5	86.5	84	25	945
GN 322.7-250-B22-R	250	22	26.5	13	48	28	61	86.5	111	25	1380

Bore codes

Version B: Without keyway
Version K: With keyway DIN 6885-1 P9

Type

Type R: With revolving retractable handle

Wheel body

Aluminum

Hub machined

Wheel rim

Turned on all sides

High-polished

Radial and axial runout < 0,4

Unmachined body shot-blasted

Safety Retractable Handles GN 798.7

Plastic, Polyamide (PA)

Black, matte

Retracting mechanism

Steel

Spindle, 1.0718, blackened

Attachment part, sintered, blackened

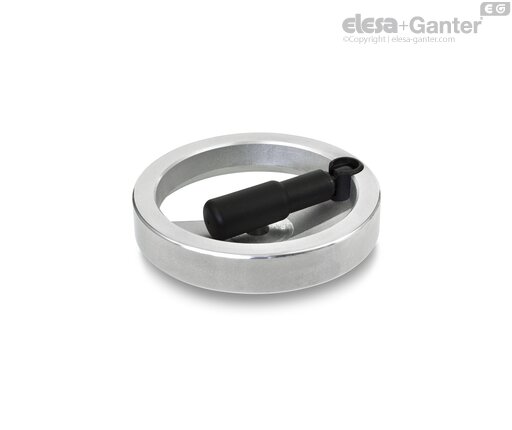

Handwheels GN 322.7 are suitable for applications where the handle must not remain in the operating position.

In order to bring the handle into this position it has to be turned first through 90° to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle the handwheel can easily be rotated.

When releasing the handle the springs returns it back to the retracted position.
