Technical datasheet

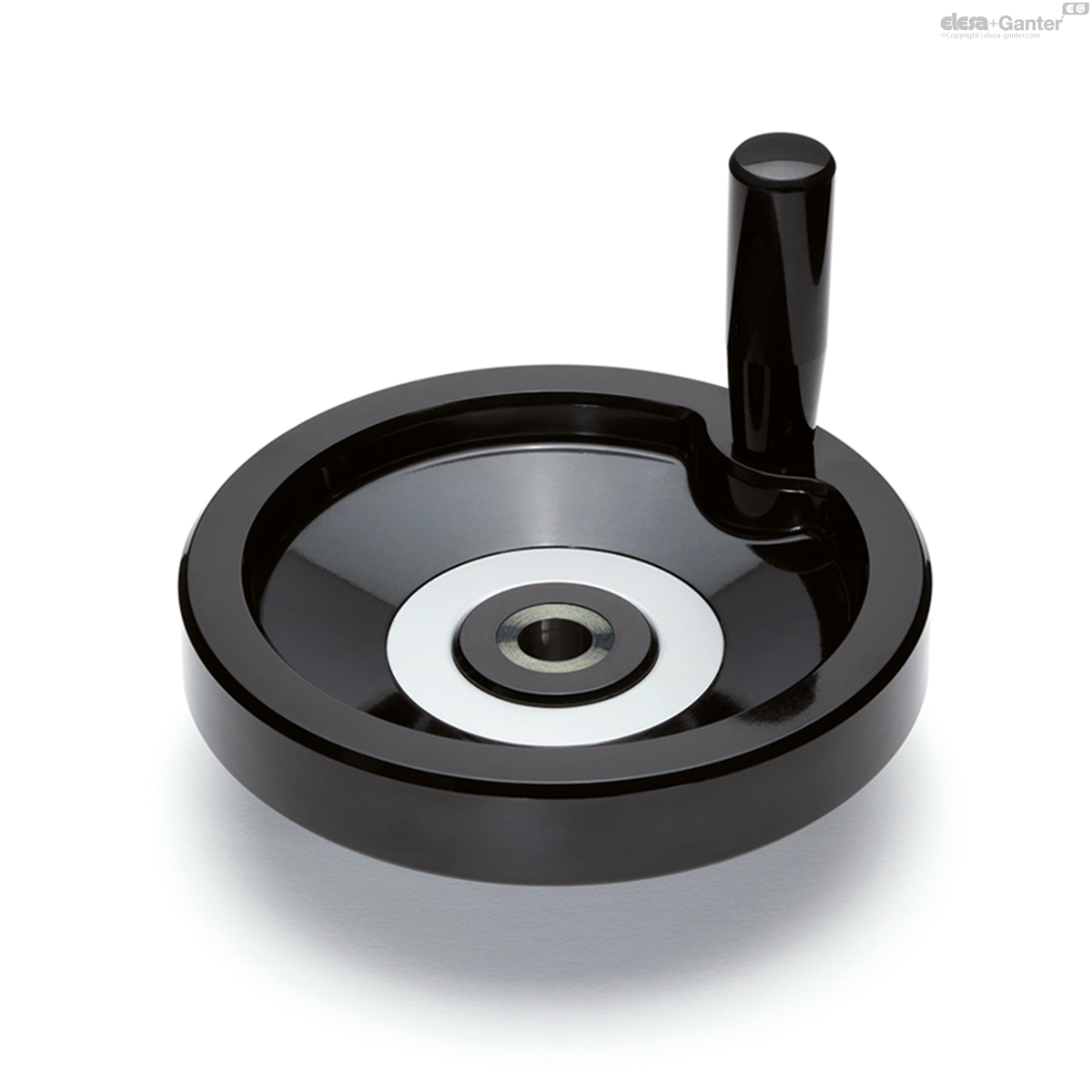

VDN.FP+I-SST-AVolle handwielen
Draaiende handgreep, geboorde naaf
Duroplast, roestvrijstalen naaf
VDN.FP+I-SST-A-K
|
Code
|
Omschrijving
|
D
|
L
|
B
|
d1
|
d2
|
d3
|
d4
|
d5
|
l
|
l2
|
H
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
73715-10-K
|
VDN.100 FP+I-SST-A10-K
|
100
|
46
|
21
|
24
|
20
|
35
|
54
|
39
|
33.5
|
12
|
50
|
|
73715-12-K
|
VDN.100 FP+I-SST-A12-K
|
100
|
46
|
21
|
24
|
20
|
35
|
54
|
39
|
33.5
|
12
|
50
|
|
73725-12-K
|
VDN.125 FP+I-SST-A12-K
|
125
|
57
|
28
|
32
|
26.5
|
44
|
70
|
46
|
38
|
15
|
65
|
|
73725-14-K
|
VDN.125 FP+I-SST-A14-K
|
125
|
57
|
28
|
32
|
26.5
|
44
|
70
|
46
|
38
|
15
|
65
|
|
73735-14-K
|
VDN.150 FP+I-SST-A14-K
|
150
|
61
|
30
|
32
|
26.5
|
50
|
80
|
48
|
38
|
15
|
65
|
|
73735-16-K
|
VDN.150 FP+I-SST-A16-K
|
150
|
61
|
30
|
32
|
26.5
|
50
|
80
|
48
|
38
|
15
|
65
|
|
73755-18-K
|
VDN.200 FP+I-SST-A18-K
|
200
|
68
|
32
|
40
|
33
|
55
|
90
|
60
|
43
|
15
|
90
|
|
73755-20-K
|
VDN.200 FP+I-SST-A20-K
|
200
|
68
|
32
|
40
|
33
|
55
|
90
|
60
|
43
|
15
|
90
|
|
73775-22-K
|
VDN.250 FP+I-SST-A22-K
|
249
|
76
|
36
|
49
|
40
|
66
|
110
|
70
|
44.5
|
15
|
90
|
|
73775-24-K
|
VDN.250 FP+I-SST-A24-K
|
249
|
76
|
36
|
49
|
40
|
66
|
110
|
70
|
44.5
|
15
|
90
|
|
73786-26-K
|
VDN.300 FP+I-SST-A26-K
|
301
|
87
|
36
|
58
|
58
|
94
|
148
|
82
|
56
|
18
|
90
|

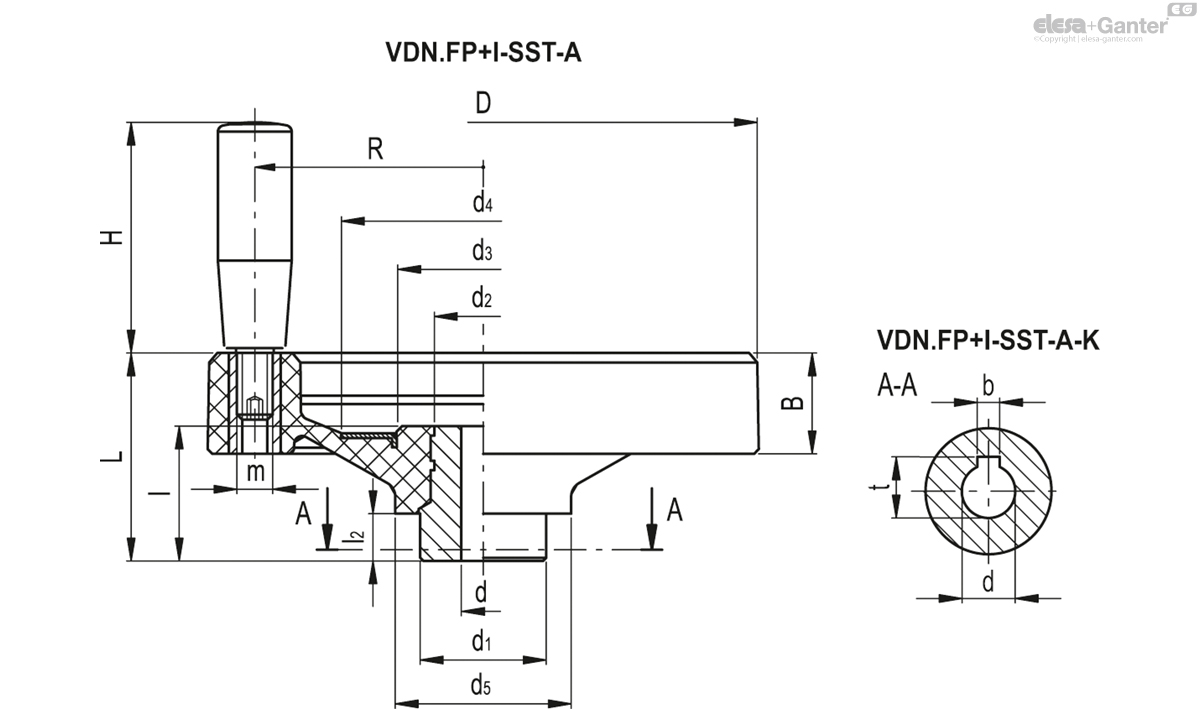

VDN.FP+I-SST-A
|
Code
|
Omschrijving
|
D
|
dH7
|
L
|
B
|
d1
|
d2
|
d3
|
d4
|
d5
|
l
|
l2
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
73715-10
|
VDN.100 FP+I-SST-A10
|
100
|
10
|
46
|
21
|
24
|
20
|
35
|
54
|
39
|
33.5
|
12
|
|
73715-12
|
VDN.100 FP+I-SST-A12
|
100
|
12
|
46
|
21
|
24
|
20
|
35
|
54
|
39
|
33.5
|
12
|
|
73725-12
|
VDN.125 FP+I-SST-A12
|
125
|
12
|
57
|
28
|
32
|
26.5
|
44
|
70
|
46
|
38
|
15
|
|
73725-14
|
VDN.125 FP+I-SST-A14
|
125
|
14
|
57
|
28
|
32
|
26.5
|
44
|
70
|
46
|
38
|
15
|
|
73735-14
|
VDN.150 FP+I-SST-A14
|
150
|
14
|
61
|
30
|
32
|
26.5
|
50
|
80
|
48
|
38
|
15
|
|
73735-16
|
VDN.150 FP+I-SST-A16
|
150
|
16
|
61
|
30
|
32
|
26.5
|
50
|
80
|
48
|
38
|
15
|
|
73755-18
|
VDN.200 FP+I-SST-A18
|
200
|
18
|
68
|
32
|
40
|
33
|
55
|
90
|
60
|
43
|
15
|
|
73755-20
|
VDN.200 FP+I-SST-A20
|
200
|
20
|
68
|
32
|
40
|
33
|
55
|
90
|
60
|
43
|
15
|
|
73775-22
|
VDN.250 FP+I-SST-A22
|
249
|
22
|
76
|
36
|
49
|
40
|
66
|
110
|
70
|
44.5
|
15
|
|
73775-24
|
VDN.250 FP+I-SST-A24
|
249
|
24
|
76
|
36
|
49
|
40
|
66
|
110
|
70
|
44.5
|
15
|
|
73786-26
|
VDN.300 FP+I-SST-A26
|
301
|
26
|
87
|
36
|
58
|
58
|
94
|
148
|
82
|
56
|
18
|
Material
High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.
Ring
Matte anodised aluminium.
(ELESA Original design - Reg. U.S. Pat. & TM Off.)
Standard executions
AISI 303 stainless steel hub with H7 reamed hole.
H9 reamed hole for executions with keyway.
- VDN.FP-SST-A: without handle.
- VDN.FP+I-SST-A: with revolving handle I.301+x in Duroplast.
- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
73695-10-K VDN.80 FP-SST-A-10-K

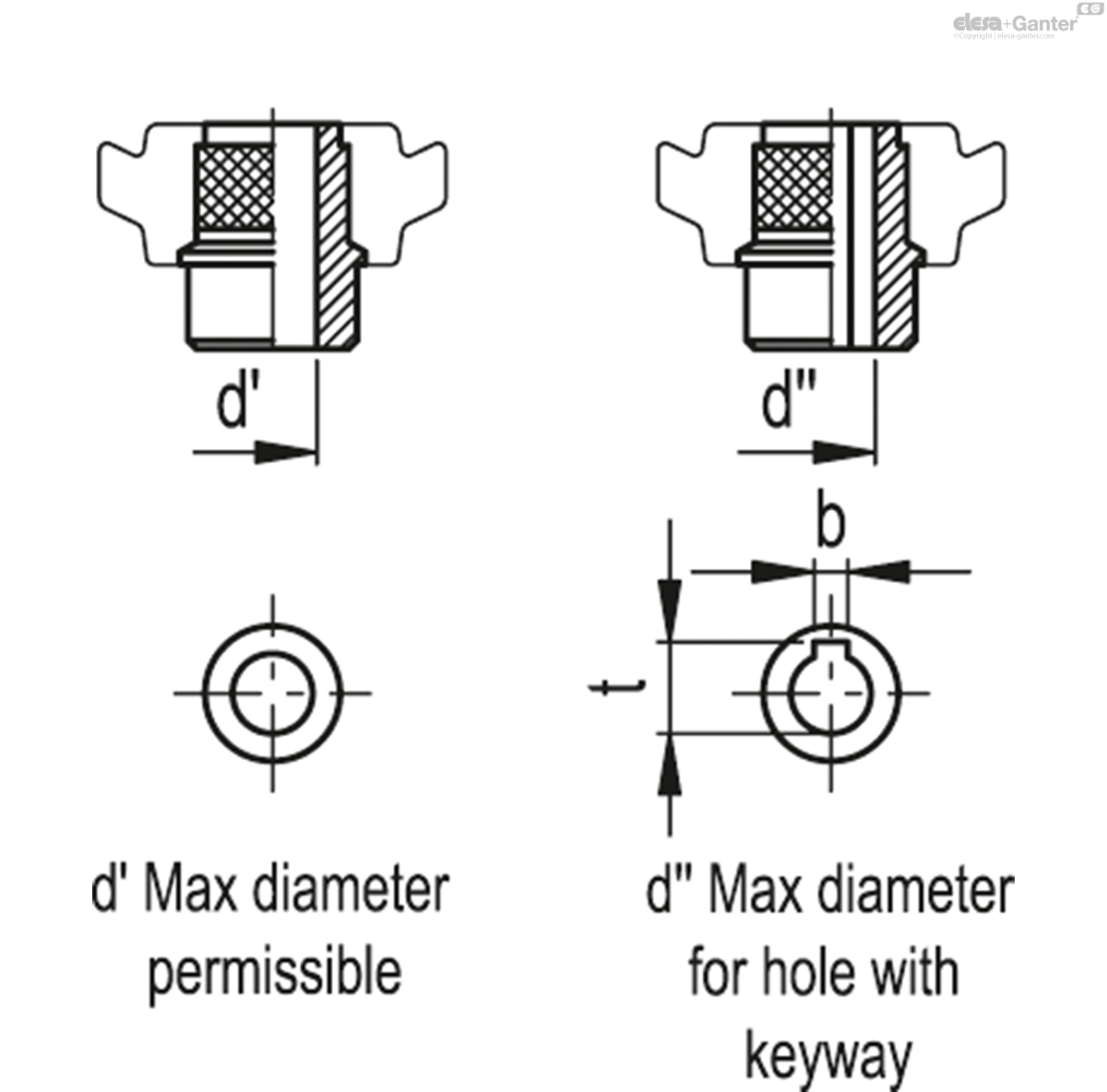

AISI 303 stainless steel hub not drilled in order to make holes different from the standard:
- VDN.FP-SST: without handle.
- VDN.FP+I-SST: with revolving handle I.301+x in Duroplast.
Accessories on request
Axial retaining washer in AISI 303 stainless steel GN 184.5.
Special executions on request
Handwheels with incorporated balancing counterweights.
Handwheels with cross holes according to GN 110.
Ergonomy
The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.
