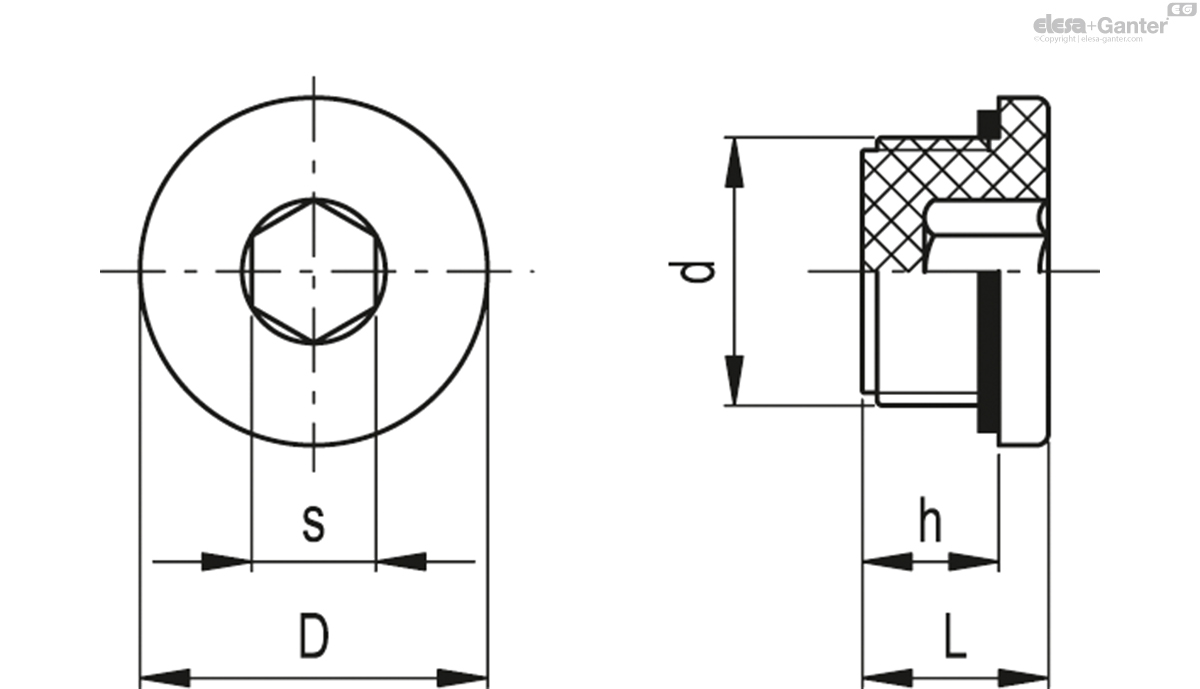

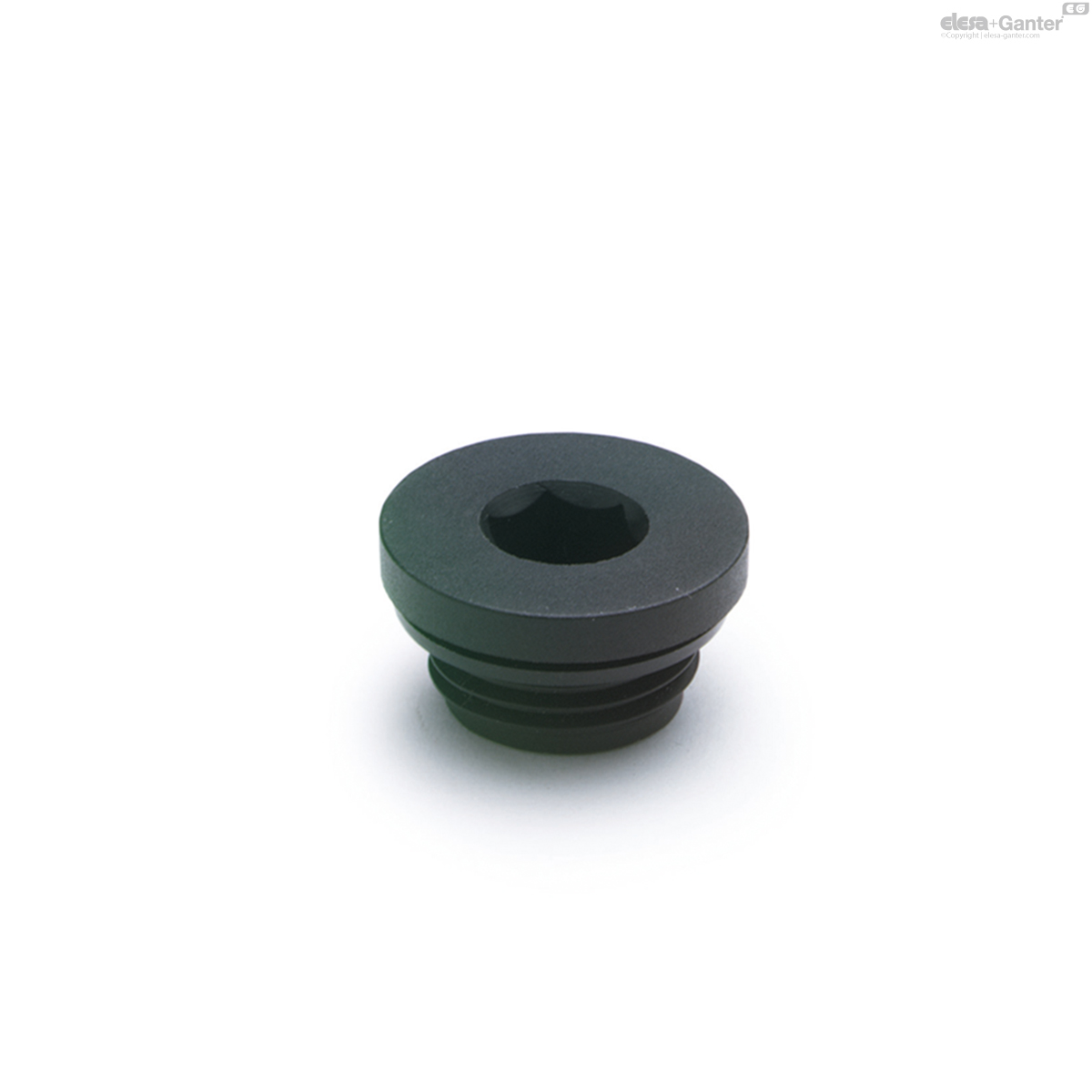

Technical datasheet
TCE.Doppen
Doppen
met binnenzeskant, technopolymeer tot 100 °C
|
Code
|
Omschrijving
|
s
|
D
|
d
|
h
|
L
|
Tightening torque
[Nm] |
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
161032
|
TCE.1/8
|
5
|
14
|
G 1/8
|
9
|
12
|
1
|
2
|
|
161033
|
TCE.1/4
|
6
|
18
|
G 1/4
|
9
|
12
|
3
|
3
|
|
161034
|
TCE.3/8
|
8
|
22
|
G 3/8
|
9
|
13
|
3÷5
|
5
|
|
161035
|
TCE.1/2
|
10
|
28
|
G 1/2
|
11
|
15
|
3÷4
|
8
|
|
161036
|
TCE.3/4
|
12
|
32
|
G 3/4
|
12
|
16.5
|
3÷5
|
13
|
|
161037
|
TCE.1
|
17
|
40
|
G 1
|
13
|
17.5
|
10÷15
|
19
|
|
161038
|
TCE.1¼
|
22
|
50
|
G 1¼
|
13
|
19
|
10÷15
|
30
|
|
161039
|
TCE.1½
|
24
|
55
|
G 1½
|
13
|
18.5
|
15÷18
|
37
|
|
161052
|
TCE.10x1.5
|
5
|
14
|
M10x1.5
|
9
|
12
|
1
|
2
|
|
161053
|
TCE.12x1.5
|
6
|
20
|
M12x1.5
|
9
|
12
|
3
|
3
|
|
161054
|
TCE.14x1.5
|
6
|
20
|
M14x1.5
|
9
|
12
|
3
|
3
|
|
161055
|
TCE.16x1.5
|
8
|
22
|
M16x1.5
|
9
|
13
|
3÷5
|
5
|
|
161056
|
TCE.18x1.5
|
10
|
28
|
M18x1.5
|
11
|
15
|
3÷4
|
7
|
|
161057
|
TCE.20x1.5
|
10
|
28
|
M20x1.5
|
11
|
15
|
3÷4
|
8
|
|
161058
|
TCE.22x1.5
|
12
|
32
|
M22x1.5
|
12
|
16.5
|
3÷5
|
10
|
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Packing ring
NBR synthetic rubber flat washer, or in FKM (such as VITON®)*.
Standard executions
- TCE.: with NBR packing ring.
- TCE-FKM: with FKM packing ring.
Suitable for use with fuels (such as diesel and high octane petrol), alcohols, and weak organic acids.
Maximum continuous working temperature
100°C.
Technical data
The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.
* Registered trademark by DuPont Dow Elastomers.
