Technical datasheet

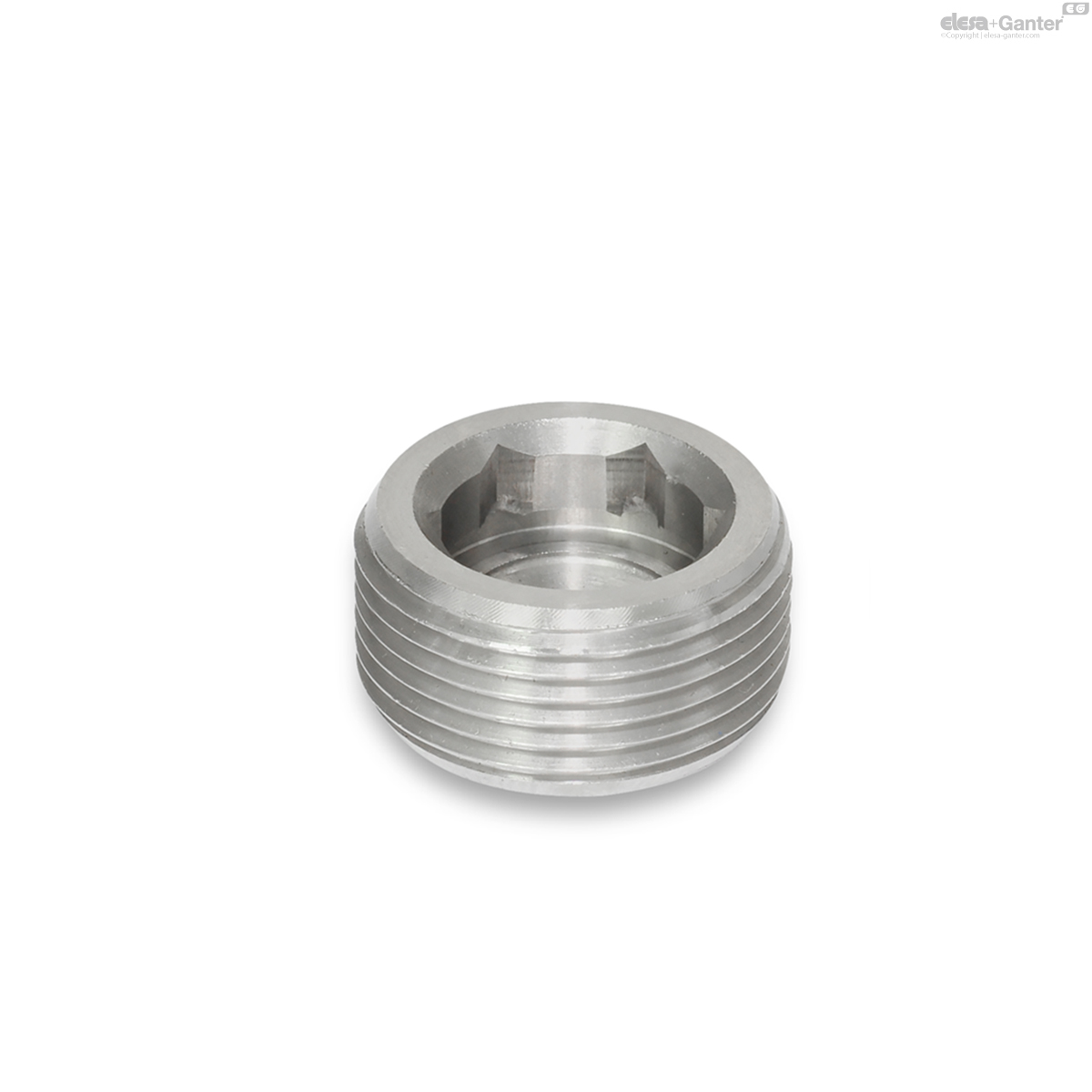

GN 252.5Roestvrijstalen afsluitpluggen
Roestvrijstalen afsluitpluggen
|

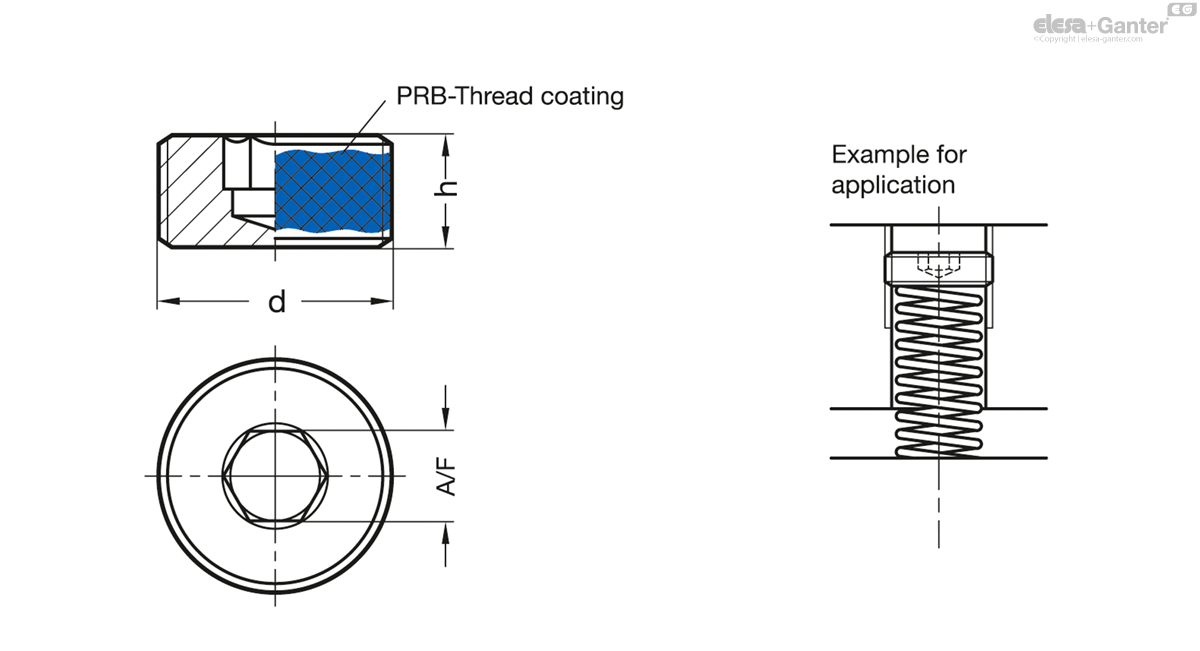

Code
|
d
|
h
|
A/F
|
|
|---|---|---|---|---|
|
|
|
|
|
|
|
GN 252.5-M12x1,5-A
|
M 12 x 1.5
|
10
|
6
|
5
|
|
GN 252.5-M16x1,5-A
|
M 16 x 1.5
|
10
|
8
|
10
|
|
GN 252.5-M20x1,5-A
|
M 20 x 1.5
|
12
|
10
|
20
|
|
GN 252.5-M24x1,5-A
|
M 24 x 1.5
|
12
|
14
|
26
|
|
GN 252.5-M27x1,5-A
|
M 27 x 1.5
|
12
|
14
|
36
|
|
GN 252.5-M12x1,5-PRB
|
M 12 x 1.5
|
10
|
6
|
5
|
|
GN 252.5-M16x1,5-PRB
|
M 16 x 1.5
|
10
|
8
|
10
|
|
GN 252.5-M20x1,5-PRB
|
M 20 x 1.5
|
12
|
10
|
20
|
|
GN 252.5-M24x1,5-PRB
|
M 24 x 1.5
|
12
|
14
|
26
|
|
GN 252.5-M27x1,5-PRB
|
M 27 x 1.5
|
12
|
14
|
36
|
Types
- Type A: without thread coating
- Type PRB: with thread coating (polyamide allround coating)
Stainless Steel AISI 303
The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
Gerelateerde producten
DIN 906-ST
Schroefdraaddoppen
Staal / roestvrij staal, met conische draad

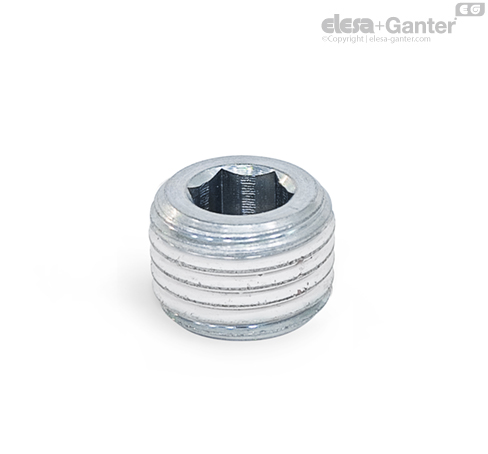

DIN 908-ST
Schroefdraaddoppen
Staal, verzinkt

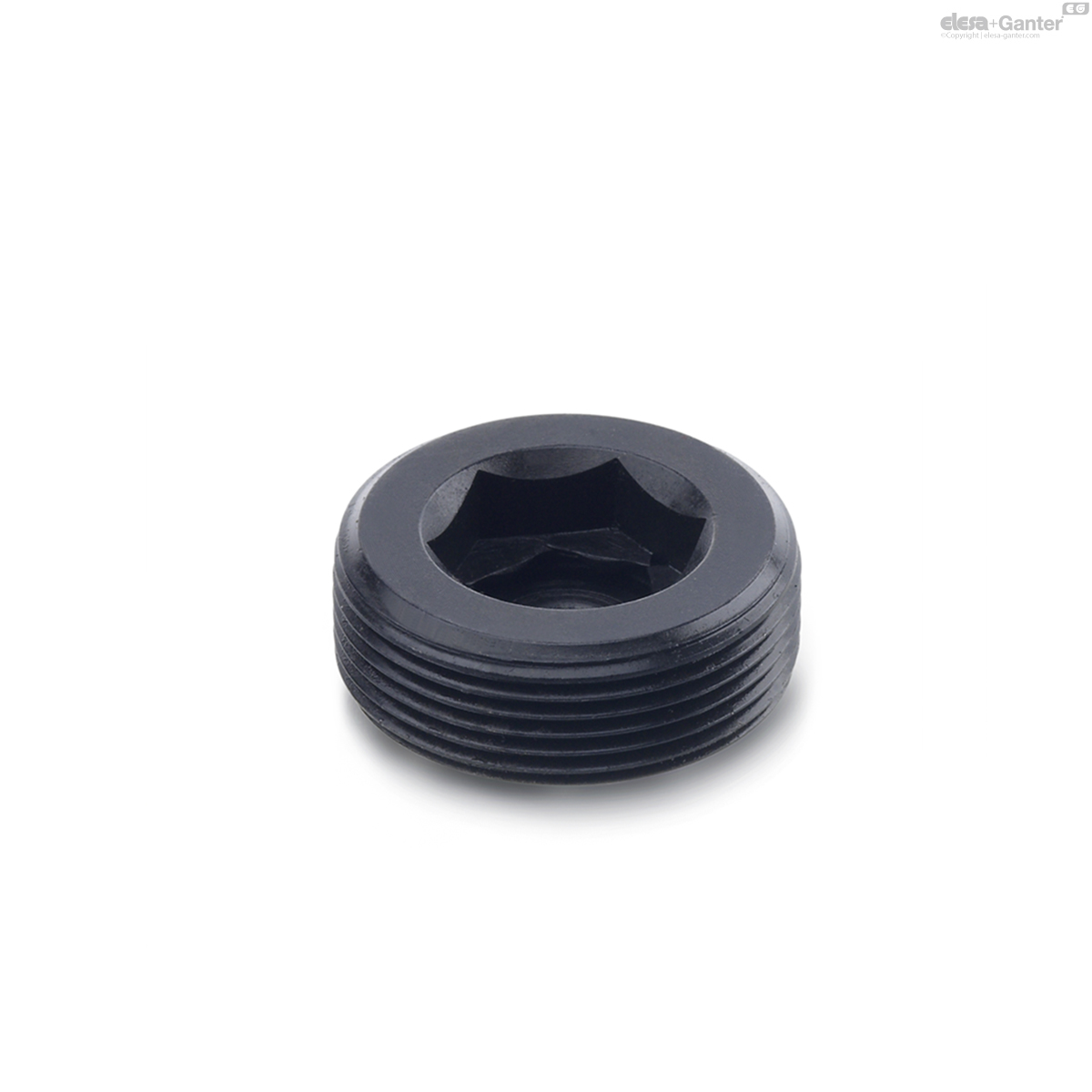

GN 252
Afsluitpluggen

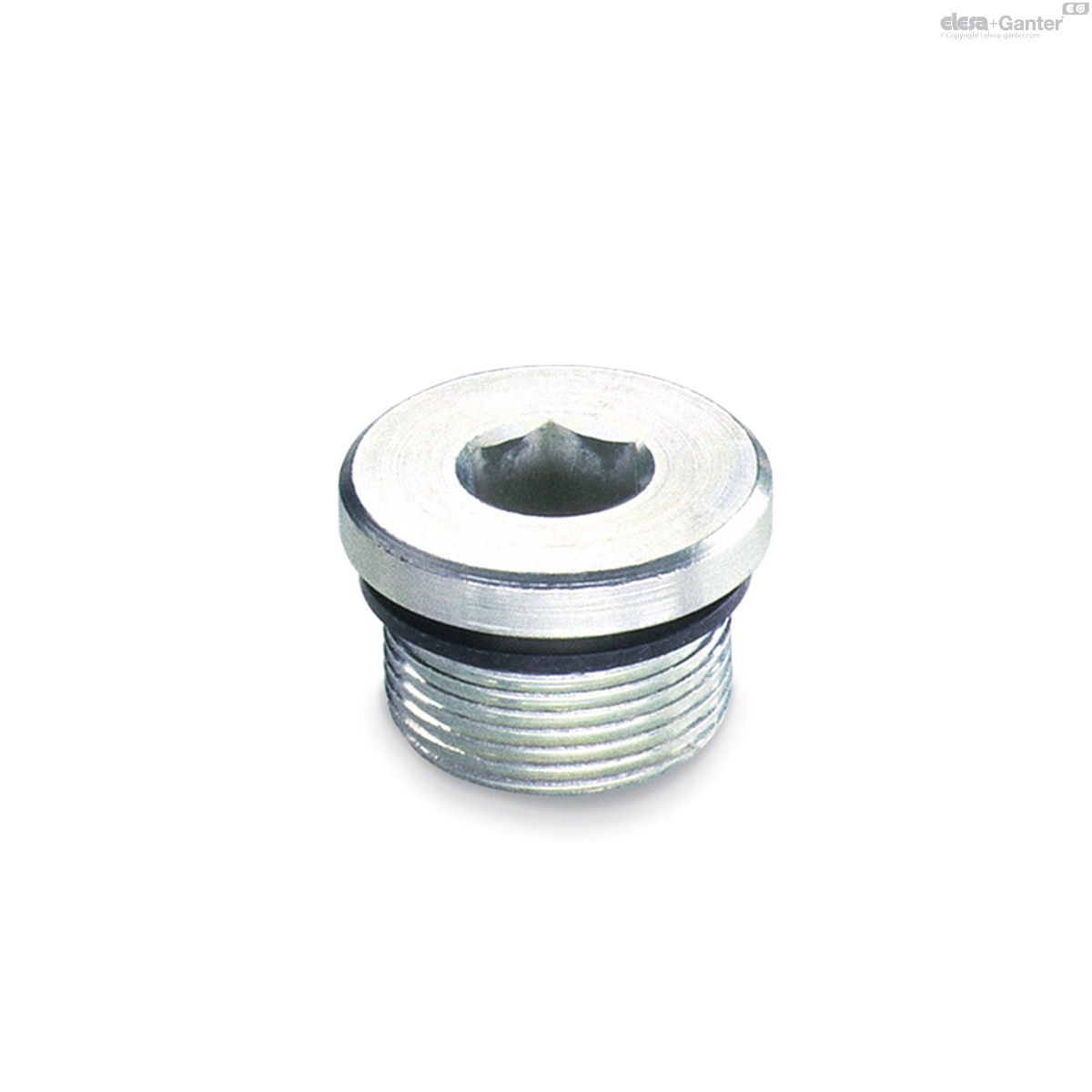

GN 749
