SFX+aOntluchtingsdoppen

Zonder luchtfilter

met spatscherm, externe schijf tegen spatten en peilstok, technopolymeer

Technical datasheet

SFX+a

Zonder luchtfilter

SFX+P+F+a

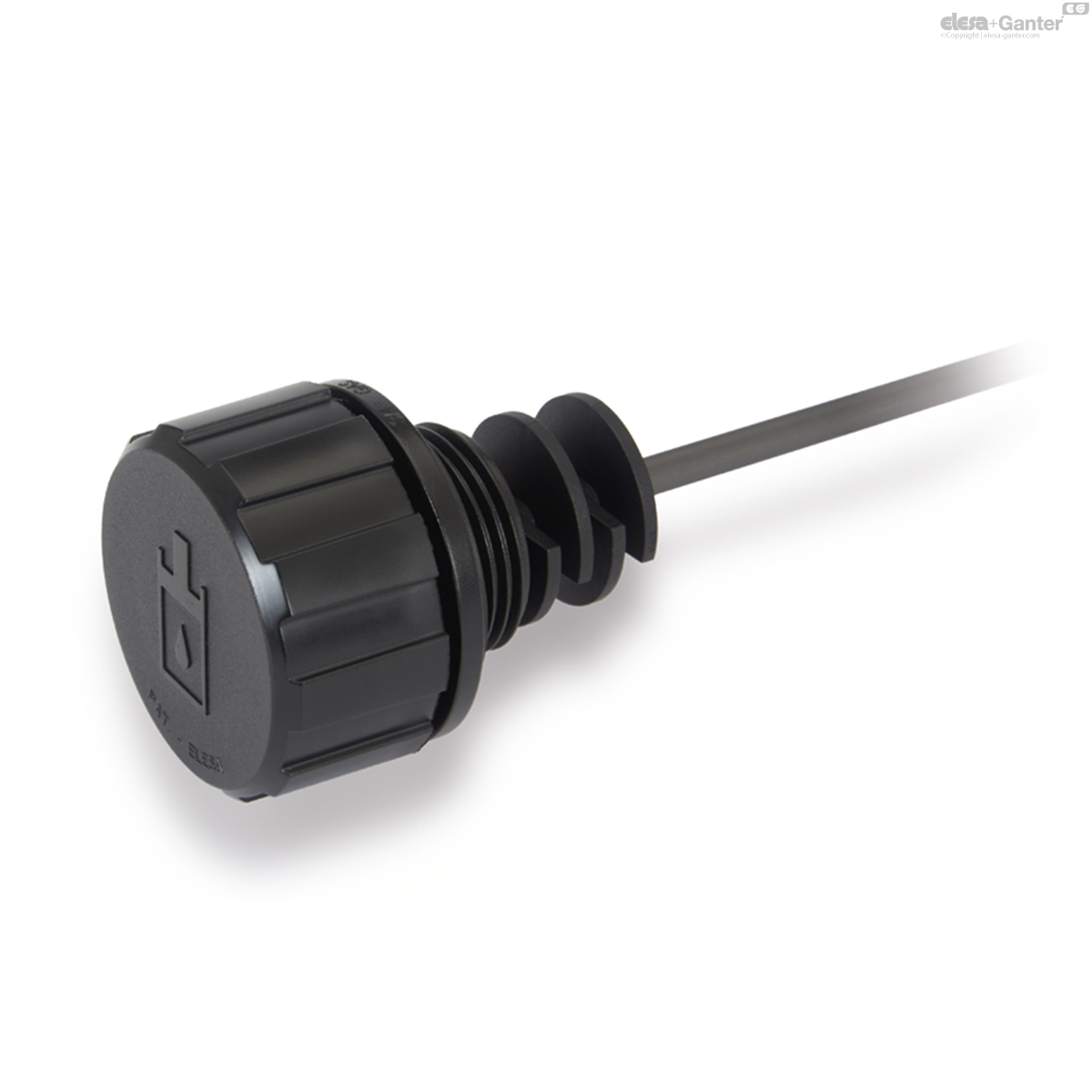

Met schijf tegen spatten en luchtfilter

SFX+P+a

Met schijf tegen spatten, zonder luchtfilter

SFX+F+a

Met luchtfilter

SFX+a

Reset

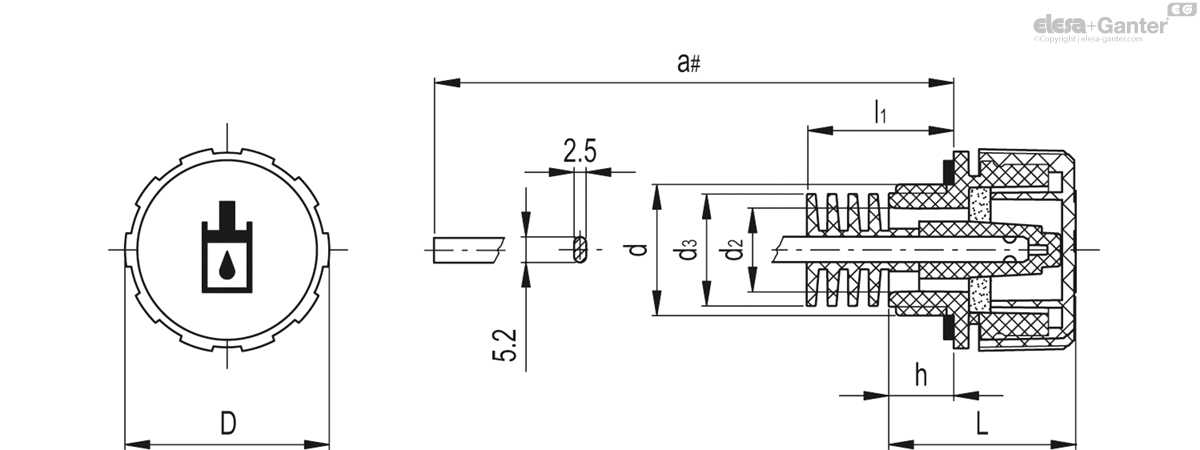

Code	Omschrijving	D	d	a#	L	d₂	h

53362	SFX.30-1/4+a	31	G1/4	188	29.5	8	9.5	26
53402	SFX.30-3/8+a	31	G3/8	188	29.5	10	9.5	26
53442	SFX.30-1/2+a	31	G1/2	188	29.5	12	9.5	26
53482	SFX.40-3/8+a	31	G3/8	184	29.5	10	11.5	35
53522	SFX.40-1/2+a	42	G1/2	184	36.5	12	11.5	35
53562	SFX.40-3/4+a	42	G3/4	184	36.5	17	11.5	35
53602	SFX.40-1+a	57	G1	184	42	23	11.5	35
53642	SFX.57-3/4+a	57	G3/4	184	42	18	14	49
53682	SFX.57-1+a	57	G1	184	42	23	14	49
53722	SFX.57-1¼+a	57	G1 1/4	184	44	32	16	49
53762	SFX.57-1½+a	57	G1 1/2	184	44	38	16	49
53006	SFX.30-M16x1.5+a	31	M16x1.5	188	29.5	10	9.5	26
53026	SFX.30-M18x1.5+a	31	M18x1.5	188	29.5	10	9.5	26
53046	SFX.30-M20x1.5+a	31	M20x1.5	188	29.5	12	9.5	26
53066	SFX.30-M22x1.5+a	31	M22x1.5	188	29.5	12	9.5	26
53086	SFX.40-M24x1.5+a	42	M24x1.5	184	36.5	18	11.5	35
53106	SFX.40-M26x1.5+a	42	M26x1.5	184	36.5	18	11.5	35
53126	SFX.57-M30x1.5+a	57	M30x1.5	184	42	23	14	49

# Types available on request with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20).

Material

Polyamide based (PA) technopolymer.

Cap: semi-matte finish, black colour, with “fill” symbol.

Threaded connector and external anti-splash semi-discs, black colour.

Packing rings

NBR synthetic rubber.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Standard executions

SFX+a: with splash guard, without air filter.

SFX+F+a: with splash guard, 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

SFX+P+a: with anti-splash semi-discs, without air filter.

SFX+P+F+a: with anti-splash semi-discs and “tech-foam” air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

Maximum continuous working temperature

100°C.

Features and applications

The SFX+a breather caps are made with a special internal geometry (Elesa patent) that prevents the leakage of fluids through a linear labyrinth (splash guard effect) and promotes condensation of the outgoing vapours.

The external snap-on anti-splash discs (execution+P) located at the mouth of the threaded fitting hole, are made up of fins offset from each other so as to constitute an additional labyrinth in the most critical cases of strong fluid projections.

Technical data

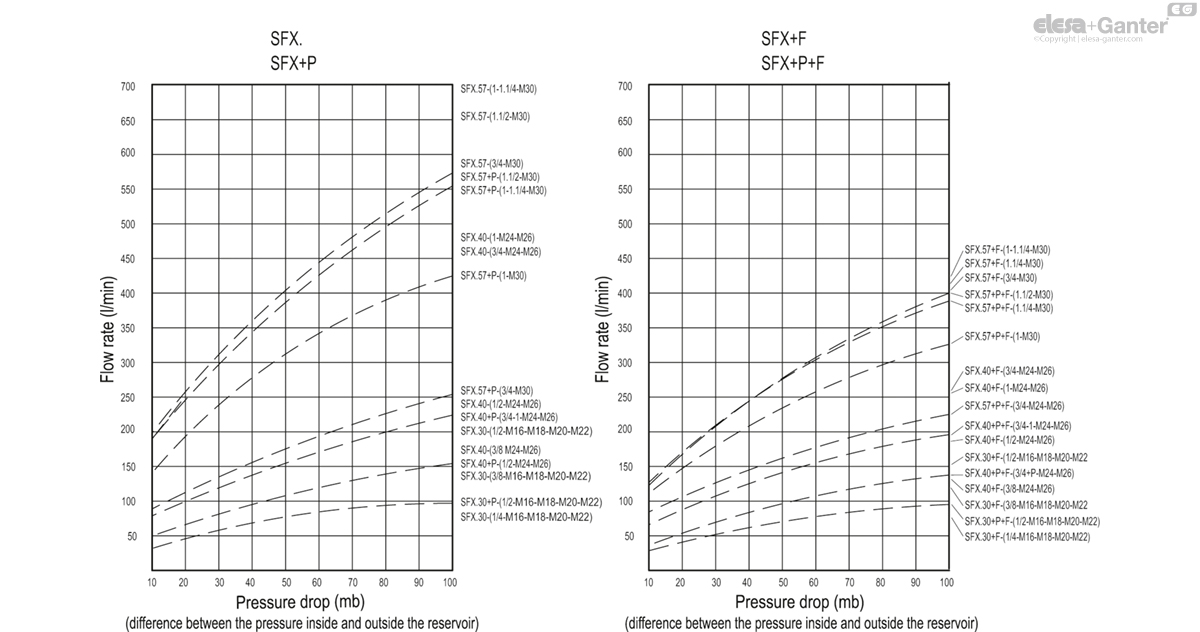

Air flow rate for each model can be determined from the graph here below by calculating the difference between the pressure inside and outside the reservoir.
