Technical datasheet
SFP+F+aOntluchtingsdoppen

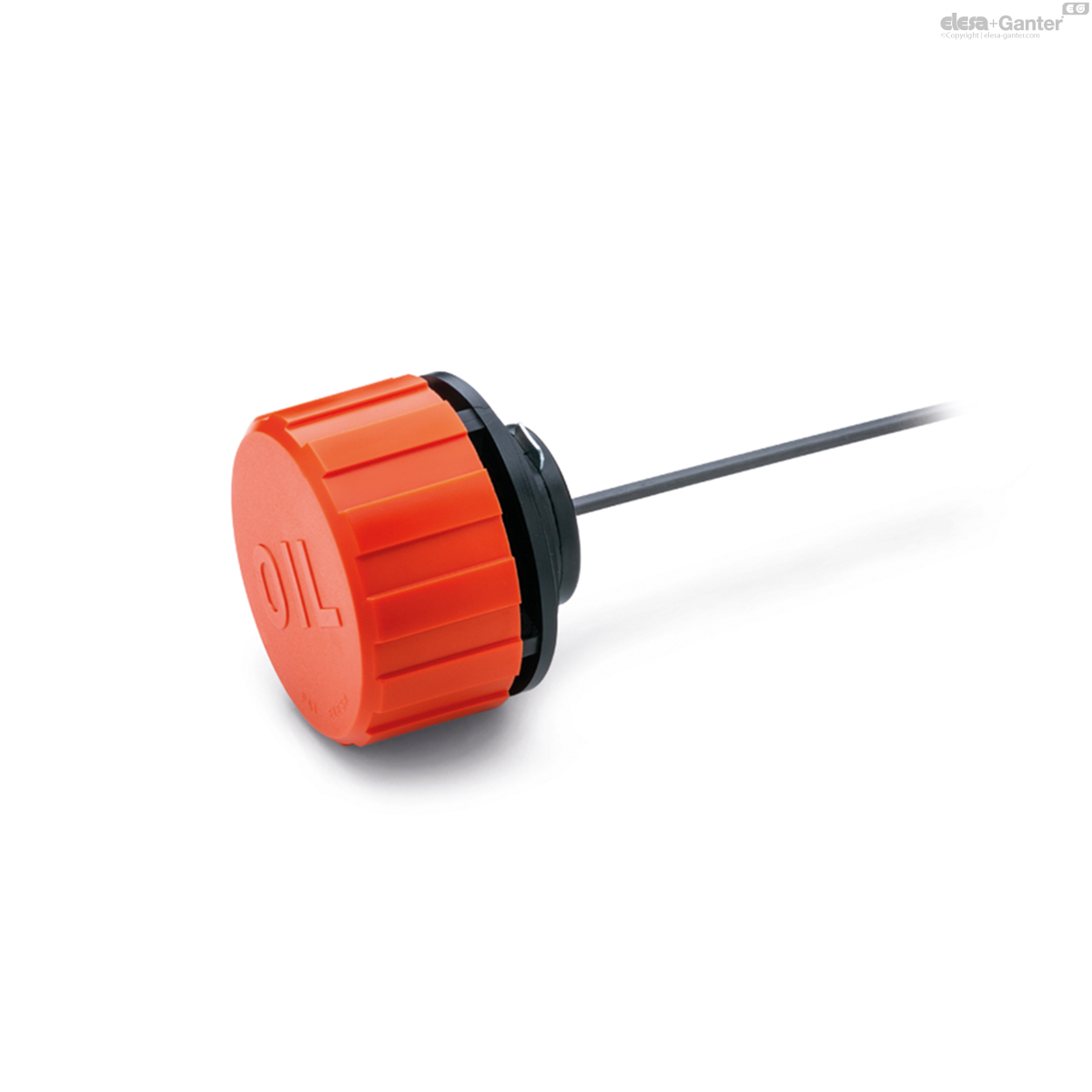

Met luchtfilter, ‘OIL’-markering
met spatscherm en platte peilstok, technopolymeer
|

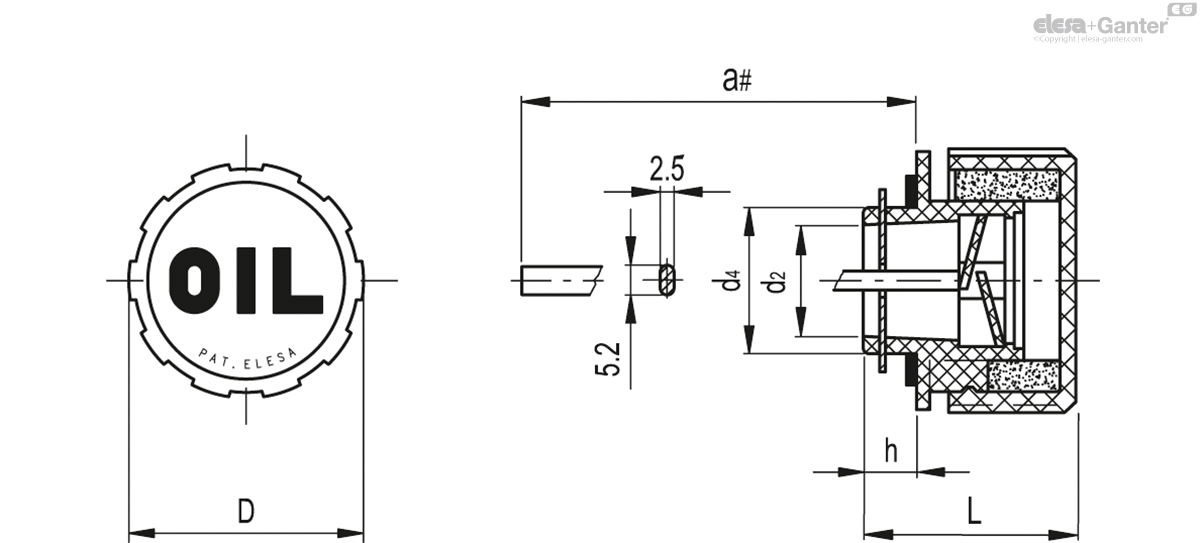

Code
|
Omschrijving
|
d
|
D
|
L
|
d2
|
d3
|
h
|
h1
|
a
|
|
a#
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
54156-C9
|
SFP.30-12x1.5+F FIL+a-C9
|
M12x1.5
|
31
|
29.5
|
6
|
-
|
9.5
|
-
|
|
34
|
188
|
|
54176-C9
|
SFP.30-14x1.5+F FIL+a-C9
|
M14x1.5
|
31
|
29.5
|
8
|
-
|
9.5
|
-
|
|
34
|
188
|
|
53956-C9
|
SFP.30-16x1.5+F+a-C9
|
M16x1.5
|
31
|
29.5
|
10
|
-
|
9.5
|
-
|
|
34
|
188
|
|
53976-C9
|
SFP.30-18x1.5+F+a-C9
|
M18x1.5
|
31
|
29.5
|
10
|
-
|
9.5
|
-
|
|
39
|
188
|
|
53989-C9
|
SFP.30-20x1.5+F+a-C9
|
M20x1.5
|
31
|
29.5
|
12
|
-
|
9.5
|
-
|
|
38
|
188
|
|
53999-C9
|
SFP.30-22x1.5+F+a-C9
|
M22x1.5
|
31
|
29.5
|
12
|
-
|
9.5
|
-
|
|
40
|
188
|
|
53939-C9
|
SFP.30-1/4+F+a-C9
|
G1/4
|
31
|
29.5
|
8
|
-
|
9.5
|
-
|
|
38
|
188
|
|
54031-C9
|
SFP.30-3/8+F+a-C9
|
G3/8
|
31
|
29.5
|
10
|
-
|
9.5
|
-
|
|
38
|
188
|
|
54131-C9
|
SFP.30-1/2+F+a-C9
|
G1/2
|
31
|
29.5
|
12
|
-
|
9.5
|
-
|
|
39
|
188
|
|
54231-C9
|
SFP.40-3/4+F+a-C9
|
G3/4
|
42
|
36.5
|
18
|
-
|
11.5
|
-
|
|
55
|
184
|
|
54331-C9
|
SFP.40-1+F+a-C9
|
G1
|
42
|
36.5
|
18
|
-
|
11.5
|
-
|
|
54
|
184
|
|
54431-C9
|
SFP.57-1¼+F+a-C9
|
G1 1/4
|
57
|
44
|
28
|
-
|
16
|
-
|
|
74
|
184
|
|
54531-C9
|
SFP.57-1½+F+a-C9
|
G1 1/2
|
57
|
44
|
28
|
-
|
16
|
-
|
|
79
|
184
|
|
54853-C9
|
SFP.70-3/4+F+a-C9
|
G3/4
|
70
|
63
|
16
|
35
|
15
|
6
|
|
107
|
173
|
|
54863-C9
|
SFP.70-1¼+F+a-C9
|
G1 1/4
|
70
|
59
|
23
|
-
|
17
|
-
|
|
105
|
179
|
|
54879-C9
|
SFP.70-2+F+a-C9
|
G2
|
70
|
59
|
23
|
-
|
17
|
-
|
|
106
|
179
|
Cover
Polyamide based (PA) technopolymer, semi-matte finish.
- SFP+a.: RAL 2004 orange, marked 'OIL'.
- SFP+a.....-C9: RAL 9005 black colour, marked 'OIL'.
- SFP+a.....-C2-N: RAL 2004 orange, without 'OIL' mark.
- SFP+a.....-C9-N: RAL 9005 black colour, without 'OIL' mark.
Threaded fitting
Polyamide based (PA) technopolymer, black colour, semi-matte finish.
Packing ring
NBR synthetic rubber.
Flat dipstick
Flat section phosphatised steel.
On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.
Splash guard
Technopolymer.
Standard executions
- SFP+a: without air filter (black splash guard).
- SFP+F+a: D = 31, 42 and 57 with 'tech-fil' air filter in zinc-plated steel wire (orange splash guard); D = 70 with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).
- SFP-BA+F+a: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).
Zinc-plated steel sheet bayonet.
Maximum continuous working temperature
100°C.
Features and applications

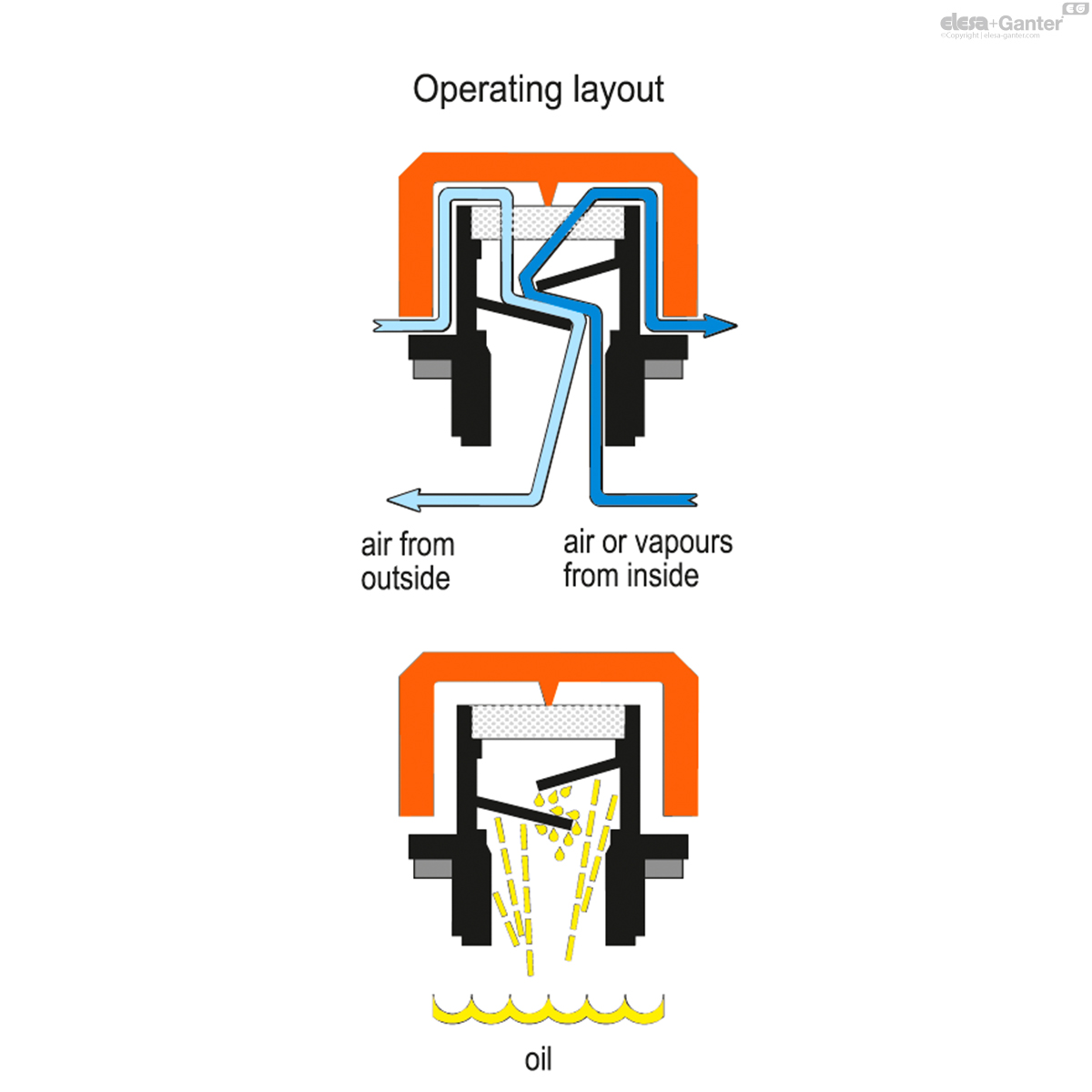

SFP+a breather caps come complete with splash guard device (ELESA originale design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against the breather cap.
Technical data

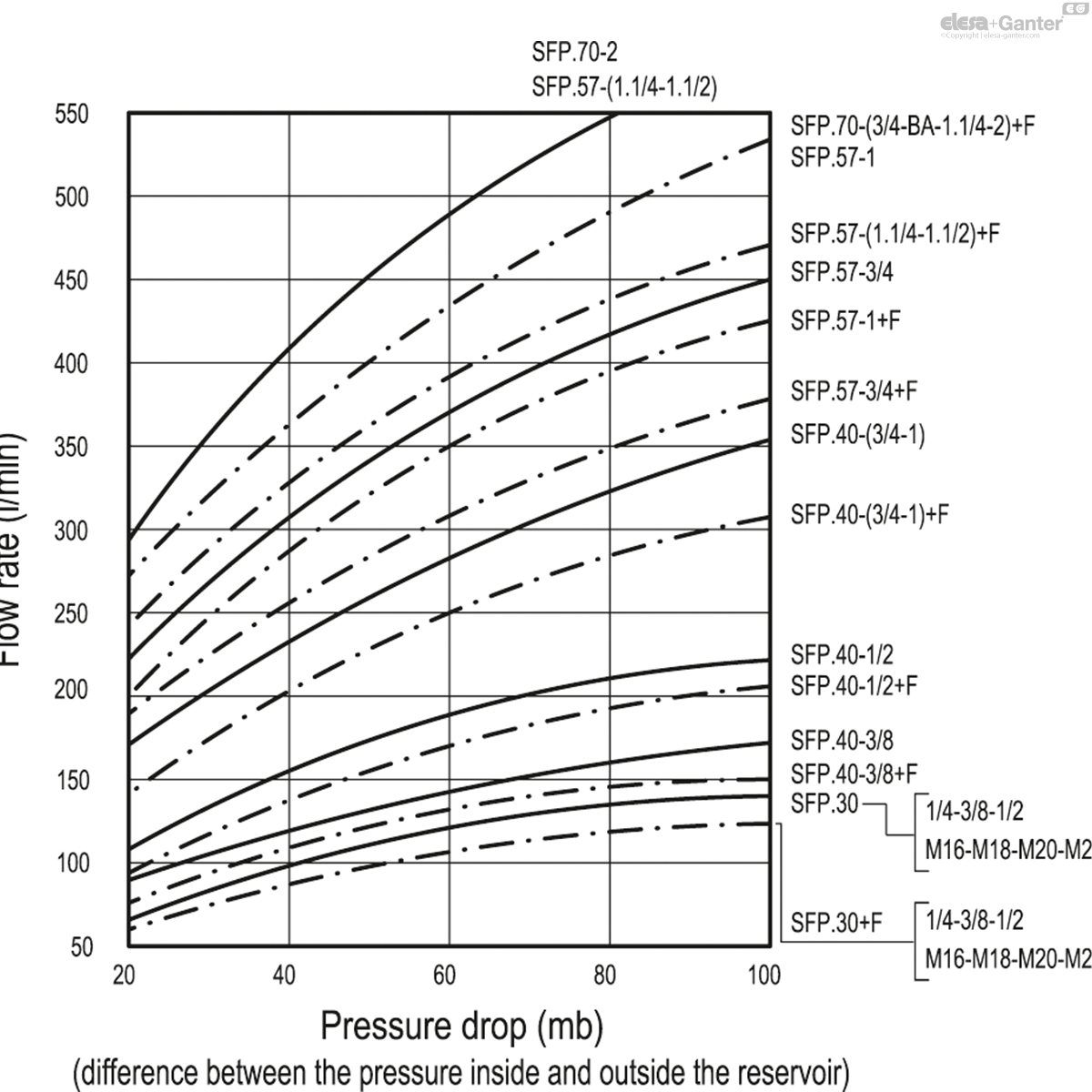

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.
Special execution on request
Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.
