GN 240.1Snelkoppelingen

Snelkoppelingen

met radiale offset-compensatie

  • Icons/__logo__RoHS__.png
Snelkoppelingen
Snelkoppelingen

GN 240.1

Reset

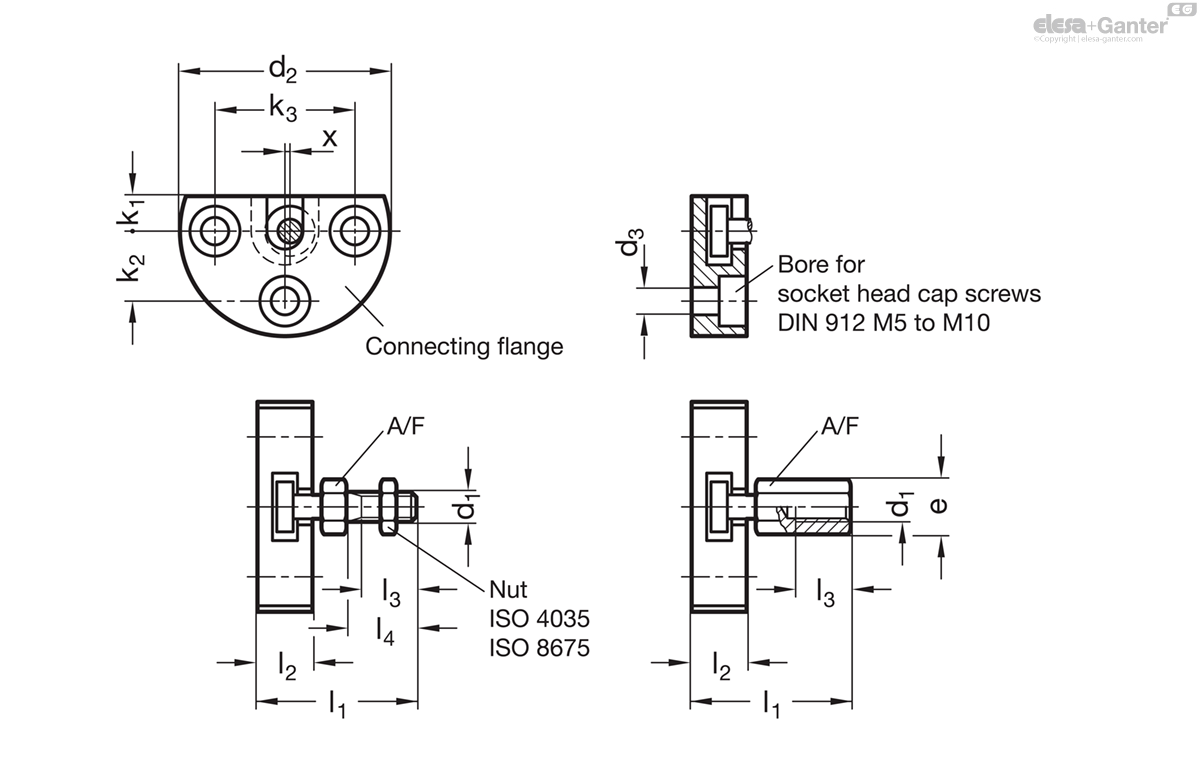

Code
d1
d2
x
Max. shaft
off set
d3
e ≈
k1
k2
k3
l1 ≈
l2
l3 min.
l4
GN 240.1-M6-A
M6
42
0.6
5.5
-
7
14
28
30.5
11
11
14
GN 240.1-M8-A
M8
48
0.7
6.5
-
8
16
32
35.5
13
13.5
17
GN 240.1-M10-A
M10
50
0.7
6.5
-
9
17
34
43
16
16
20
GN 240.1-M10x1,25-A
M10x1.25
50
0.7
6.5
-
9
17
34
43
16
16
20
GN 240.1-M12-A
M12
55
0.8
6.5
-
10
19
38
53
20.5
21
25
GN 240.1-M12x1,25-A
M12x1.25
55
0.8
6.5
-
10
19
38
53
20.5
21
25
GN 240.1-M16-A
M16
65
1
9
-
12.5
22.5
45
64
23
25
30
GN 240.1-M16x1,5-A
M16x1.5
65
1
9
-
12.5
22.5
45
64
23
25
30
GN 240.1-M20-A
M20
80
1
11
-
17
28
56
74
26
29
35
GN 240.1-M20x1,5-A
M20x1.5
80
1
11
-
17
28
56
74
26
29
35
GN 240.1-M6-B
M6
42
0.6
5.5
11
7
14
28
30.5
11
11
-
GN 240.1-M8-B
M8
48
0.7
6.5
14.5
8
16
32
35.5
13
13.5
-
GN 240.1-M10-B
M10
50
0.7
6.5
19
9
17
34
43
16
15
-
GN 240.1-M10x1,25-B
M10x1.25
50
0.7
6.5
19
9
17
34
43
16
15
-
GN 240.1-M12-B
M12
55
0.8
6.5
21
10
19
38
53
20.5
17.5
-
GN 240.1-M12x1,25-B
M12x1.25
55
0.8
6.5
21
10
19
38
53
20.5
17.5
-
GN 240.1-M16-B
M16
65
1
9
27
12.5
22.5
45
64
23
22
-
GN 240.1-M16x1,5-B
M16x1.5
65
1
9
27
12.5
22.5
45
64
23
22
-
GN 240.1-M20-B
M20
80
1
11
34
17
28
56
74
26
25
-
GN 240.1-M20x1,5-B
M20x1.5
80
1
11
34
17
28
56
74
26
25
-

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
