Technical datasheet
GN 951.1Vierkante U-bouten
Staal
Staal/roestvrij staal, voor GN 851 / GN 851.1 / GN 851.2 / GN 851.3 snelspanklemmen

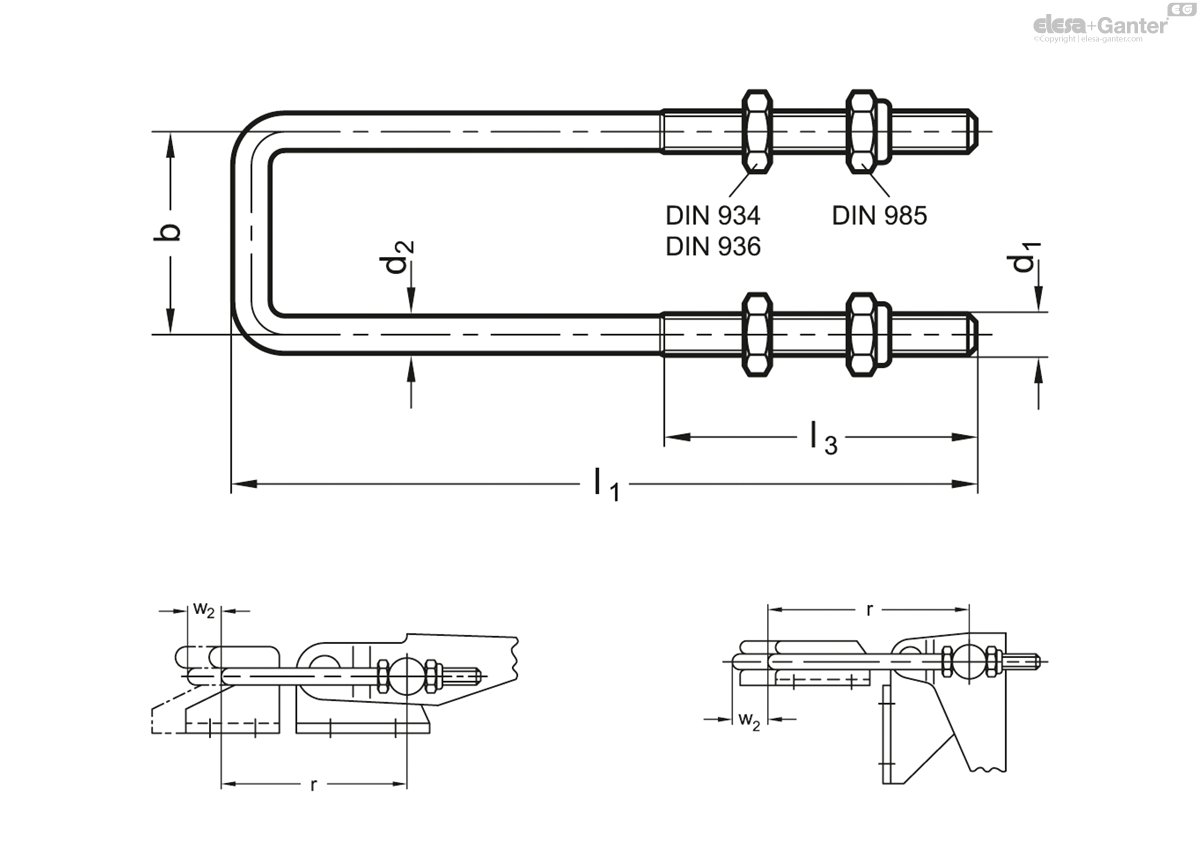

GN 951.1
|
Code
|
GN 852 r at w2 =0
|
GN 851 w2
|
Size GN 851.1 / GN 851.2
|
d1
|
b
|
l1
|
d2
|
l3
|
Size GN 851 / GN 851.3
|
GN 851 r at w2 =0
|
w2
|
GN 851.3 r at w2 =0
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35
|
11
|
-
|
M 4
|
21
|
56**
|
3.4
|
27.5
|
160
|
35
|
11
|
35
| ||
|
48
|
12
|
160
|
M 4
|
21
|
70***
|
3.4
|
28.5
|
160
|
48
|
12
|
48
| ||
|
80
|
14
|
160
|
M 4
|
21
|
103
|
3.4
|
30
|
160
|
80
|
14
|
80
| ||
|
125
|
19
|
160
|
M 4
|
21
|
153
|
3.4
|
35
|
160
|
125
|
19
|
125
| ||
|
175
|
19
|
160
|
M 4
|
21
|
203
|
3.4
|
35
|
160
|
175
|
19
|
175
| ||
|
57
|
10
|
-
|
M 6
|
32
|
78**
|
5.2
|
33
|
320
|
57
|
10
|
54
| ||
|
75
|
24
|
320
|
M 6
|
32
|
110***
|
5.2
|
44
|
320
|
75
|
24
|
75
| ||
|
94
|
25
|
320
|
M 6
|
32
|
130
|
5.2
|
45
|
320
|
94
|
25
|
94
| ||
|
119
|
25
|
320
|
M 6
|
32
|
155
|
5.2
|
45
|
320
|
119
|
25
|
119
| ||
|
169
|
25
|
320
|
M 6
|
32
|
205
|
5.2
|
45
|
320
|
169
|
25
|
169
| ||
|
74
|
22
|
-
|
M 8
|
38
|
111**
|
7.2
|
52
|
700
|
74
|
22
|
70
| ||
|
78
|
34
|
-
|
M 8
|
38
|
127
|
7.2
|
60
|
700
|
78
|
34
|
78
| ||
|
102
|
30
|
700
|
M 8
|
38
|
143***
|
7.2
|
56
|
700
|
102
|
30
|
98
| ||
|
108
|
34
|
700
|
M 8
|
38
|
157
|
7.2
|
60
|
700
|
108
|
34
|
108
| ||
|
158
|
34
|
700
|
M 8
|
38
|
207
|
7.2
|
60
|
700
|
158
|
34
|
158
|
** These U-bolt latch lengths are included in the delivery of standard orders for GN 851 / GN 851.3.*** These U-bolt latch lengths are included in the delivery of standard orders for GN 851.1 / GN 851.2.

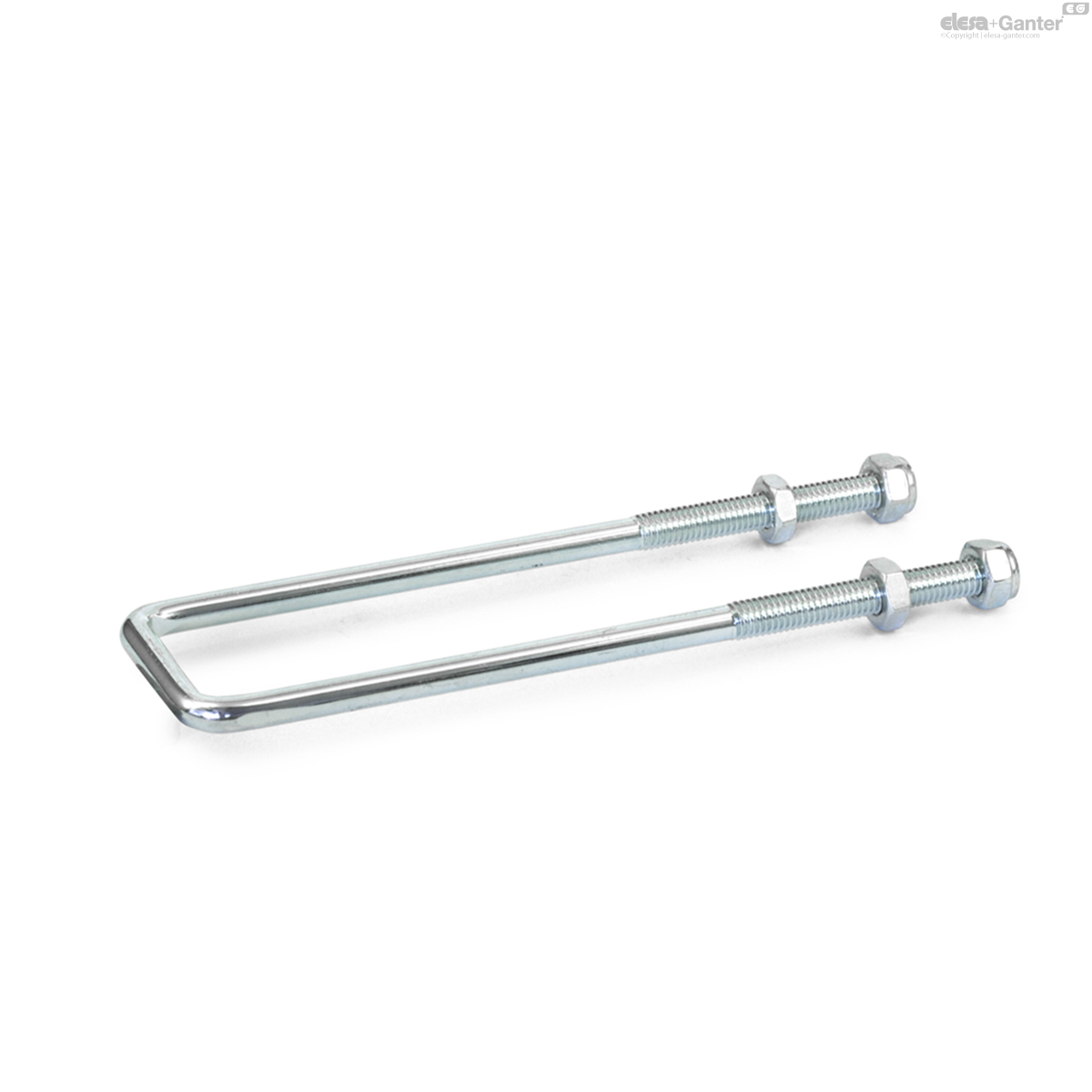

Version in Steel ST
zinc plated, blue passivated

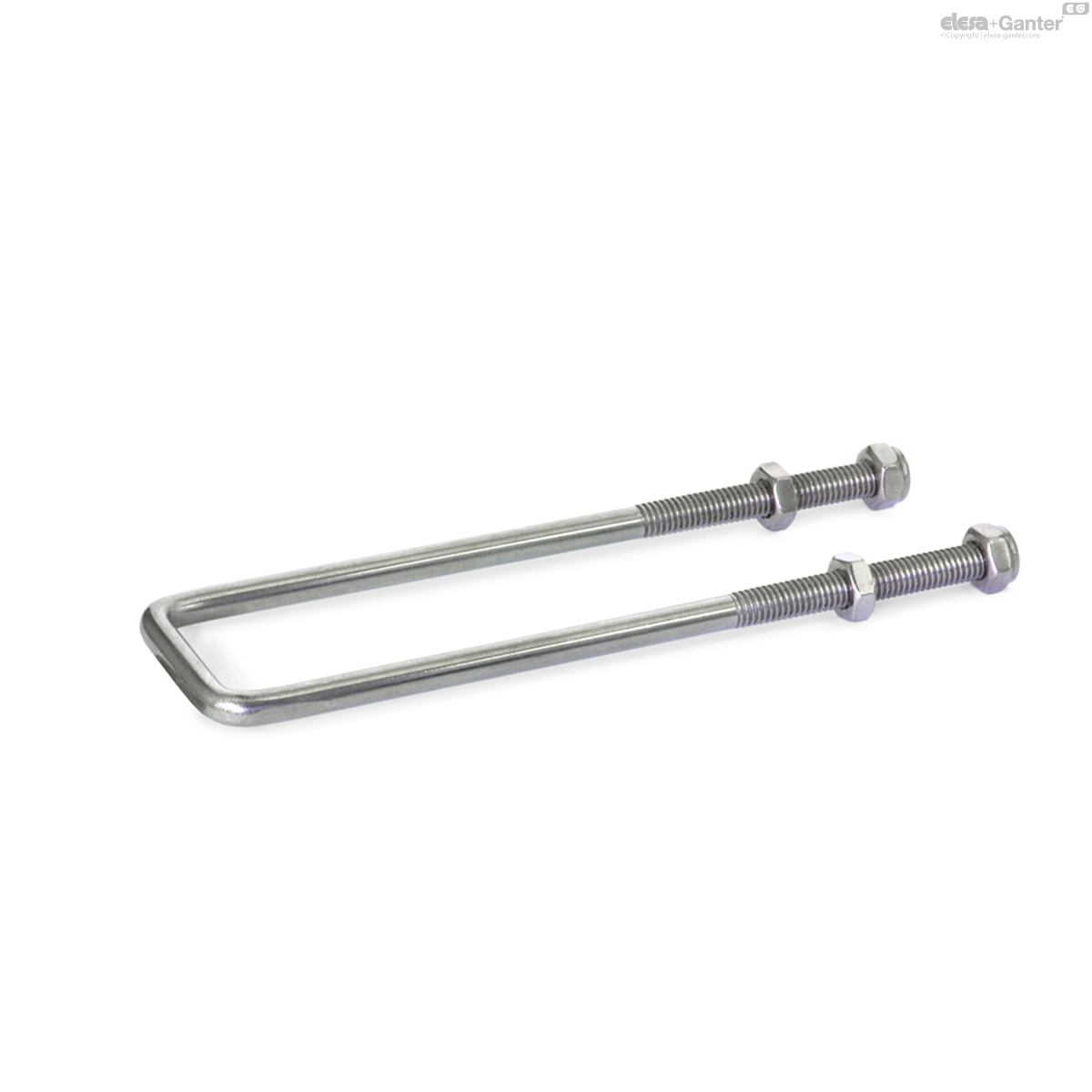

Version in Stainless Steel AISI 304 NI
Hexagon nuts (with polyamide insert)
M4: DIN 934 / DIN 985
M6 / M8: DIN 936 / DIN 985
Steel, zinc plated, resp. Stainless Steel
- Stainless Steel AISI 316 A4
