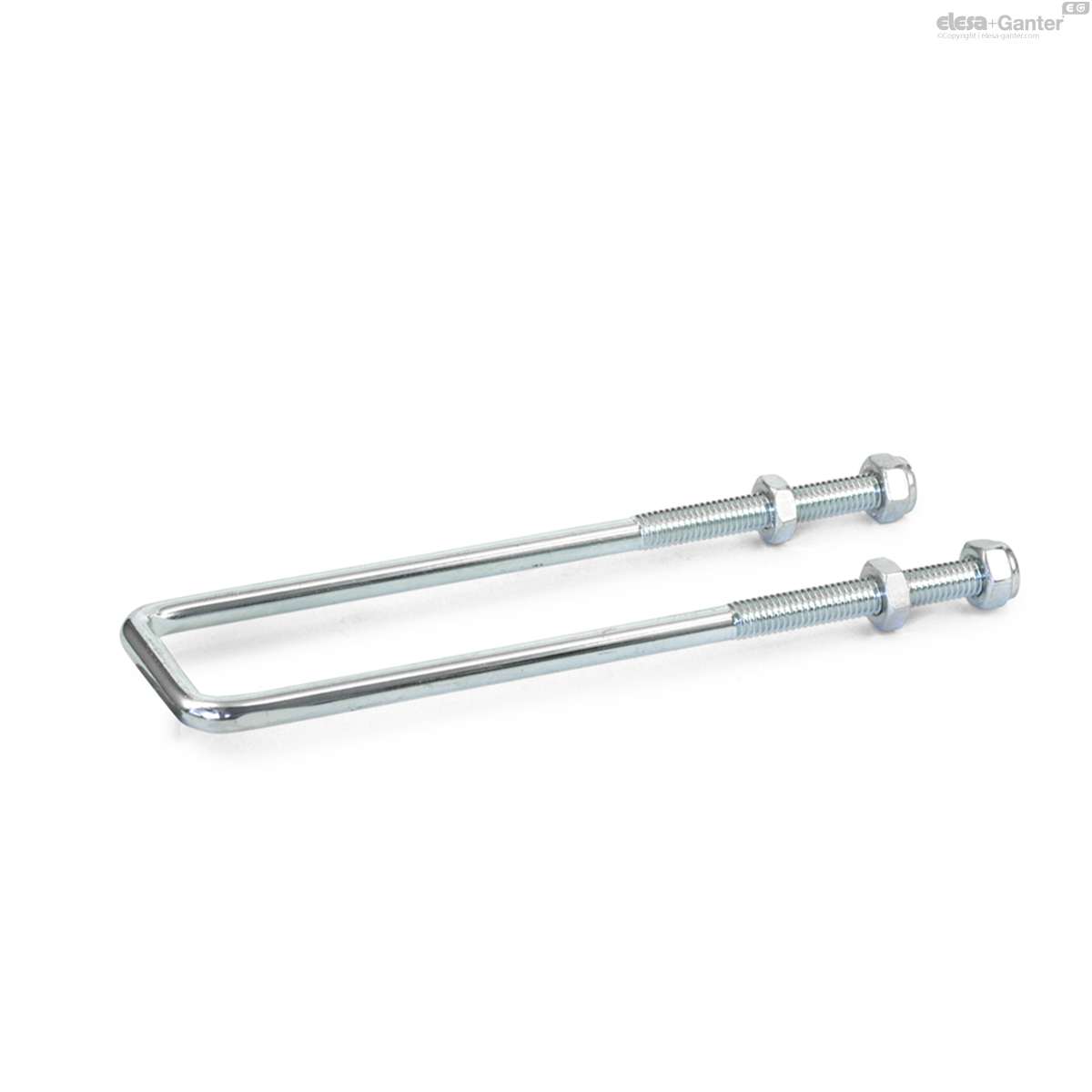

951.1-M6-32-155-ST GN 951.1 Staal

951.1-M6-32-155-ST

GN 951.1 Staal

Staal/roestvrij staal, voor GN 851 / GN 851.1 / GN 851.2 / GN 851.3 snelspanklemmen
Alle maten en varianten
  • INOX
  • RoHS
  • SPEEDYBLOCK

Verwachte levertermijn 5-7 werkdagen

Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 951.1-M6-32-155-ST
GN 852 r at w2 =0
119
GN 851 w2
25
Size GN 851.1 / GN 851.2
320
d1
M 6
b
32
l1
155
d2
5.2
l3
45
Size GN 851 / GN 851.3
320
GN 851 r at w2 =0
119
w2
25
GN 851.3 r at w2 =0
119
GN 851.3 w2
25
GN 851.1 / GN 851.2 r at w2 =0
119
GN 852.1 r at w2=0
119
GN 851.1 / GN 851.2 w2
25
weight
63
951.1-M6-32-155-ST drawing
** These U-bolt latch lengths are included in the delivery of standard orders for GN 851 / GN 851.3.*** These U-bolt latch lengths are included in the delivery of standard orders for GN 851.1 / GN 851.2.

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel AISI 304 NI

Hexagon nuts (with polyamide insert)

M4: DIN 934 / DIN 985

M6 / M8: DIN 936 / DIN 985

Steel, zinc plated, resp. Stainless Steel

  • Stainless Steel AISI 316 A4
