Technical datasheet
DIN 6336-GGStergrepen
Gietijzer
Gietijzer/roestvast/aluminium
|
Code
|
d1
|
d2
|
d3 H7
|
d4
|
h1
|
h2 min.
|
h3
|
h4 min.
|
t1
|
t2
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 6336-GG-32-A
|
32
|
-
|
-
|
12
|
-
|
-
|
21
|
10
|
-
|
-
|
53
|
|
DIN 6336-GG-40-A
|
40
|
-
|
-
|
14
|
-
|
-
|
26
|
13
|
-
|
-
|
79
|
|
DIN 6336-GG-50-A
|
50
|
-
|
-
|
18
|
-
|
-
|
34
|
17
|
-
|
-
|
161
|
|
DIN 6336-GG-63-A
|
63
|
-
|
-
|
20
|
-
|
-
|
42
|
21
|
-
|
-
|
281
|
|
DIN 6336-GG-80-A
|
80
|
-
|
-
|
25
|
-
|
-
|
52
|
25
|
-
|
-
|
580
|
|
DIN 6336-GG-32-B6-B
|
32
|
-
|
B 6
|
12
|
20
|
9
|
-
|
-
|
-
|
-
|
42
|
|
DIN 6336-GG-40-B8-B
|
40
|
-
|
B 8
|
14
|
25
|
12
|
-
|
-
|
-
|
-
|
69
|
|
DIN 6336-GG-50-B8-B
|
50
|
-
|
B 8
|
18
|
32
|
15
|
-
|
-
|
-
|
-
|
150
|
|
DIN 6336-GG-50-B10-B
|
50
|
-
|
B 10
|
18
|
32
|
15
|
-
|
-
|
-
|
-
|
120
|
|
DIN 6336-GG-63-B10-B
|
63
|
-
|
B 10
|
20
|
40
|
19
|
-
|
-
|
-
|
-
|
249
|
|
DIN 6336-GG-63-B12-B
|
63
|
-
|
B 12
|
20
|
40
|
19
|
-
|
-
|
-
|
-
|
250
|
|
DIN 6336-GG-80-B12-B
|
80
|
-
|
B 12
|
25
|
50
|
23
|
-
|
-
|
-
|
-
|
546
|
|
DIN 6336-GG-80-B16-B
|
80
|
-
|
B 16
|
25
|
50
|
23
|
-
|
-
|
-
|
-
|
500
|
|
DIN 6336-GG-32-B6-C
|
32
|
-
|
B 6
|
12
|
20
|
9
|
-
|
-
|
12
|
-
|
51
|
|
DIN 6336-GG-40-B8-C
|
40
|
-
|
B 8
|
14
|
25
|
12
|
-
|
-
|
15
|
-
|
67
|
|
DIN 6336-GG-50-B8-C
|
50
|
-
|
B 8
|
18
|
32
|
15
|
-
|
-
|
18
|
-
|
133
|
|
DIN 6336-GG-50-B10-C
|
50
|
-
|
B 10
|
18
|
32
|
15
|
-
|
-
|
18
|
-
|
150
|
|
DIN 6336-GG-63-B10-C
|
63
|
-
|
B 10
|
20
|
40
|
19
|
-
|
-
|
22
|
-
|
256
|
|
DIN 6336-GG-63-B12-C
|
63
|
-
|
B 12
|
20
|
40
|
19
|
-
|
-
|
22
|
-
|
260
|
|
DIN 6336-GG-80-B12-C
|
80
|
-
|
B 12
|
25
|
50
|
23
|
-
|
-
|
28
|
-
|
490
|
|
DIN 6336-GG-80-B16-C
|
80
|
-
|
B 16
|
25
|
50
|
23
|
-
|
-
|
28
|
-
|
542
|
|
DIN 6336-GG-32-M6-D
|
32
|
M 6
|
-
|
12
|
20
|
9
|
-
|
-
|
-
|
10
|
40
|
|
DIN 6336-GG-40-M8-D
|
40
|
M 8
|
-
|
14
|
25
|
12
|
-
|
-
|
-
|
12
|
69
|
|
DIN 6336-GG-50-M8-D
|
50
|
M 8
|
-
|
18
|
32
|
15
|
-
|
-
|
-
|
16
|
150
|
|
DIN 6336-GG-50-M10-D
|
50
|
M 10
|
-
|
18
|
32
|
15
|
-
|
-
|
-
|
16
|
139
|
|
DIN 6336-GG-63-M10-D
|
63
|
M 10
|
-
|
20
|
40
|
19
|
-
|
-
|
-
|
20
|
245
|
|
DIN 6336-GG-63-M12-D
|
63
|
M 12
|
-
|
20
|
40
|
19
|
-
|
-
|
-
|
20
|
260
|
|
DIN 6336-GG-80-M12-D
|
80
|
M 12
|
-
|
25
|
50
|
23
|
-
|
-
|
-
|
30
|
550
|
|
DIN 6336-GG-80-M16-D
|
80
|
M 16
|
-
|
25
|
50
|
23
|
-
|
-
|
-
|
30
|
510
|
|
DIN 6336-GG-32-M6-E
|
32
|
M 6
|
-
|
12
|
20
|
9
|
-
|
-
|
12
|
-
|
50
|
|
DIN 6336-GG-40-M8-E
|
40
|
M 8
|
-
|
14
|
25
|
12
|
-
|
-
|
15
|
-
|
69
|
|
DIN 6336-GG-50-M8-E
|
50
|
M 8
|
-
|
18
|
32
|
15
|
-
|
-
|
18
|
-
|
152
|
|
DIN 6336-GG-50-M10-E
|
50
|
M 10
|
-
|
18
|
32
|
15
|
-
|
-
|
18
|
-
|
144
|
|
DIN 6336-GG-63-M10-E
|
63
|
M 10
|
-
|
20
|
40
|
19
|
-
|
-
|
22
|
-
|
280
|
|
DIN 6336-GG-63-M12-E
|
63
|
M 12
|
-
|
20
|
40
|
19
|
-
|
-
|
22
|
-
|
274
|
|
DIN 6336-GG-80-M12-E
|
80
|
M 12
|
-
|
25
|
50
|
23
|
-
|
-
|
28
|
-
|
550
|
|
DIN 6336-GG-80-M16-E
|
80
|
M 16
|
-
|
25
|
50
|
23
|
-
|
-
|
28
|
-
|
560
|

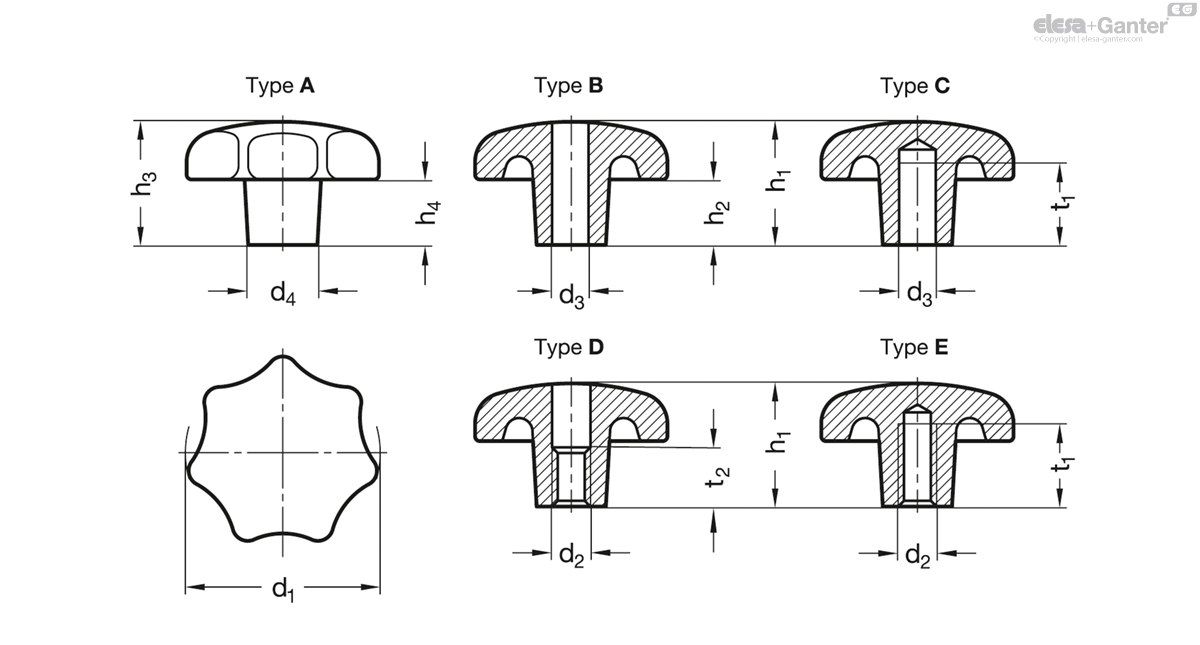

Types
- Type A: without bore (unmachined)
- Type B: with plain through bore H7
- Type C: with plain blind bore H7
- Type D: with threaded through bore
- Type E: with threaded blind bore

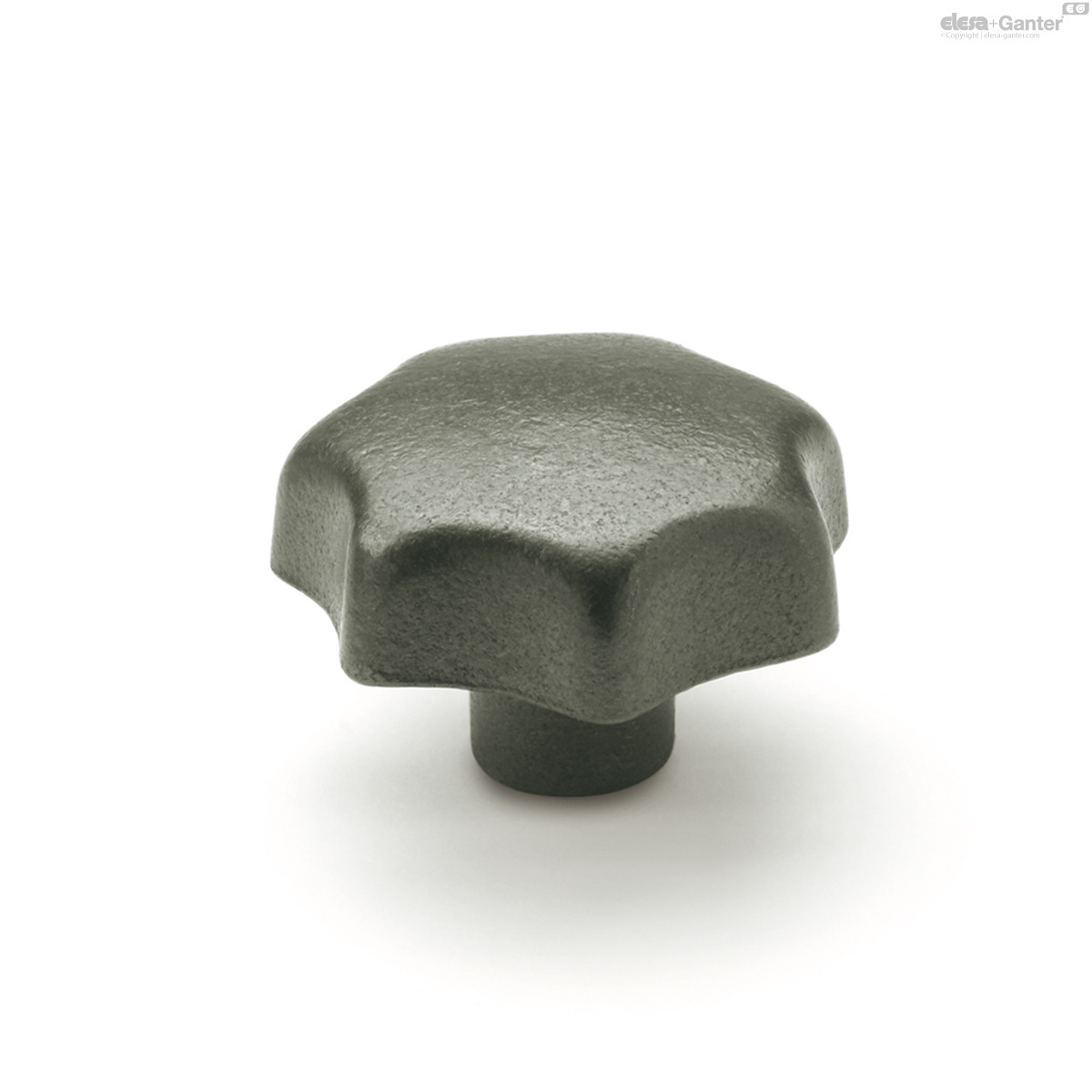

Cast iron GG
fettled and tumbled

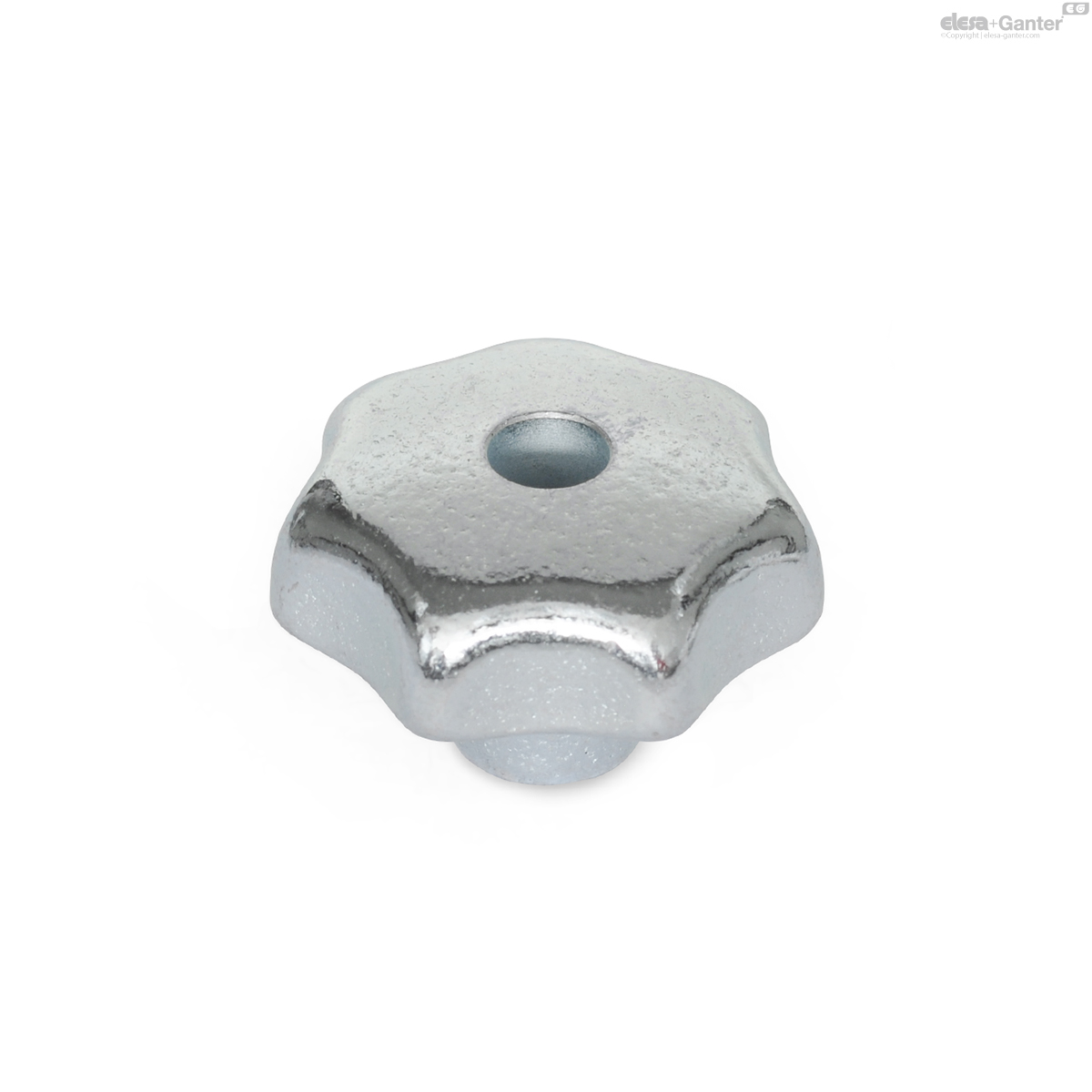

zinc plated, blue passivated ZB
Thread: screw mobility
only types D and E

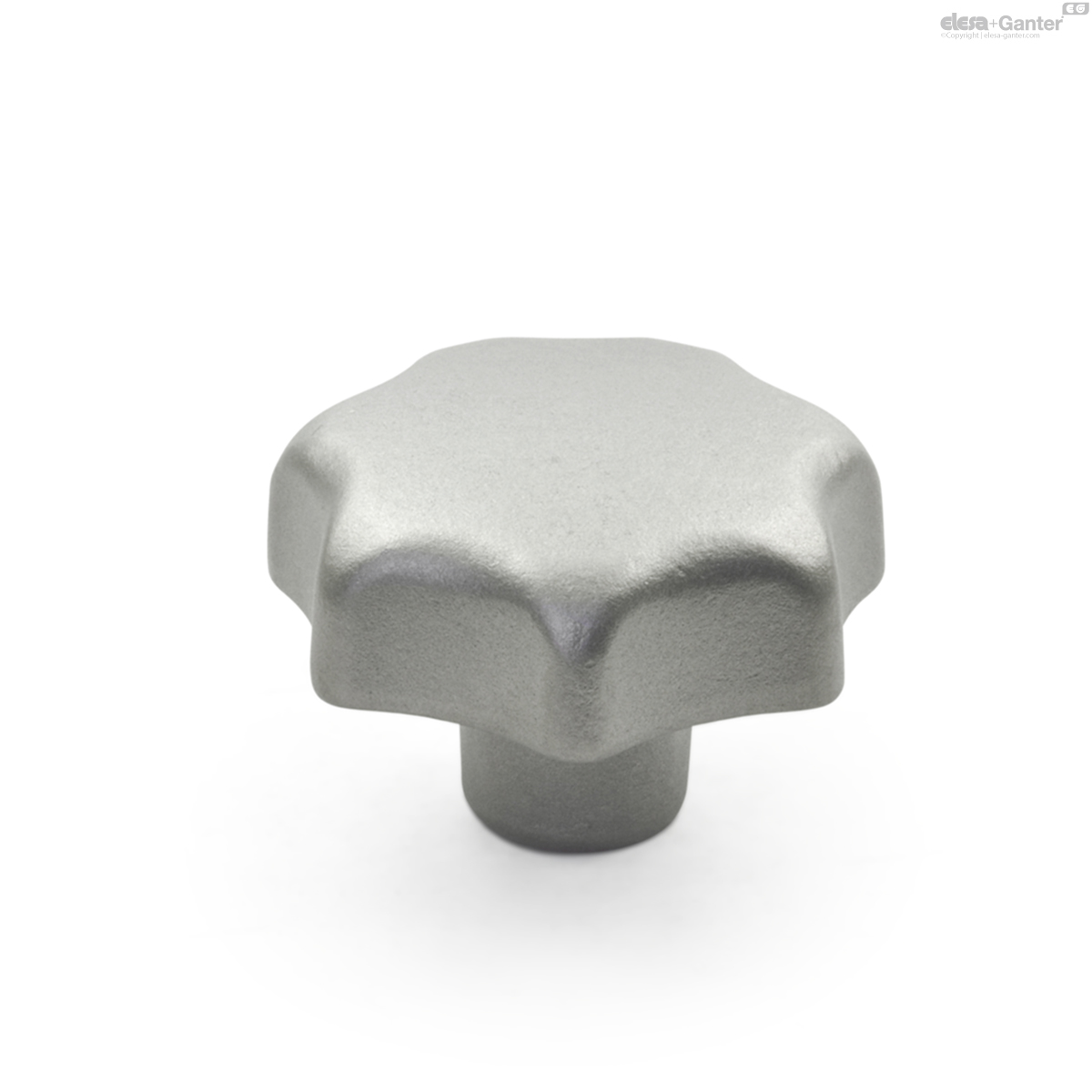

Stainless Steel precision casting NI
only types A, D, E
- AISI CF-8
- matt shot-blasted

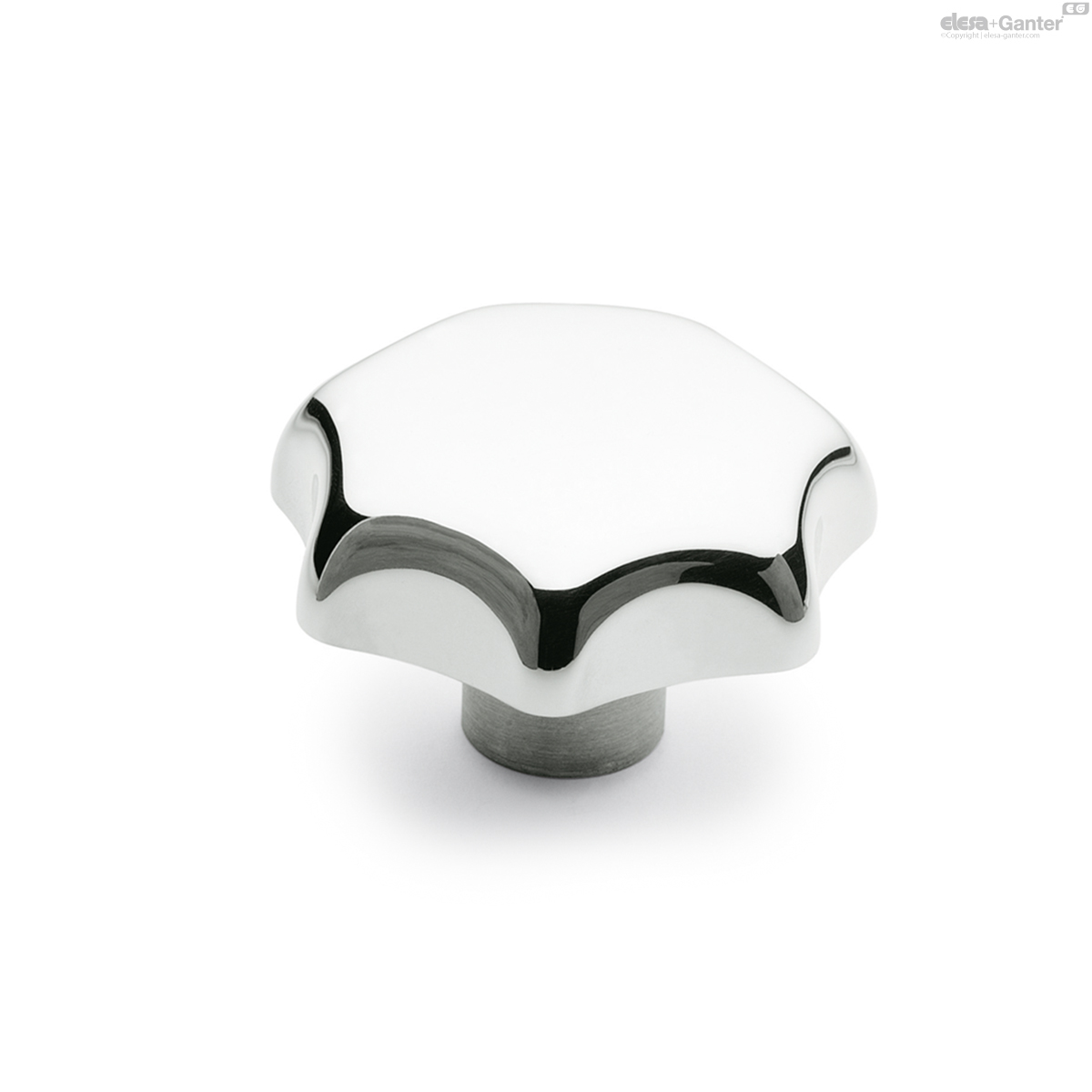

Aluminium AL
only types A, C, D, E
- matt finish (ground), flash mark not visible MT
- polished PL
- plastic coated
Gerelateerde producten

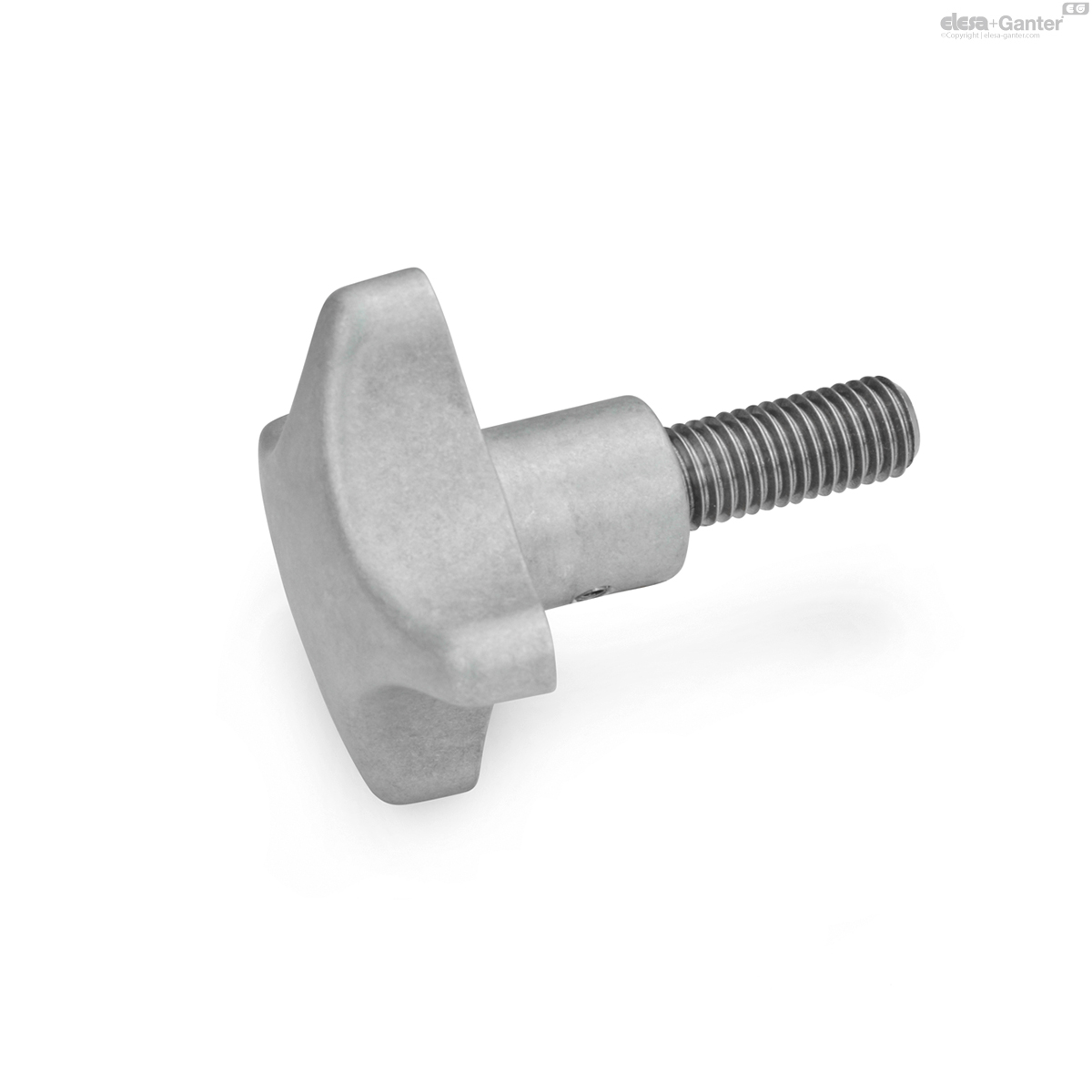

GN 6335.5-AM
