DIN 6336-GGStar knobs

Cast iron

Cast iron / Stainless Steel / Aluminium

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Cast iron
Cast iron
Aluminium
DIN 6336-AL
Aluminium

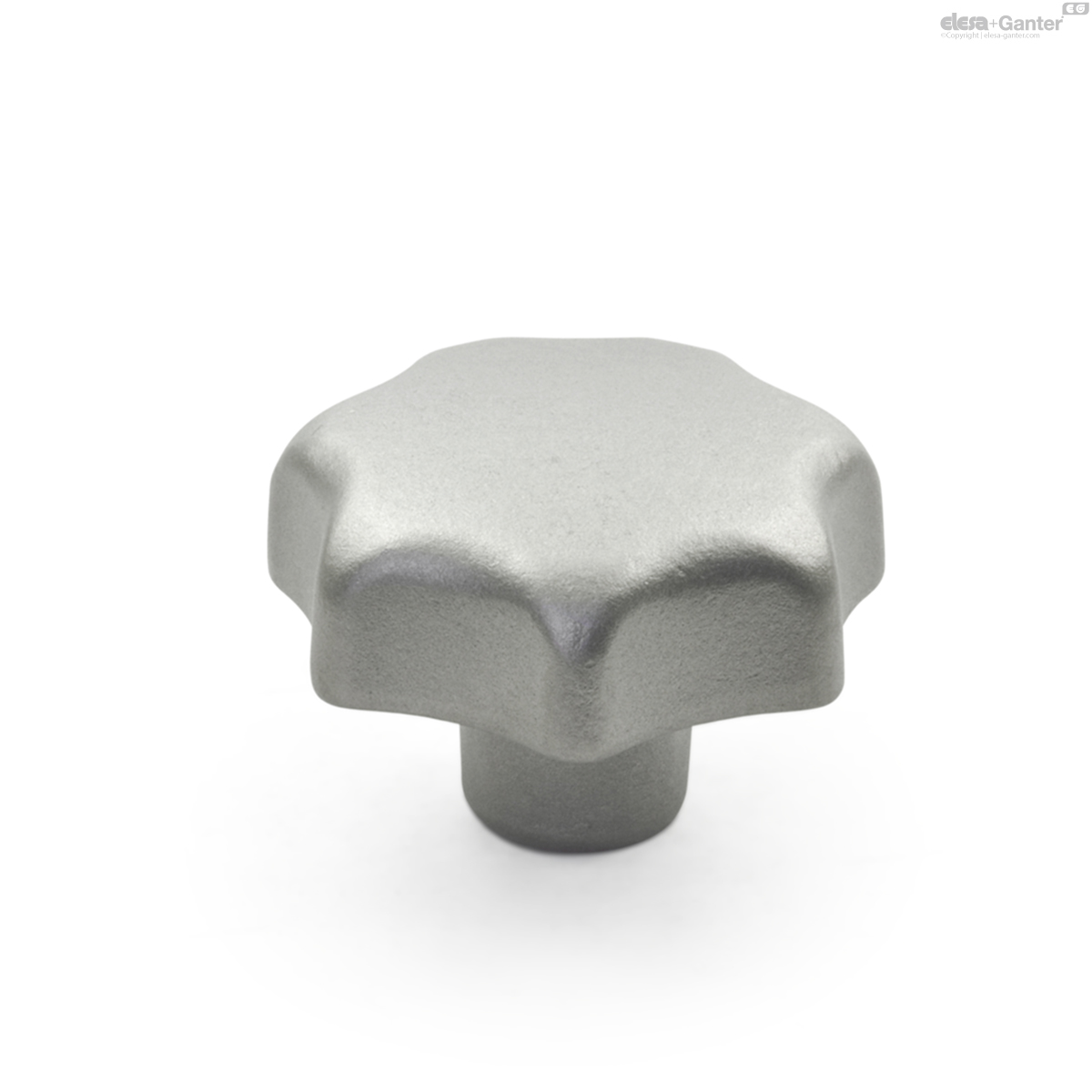

Stainless Steel
DIN 6336-NI
Stainless Steel

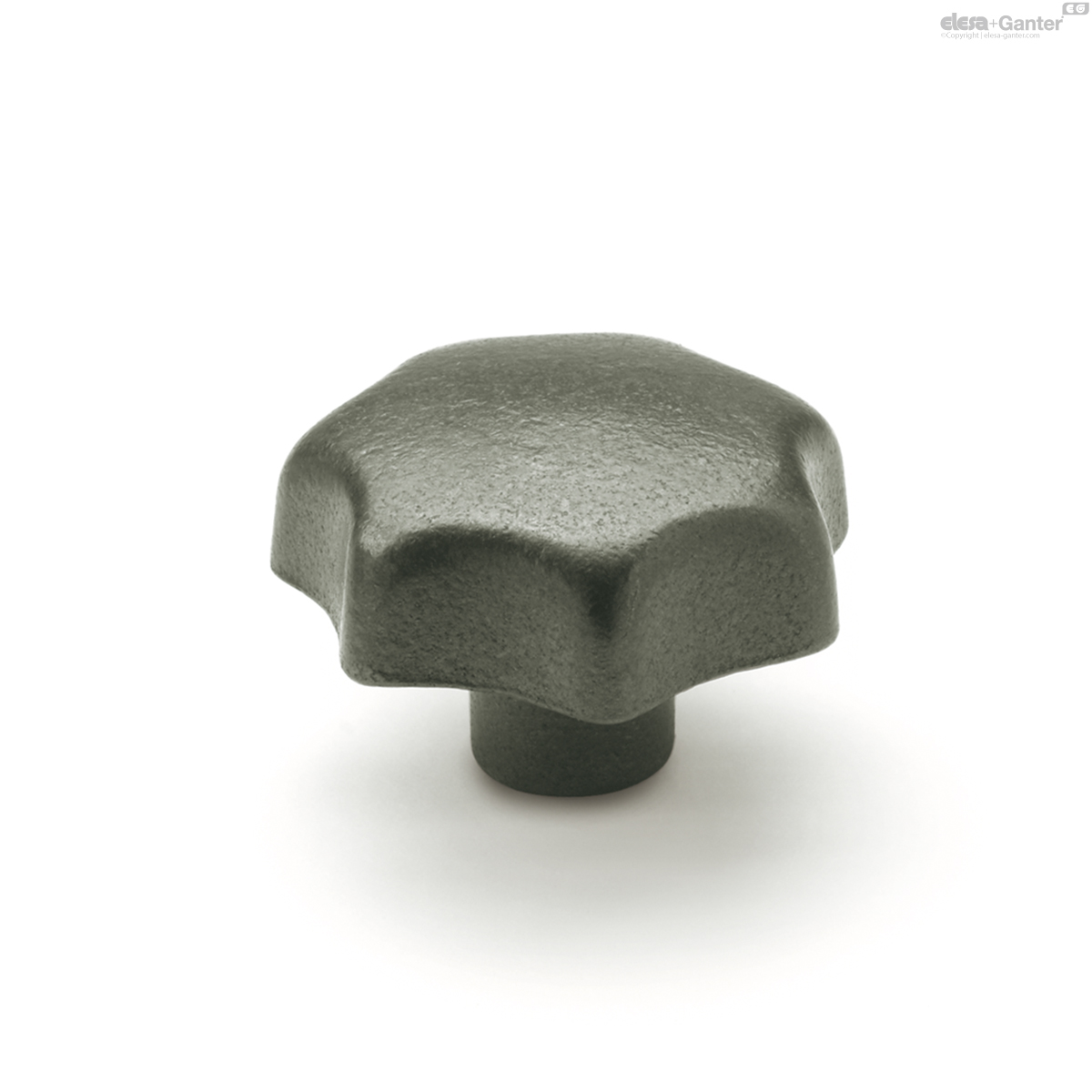

Cast iron
DIN 6336-GG
Cast iron

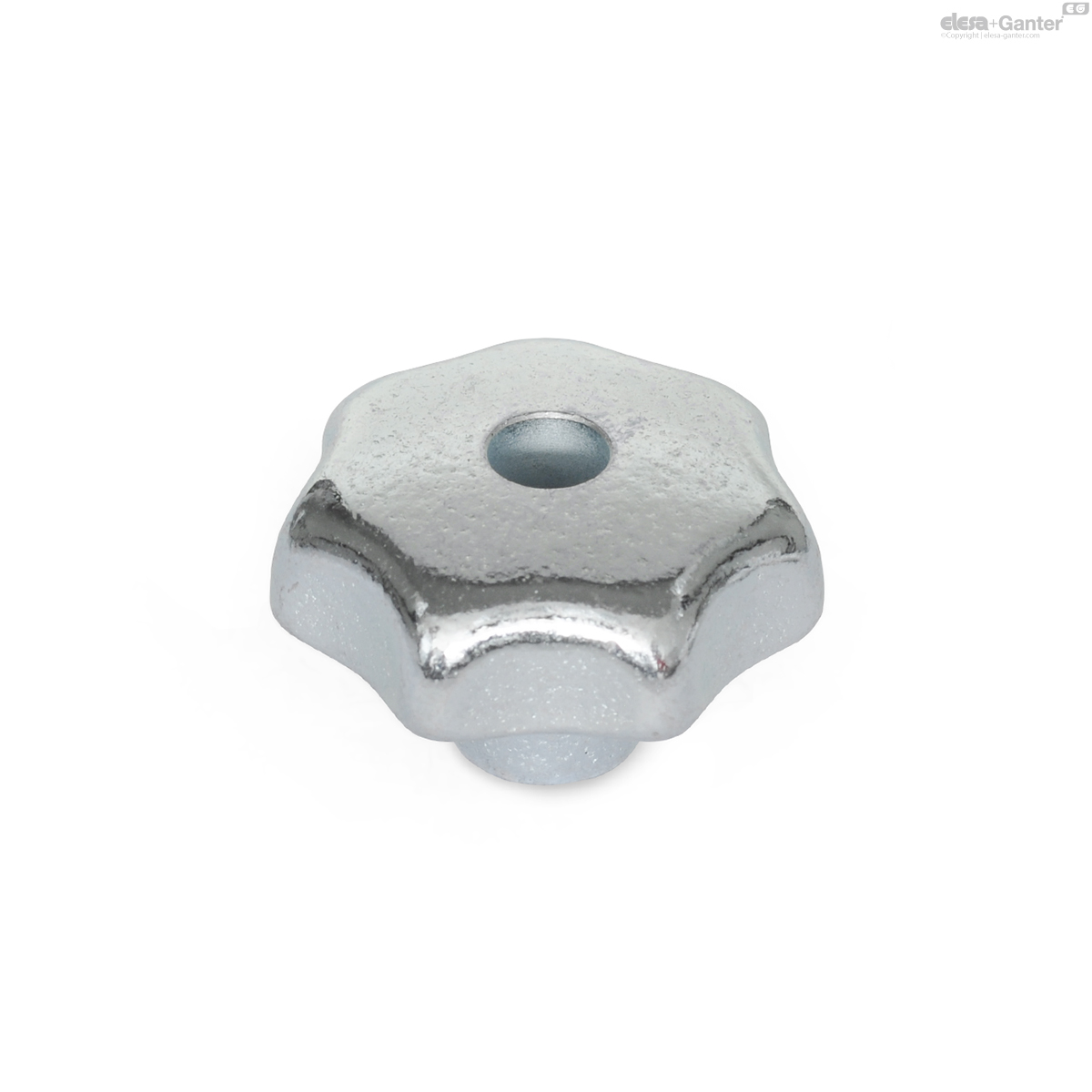

Zinc plated
DIN 6336-ZB
Zinc plated

DIN 6336-GG

Reset
Catalogue
d1
d2
d3 H7
d4
h1
h2 min.
h3
h4 min.
t1
t2
DIN 6336-GG-32-A
32
-
-
12
-
-
21
10
-
-
53
DIN 6336-GG-40-A
40
-
-
14
-
-
26
13
-
-
79
DIN 6336-GG-50-A
50
-
-
18
-
-
34
17
-
-
161
DIN 6336-GG-63-A
63
-
-
20
-
-
42
21
-
-
281
DIN 6336-GG-80-A
80
-
-
25
-
-
52
25
-
-
580
DIN 6336-GG-32-B6-B
32
-
B 6
12
20
9
-
-
-
-
42
DIN 6336-GG-40-B8-B
40
-
B 8
14
25
12
-
-
-
-
69
DIN 6336-GG-50-B8-B
50
-
B 8
18
32
15
-
-
-
-
150
DIN 6336-GG-50-B10-B
50
-
B 10
18
32
15
-
-
-
-
120
DIN 6336-GG-63-B10-B
63
-
B 10
20
40
19
-
-
-
-
249
DIN 6336-GG-63-B12-B
63
-
B 12
20
40
19
-
-
-
-
250
DIN 6336-GG-80-B12-B
80
-
B 12
25
50
23
-
-
-
-
546
DIN 6336-GG-80-B16-B
80
-
B 16
25
50
23
-
-
-
-
500
DIN 6336-GG-32-B6-C
32
-
B 6
12
20
9
-
-
12
-
51
DIN 6336-GG-40-B8-C
40
-
B 8
14
25
12
-
-
15
-
67
DIN 6336-GG-50-B8-C
50
-
B 8
18
32
15
-
-
18
-
133
DIN 6336-GG-50-B10-C
50
-
B 10
18
32
15
-
-
18
-
150
DIN 6336-GG-63-B10-C
63
-
B 10
20
40
19
-
-
22
-
256
DIN 6336-GG-63-B12-C
63
-
B 12
20
40
19
-
-
22
-
260
DIN 6336-GG-80-B12-C
80
-
B 12
25
50
23
-
-
28
-
490
DIN 6336-GG-80-B16-C
80
-
B 16
25
50
23
-
-
28
-
542
DIN 6336-GG-32-M6-D
32
M 6
-
12
20
9
-
-
-
10
40
DIN 6336-GG-40-M8-D
40
M 8
-
14
25
12
-
-
-
12
69
DIN 6336-GG-50-M8-D
50
M 8
-
18
32
15
-
-
-
16
150
DIN 6336-GG-50-M10-D
50
M 10
-
18
32
15
-
-
-
16
139
DIN 6336-GG-63-M10-D
63
M 10
-
20
40
19
-
-
-
20
245
DIN 6336-GG-63-M12-D
63
M 12
-
20
40
19
-
-
-
20
260
DIN 6336-GG-80-M12-D
80
M 12
-
25
50
23
-
-
-
30
550
DIN 6336-GG-80-M16-D
80
M 16
-
25
50
23
-
-
-
30
510
DIN 6336-GG-32-M6-E
32
M 6
-
12
20
9
-
-
12
-
50
DIN 6336-GG-40-M8-E
40
M 8
-
14
25
12
-
-
15
-
69
DIN 6336-GG-50-M8-E
50
M 8
-
18
32
15
-
-
18
-
152
DIN 6336-GG-50-M10-E
50
M 10
-
18
32
15
-
-
18
-
144
DIN 6336-GG-63-M10-E
63
M 10
-
20
40
19
-
-
22
-
280
DIN 6336-GG-63-M12-E
63
M 12
-
20
40
19
-
-
22
-
274
DIN 6336-GG-80-M12-E
80
M 12
-
25
50
23
-
-
28
-
550
DIN 6336-GG-80-M16-E
80
M 16
-
25
50
23
-
-
28
-
560

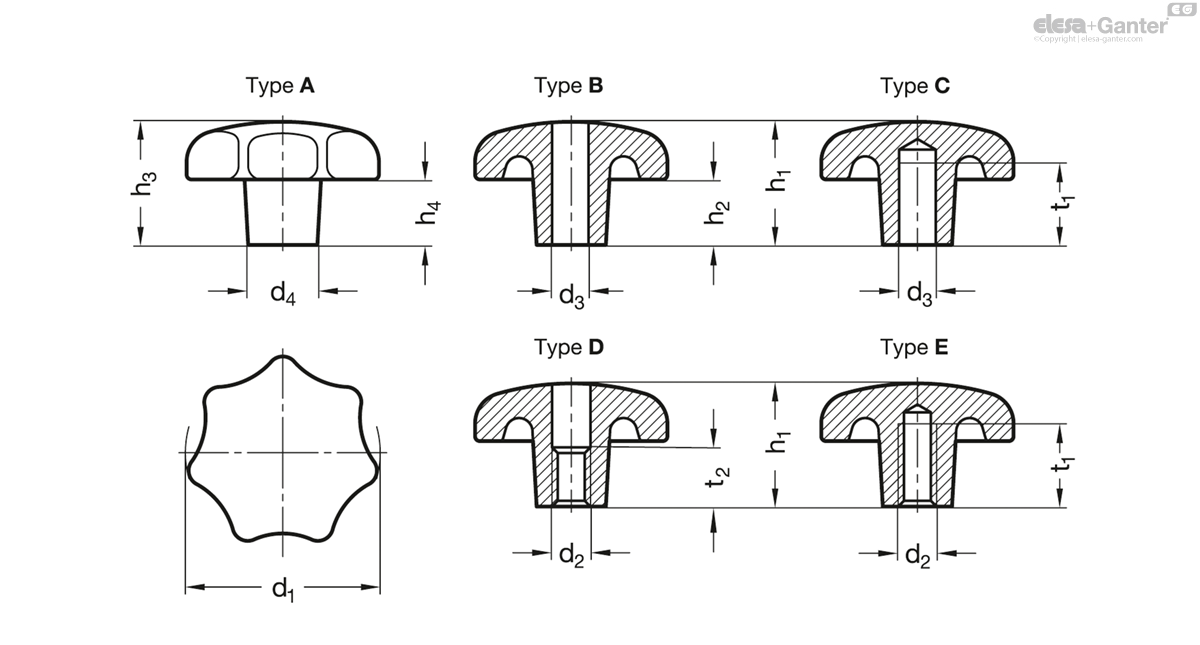

Types

  • Type A: without bore (unmachined)
  • Type B: with plain through bore H7
  • Type C: with plain blind bore H7
  • Type D: with threaded through bore
  • Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

  • AISI CF-8
  • matt shot-blasted

Aluminium AL

only types A, C, D, E

  • matt finish (ground), flash mark not visible MT
  • polished PL
  • plastic coated
Related products

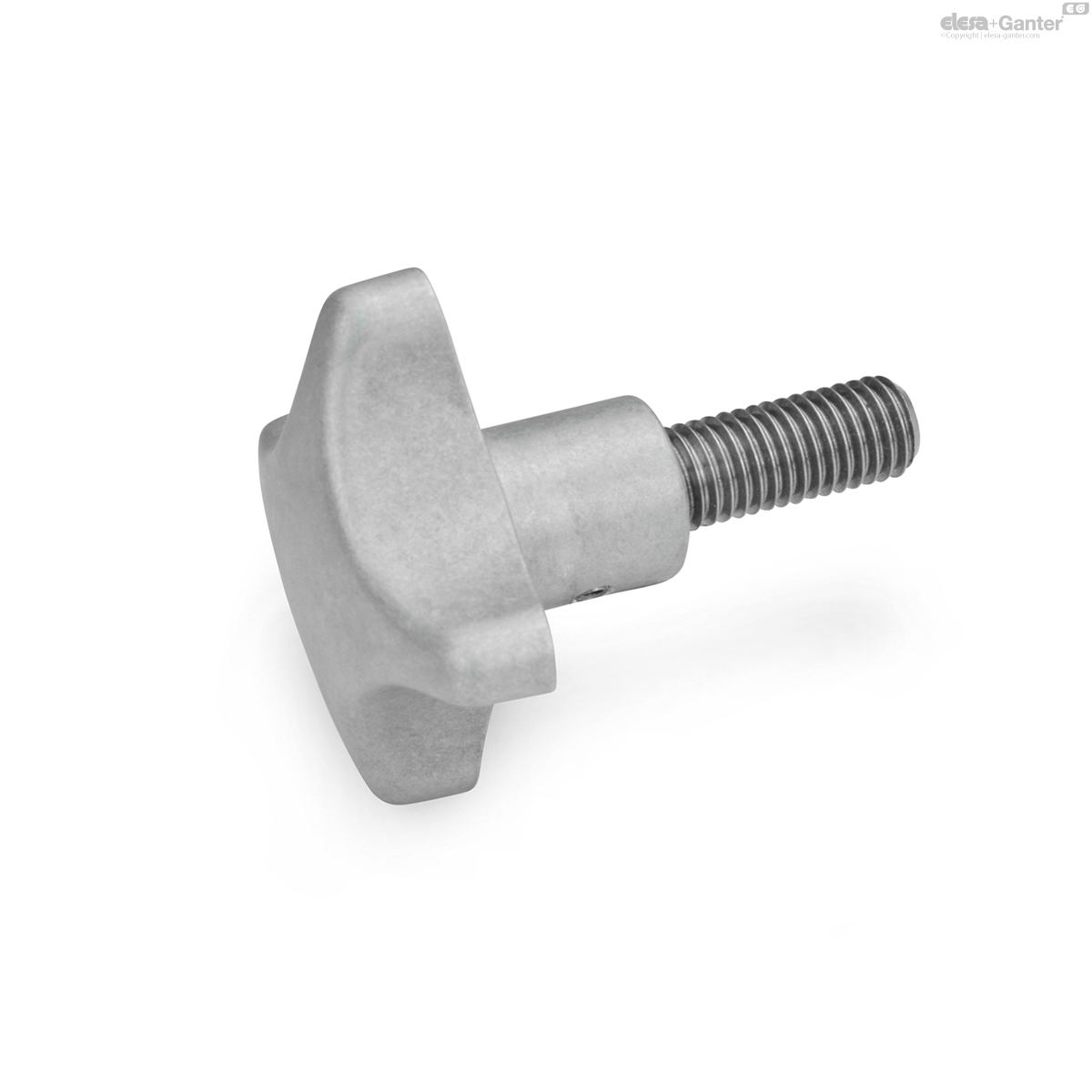

Aluminum, Matte finish (tumbled)

GN 6335.5-AM

Hand Knobs Knob Cast Iron / Stainless Steel / Aluminum, Threaded Stud Stainless Steel
Steel

GN 6336.3-ST

Quick Release Star Knobs Steel / Stainless Steel
Black-oxide steel boss, plain hole

VC.192-A

Lobe knobs Duroplast, easy cleaning
Brass boss, threaded hole

VC.692-B

Lobe knobs with solid section Technopolymer, easy cleaning

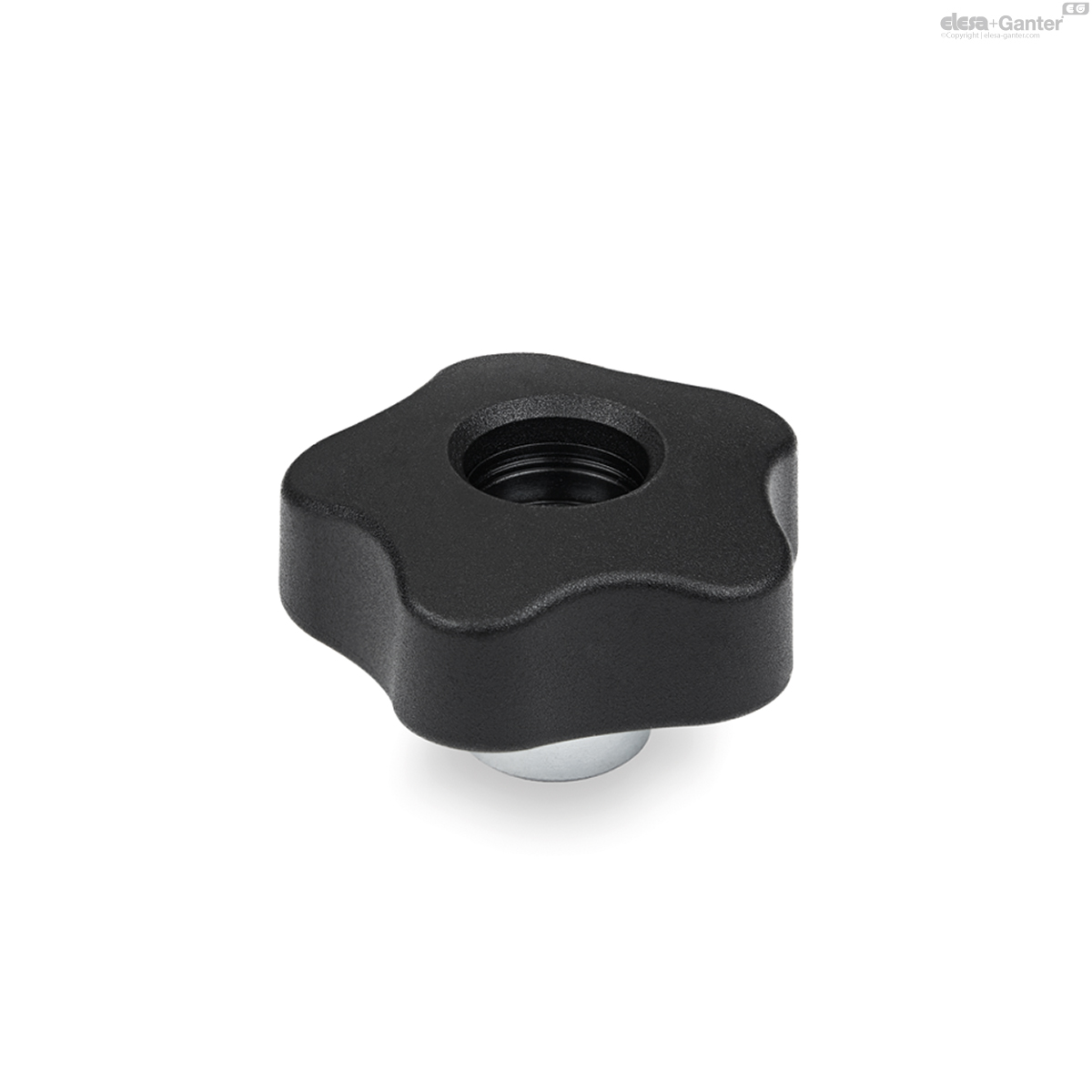

Plain hole
