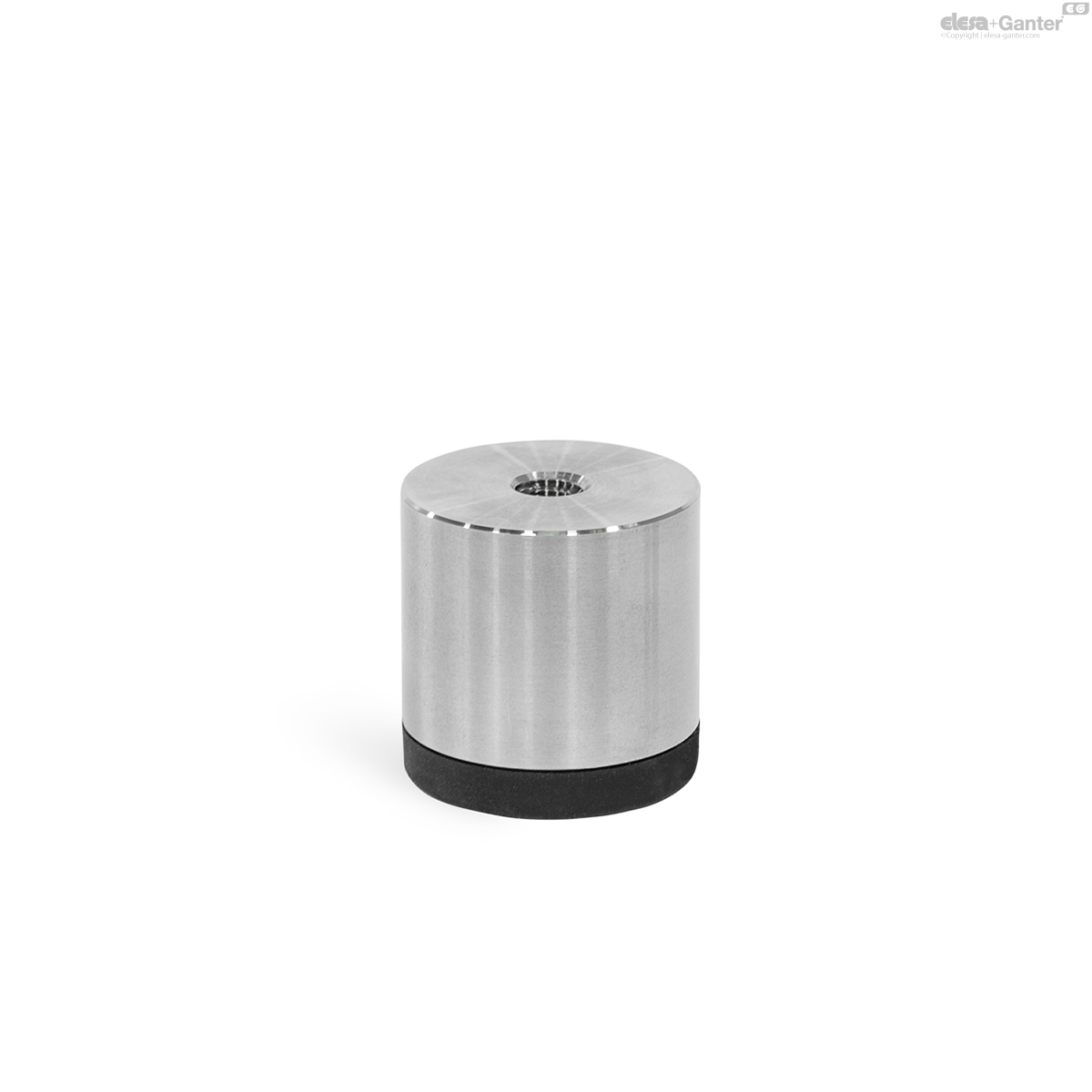

440-20-30-M5-R-A4M GN 440-A4 Roestvrij staal

440-20-30-M5-R-A4M

GN 440-A4 Roestvrij staal

Aluminium / Roestvrij staal, met rubberen kap
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 440

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 440-20-30-M5-R-A4M
d1
20
h1
30
d2
M 5
d3 Through hole for screw
M 4
h2
24
h3
4
t min.
10
Static load capacity in kN
0.4
63

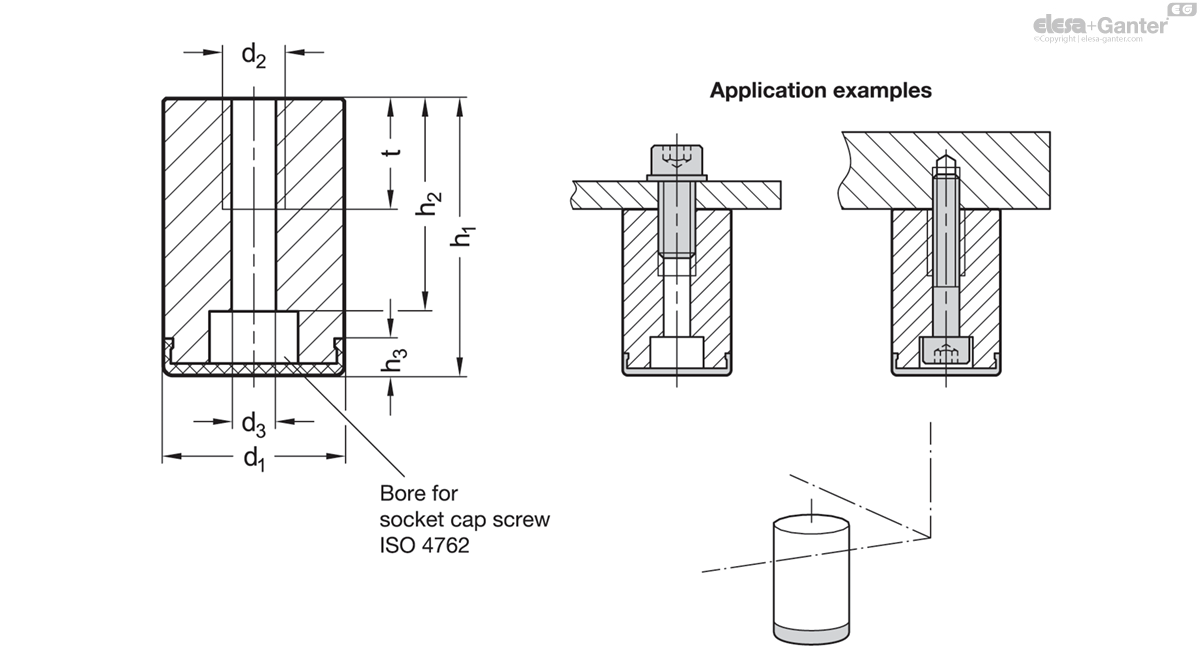

440-20-30-M5-R-A4M drawing

Type

  • Type R: With cover cap, non-slip

Base body

  • Aluminum AL
  • Turned, anodized, black S
  • Stainless steel AISI 316L A4
  • Turned M

Cover cap

Thermoplastic elastomer (TPE)

  • Hardness ≈ 75 Shore A
  • Black

Equipment feet GN 440 are used to set up devices, smaller machines, or fixtures, on worktops or tables. The non-slip cover cap increases stability, reduces wear on the underlying surface and covers the mounting hole from below.

They can be installed either from above using the internal thread d2 or with a socket cap screw ISO 4762 from below using the through hole d3. The cover cap is packaged separately and reusable.

The black version ALS offers a discreet appearance and reduces surface reflections. The version A4M is particularly suitable for use in aggressive environments.

  • d1 = 25 / 32 in stainless steel with ESD cover cap
