462-52-ST DIN 462 Borgplaten

462-52-ST

DIN 462 Borgplaten

voor borgmoeren met sleuf DIN 1804, staal
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 462

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 462-52-ST
d1 H11
52
a H11
49.3
b1 c11
10
b2 H11
10
d2 h11
80
h
6
s
1.2
t max.
49.1
For Slotted Locknuts DIN 1804
M 52 x 1.5
23

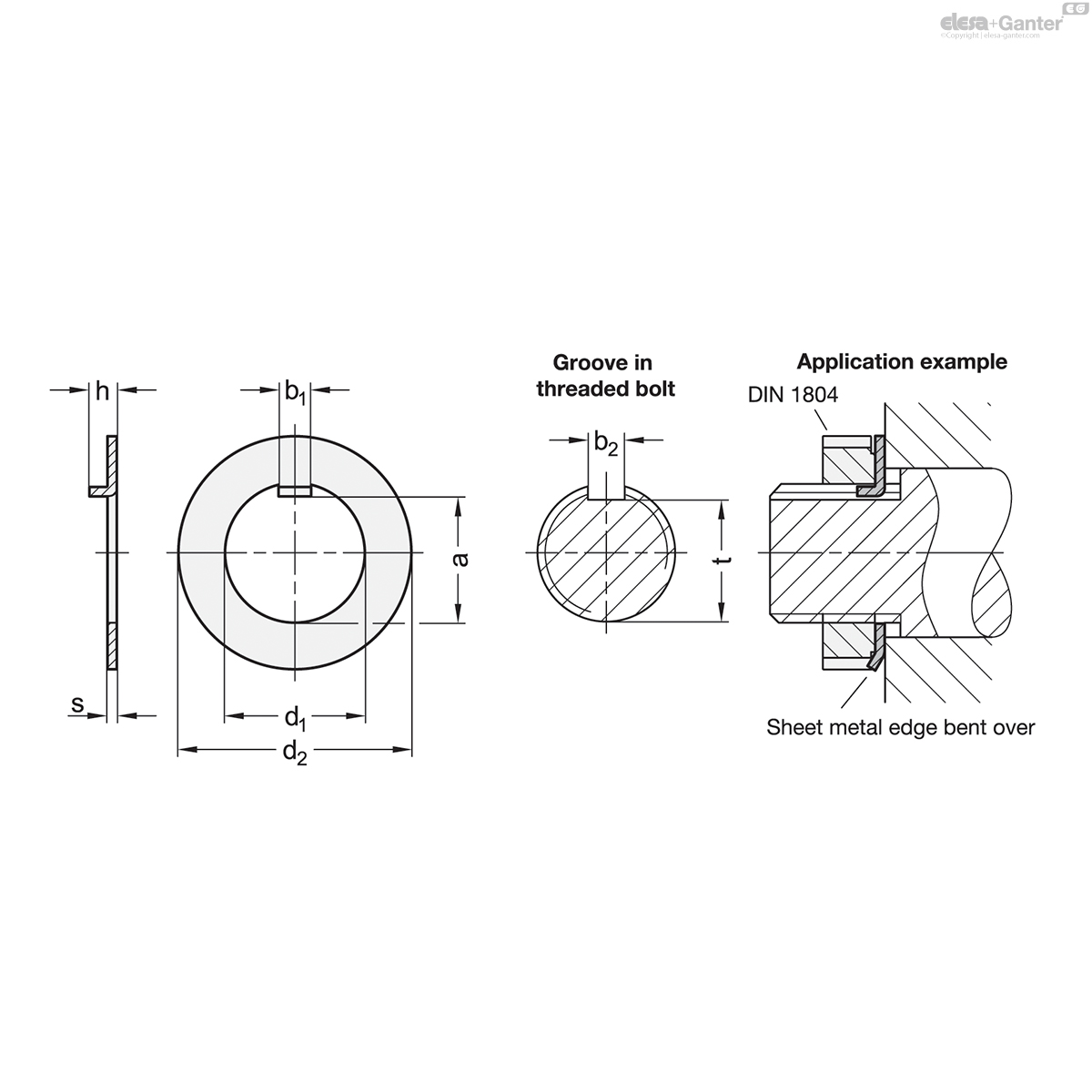

462-52-ST drawing

Steel ST

Plain finish

Locking plates DIN 462 secure slotted locknuts DIN 1804 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.

The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, the locking plate is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
