Technical datasheet
DIN 462Borgplaten
Borgplaten
voor borgmoeren met sleuf DIN 1804, staal
|

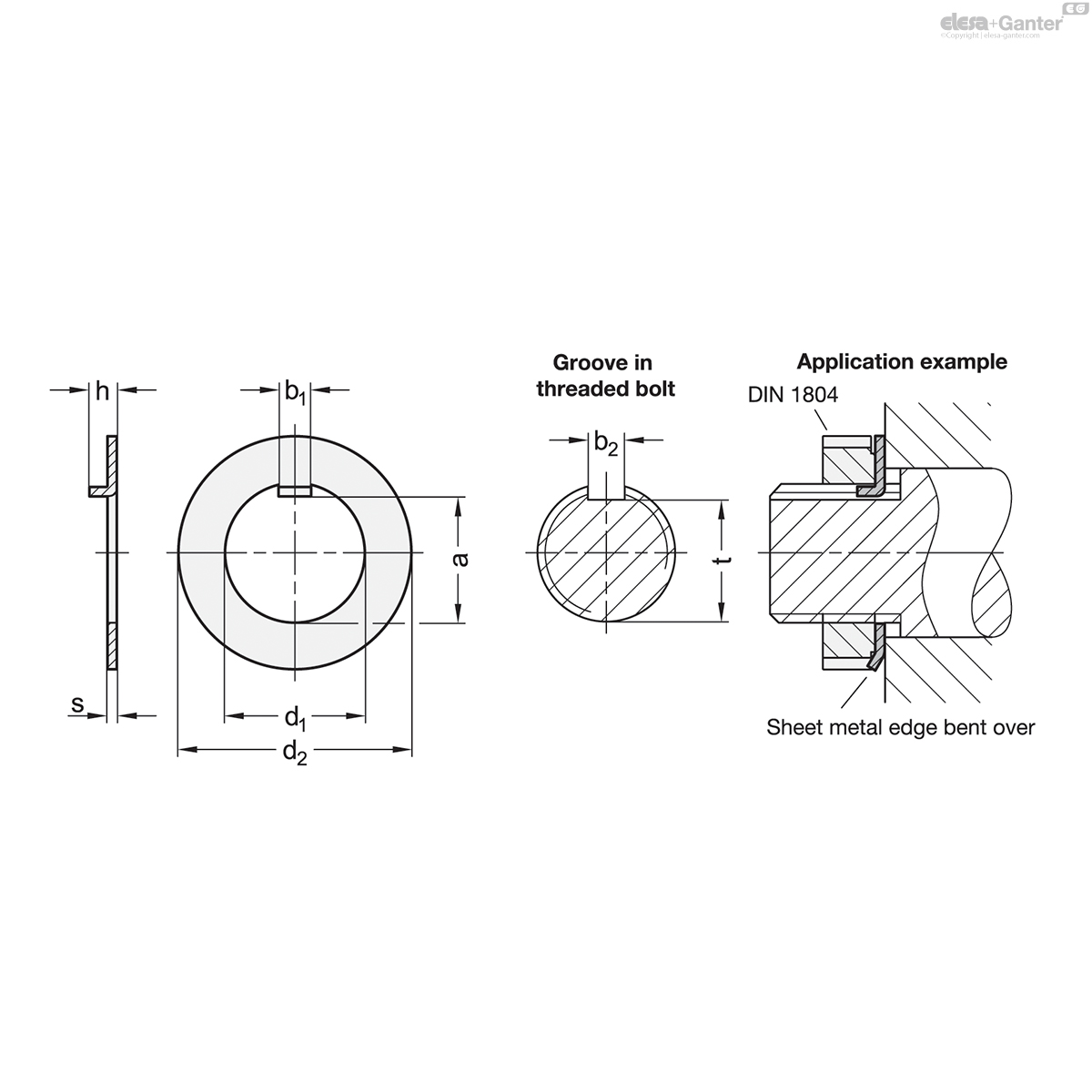

Code
|
d1 H11
|
a H11
|
b1 c11
|
b2 H11
|
d2 h11
|
h
|
s
|
t max.
|
For Slotted Locknuts DIN 1804
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 462-8-ST
|
8
|
5.9
|
3
|
3
|
20
|
2.5
|
0.8
|
5.8
|
M 8 x 1
|
2
|
|
DIN 462-10-ST
|
10
|
7.4
|
4
|
4
|
25
|
3
|
0.8
|
7.3
|
M 10 x 1
|
3
|
|
DIN 462-12-ST
|
12
|
9.3
|
5
|
5
|
28
|
3
|
0.8
|
9.2
|
M 12 x 1.5
|
4
|
|
DIN 462-14-ST
|
14
|
11.4
|
5
|
5
|
30
|
3
|
0.8
|
11.3
|
M 14 x 1.5
|
3
|
|
DIN 462-16-ST
|
16
|
13.5
|
5
|
5
|
32
|
3
|
1
|
13.4
|
M 16 x 1.5
|
4
|
|
DIN 462-18-ST
|
18
|
15.4
|
6
|
6
|
34
|
4
|
1
|
15.3
|
M 18 x 1.5
|
4
|
|
DIN 462-20-ST
|
20
|
17.5
|
6
|
6
|
36
|
4
|
1
|
17.4
|
M 20 x 1.5
|
4
|
|
DIN 462-22-ST
|
22
|
19.5
|
6
|
6
|
40
|
4
|
1
|
19.4
|
M 22 x 1.5
|
5
|
|
DIN 462-24-ST
|
24
|
21.6
|
6
|
6
|
42
|
4
|
1
|
21.5
|
M 24 x 1.5
|
7
|
|
DIN 462-26-ST
|
26
|
23.5
|
7
|
7
|
45
|
5
|
1
|
23.4
|
M 26 x 1.5
|
7
|
|
DIN 462-28-ST
|
28
|
25.5
|
7
|
7
|
50
|
5
|
1
|
25.4
|
M 28 x 1.5
|
8
|
|
DIN 462-30-ST
|
30
|
27.5
|
7
|
7
|
50
|
5
|
1.2
|
27.4
|
M 30 x 1.5
|
8
|
|
DIN 462-32-ST
|
32
|
29.6
|
7
|
7
|
52
|
5
|
1.2
|
29.5
|
M 32 x 1.5
|
9
|
|
DIN 462-35-ST
|
35
|
32.3
|
7
|
7
|
55
|
5
|
1.2
|
32.5
|
M 35 x 1.5
|
9
|
|
DIN 462-38-ST
|
38
|
35.3
|
8
|
8
|
58
|
5
|
1.2
|
35.2
|
M 38 x 1.5
|
12
|
|
DIN 462-40-ST
|
40
|
37.3
|
8
|
8
|
62
|
5
|
1.2
|
37.5
|
M 40 x 1.5
|
14
|
|
DIN 462-42-ST
|
42
|
39.3
|
8
|
8
|
62
|
5
|
1.2
|
39.2
|
M 42 x 1.5
|
13
|
|
DIN 462-45-ST
|
45
|
42.4
|
8
|
8
|
68
|
5
|
1.2
|
42.2
|
M 45 x 1.5
|
17
|
|
DIN 462-48-ST
|
48
|
45.5
|
8
|
8
|
75
|
5
|
1.2
|
45.2
|
M 48 x 1.5
|
21
|
|
DIN 462-50-ST
|
50
|
47.4
|
8
|
8
|
75
|
5
|
1.2
|
47.2
|
M 50 x 1.5
|
20
|
|
DIN 462-52-ST
|
52
|
49.3
|
10
|
10
|
80
|
6
|
1.2
|
49.1
|
M 52 x 1.5
|
23
|
|
DIN 462-55-ST
|
55
|
52.3
|
10
|
10
|
80
|
6
|
1.2
|
52.1
|
M 55 x 1.5
|
22
|
|
DIN 462-58-ST
|
58
|
55.3
|
10
|
10
|
90
|
6
|
1.5
|
55.1
|
M 58 x 1.5
|
30
|
|
DIN 462-60-ST
|
60
|
57.3
|
10
|
10
|
90
|
6
|
1.5
|
57.1
|
M 60 x 1.5
|
29
|
Steel ST
Steel ST
Plain finish

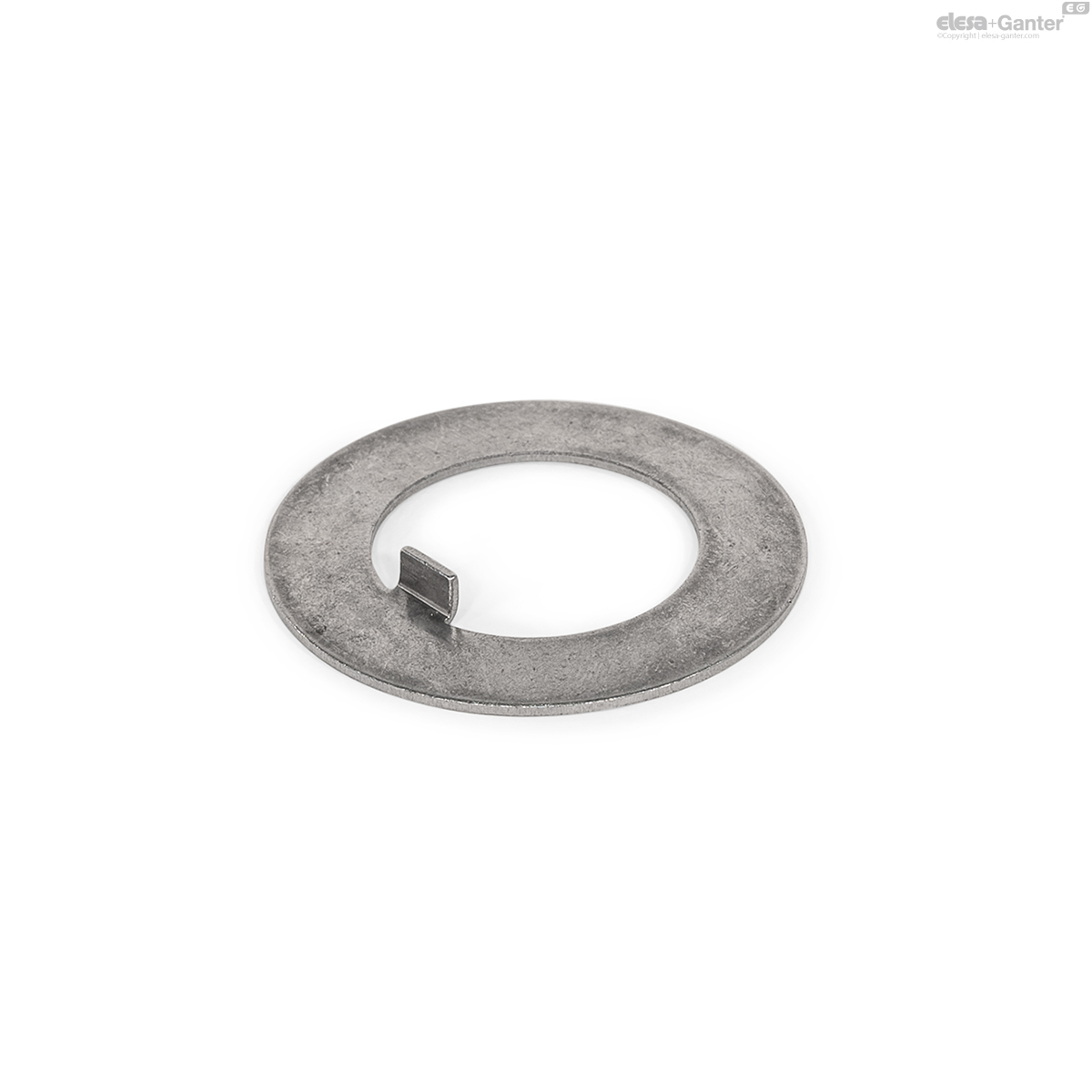

Locking plates DIN 462 secure slotted locknuts DIN 1804 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.
The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, the locking plate is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
