462-12-ST

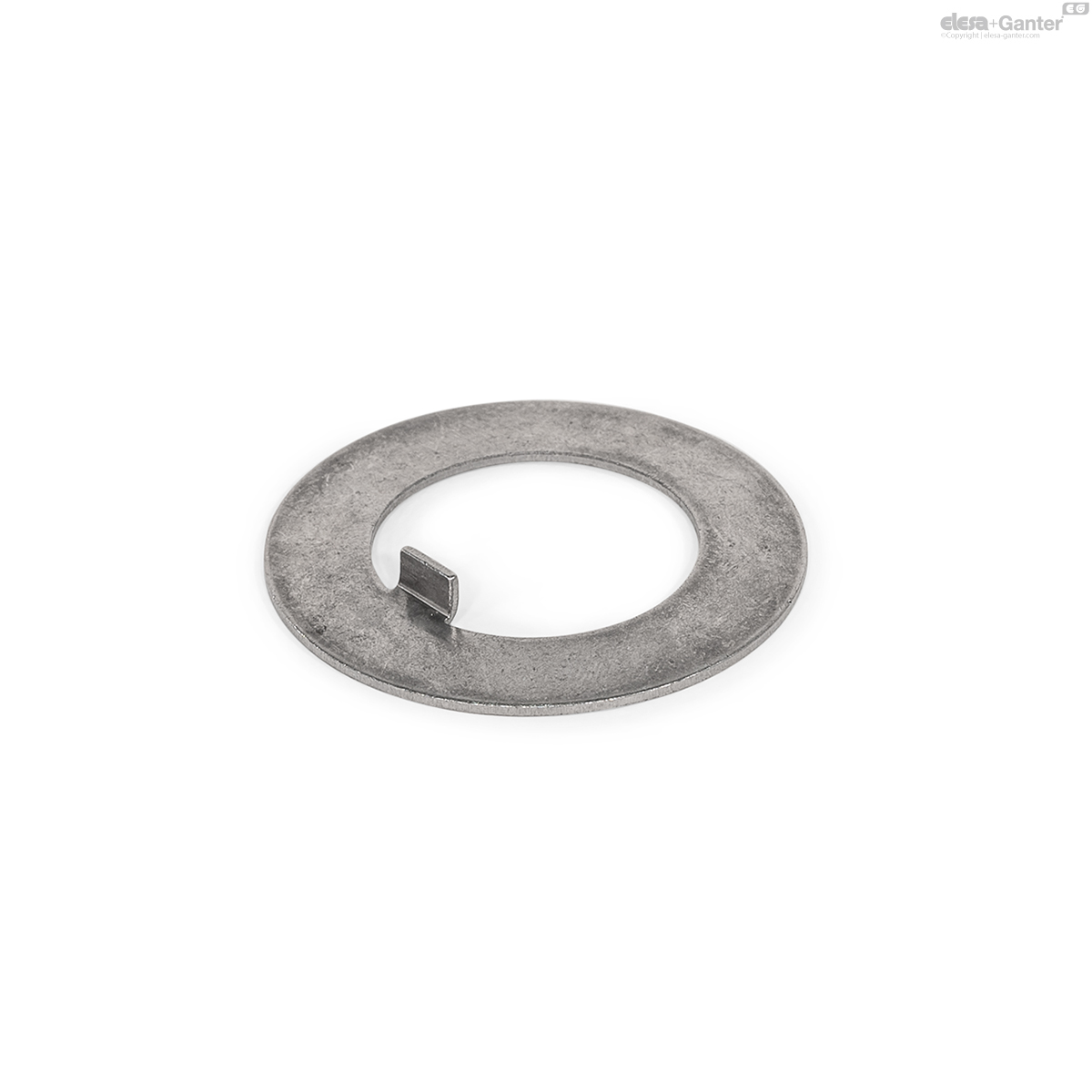

DIN 462 Borgplaten
voor borgmoeren met sleuf DIN 1804, staal
Lt: 1-2 weken Alle maten en varianten van DIN 462
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- DIN 462-12-ST
- d1 H11
- 12
- a H11
- 9.3
- b1 c11
- 5
- b2 H11
- 5
- d2 h11
- 28
- h
- 3
- s
- 0.8
- t max.
- 9.2
- For Slotted Locknuts DIN 1804
- M 12 x 1.5
- 4
Steel ST
Steel ST
Plain finish
Locking plates DIN 462 secure slotted locknuts DIN 1804 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.
The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, the locking plate is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
