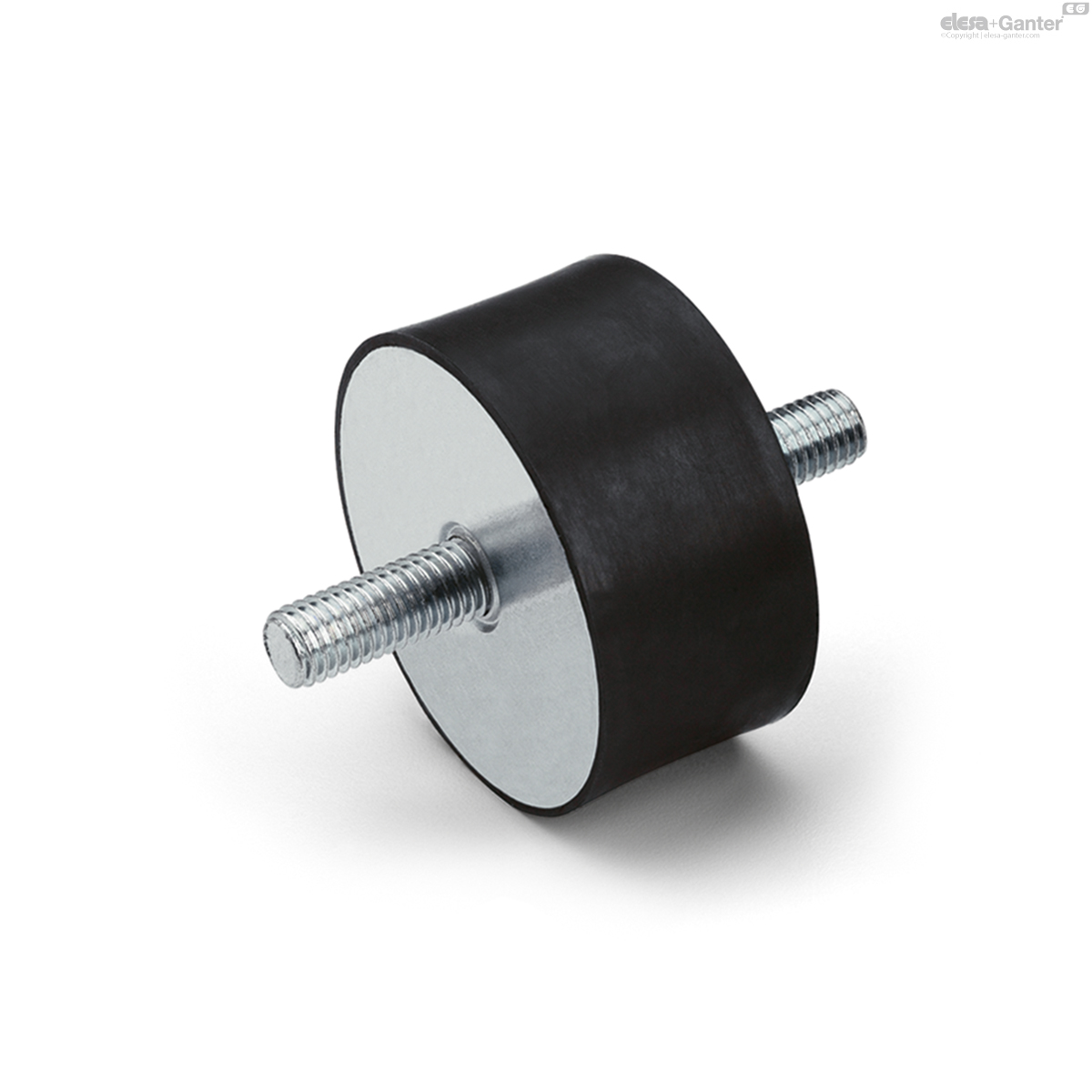

DVA.1-30-40-SST-M8-25-55
DVA.1-SST Roestvrijstalen basisplaat
Rubber en staal of roestvast staal
Lt: 1-2 weken Alle maten en varianten van DVA.1
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- 410048
- D
- 30
- L
- 40
- d
- M8
- l
- 25
- Max. load
[N] - 932
- Max. deflection
[mm] - 10
- Stiffness
[N/mm] - 93
- 46
Standard executions
- DVA.1: threaded studs and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.
- DVA.1-SST: threaded studs and base plate in INOX AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.
Features and applications
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines which can cause:
- malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;
- damage to health;
- noise.
Load diagrams for each single code are available on request.
Special executions on request
Natural rubber NR, hardness 40, 70 tolerance ±5 Shore A for executions with AISI 304 stainless steel base.
