MI.304/40-CR N-8 MI.304-CR Gekartelde draaiknoppen

MI.304/40-CR N-8

MI.304-CR Gekartelde draaiknoppen

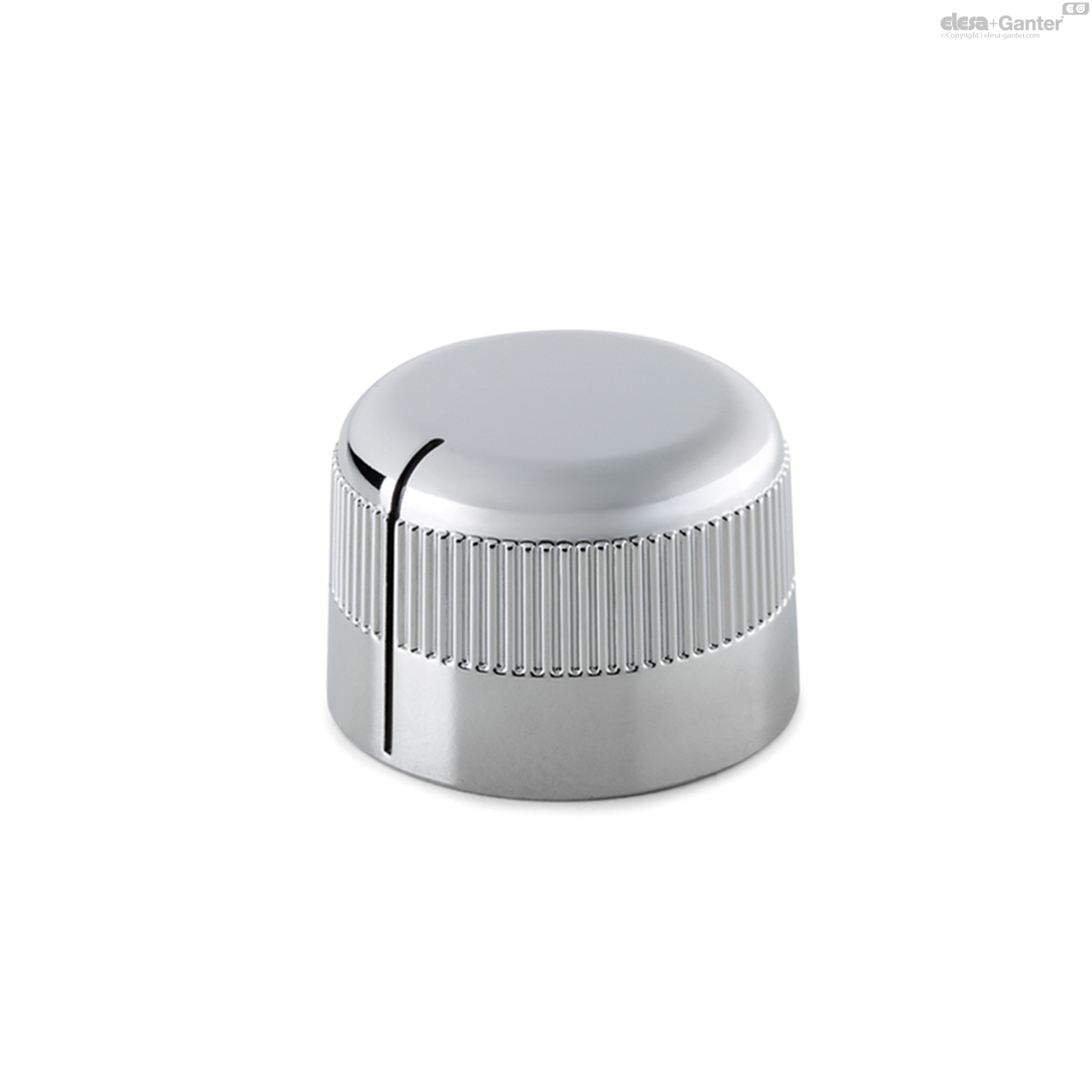

Met wijzer, Duroplast verchroomd
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__chromium__.png
  • Icons/__logo__g11020__.png
  • Icons/__logo__ELE_OD__.png

Lt: 1-2 weken Alle maten en varianten van MI.304-CR

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
152863
D
40
dH10
8
L
27.5
l1
11.5
h
20
h1
11
f
M5
R
8
19

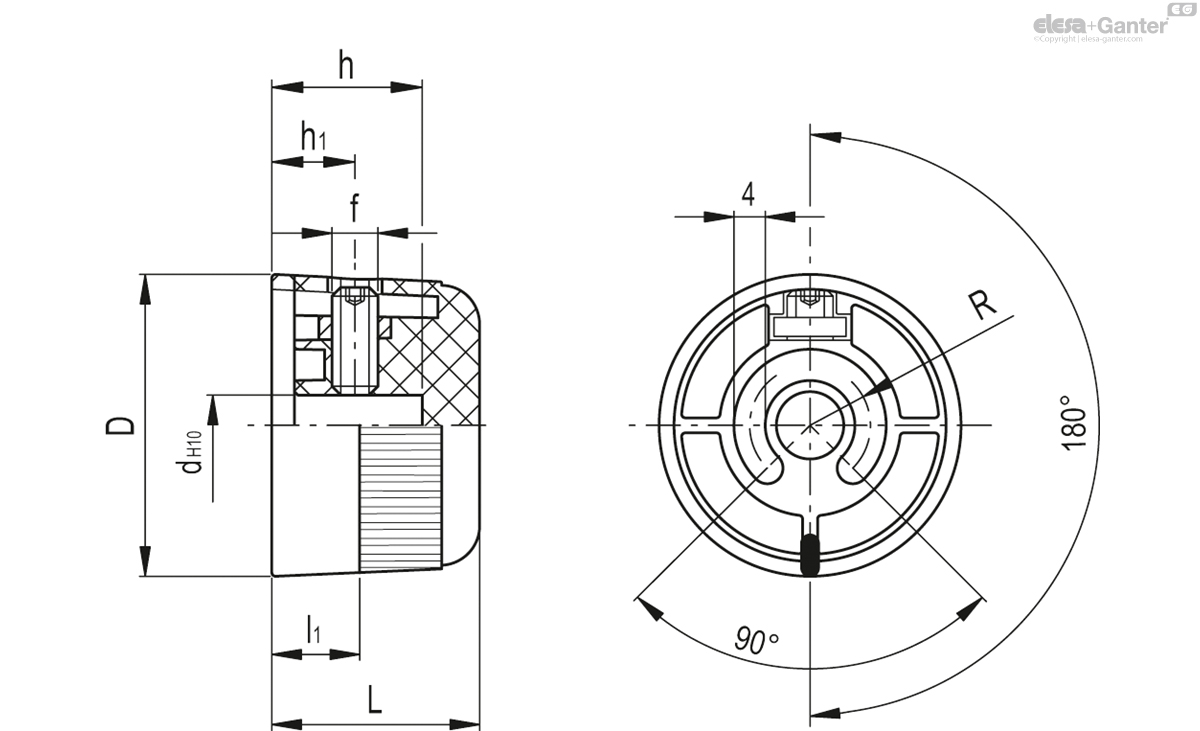

MI.304/40-CR N-8 drawing

Material

Phenolic based (PF) Duroplast chrome-plated, glossy finish.

Black pad-printed pointer index line, placed at 180° from the transverse pressure screw.

Standard execution

Plain blind hole, fixing by means of a transverse pressure screw according to UNI 5929-85 in AISI 304 stainless steel (headless screw with hexagonal socket and cupped end) which screws into the AISI 304 stainless steel nut.

Supplied.

Features

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
