CFAX.65 p-M6x18
CFAX-p Draadstiften

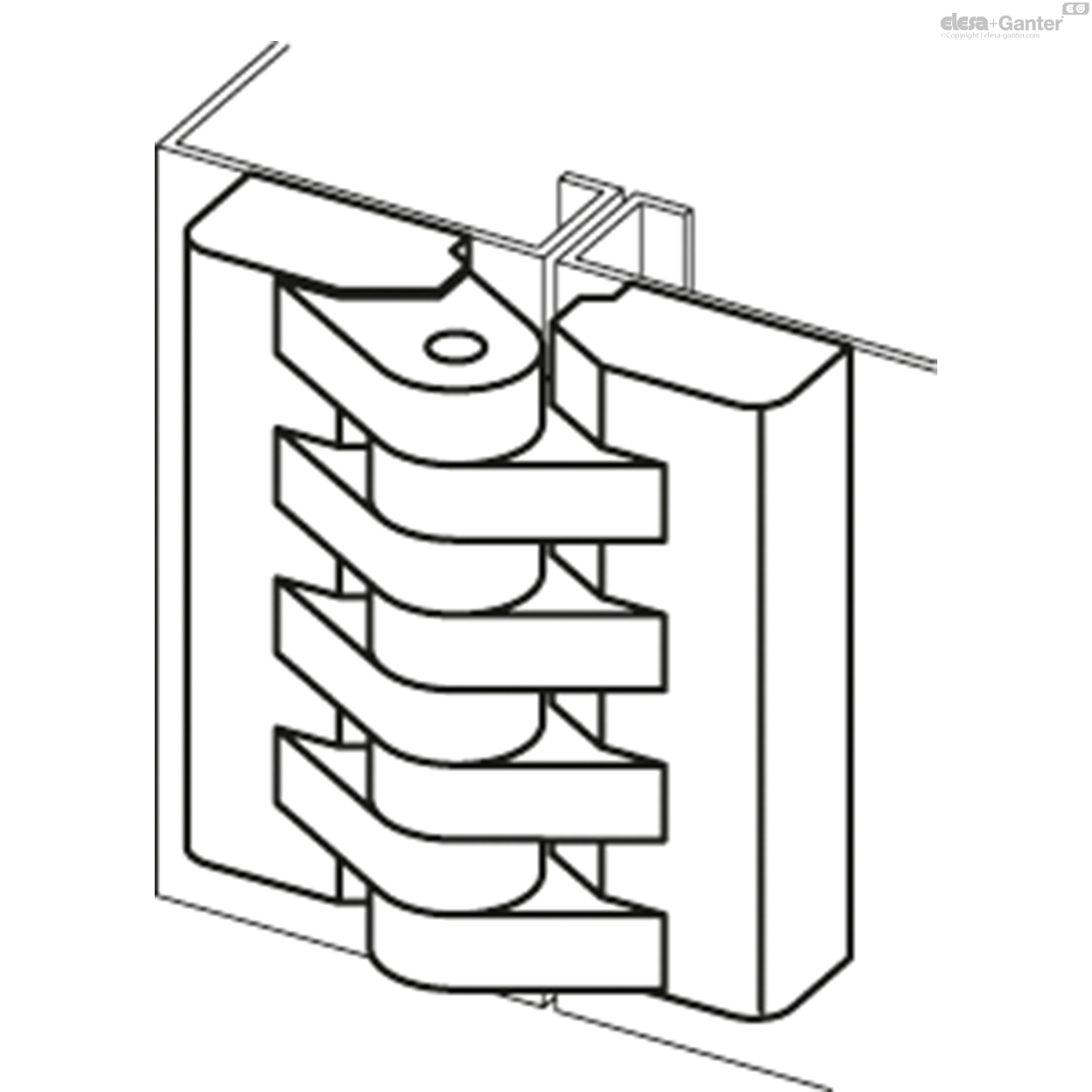

Rotatiepin, technopolymeer
Lt: 1-2 weken Alle maten en varianten van CFAX.
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

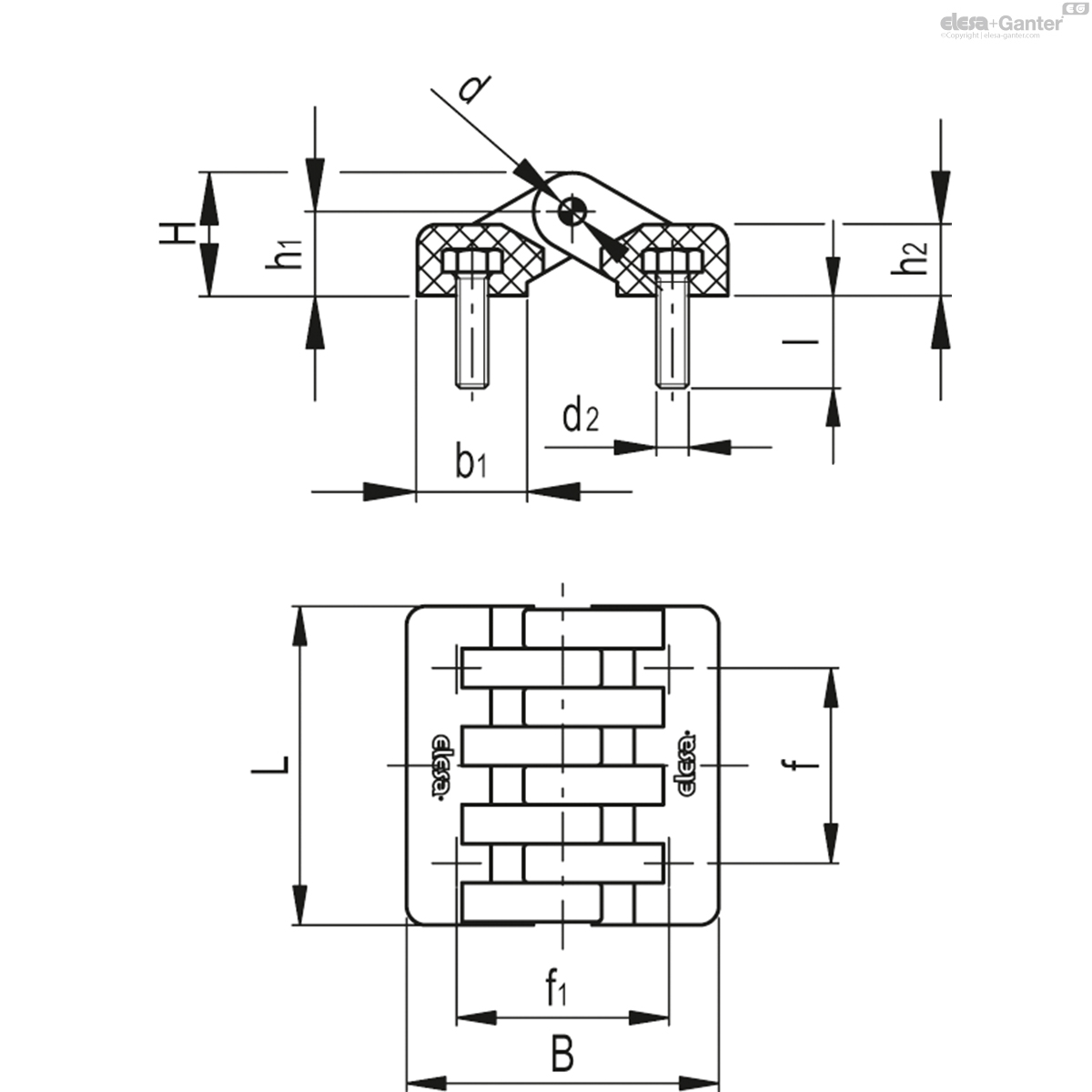

Technische gegevens
- Code
- 422448
- L
- 65
- B
- 64
- d2
- M6
- l
- 18
- h2
- 13.5
- f±0.25
- 40
- H
- 23
- h1
- 15
- b1
- 24
- d
- 5
- C#
[Nm] - 5
- 85
Material
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
Rotating pin
Acetal resin based (POM) technopolymer, black colour.
Standard executions
- CFAX-B: nickel-plated brass bosses with threaded hole.
- CFAX-p: nickel-plated steel threaded studs.
- CFAX-SH: pass-through holes for countersunk head screws.
- CFAX-CH: pass-through holes for cylindrical head screws.

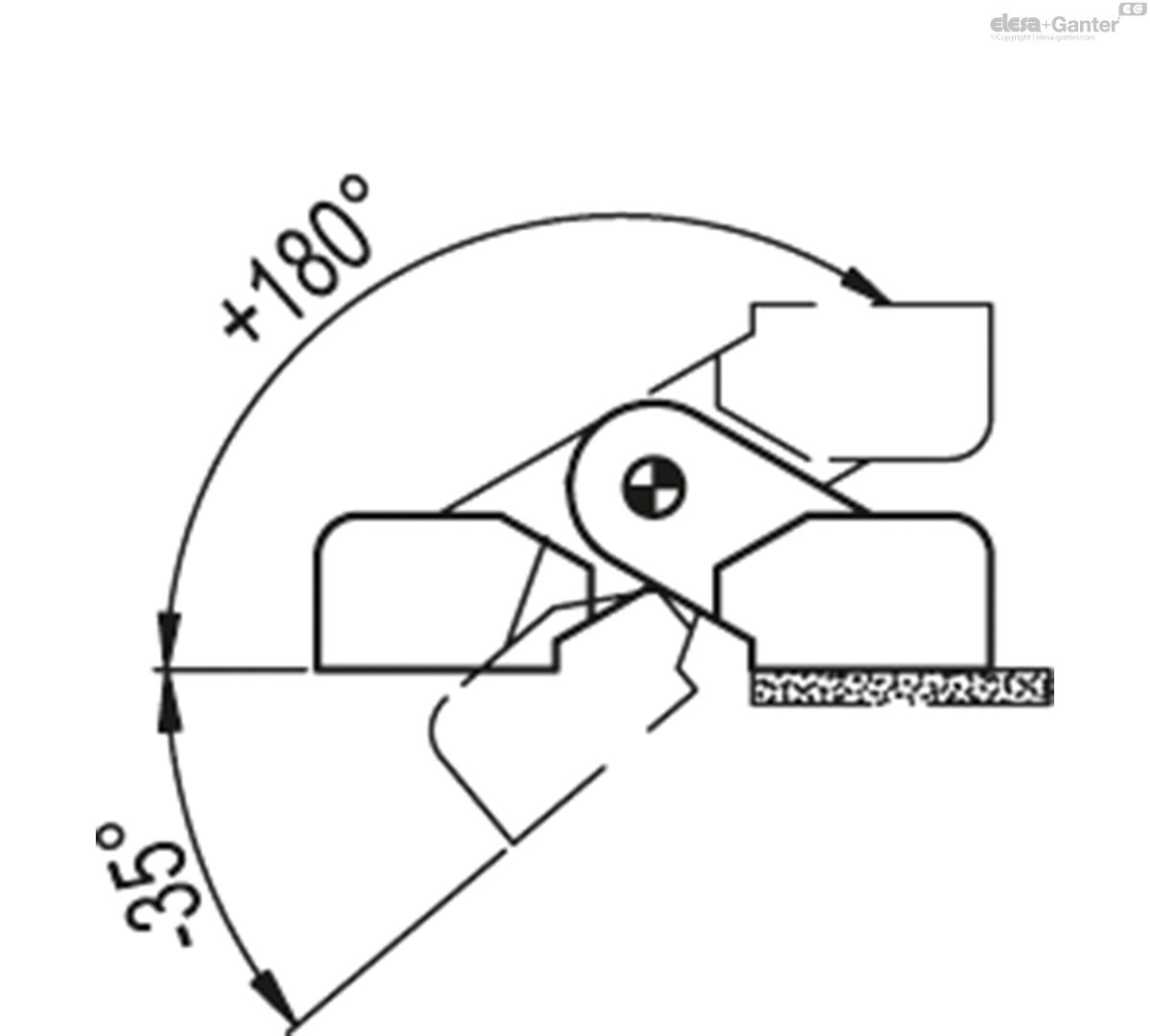

Rotation angle (approximate value)
Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.
To choose the convenient type and the right number of hinges for your application, see the Guidelines.
| Resistance tests | AXIAL STRESS | RADIAL STRESS | 90° ANGLED STRESS | |||
 |  |  | ||||
| Description | Maximum working load\rEa [N] | Load at breakage\rRa [N] | Maximum working load\rEr [N] | Load at breakage\rRr [N] | Maximum working load\rE90 [N] | Load at breakage\rR90 [N] |
| CFAX.40 B-M4 | 200 | 1850 | 240 | 2000 | 100 | 560 |
| CFAX.40 SH-4 | 130 | 1870 | 290 | 1800 | 280 | 1370 |
| CFAX.40 CH-4 | 137 | 1340 | 230 | 1580 | 180 | 1200 |
| CFAX.49 B-M5 | 400 | 2400 | 440 | 2760 | 170 | 1320 |
| CFAX.49 p-M5x14 | 370 | 3070 | 360 | 2400 | 200 | 900 |
| CFAX.49 SH-5 | 300 | 2660 | 310 | 2600 | 320 | 2240 |
| CFAX.49 CH-5 | 360 | 2480 | 310 | 2270 | 250 | 1460 |
| CFAX.65 B-M6 | 640 | 4000 | 690 | 4400 | 220 | 1400 |
| CFAX.65 p-M6x18 | 510 | 5800 | 460 | 4500 | 220 | 3190 |
| CFAX.65 SH-6 | 520 | 4300 | 720 | 4800 | 240 | 3760 |
| CFAX.65 CH-6 | 510 | 3700 | 490 | 5200 | 260 | 2870 |
Other executions available
CFK.: false hinge with single body.
