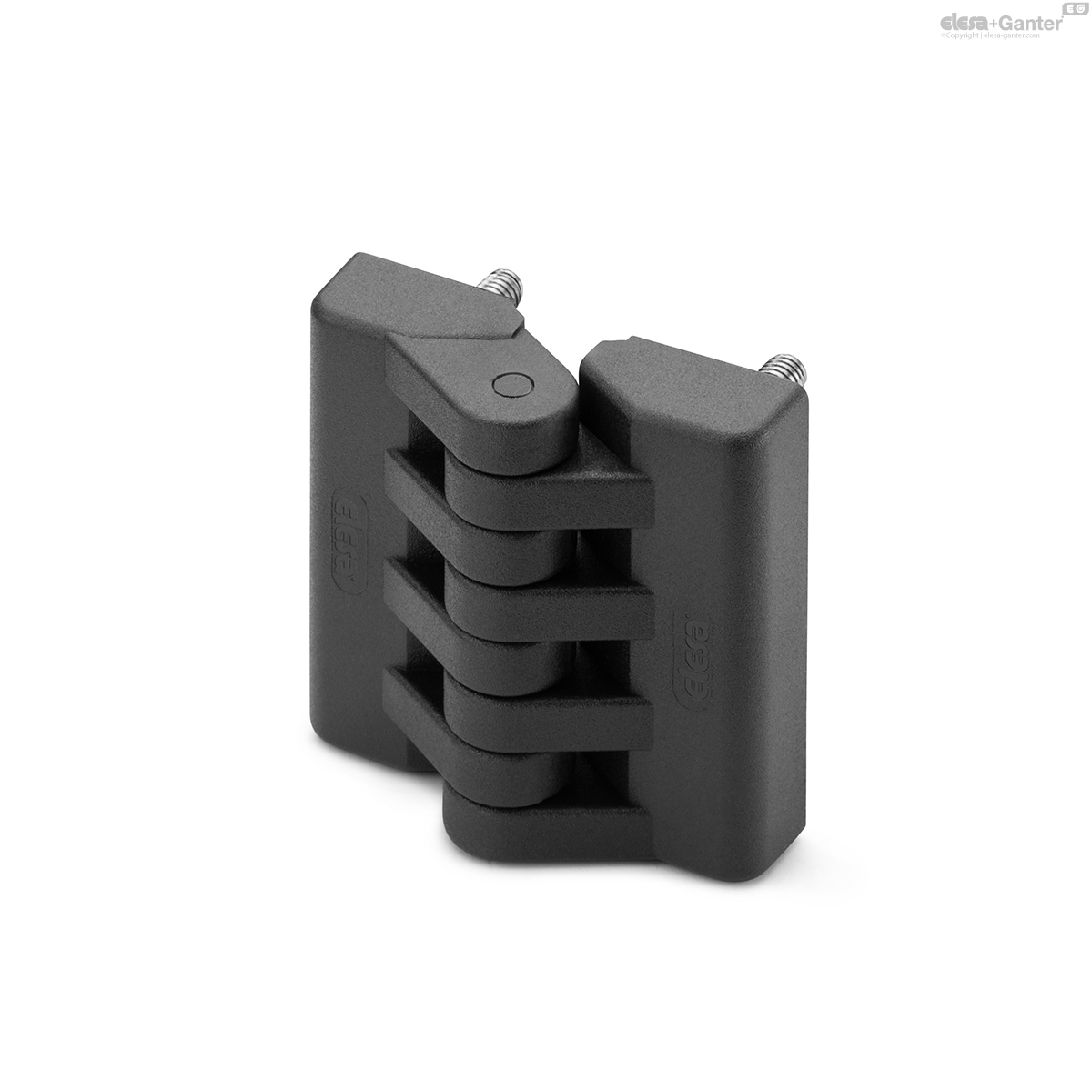

CFAX.65 p-M6x18
CFAX-p Goujons filetés
Goupille rotative en technopolymère
Délai: 1-2 semaines Toutes les tailles et variantes de CFAX.
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

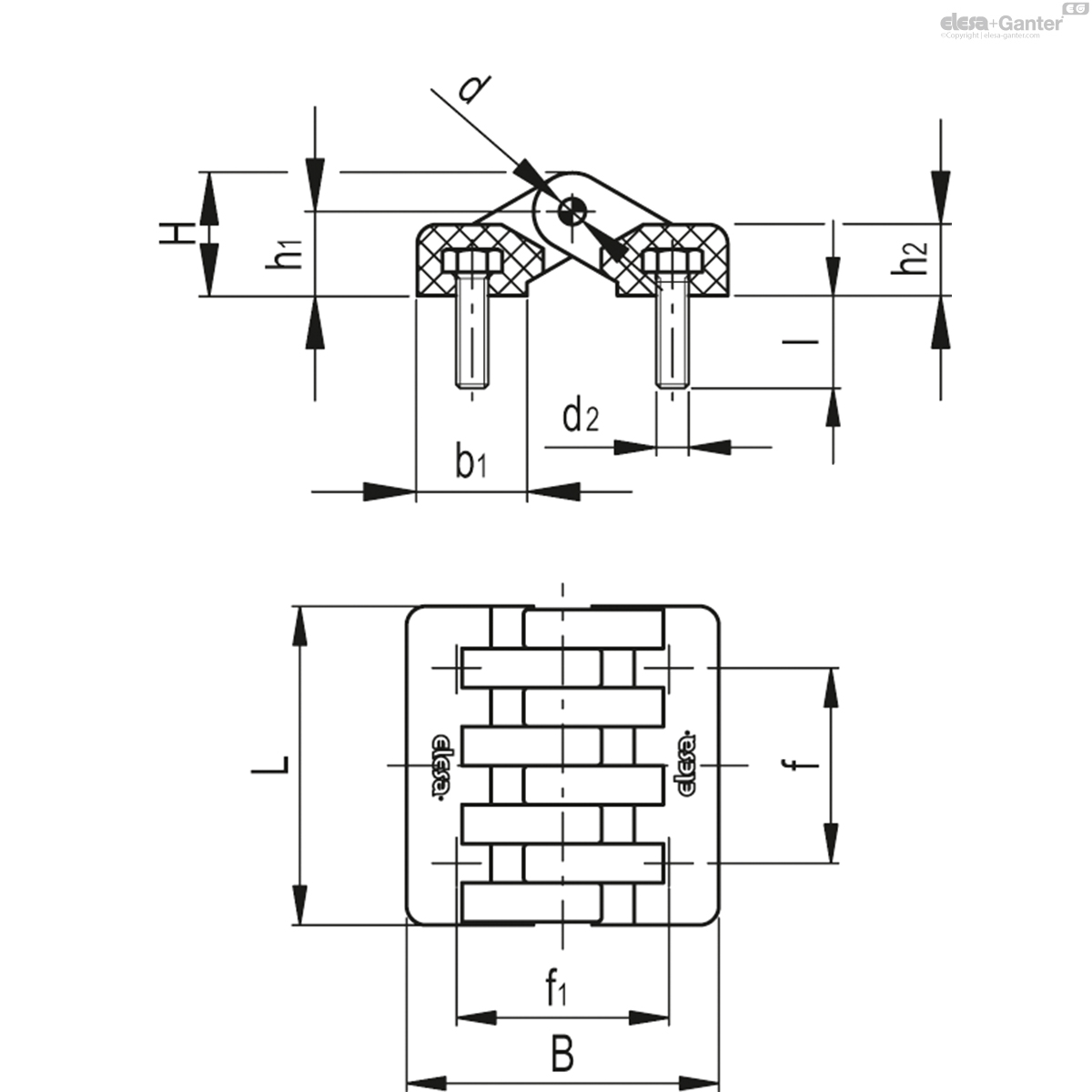

Caractéristiques techniques
- Code
- 422448
- L
- 65
- B
- 64
- d2
- M6
- l
- 18
- h2
- 13.5
- f±0.25
- 40
- H
- 23
- h1
- 15
- b1
- 24
- d
- 5
- C#
[Nm] - 5
- 85
Material
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
Rotating pin
Acetal resin based (POM) technopolymer, black colour.
Standard executions
- CFAX-B: nickel-plated brass bosses with threaded hole.
- CFAX-p: nickel-plated steel threaded studs.
- CFAX-SH: pass-through holes for countersunk head screws.
- CFAX-CH: pass-through holes for cylindrical head screws.

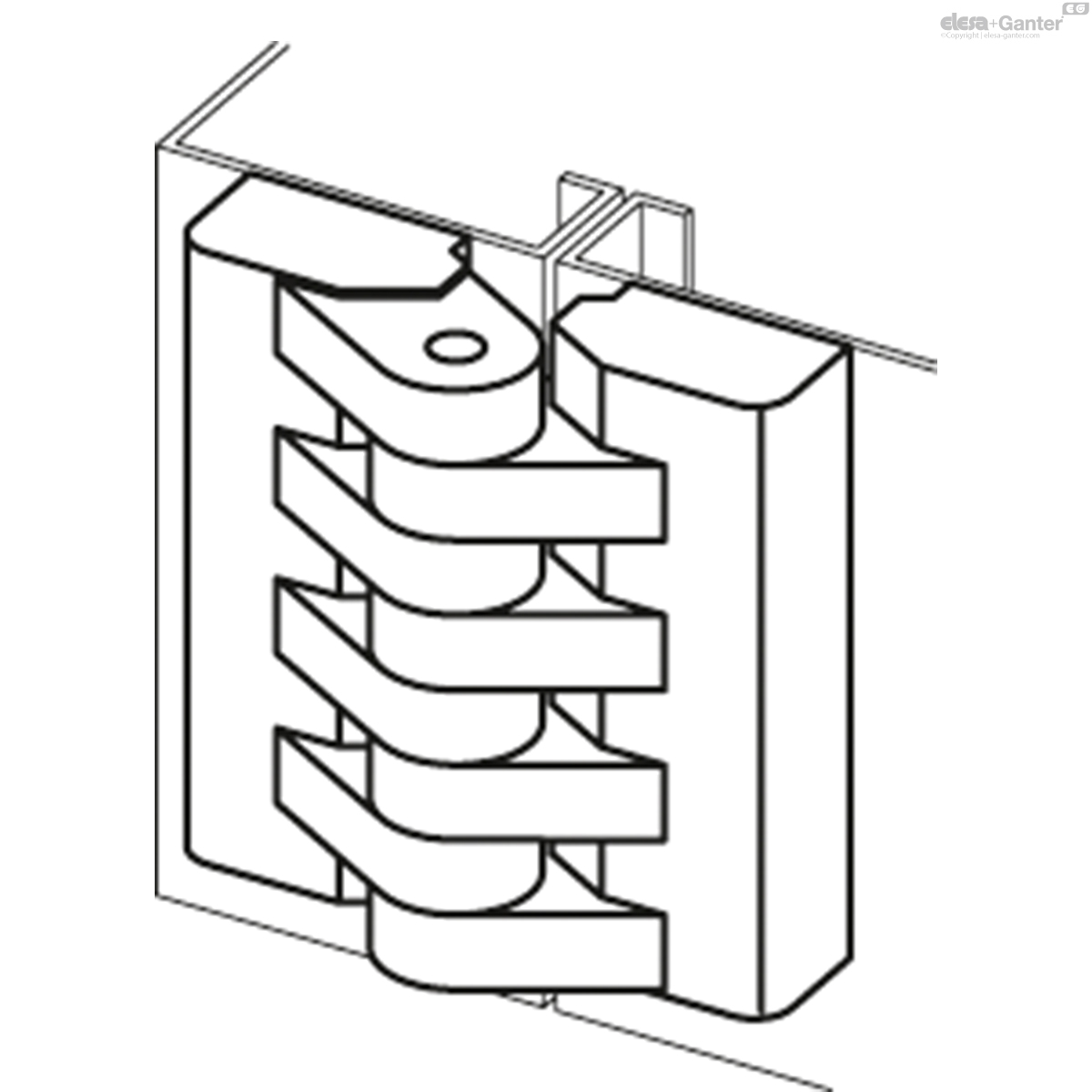

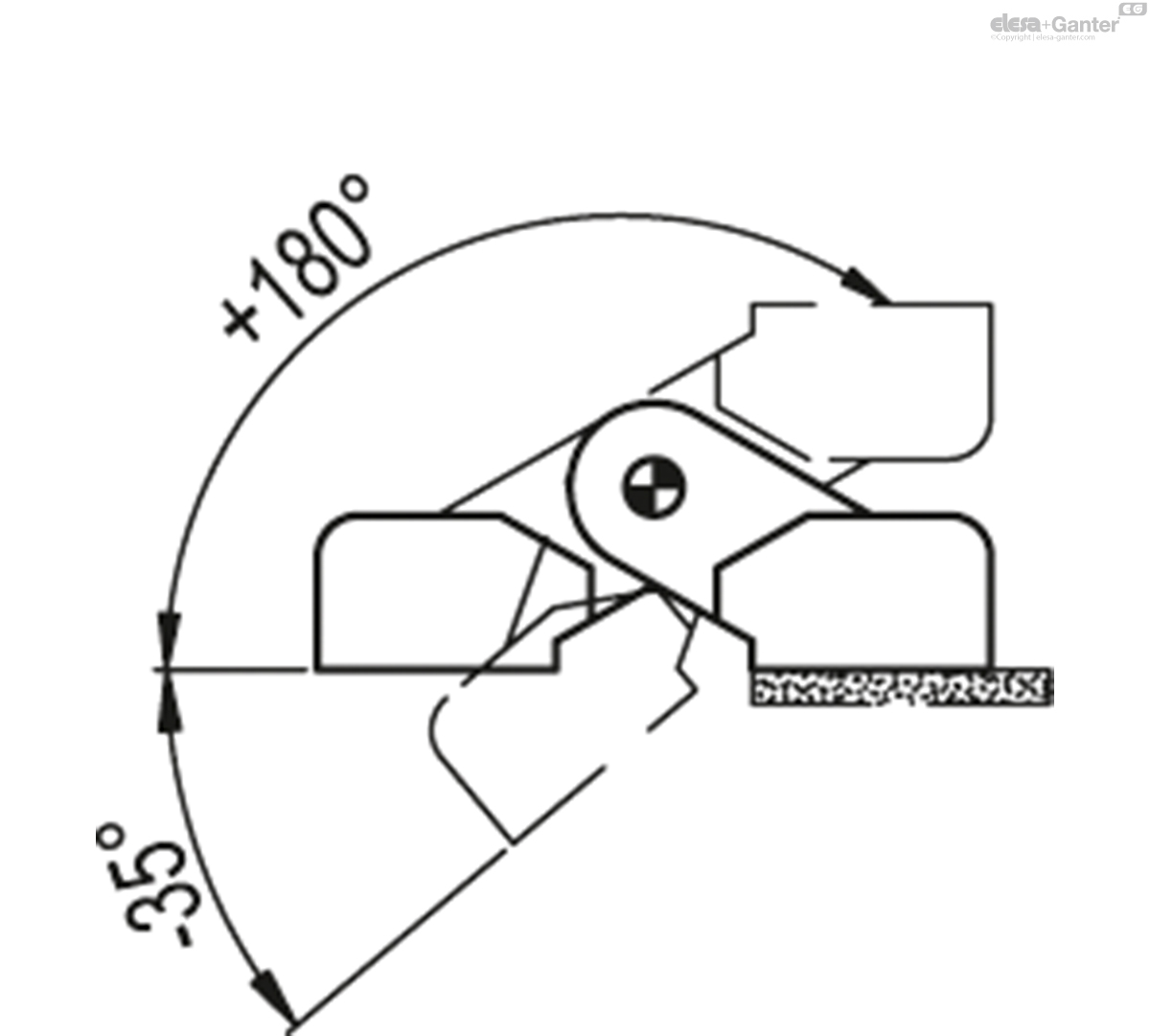

Rotation angle (approximate value)
Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.
To choose the convenient type and the right number of hinges for your application, see the Guidelines.
| Resistance tests | AXIAL STRESS | RADIAL STRESS | 90° ANGLED STRESS | |||
 |  |  | ||||
| Description | Maximum working load\rEa [N] | Load at breakage\rRa [N] | Maximum working load\rEr [N] | Load at breakage\rRr [N] | Maximum working load\rE90 [N] | Load at breakage\rR90 [N] |
| CFAX.40 B-M4 | 200 | 1850 | 240 | 2000 | 100 | 560 |
| CFAX.40 SH-4 | 130 | 1870 | 290 | 1800 | 280 | 1370 |
| CFAX.40 CH-4 | 137 | 1340 | 230 | 1580 | 180 | 1200 |
| CFAX.49 B-M5 | 400 | 2400 | 440 | 2760 | 170 | 1320 |
| CFAX.49 p-M5x14 | 370 | 3070 | 360 | 2400 | 200 | 900 |
| CFAX.49 SH-5 | 300 | 2660 | 310 | 2600 | 320 | 2240 |
| CFAX.49 CH-5 | 360 | 2480 | 310 | 2270 | 250 | 1460 |
| CFAX.65 B-M6 | 640 | 4000 | 690 | 4400 | 220 | 1400 |
| CFAX.65 p-M6x18 | 510 | 5800 | 460 | 4500 | 220 | 3190 |
| CFAX.65 SH-6 | 520 | 4300 | 720 | 4800 | 240 | 3760 |
| CFAX.65 CH-6 | 510 | 3700 | 490 | 5200 | 260 | 2870 |
Other executions available
CFK.: false hinge with single body.
