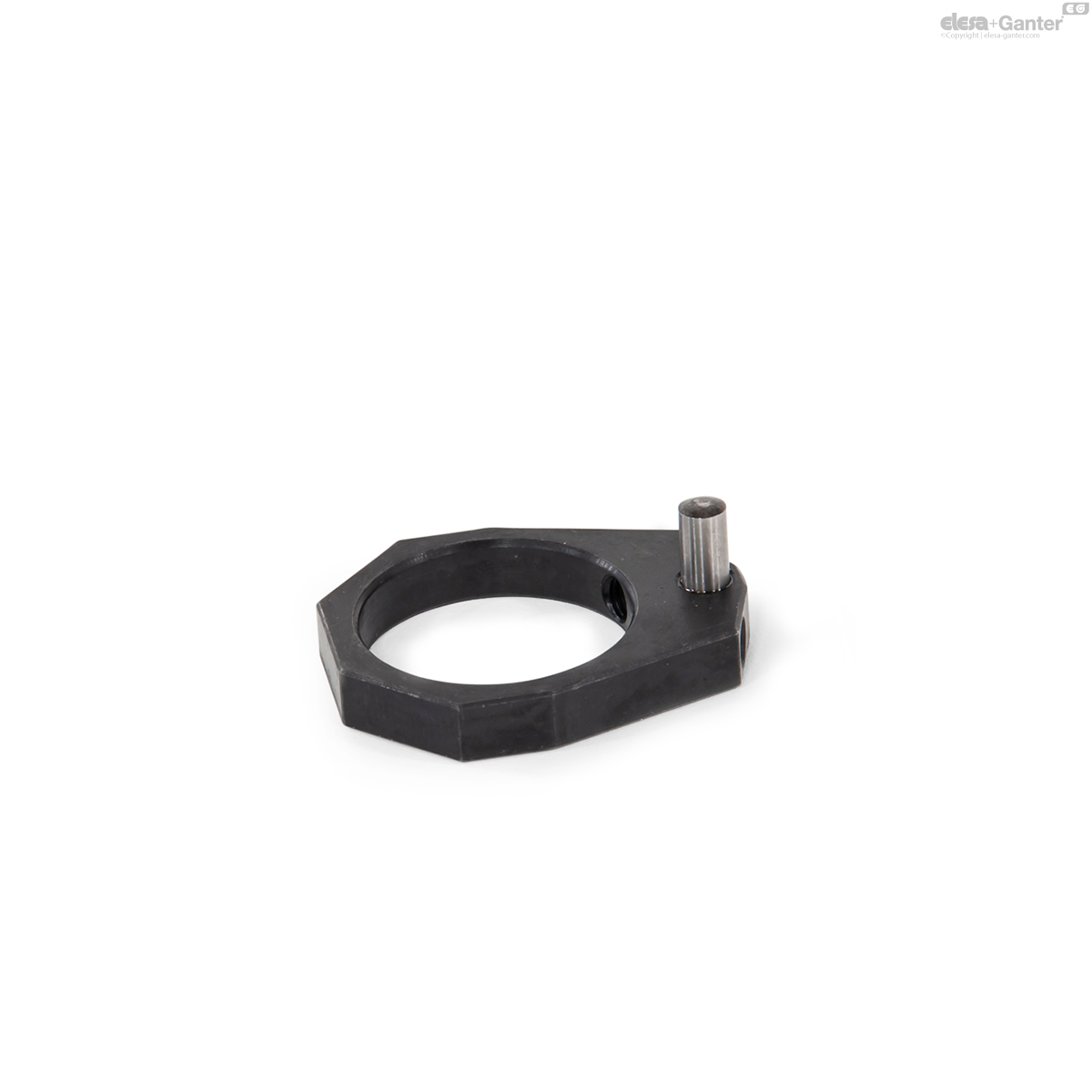

GN 9192.2 Positioneerring
voor opzetklemmen GN 9192
Lt: 1-2 weken Alle maten en varianten van GN 9192.2
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

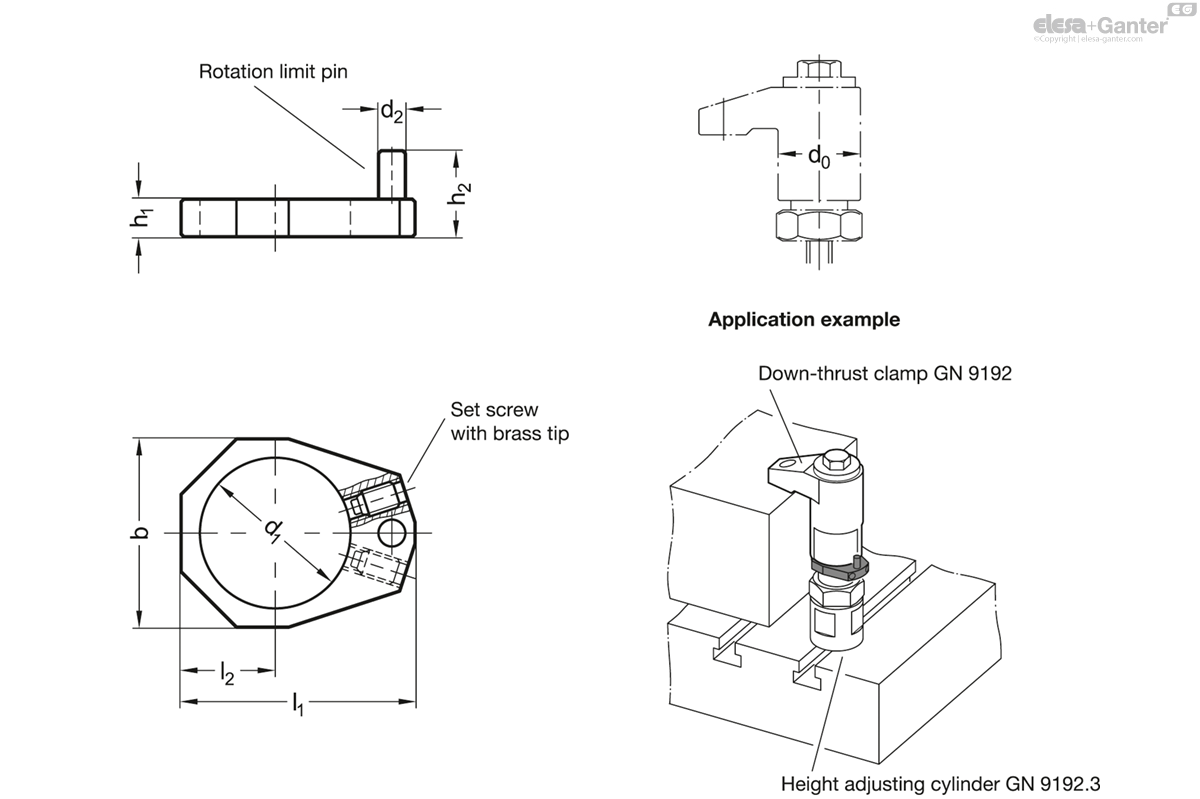

Technische fiche
Technische gegevens
- Code
- GN 9192.2-28-7
- d0
GN 9192 - 40
- d1
- 28
- h1
- 7
- b
- 35
- d2
- 5
- h2
- 16
- l1
- 43.5
- l2
- 17.5
- 32
Steel
Blackened
Set screws
- Steel, blackened
- Brass tip
Positioning rings GN 9192.2 limit the swiveling range of down-thrust clamps GN 9192 to 110° left or right via a positioning pin. The position of the ring can be adjusted to ensure that the clamping position is reached reliably when the clamp swivels against the positioning pin.
The positioning ring is secured with two set screws. The stroke of the down-thrust clamp is reduced by the height h1 of the positioning ring.
