9190-14-M12-P-R GN 9190-P met prismaklem

9190-14-M12-P-R

GN 9190-P met prismaklem

Staal, met spiraalexcenter hendel
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 9190

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 9190-14-M12-P-R
a
Slot width
14
d1
M 12
Fs in kN
7
b
48
d2
12.5
d3 min.
4
d3 Max.
26
h1
38
h2
16
h3
62
h4
40
h5
19.1
l1
190
l2
40
l3
72
s clamping stroke
4
Recommended screw in combination with
GN 9190.3
ISO 4762-M12x35
838
9190-14-M12-P-R drawing
9190-14-M12-P-R drawing
* Combination with GN 9190.3 not possible

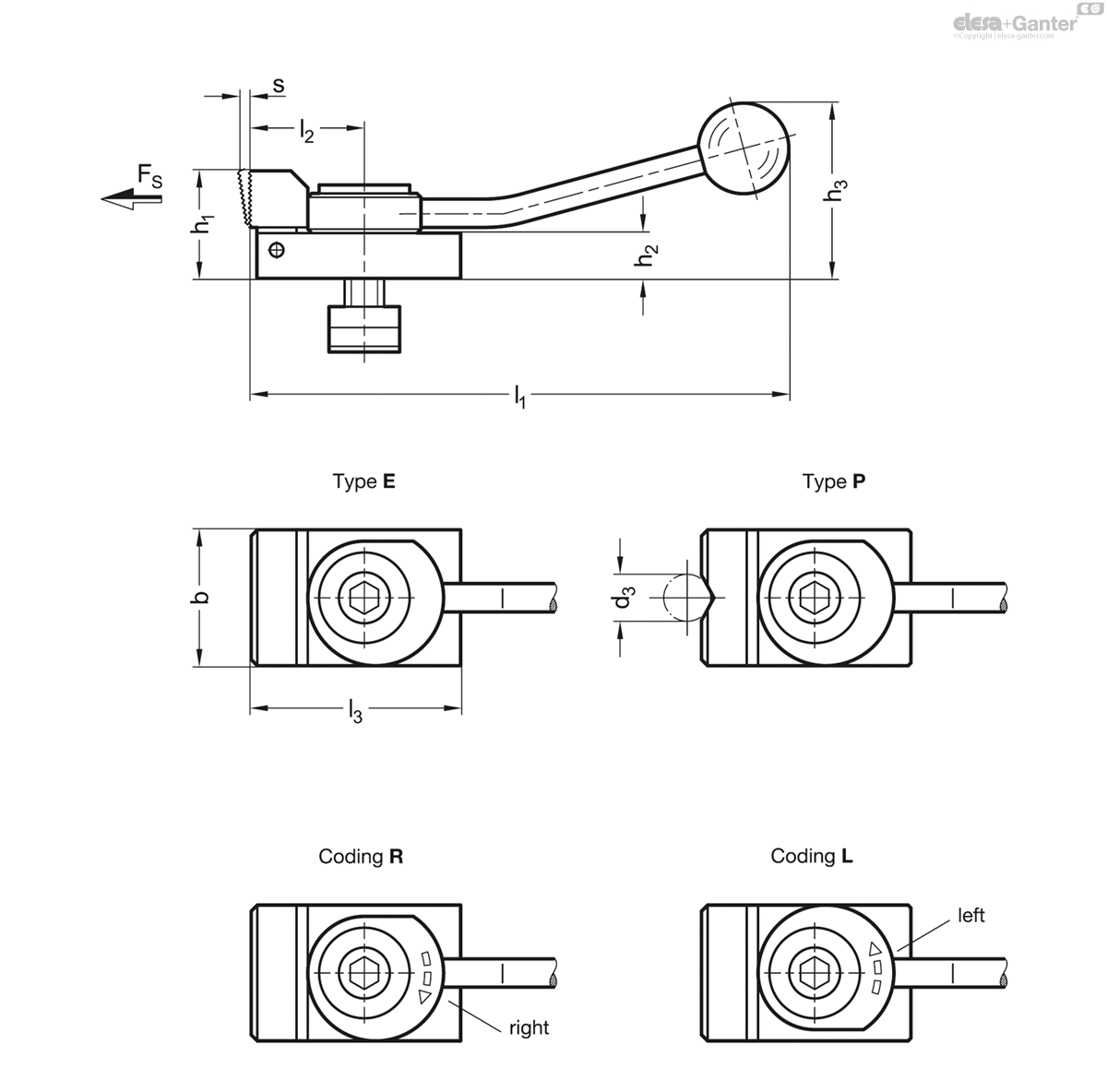

Types

  • Type E: With serrated clamping jaw
  • Type P: With prism clamping jaw

Coding

  • Version R: Clamping by clockwise rotation
  • Version L: Clamping by anti-clockwise rotation

Clamping mechanisms

Steel

  • Case-hardened
  • Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

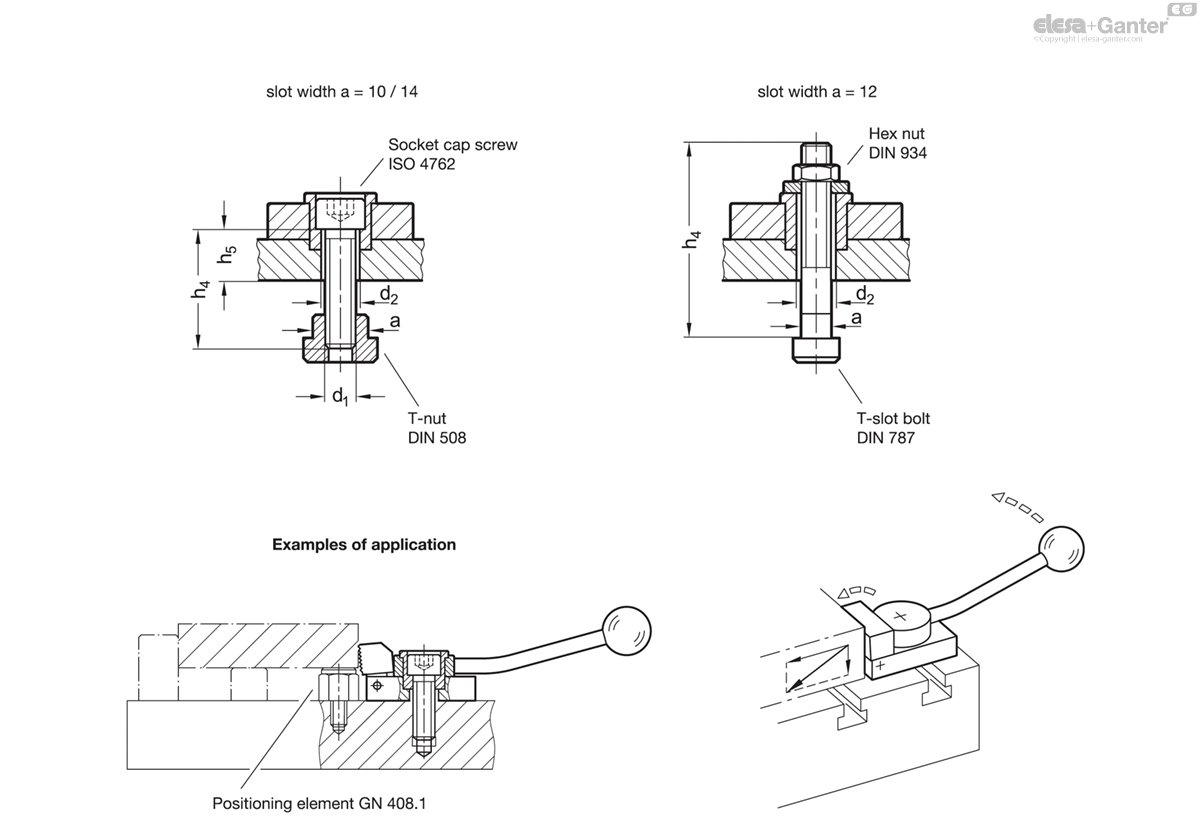

For slot width a = 10 / 14

  • Socket cap screw ISO 4762
  • Steel
  • Property class 12.9
  • Blackened

For slot width a = 12

  • Hex nut DIN 934
  • Steel, blackened

With side clamps GN 9190, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface.

The clamping stroke of the clamping jaw results from the swivel movement of the eccentrical cam lever. When the lever is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allow full-surface machining of the workpiece.

Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN 9190.3, which are available as accessory. In this case, the supplied screw must be replaced as per the table.

To ensure easy play and maximum clamping force, the tensioning mechanisms should be lightly greased.
