9190-14-M12-P-R GN 9190-P Avec mâchoire de serrage à prisme

9190-14-M12-P-R

GN 9190-P Avec mâchoire de serrage à prisme

Acier, avec levier à came excentrique
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 9190

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 9190-14-M12-P-R
a
Slot width
14
d1
M 12
Fs in kN
7
b
48
d2
12.5
d3 min.
4
d3 Max.
26
h1
38
h2
16
h3
62
h4
40
h5
19.1
l1
190
l2
40
l3
72
s clamping stroke
4
Recommended screw in combination with
GN 9190.3
ISO 4762-M12x35
838

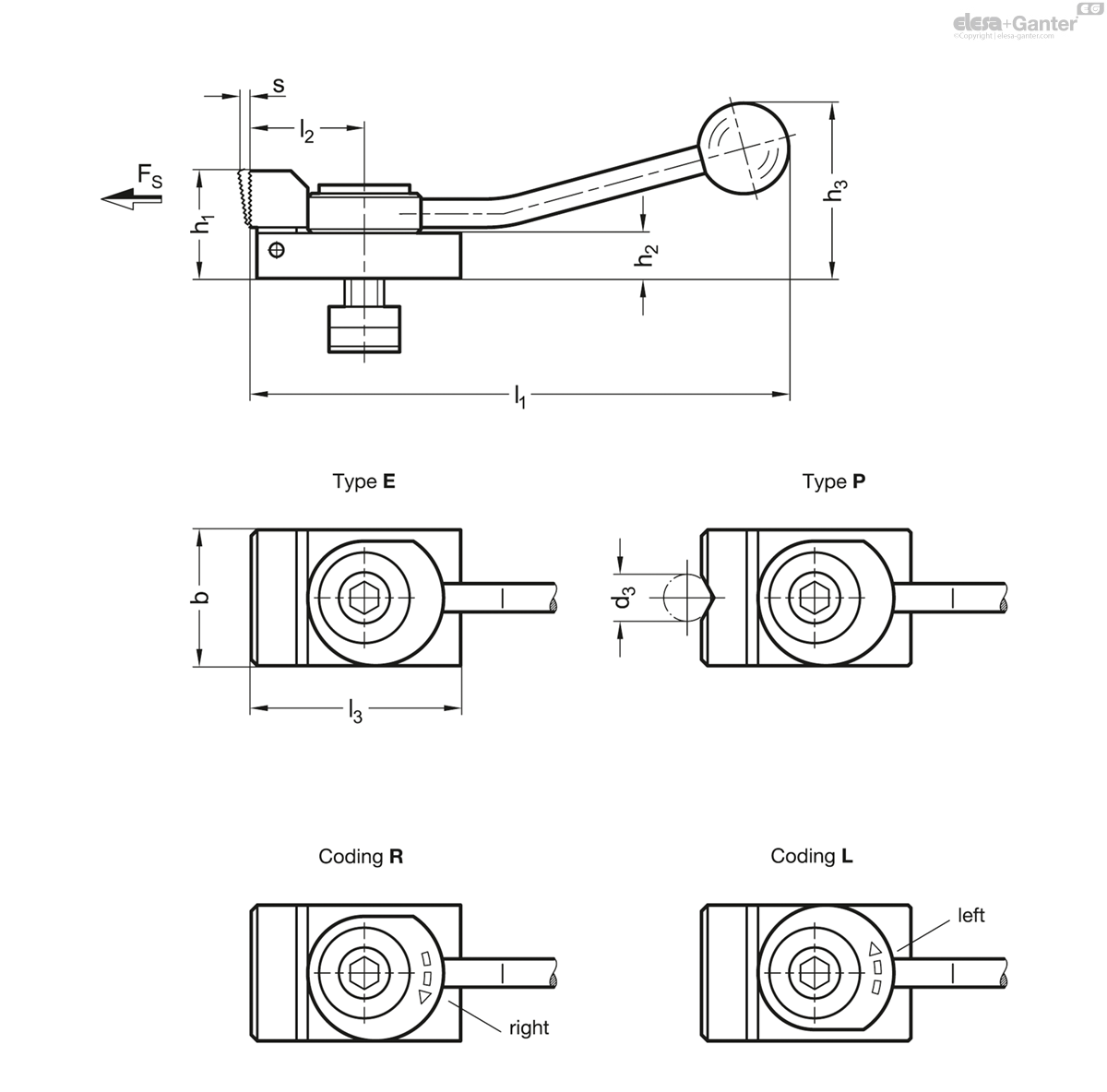

9190-14-M12-P-R drawing

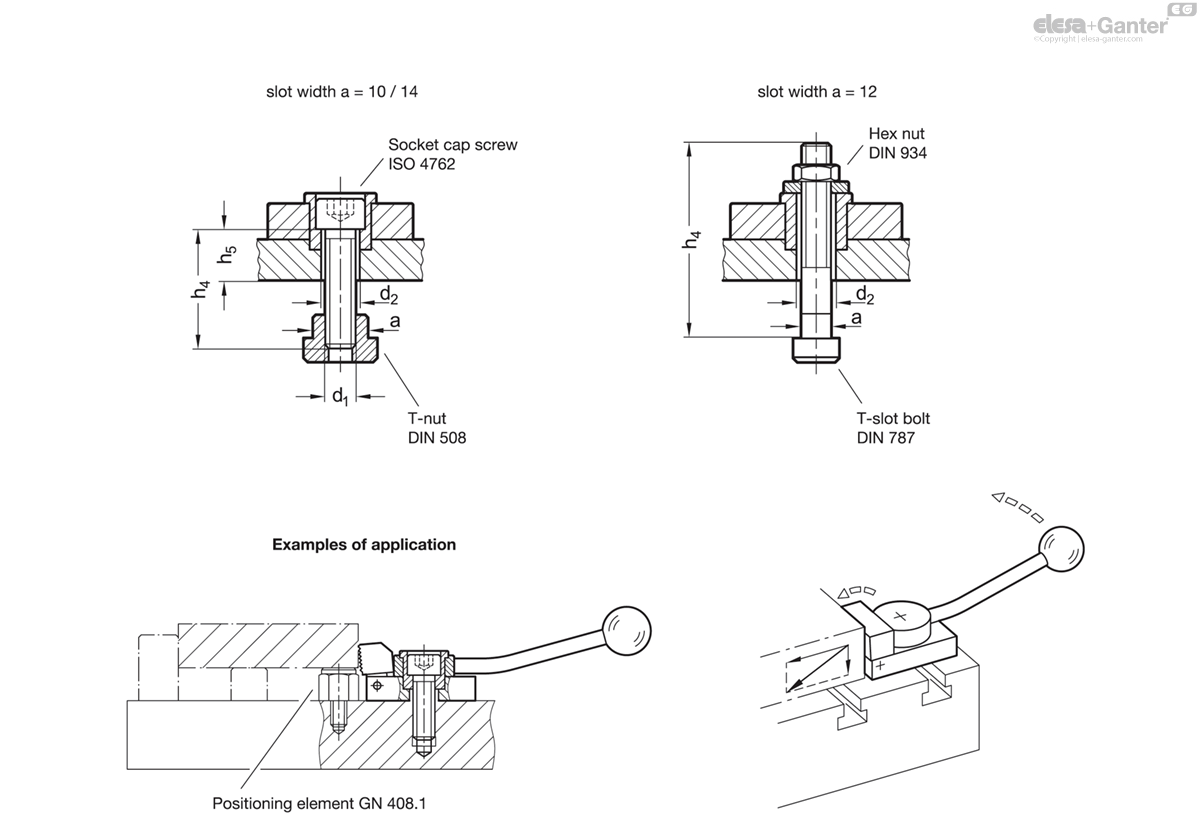

9190-14-M12-P-R drawing
* Combination with GN 9190.3 not possible

Types

  • Type E: With serrated clamping jaw
  • Type P: With prism clamping jaw

Coding

  • Version R: Clamping by clockwise rotation
  • Version L: Clamping by anti-clockwise rotation

Clamping mechanisms

Steel

  • Case-hardened
  • Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

For slot width a = 10 / 14

  • Socket cap screw ISO 4762
  • Steel
  • Property class 12.9
  • Blackened

For slot width a = 12

  • Hex nut DIN 934
  • Steel, blackened

With side clamps GN 9190, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface.

The clamping stroke of the clamping jaw results from the swivel movement of the eccentrical cam lever. When the lever is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allow full-surface machining of the workpiece.

Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN 9190.3, which are available as accessory. In this case, the supplied screw must be replaced as per the table.

To ensure easy play and maximum clamping force, the tensioning mechanisms should be lightly greased.
