828-6-UB-15-AM GN 828-UB met groef, montage vanaf de voorkant

828-6-UB-15-AM

GN 828-UB met groef, montage vanaf de voorkant

voor roestvrijstalen stelschroeven GN 827
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 828

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 828-6-UB-15-AM
d1 +0.6/+0.4
6
h1
15
b h11
10
d2
4.5
h2
6
h3
5
k
5.6
l
35
m
22
23

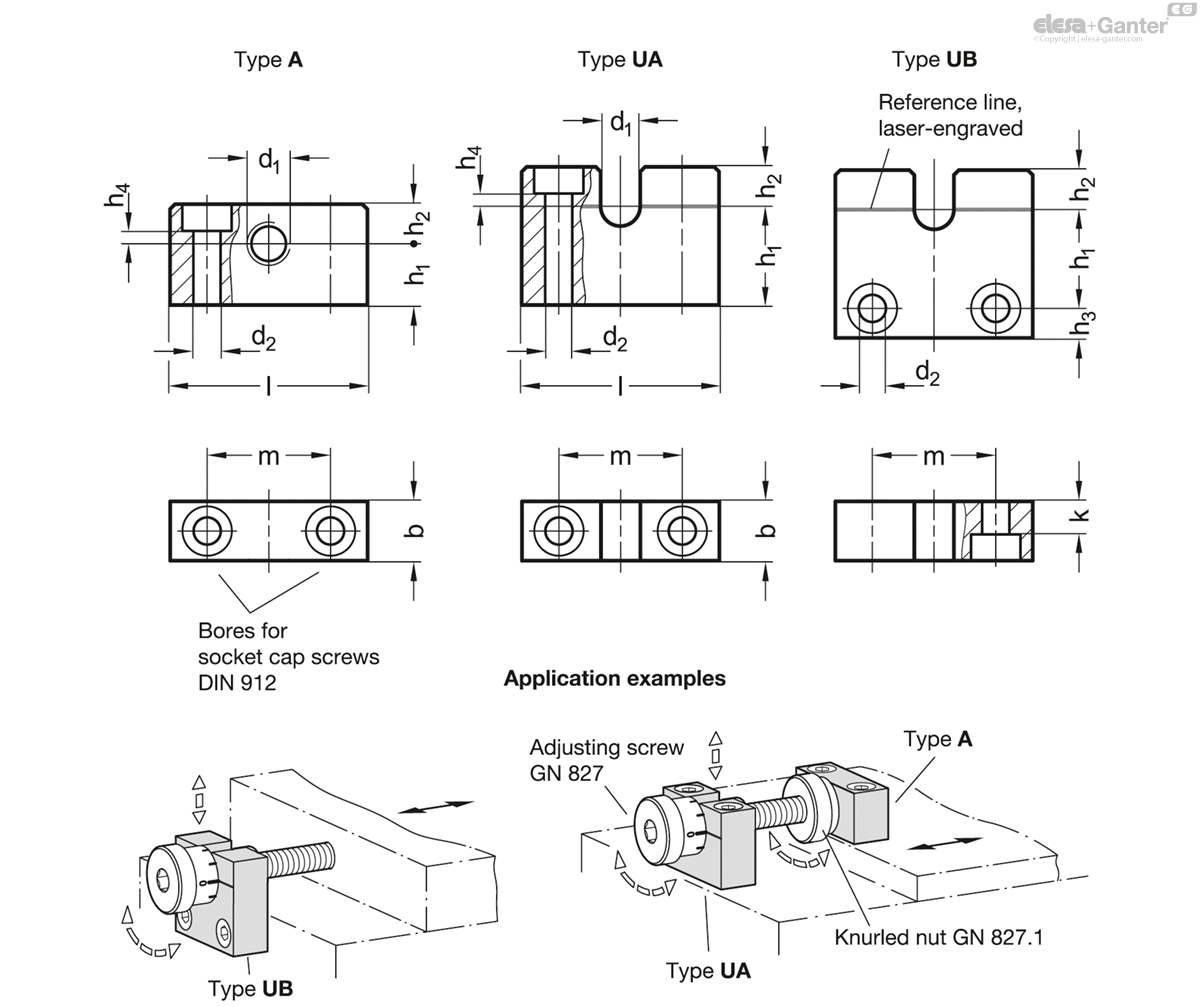

828-6-UB-15-AM drawing

Types

  • Type A: with thread, mounting from above
  • Type UA: with groove, mounting from above
  • Type UB: with groove, mounting from the front

Aluminum AM

matte ground

Reference line

laser-engraved, black discharged

Bearing blocks GN 828 are used in combination with Stainless Steel-Adjusting screws GN 827 for simple adjustment and positioning tasks.

For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.

On the opposing part, type A or threading already present in the mounting plate can be used.

  • Stainless Steel-Adjusting screws GN 827
