850.1-500-TT GN 850.1 Staal

850.1-500-TT

GN 850.1 Staal

Staal/roestvrij staal, voor trekken
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 850.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 850.1-500-TT
Size
500
Fh in N
5000
a
19
b1
50
b2
49
b3
35
b5
18
b7
10
d1
M 8
d2
6.5
d3
6.7
h1 ≈
45
h2
17
h3
30
l1 ≈
197
l4 ≈
76.5
l6
34
m1
19
m2
33.5
m3
19
m5
8
s
3
t
16
w2 ≈
8
465
850.1-500-TT drawing
850.1-500-TT drawing

Types

  • Type T: with draw axle, with catch
  • Type TF: without draw axle, without catch
  • Type TG: with draw axle, with catch, with oval head latch bolt
  • Type TT: with draw axle, with catch, with T-head latch bolt
  • Type TU: with draw axle, with catch, with J-hook latch bolt

Steel

Case-hardened steel C10

Stainless Steel

zinc plated, blue passivated

Draw hook

Steel St 37

zinc plated, blue passivated

Stainless Steel NI

AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

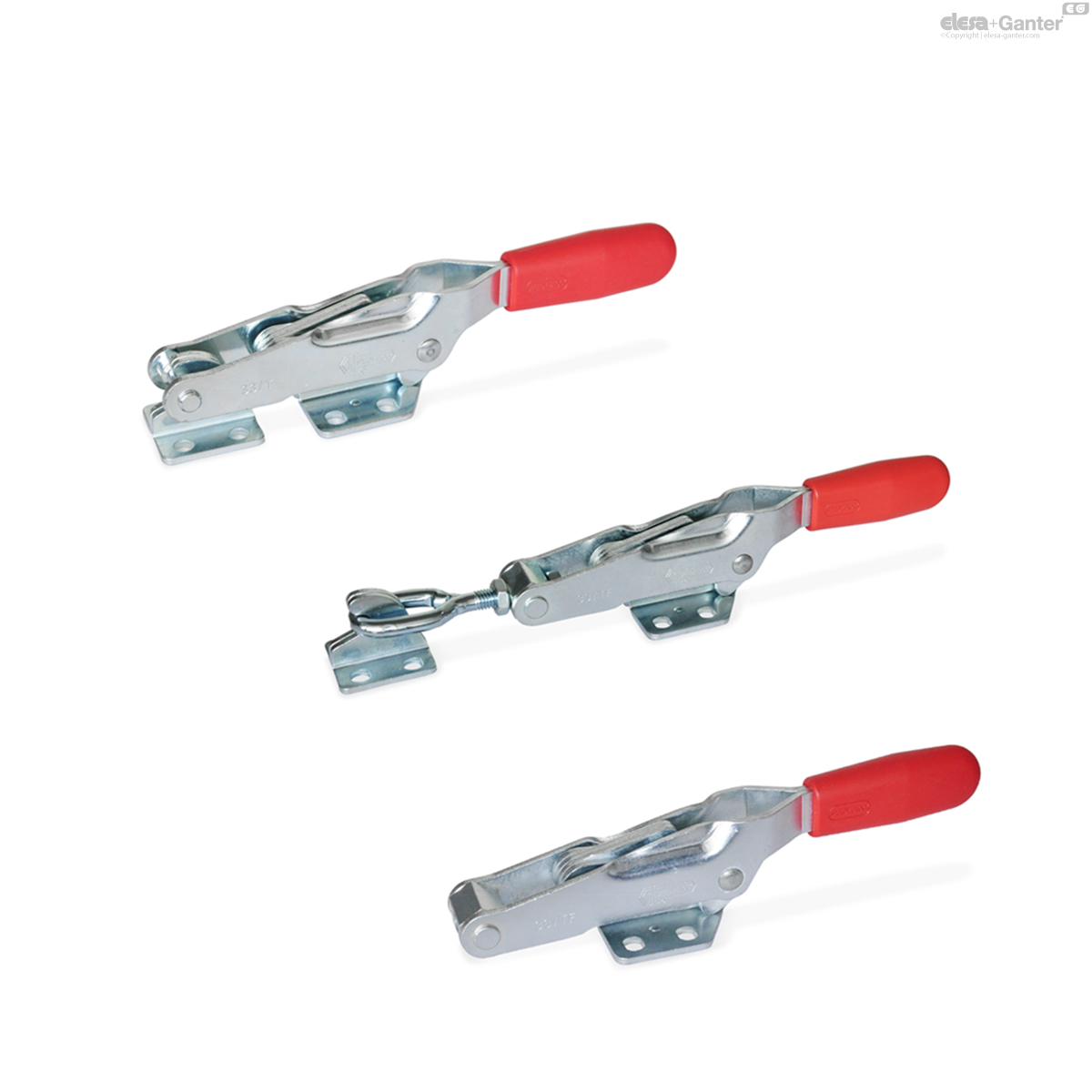

GN 850.1 toggle clamps are especially suited for rapid closing and fastening of lids, flaps and molds.

During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.

Toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch-type toggle clamps of Types TG, TT and TU can be adjusted along the adjustment dimension w2.
