850.1-500-TT
GN 850.1 Acier
Délai: 1-2 semaines Toutes les tailles et variantes de GN 850.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 850.1-500-TT
- Size
- 500
- Fh in N
- 5000
- a
- 19
- b1
- 50
- b2
- 49
- b3
- 35
- b5
- 18
- b7
- 10
- d1
- M 8
- d2
- 6.5
- d3
- 6.7
- h1 ≈
- 45
- h2
- 17
- h3
- 30
- l1 ≈
- 197
- l4 ≈
- 76.5
- l6
- 34
- m1
- 19
- m2
- 33.5
- m3
- 19
- m5
- 8
- s
- 3
- t
- 16
- w2 ≈
- 8
- 465
Types

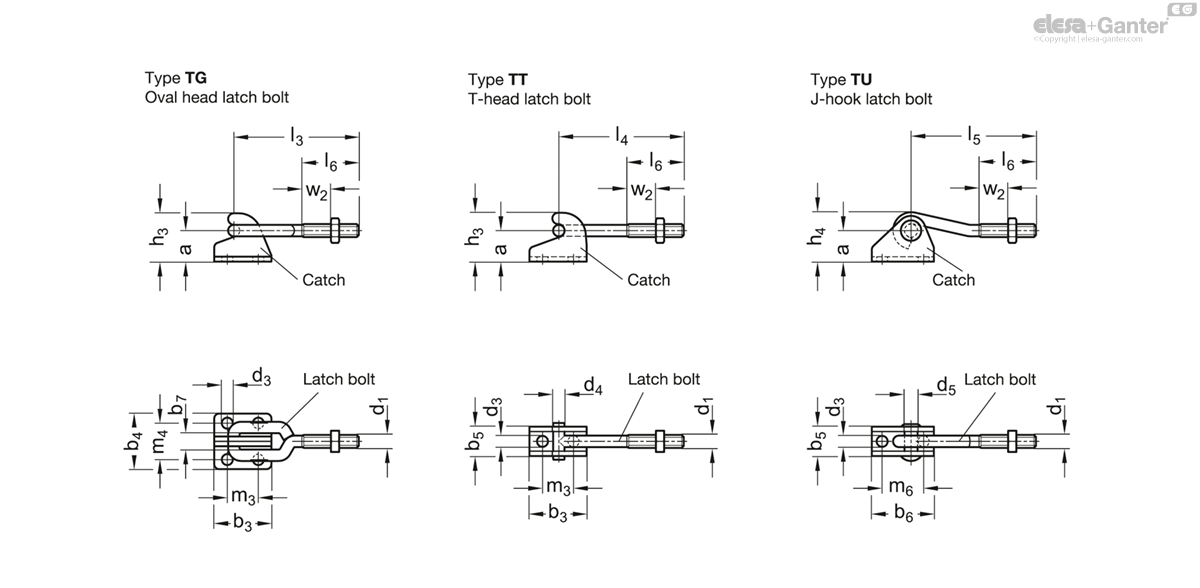

- Type T: with draw axle, with catch
- Type TF: without draw axle, without catch
- Type TG: with draw axle, with catch, with oval head latch bolt
- Type TT: with draw axle, with catch, with T-head latch bolt
- Type TU: with draw axle, with catch, with J-hook latch bolt
Steel
Case-hardened steel C10
Stainless Steel
zinc plated, blue passivated
Draw hook
Steel St 37
zinc plated, blue passivated
Stainless Steel NI
AISI 304
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic

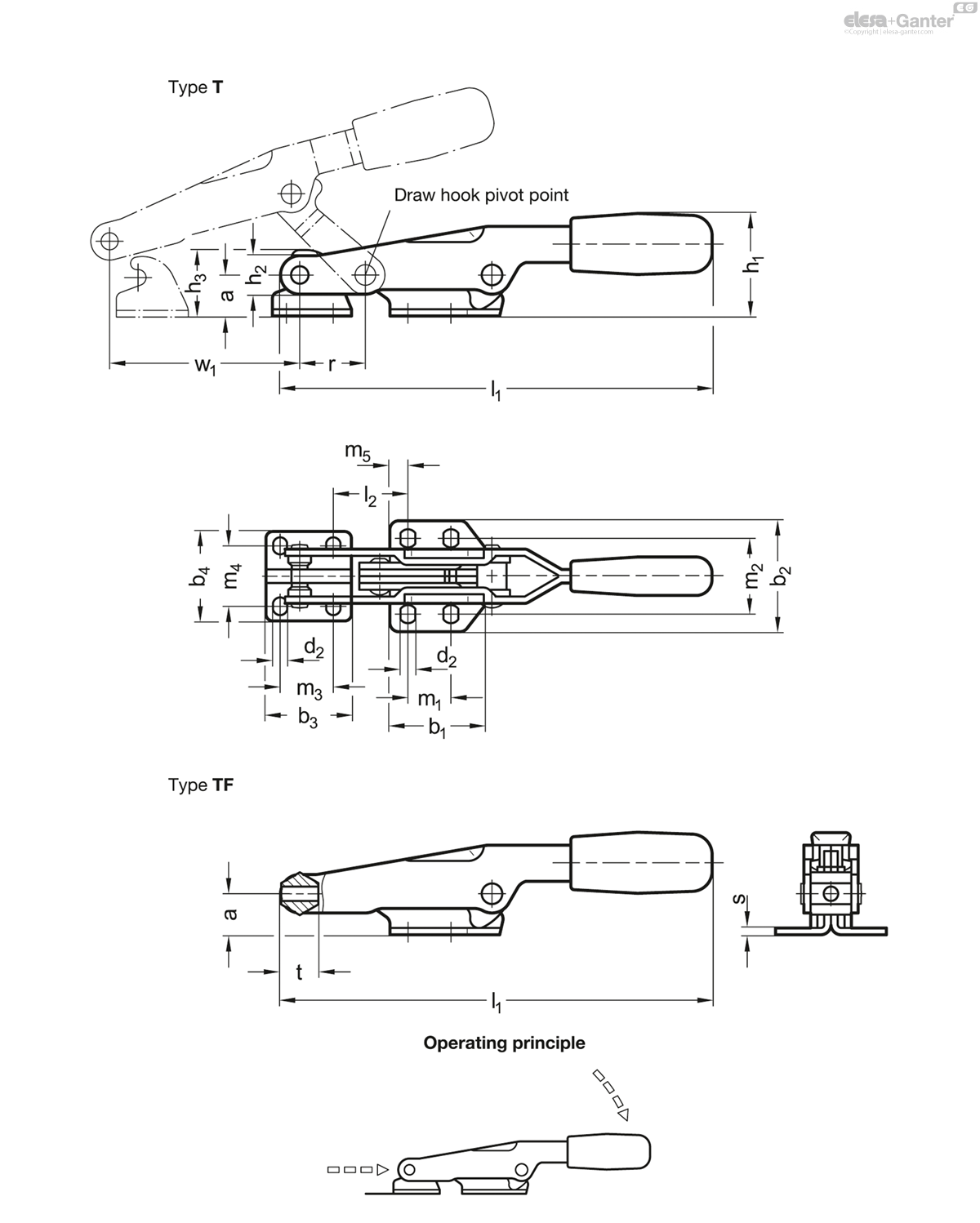

GN 850.1 toggle clamps are especially suited for rapid closing and fastening of lids, flaps and molds.
During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.
Toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch-type toggle clamps of Types TG, TT and TU can be adjusted along the adjustment dimension w2.
