360-40-M10-69-B-NI GN 360-NI Roestvrij staal

360-40-M10-69-B-NI

GN 360-NI Roestvrij staal

Staal / RVS
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 360

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 360-40-M10-69-B-NI
d1 Support plate d1 = d4
40
d2
M 10
h1 max.
69
d3
M 28 x 1.5
d4
40
h4 min.
59
h5 Adjustable range
10
Static load F
in kN
70
Code no. for
C-Spanner
DIN 1810-A40-42
418

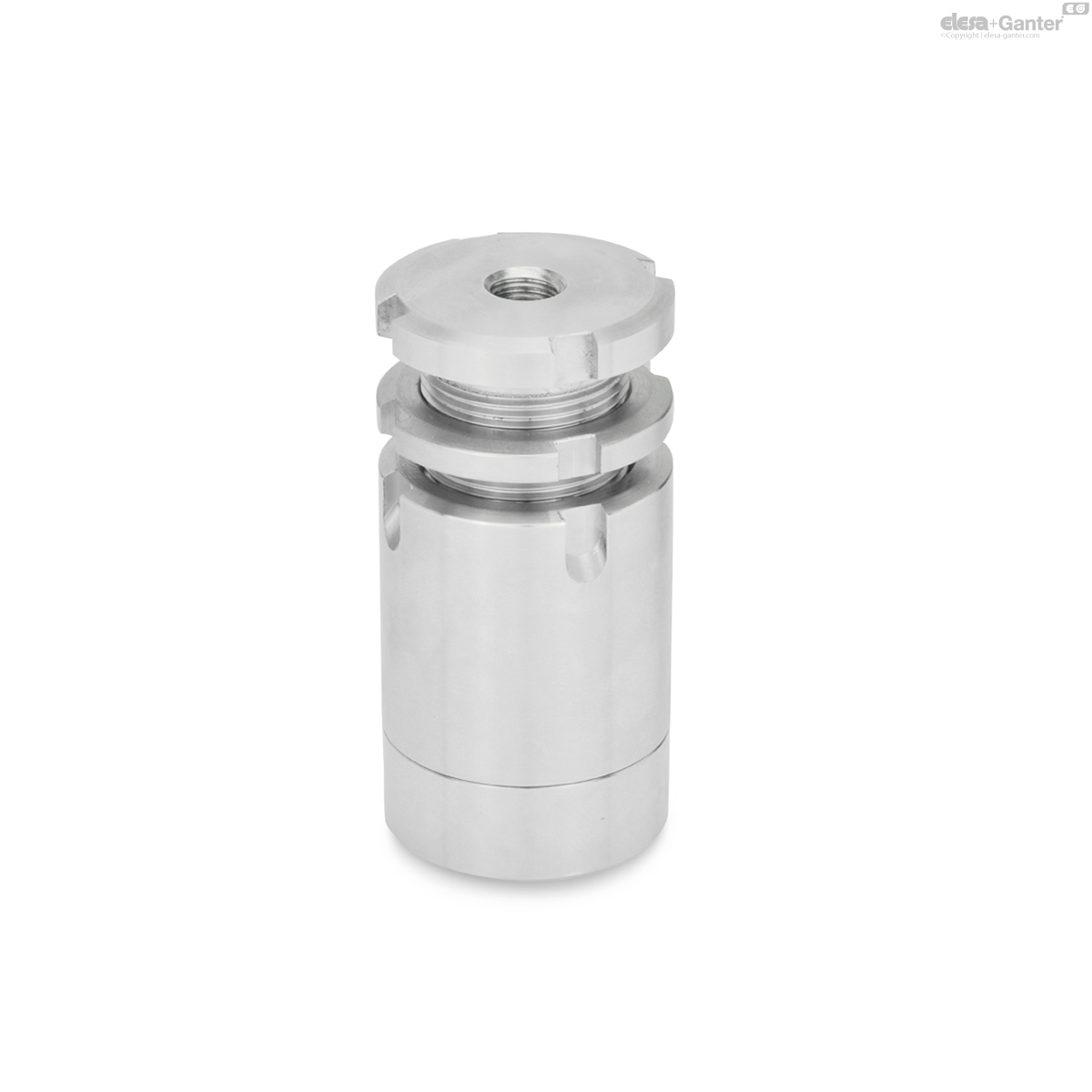

360-40-M10-69-B-NI drawing
Types
  • Type A: Without lock nut
  • Type B: With lock nut
Version in Steel

Steel ST

Zinc plated, blue passivated

Version in Stainless Steel

Stainless steel AISI 304 NI

Leveling sets GN 360 are used for leveling and to compensate for any slope when setting up machines and systems.

The thread d2 can also be used as a through-hole for attachment from below. The fine thread d3 laws precise adjustment and readjustment using a DIN 1810 C-Spanner. A circlip limits the maximum path of adjustment.

  • C-Spanner DIN 1810 (code no. see table)
