360-40-M10-69-B-NI GN 360-NI Stainless Steel

360-40-M10-69-B-NI

GN 360-NI Stainless Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 360

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 360-40-M10-69-B-NI
d1 Support plate d1 = d4
40
d2
M 10
h1 max.
69
d3
M 28 x 1.5
d4
40
h4 min.
59
h5 Adjustable range
10
Static load F
in kN
70
Code no. for
C-Spanner
DIN 1810-A40-42
418

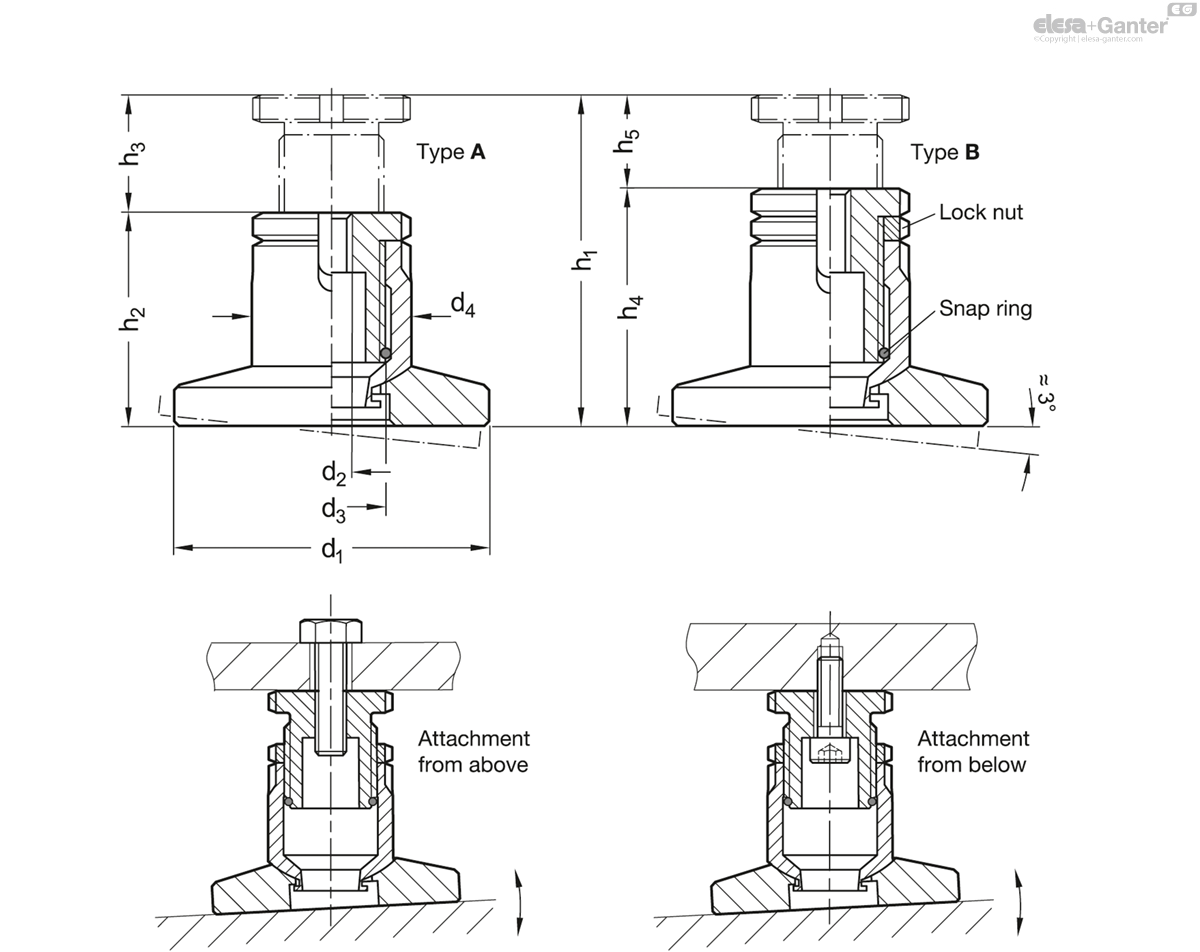

360-40-M10-69-B-NI drawing
Types
  • Type A: Without lock nut
  • Type B: With lock nut
Version in Steel

Steel ST

Zinc plated, blue passivated

Version in Stainless Steel

Stainless steel AISI 304 NI

Leveling sets GN 360 are used for leveling and to compensate for any slope when setting up machines and systems.

The thread d2 can also be used as a through-hole for attachment from below. The fine thread d3 laws precise adjustment and readjustment using a DIN 1810 C-Spanner. A circlip limits the maximum path of adjustment.

  • C-Spanner DIN 1810 (code no. see table)
