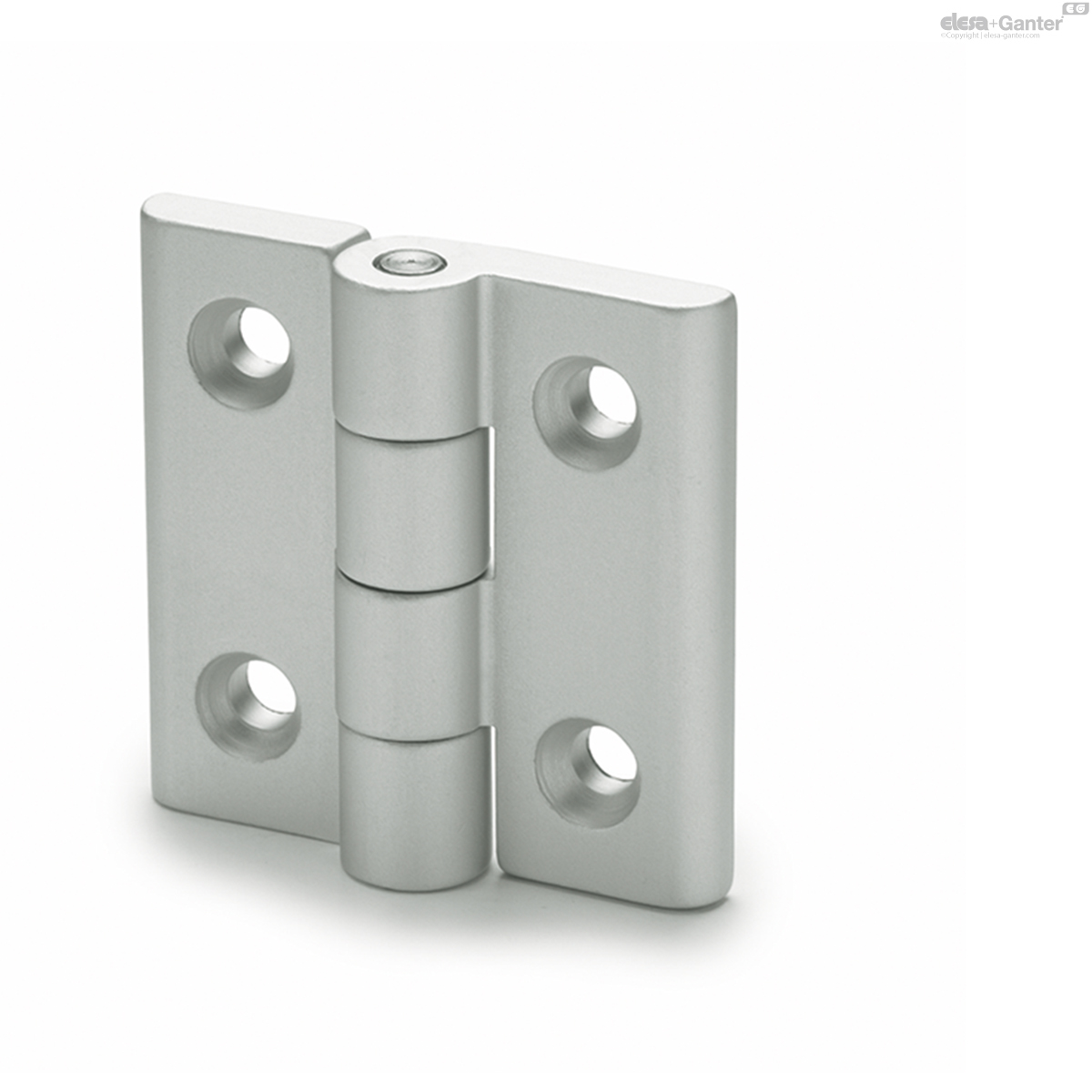

CMM-AL-60-SH-8 CMM-AL Scharnieren

CMM-AL-60-SH-8

CMM-AL Scharnieren

Aluminium
  • RoHS

Op voorraad Alle maten en varianten van CMM-AL

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
428655
L
60
d3
8.5
d4
18
f
36
H
16.5
h1
8.5
h2
8
b1
20.5
d
8
91
CMM-AL-60-SH-8 drawing
CMM-AL-60-SH-8 drawing
CMM-AL-60-SH-8 drawing

Material

Anodised aluminium, natural colour, matte finish.

Rotating pin

AISI 304 stainless steel.

Standard execution

Pass-through holes for countersunk head screws.

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
