51.7-ND-22-A GN 51.7 Magneten

51.7-ND-22-A

GN 51.7 Magneten

met kogelknop / met sleutelring, met rubberen omhulsel
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 51.7

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 51.7-ND-22-A
d1
22
d2
16
h1
6
h2
25
Nominal adhesive forces in N
35
18

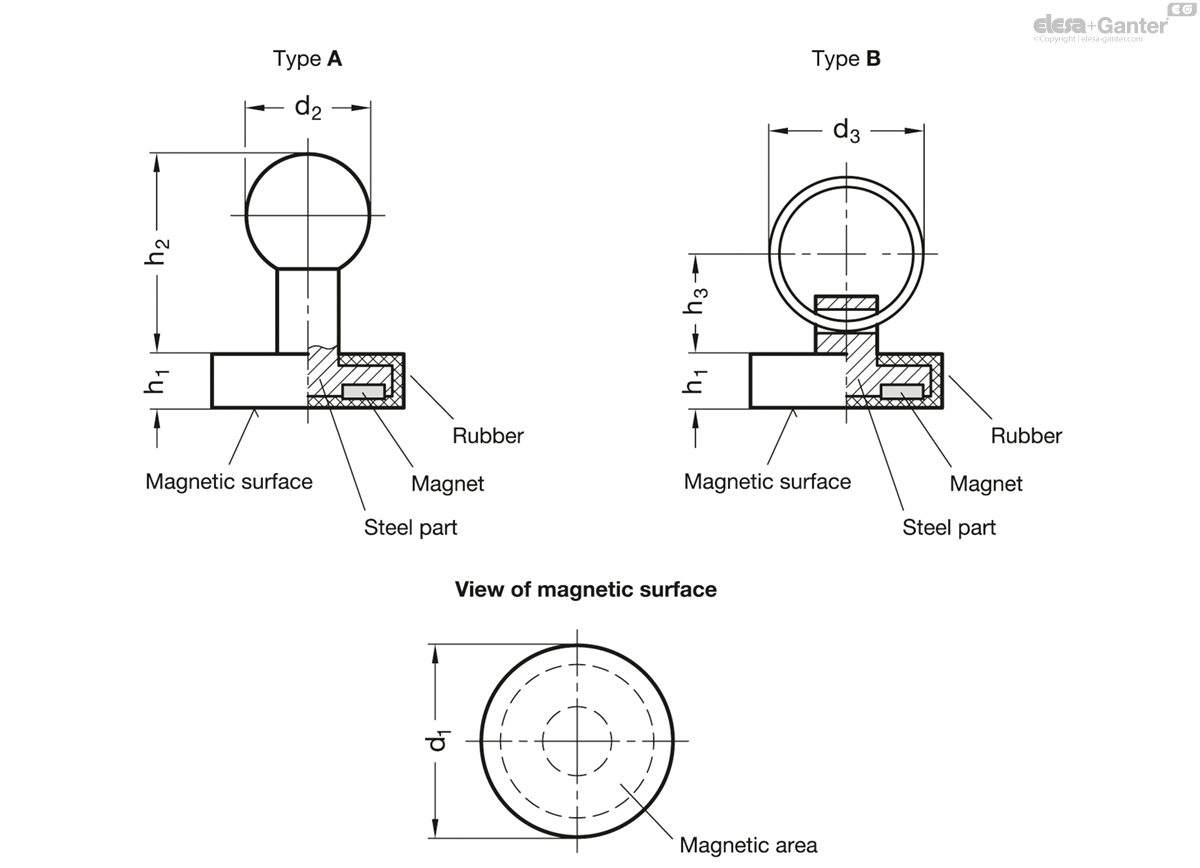

51.7-ND-22-A drawing

Types

  • Type A: with knob
  • Type B: with key ring

Steel part

Nickel plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

80 shore A ≈

Black

Ball knob

Plastic

Technopolymer (Polyamide PA)

Black, matte

Key ring

Steel, nickel plated

Magnets GN 51.7 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
