51.7-ND-22-A GN 51.7 Magnets

51.7-ND-22-A

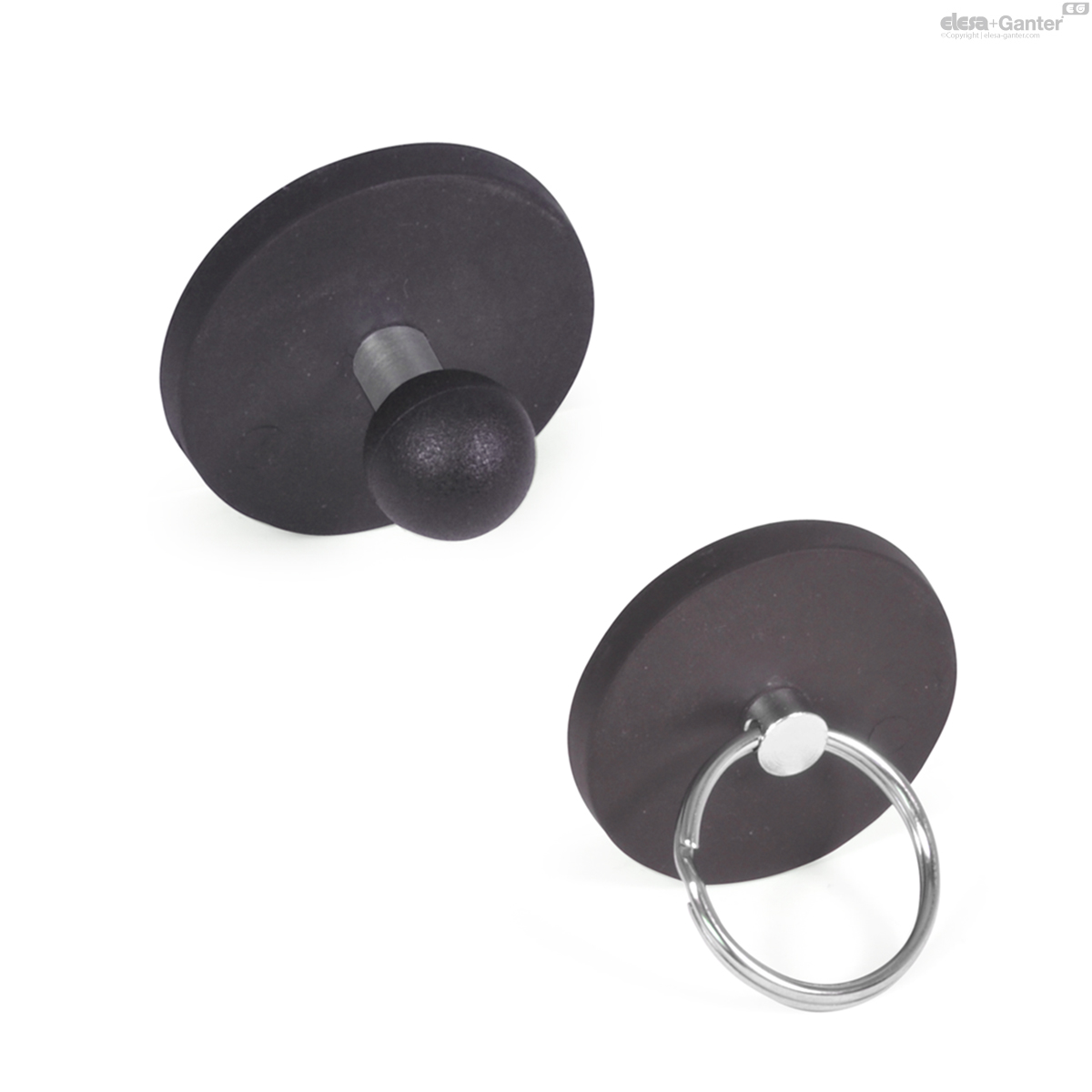

GN 51.7 Magnets

with Ball Knob / with Key Ring, with Rubber Jacket
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 51.7

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 51.7-ND-22-A
d1
22
d2
16
h1
6
h2
25
Nominal adhesive forces in N
35
18

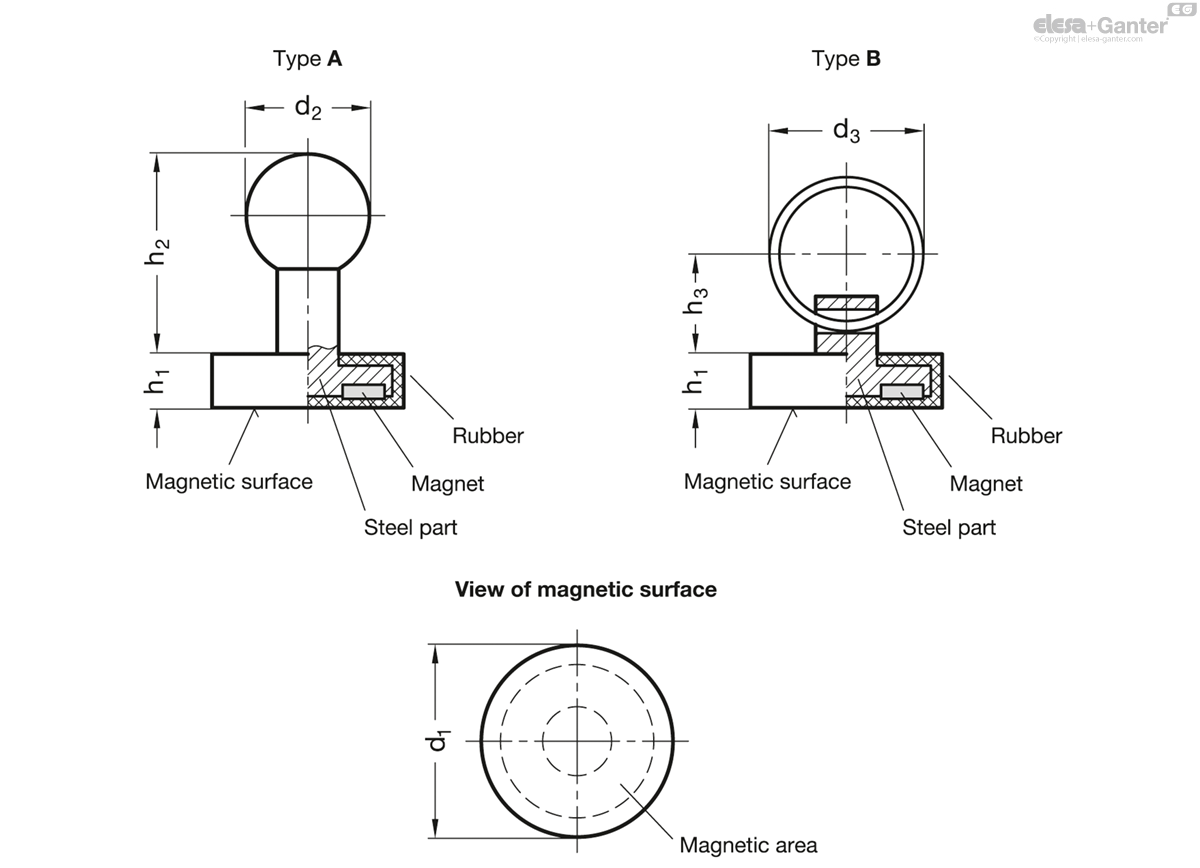

51.7-ND-22-A drawing

Types

  • Type A: with knob
  • Type B: with key ring

Steel part

Nickel plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

80 shore A ≈

Black

Ball knob

Plastic

Technopolymer (Polyamide PA)

Black, matte

Key ring

Steel, nickel plated

Magnets GN 51.7 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
