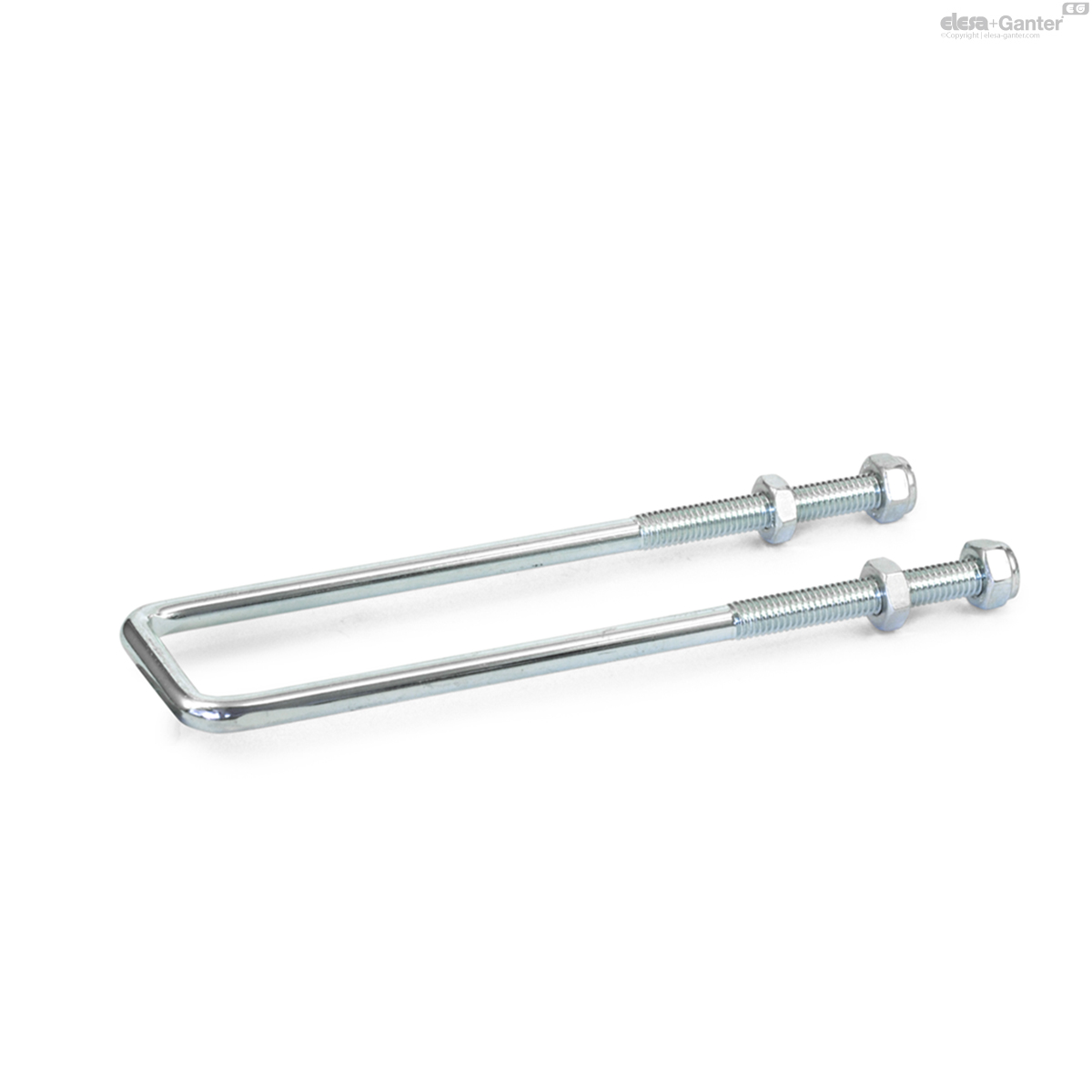

951.1-M4-21-203-ST GN 951.1 Staal

951.1-M4-21-203-ST

GN 951.1 Staal

Staal/roestvrij staal, voor GN 851 / GN 851.1 / GN 851.2 / GN 851.3 snelspanklemmen
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 951.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 951.1-M4-21-203-ST
GN 852 r at w2 =0
175
GN 851 w2
19
Size GN 851.1 / GN 851.2
160
d1
M 4
b
21
l1
203
d2
3.4
l3
35
Size GN 851 / GN 851.3
160
GN 851 r at w2 =0
175
w2
19
GN 851.3 r at w2 =0
175
GN 851.3 w2
19
GN 851.1 / GN 851.2 r at w2 =0
177
GN 852.1 r at w2=0
177
GN 851.1 / GN 851.2 w2
19
51

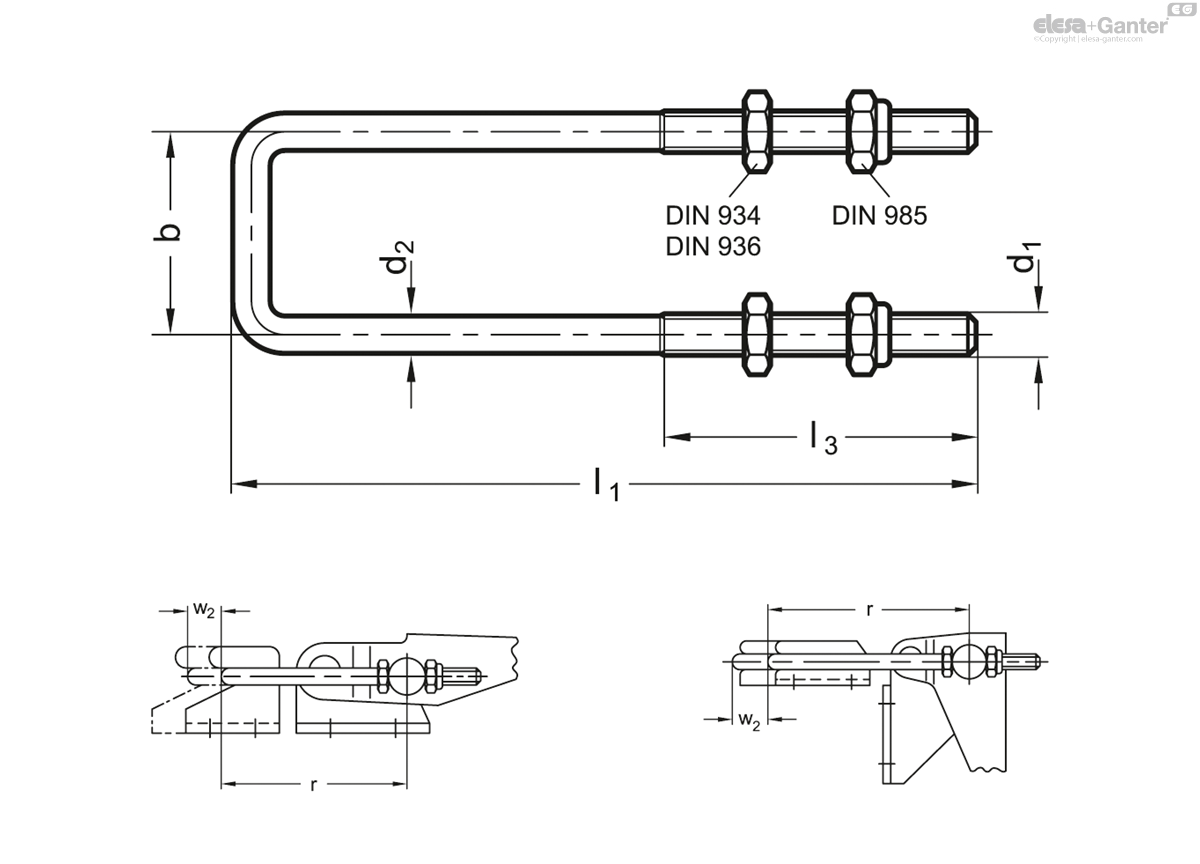

951.1-M4-21-203-ST drawing
** These U-bolt latch lengths are included in the delivery of standard orders for GN 851 / GN 851.3.*** These U-bolt latch lengths are included in the delivery of standard orders for GN 851.1 / GN 851.2.

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel AISI 304 NI

Hexagon nuts (with polyamide insert)

M4: DIN 934 / DIN 985

M6 / M8: DIN 936 / DIN 985

Steel, zinc plated, resp. Stainless Steel

  • Stainless Steel AISI 316 A4
