7336.5-42-M8-40-MS GN 7336.5-MS Messing draaipunt

7336.5-42-M8-40-MS

GN 7336.5-MS Messing draaipunt

Kunststof , Inox draadstang , Messing/ plastic / bolvormig draaipunt
  • INOX
  • RoHS

Lt: 1-2 weken Alle maten en varianten van GN 7336.5

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 7336.5-42-M8-40-MS
d1
42
d2
M 8
l1
40
d3
19
d4
6
d5
5
d6 +0.05
6.1
h1
26
h2
13
l2
1.5
l3
1.6
l4 ≈
6.2
37

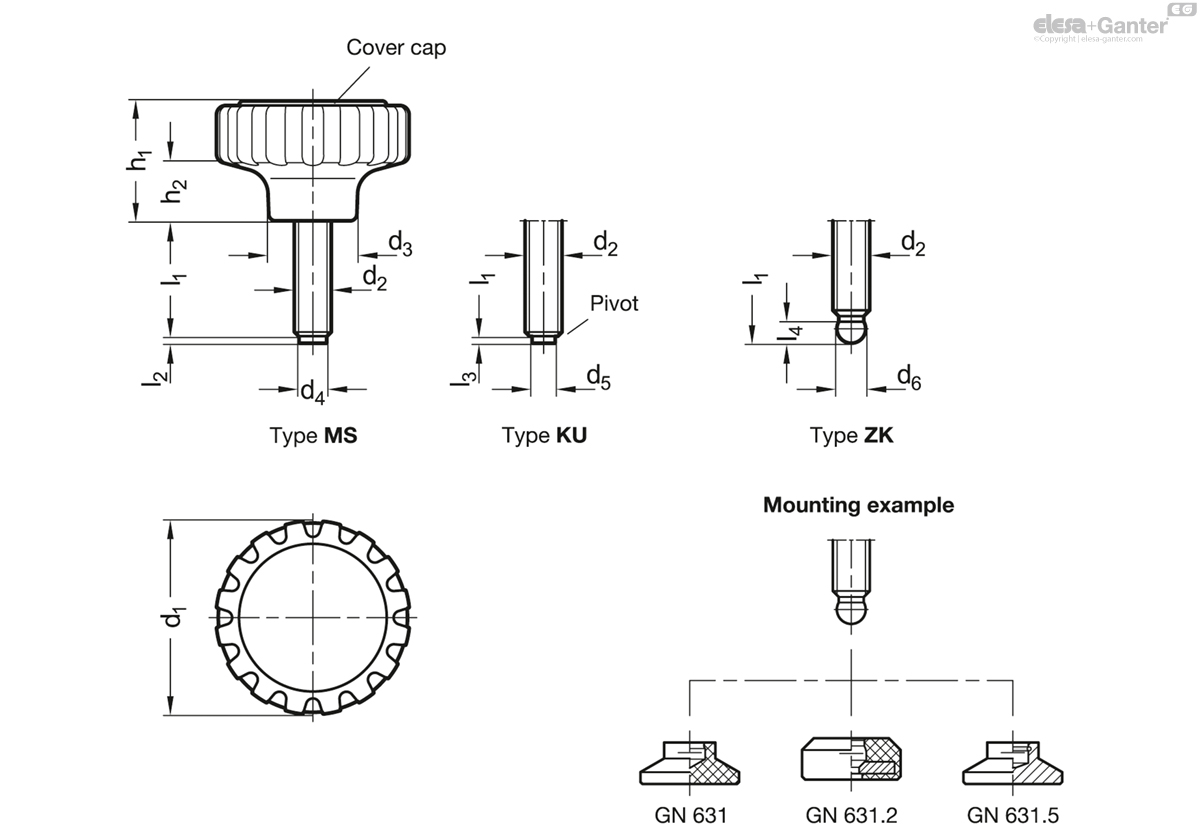

7336.5-42-M8-40-MS drawing

Types

  • Type MS: Brass pivot
  • Type KU: Plastic pivot, Polyacetal (POM)
  • Type ZK: Spherical pivot

Knob

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature -30 °C to +130 °C
  • Black, matte finish

Threaded stud

Stainless steel AISI 304

Cover cap

Plastic, Polyamide (PA)

Light gray, matte finish

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding thrust pads GN 631 / GN 631.5 , which must be ordered separately.

The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
