801-26-M10
GN 801 Klemverbindingen
voor snelspanners met gevorkte klemarm
Lt: 1-2 weken Alle maten en varianten van GN 801
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 801-26-M10
- d1
- 26
- d2
- M 10
- l1
- 39
- l2
- 48
- l3
- 8
- d3
- M 5
- s1
- 22
- s2
- 12.5
- t
- 30
- For toggle clamps
GN 810
GN 810.1 - 430
- GN 860
GN 862
GN 862.1 - 400
- 100
* Dimension in (...) applies to GN 860** Dimension in (...) applies to GN 812, GN 812.1, GN 862 and GN 862.1*** Dimension in (...) applies to GN 812, GN 812.1, GN 860, GN 862 and GN 862.1
Steel
zinc plated, blue passivated

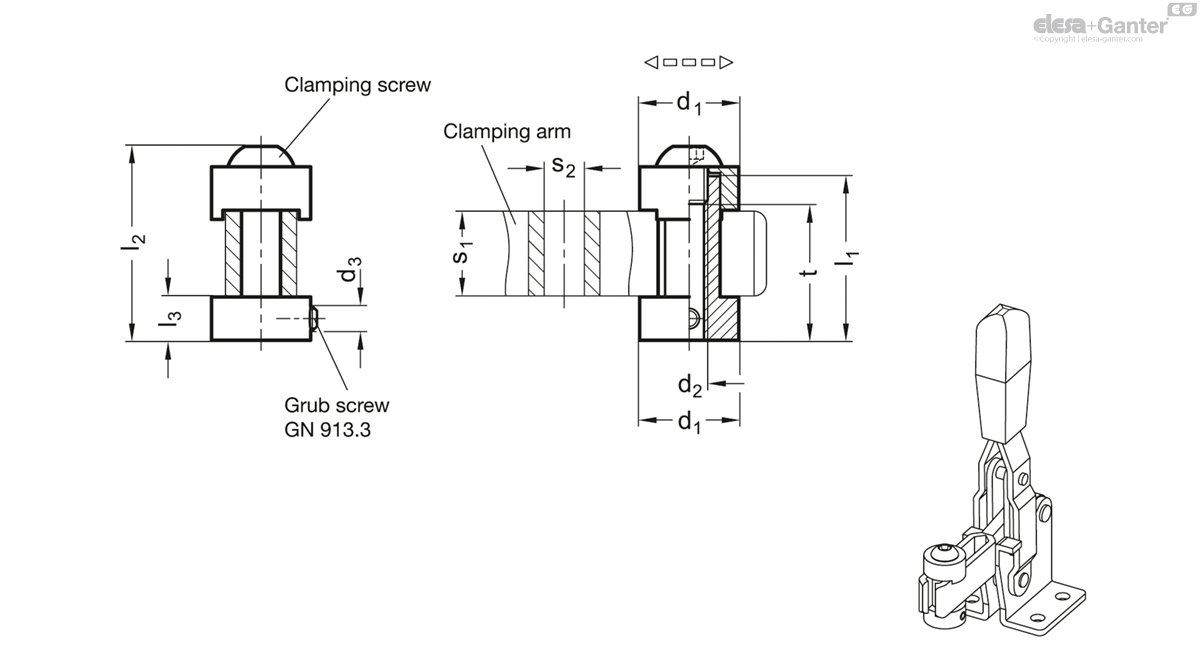

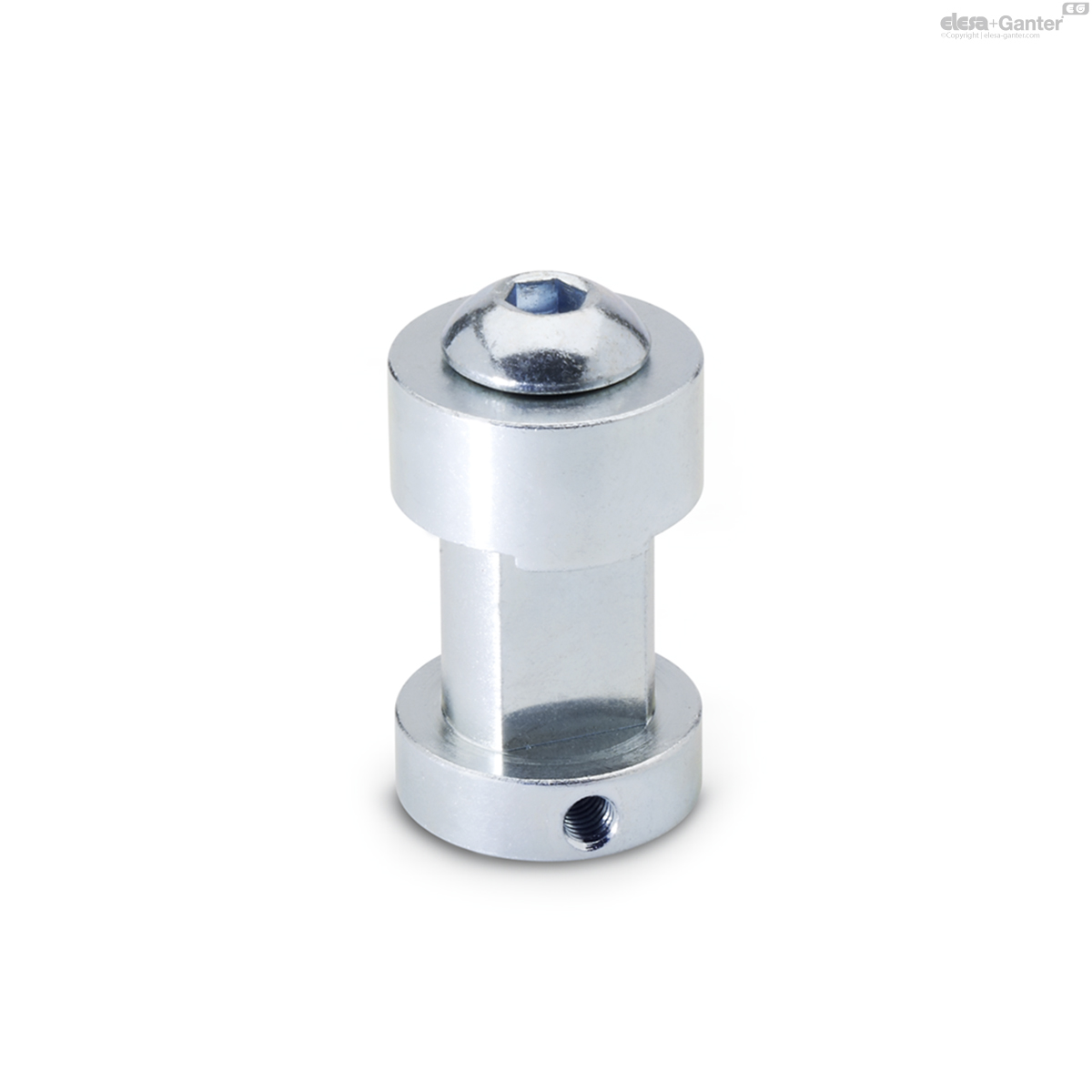

GN 801 clamp mounts have been developed for use with toggle clamps that are designed with a forked clamping arm.
The clamp mounts can be moved along the clamping arm. Once the desired position is reached, you can secure the mount in place with the clamping screw.
The thread d2 serves to hold the wide variety of toggle clamp spindle assemblies, spring elements and similar devices.
The ideal clamping height can be adjusted without loosening the clamp mount on the forked clamping arm.
