114.2-20-40
GN 114.2 Borgpennen
Lt: 1-2 weken Alle maten en varianten van GN 114.2
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

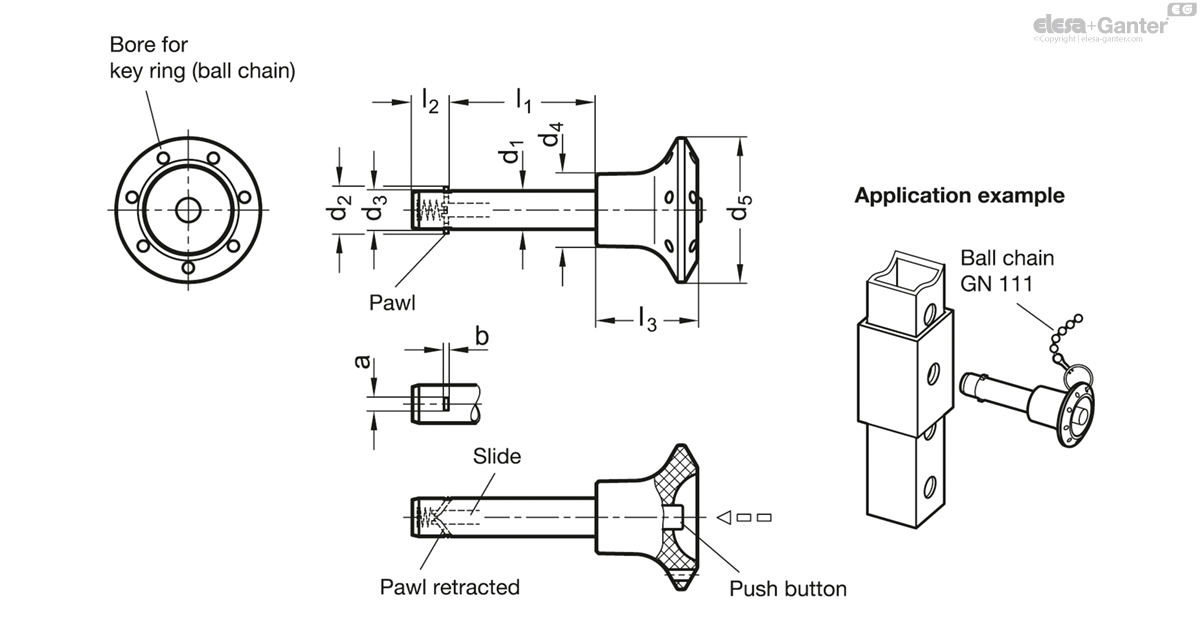

Technische fiche
Technische gegevens
- Code
- GN 114.2-20-40
- d1 -0.1
- 20
- l1 +0.4
- 40
- a
- 4.8
- b
- 1.2
- d2
- 22.7 +1
- d3
- 19.8
- d4
- 25
- d5
- 40
- l2
- 14.8
- l3
- 33
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 187
- 147
Pin
Steel
Zinc plated, blue passivated
Pawl
Stainless Steel AISI 304 (sheet metal)
Knob
Plastic (Polyamide PA)
- Black-gray
- Temperature resistant up to 80 °C
Push button / Slide
Plastic
- Push button: red
- Temperature resistant up to 80 °C
Pressure spring
Stainless steel AISI 301
Locking pins with axial lock GN 114.2 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.
The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
