269-160-B17 GN 269-B Boring

269-160-B17

GN 269-B Boring

Roestvrij staal
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__IF__.png

Lt: 1-2 weken Alle maten en varianten van GN 269

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 269-160-B17
Length l
160
d1 H9
Bore
B 17
d2
32
h1
32
h2 ≈
22.6
h3
9.4
h4 ≈
71
Ø Griff
23
396

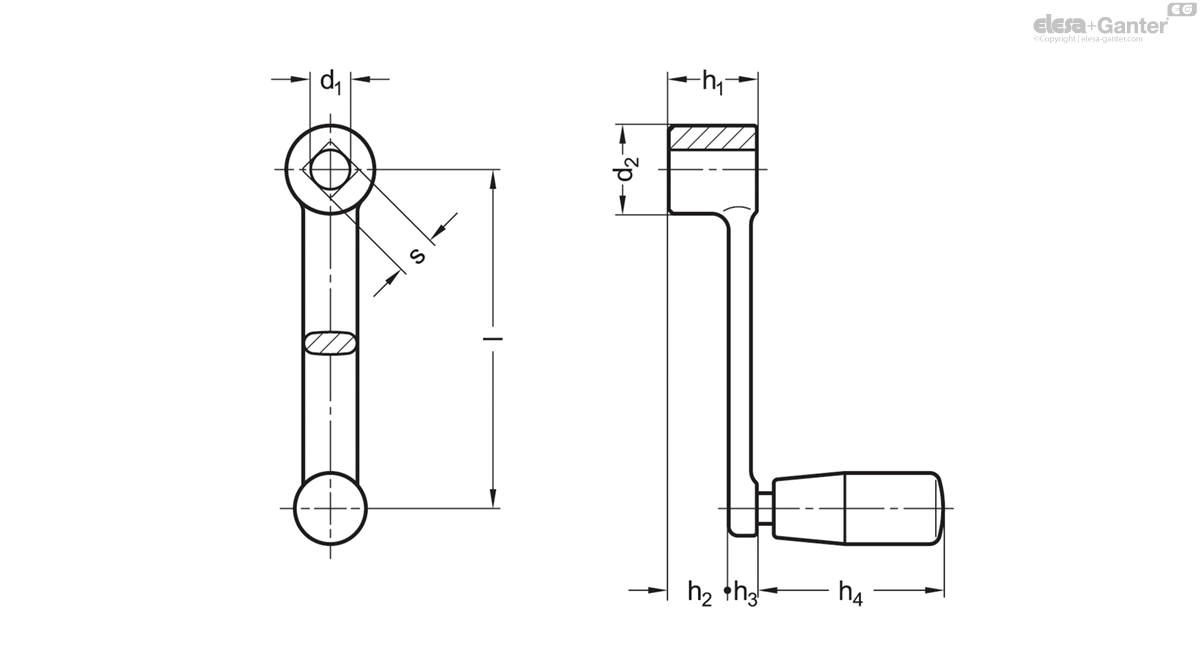

269-160-B17 drawing

Body

Stainless steel precision casting AISI CF-8

Contact face of hub machined

Revolving handle

Plastic, phenolic resin (PF)

  • Black, shiny finish
  • Spindle
  • Stainless steel AISI 304

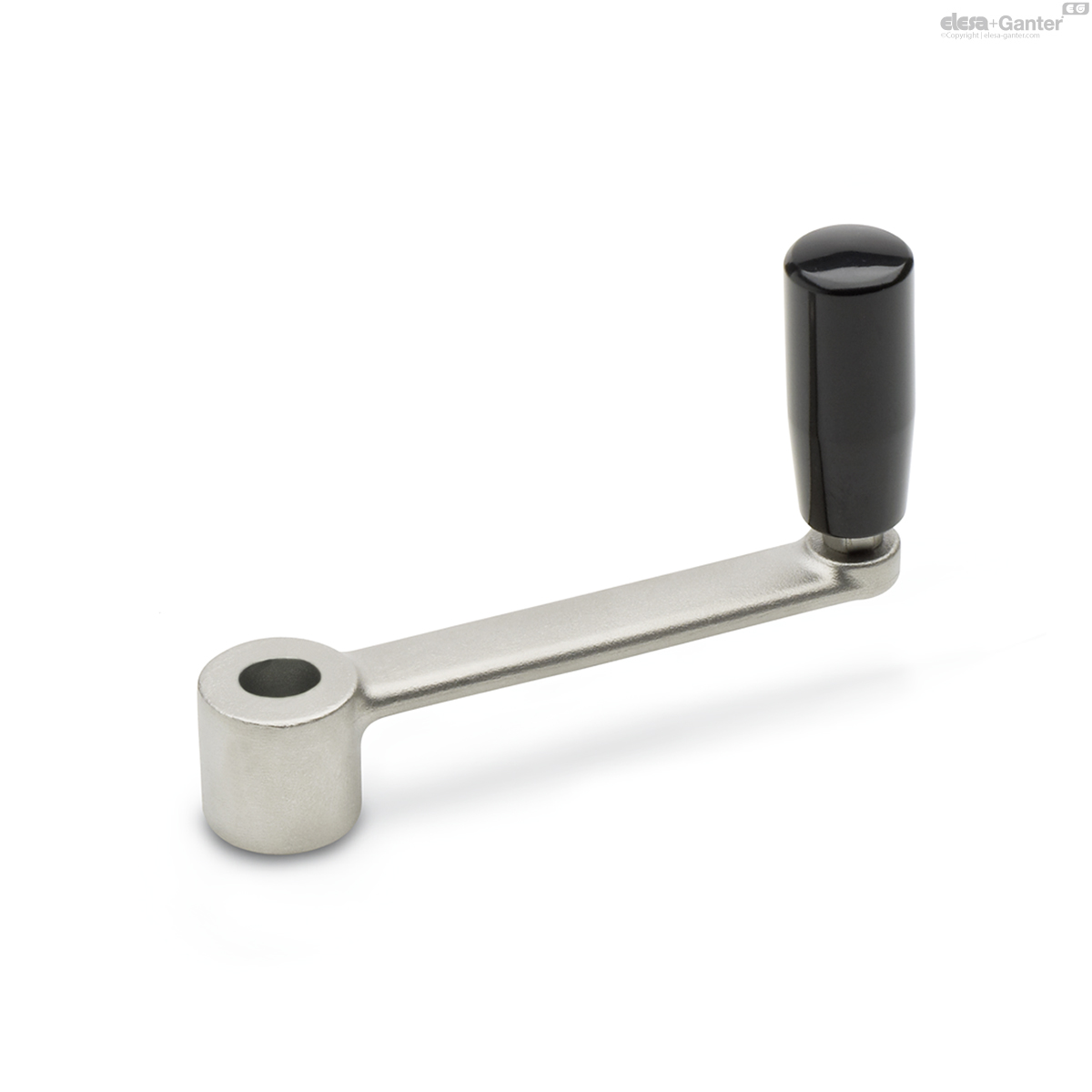

Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.

The cylindrical handles are made of phenolic resin material which in general provides good stability when exposed to chemicals.
