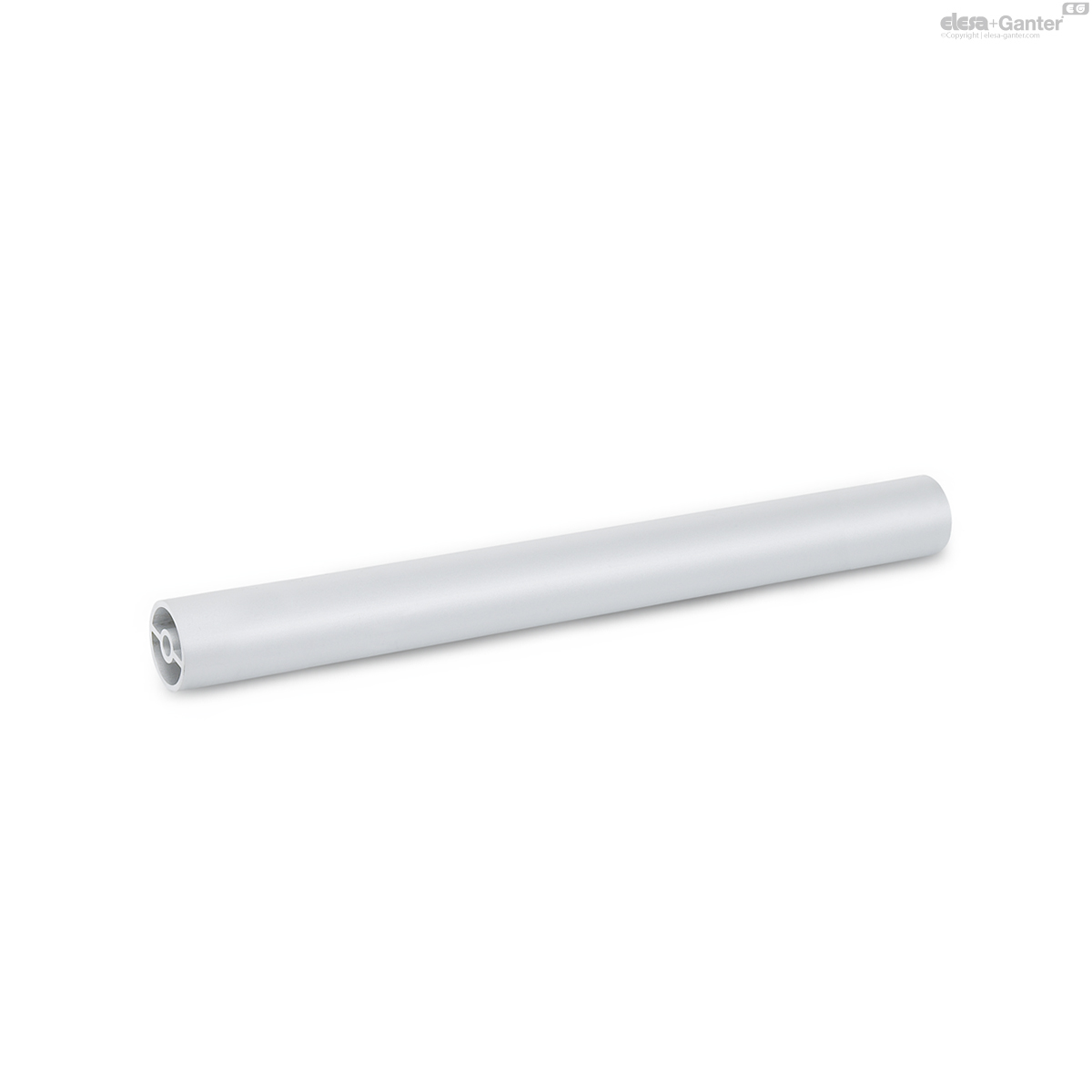

930-20-194-EL GN 930 Handgreepbuizen

930-20-194-EL

GN 930 Handgreepbuizen

met schroefkanaal
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 930

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 930-20-194-EL
d1 ±0.2
20
Length l ±0.25
194
d2
4.5
For thread tapping
screws DIN 7500
M 5
63
930-20-194-EL drawing

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • (available up to 3000 mm length)
  • Anodized, natural color EL
  • (available up to 2600 mm length)

Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g. GN 333).

For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.

  • GN 333.8 Handle Legs (for tubes Ø 28, angled)
  • GN 333.9 Handle Legs (for tubes Ø 28, straight)
  • Plastic cover in black or light gray for tube Ø 28
