GN 930Handgreepbuizen

Handgreepbuizen — SW2 - gitzwart (RAL 9005)

met schroefkanaal

Technical datasheet

GN 930

Code	d₁ ±0.2	Length l ±0.25	d₂	For thread tapping screws DIN 7500
GN 930-20-194-SW	20	194	4.5	M 5	63
GN 930-20-244-SW	20	244	4.5	M 5	80
GN 930-20-294-SW	20	294	4.5	M 5	98
GN 930-20-394-SW	20	394	4.5	M 5	150
GN 930-28-192-SW	28	192	5.5	M 6	90
GN 930-28-242-SW	28	242	5.5	M 6	120
GN 930-28-292-SW	28	292	5.5	M 6	150
GN 930-28-392-SW	28	392	5.5	M 6	195
GN 930-28-492-SW	28	492	5.5	M 6	240
GN 930-28-592-SW	28	592	5.5	M 6	280
GN 930-30-189-SW	30	189	3.6	M 4	106
GN 930-30-289-SW	30	289	3.6	M 4	164
GN 930-30-389-SW	30	389	3.6	M 4	220
GN 930-30-489-SW	30	489	3.6	M 4	280
GN 930-30-589-SW	30	589	3.6	M 4	340
GN 930-30-989-SW	30	989	3.6	M 4	560

Aluminum

Powder coated

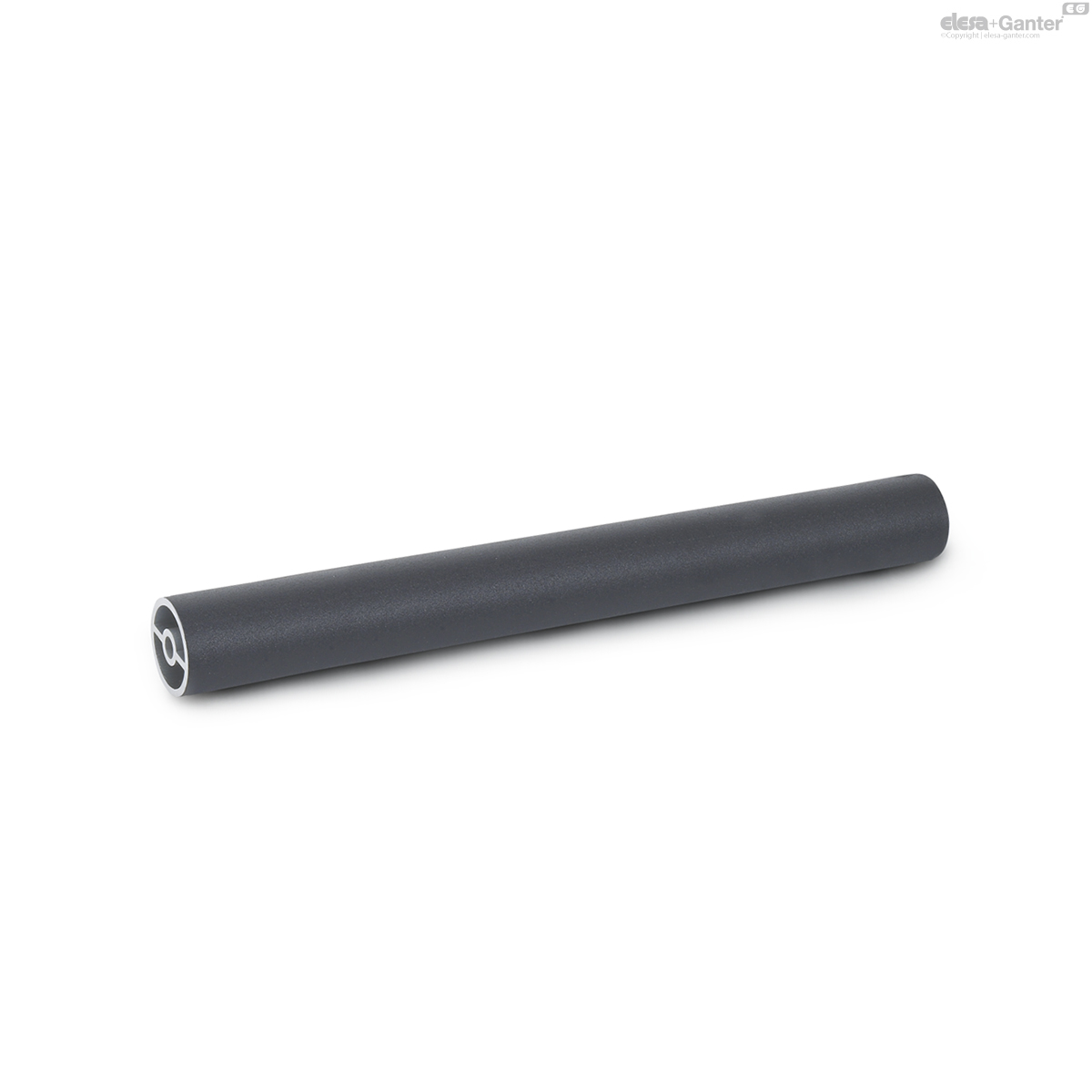

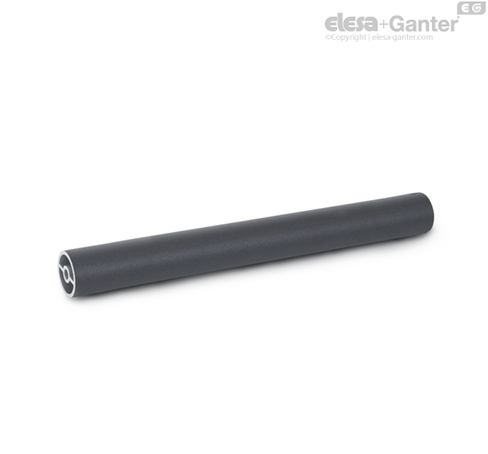

Black, RAL 9005, textured finish SW

(available up to 3000 mm length)

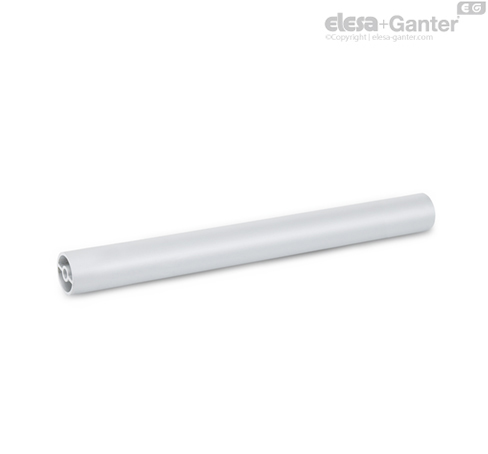

Anodized, natural color EL

(available up to 2600 mm length)

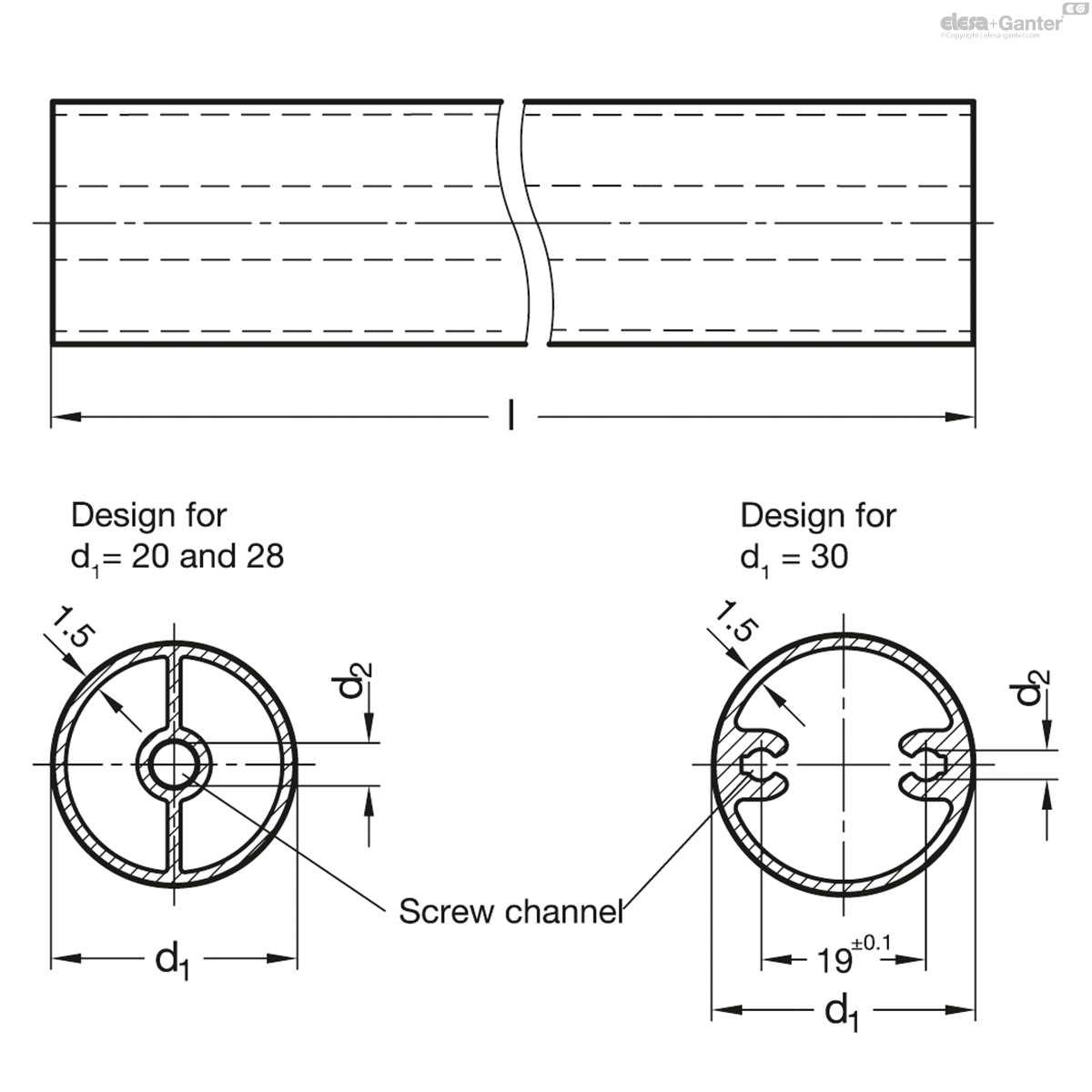

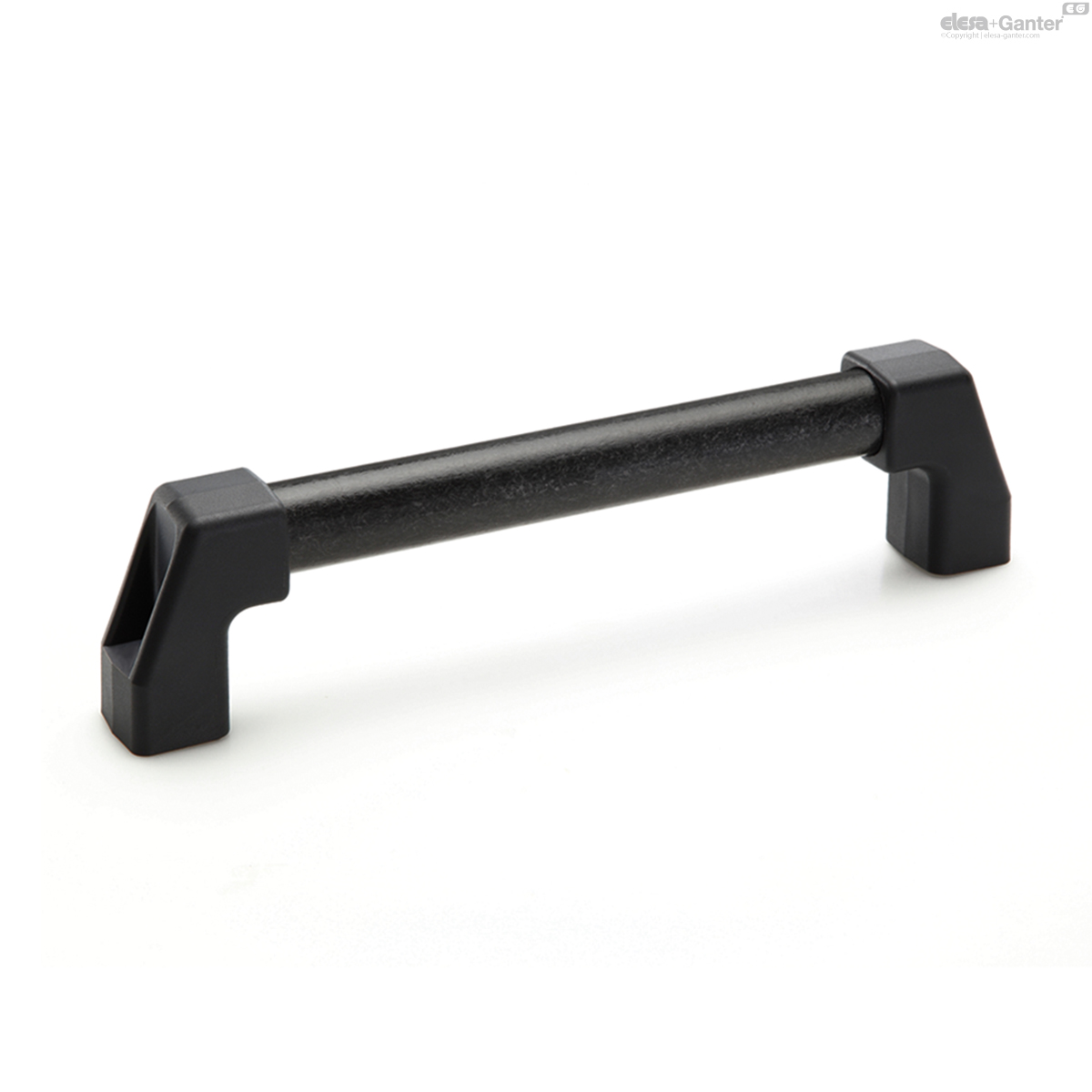

Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g. GN 333).

For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.
