GN 817.2 Indexeerbouten, staal

Staal/roestvrij staal, met lange knop, met en zonder rustpositie
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 817.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 817.2-5-8-B
d1 Pin -0.05/-0.10
Bore
H7
5
l1 min.
8
d2
M 10 x 1
d3
19
k
24
l2
48
l3
18
l4
6
A/F
12
Spring load in N ≈
initial
5
Spring load in N ≈
end
18
24

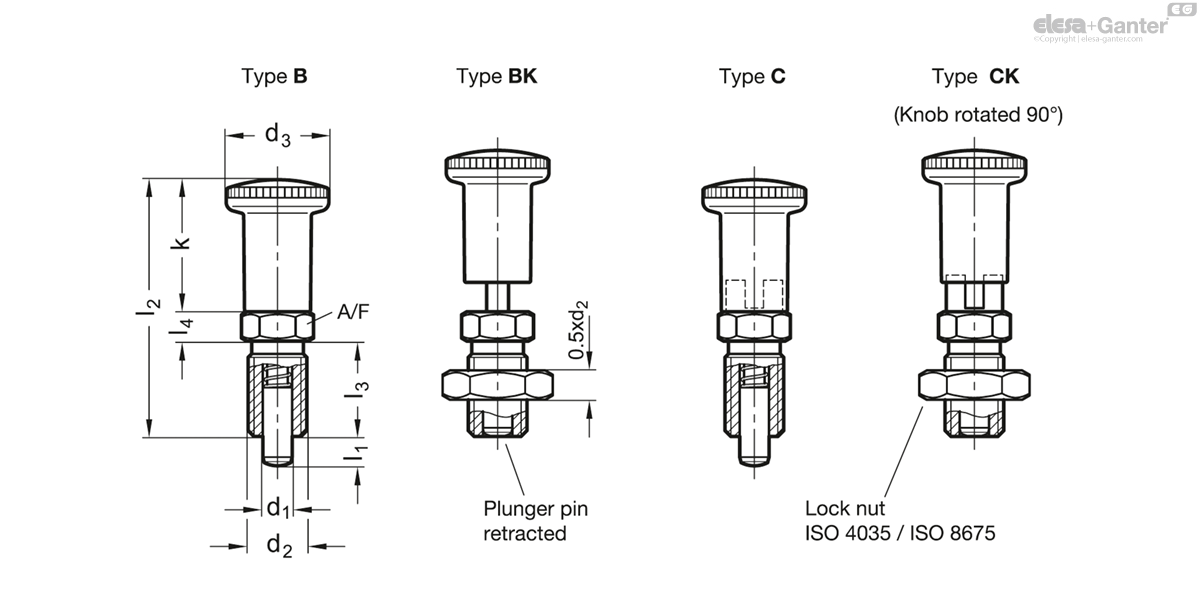

817.2-5-8-B drawing

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel NI

  • AISI 303
  • Pin chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 817.2 correspond to GN 817 , they only differ by a longer knob. , they only differ by a longer knob.

Type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is roated by 90° degrees after being retracted. A notch keeps the plunger in this position.
