GN 817.2 Doigts d'indexation, Acier
Acier / Acier inoxydable, avec bouton long, avec et sans position de repos
En stock Toutes les tailles et variantes de GN 817.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 817.2-5-8-B
- d1 Pin -0.05/-0.10
Bore
H7 - 5
- l1 min.
- 8
- d2
- M 10 x 1
- d3
- 19
- k
- 24
- l2
- 48
- l3
- 18
- l4
- 6
- A/F
- 12
- Spring load in N ≈
initial - 5
- Spring load in N ≈
end - 18
- 24

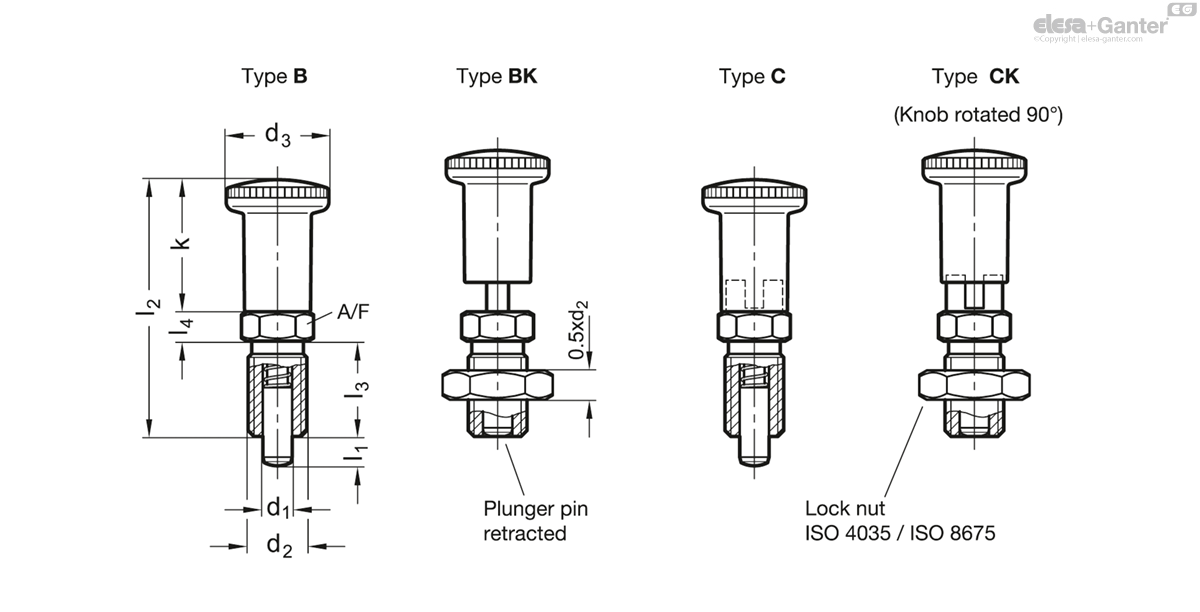

Types
- Type B: without rest position, without lock nut
- Type BK: without rest position, with lock nut
- Type C: with rest position, without lock nut
- Type CK: with rest position, with lock nut
Version in Steel
- blackened
- Pin hardened
Version in Stainless Steel NI
- AISI 303
- Pin chemically nickel plated
Knob Plastic (Polyamide PA)
- black, matt
- not removable
Indexing plungers GN 817.2 correspond to GN 817 , they only differ by a longer knob. , they only differ by a longer knob.
Type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is roated by 90° degrees after being retracted. A notch keeps the plunger in this position.
