861-1000-EP-M GN 861 Snelspanners

861-1000-EP-M

GN 861 Snelspanners

Staal, Pneumatisch, Heavy Duty
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 861

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 861-1000-EP-M
FH in N
10000
Size
1000
FS in N
10000
FH in N
Clamping force
at 4 bar ≈
2500
b1
102
b2
90
b3
20
d1
10.5
d2
G 1/4
Inside Ø
connection tube
8
h1 ≈
145
h2
80
h3
25
l1 ≈
410
l2 ≈
90
l3 ≈
155
m1
65
m2
12.5
m3
65
m4
48
r ≈
140
s
13
6100

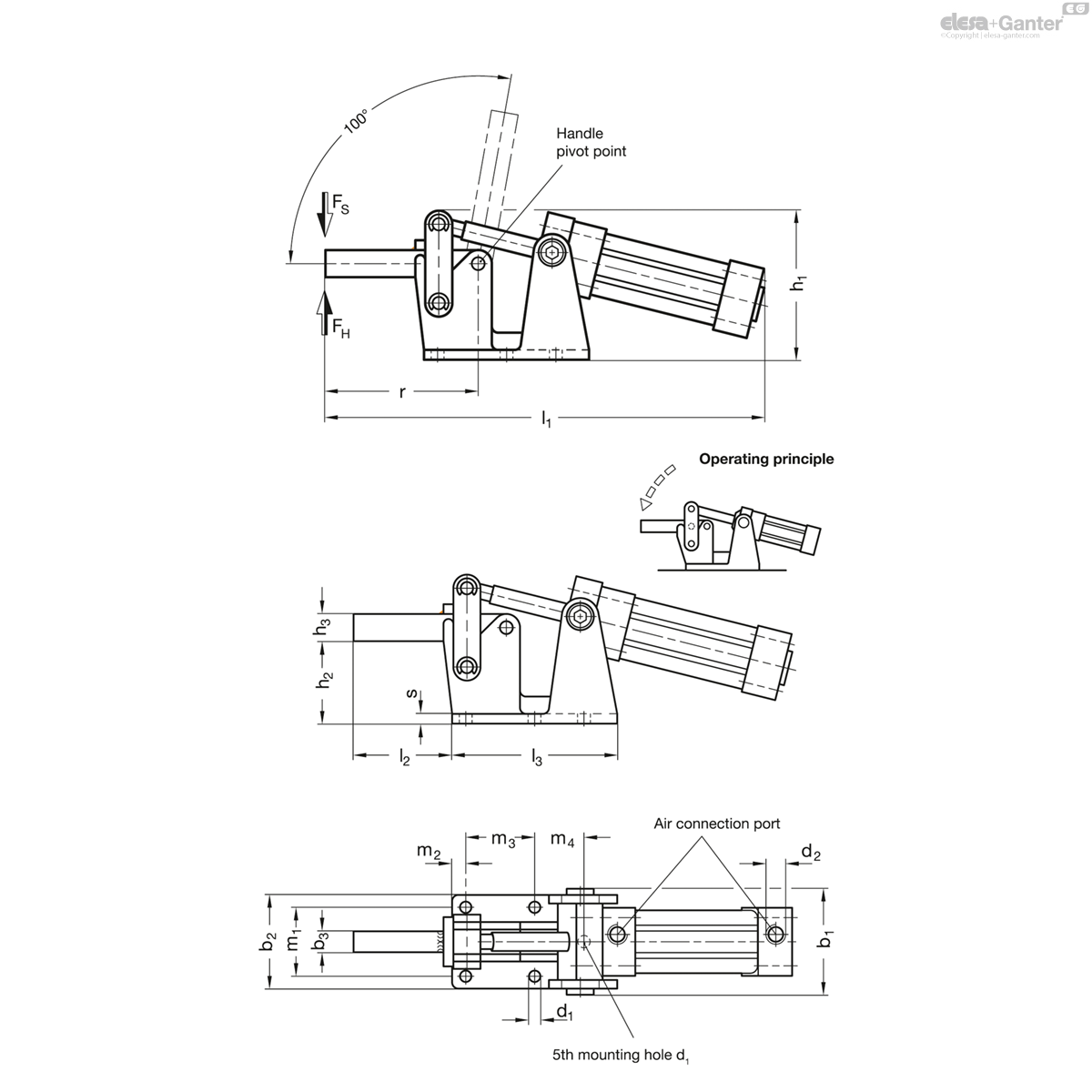

861-1000-EP-M drawing

Type

  • Type EP: Solid clamping arm, with clasp for welding

Coding

  • Coding M: Magnetic piston

Base

Cast steel

Black lacquered

Other parts

Steel St 60

Zinc plated, blue passivated

Bearing pins

Case-hardened

Double-action air cylinder

with adjustable cushioning

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Toggle clamps GN 861 have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified to suit any particular application.

To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 861 have a magnetic piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
