850-420-T-ST
GN 850-ST Staal
Staal/roestvrij staal, voor trekken
Lt: 1-2 weken Alle maten en varianten van GN 850
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

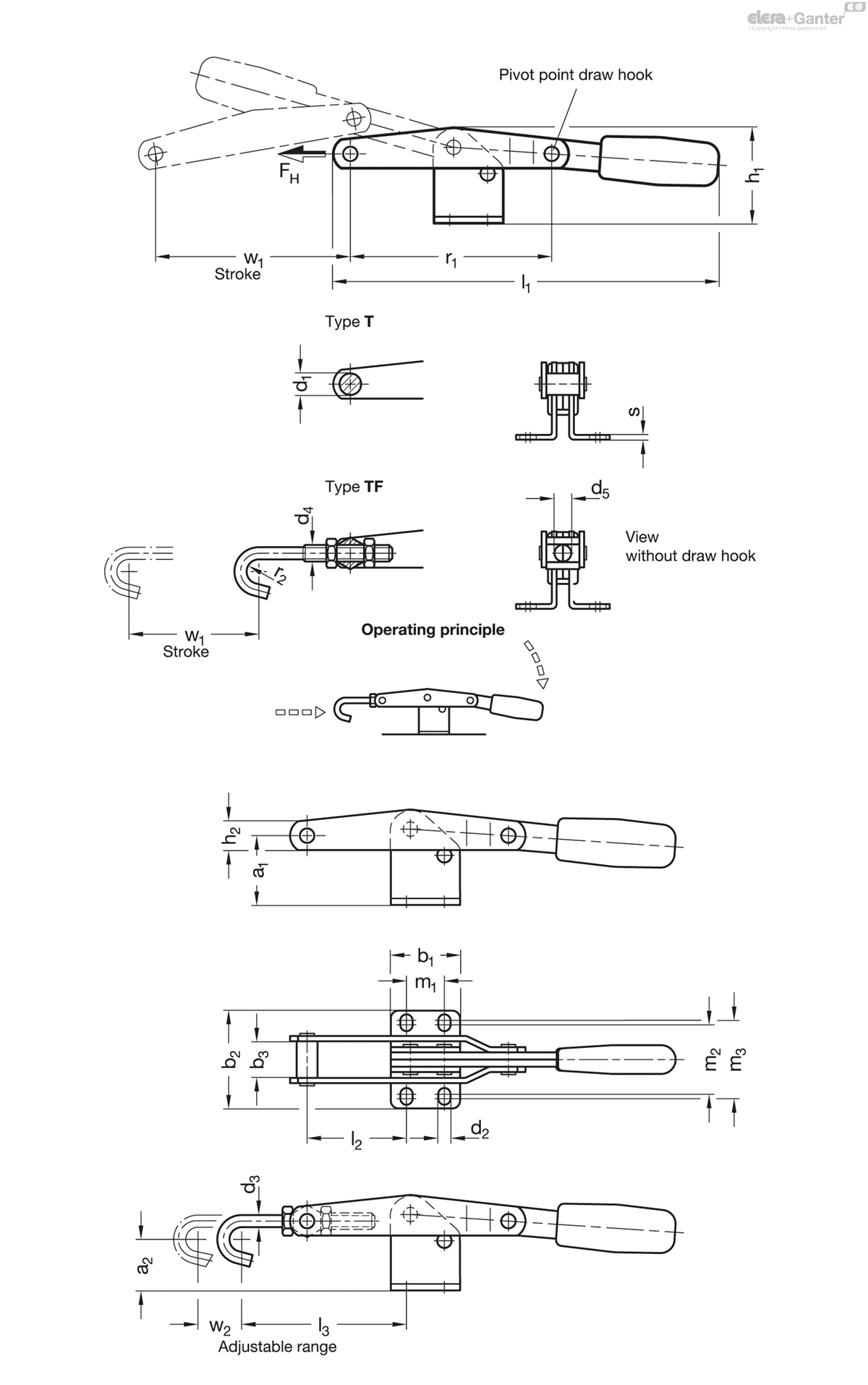

Technische fiche
Technische gegevens
- Code
- GN 850-420-T-ST
- Size
- 420
- FH Holding capacity in N
- 4800
- a1
- 44
- b1
- 54
- b2
- 84
- b3
- 26
- d1
- 14
- d2
- 10.5
- d5
- 10.3
- h1 ≈
- 60.5
- h2
- 25
- l1 ≈
- 275
- l2 ≈
- 58
- m1
- 28.5
- m2
- 59.75
- m3
- 61.25
- r1 ≈
- 138
- s
- 5
- w1 Stroke
- 155
- 1070
Types
- Type T: With draw axle
- Type TF: With draw hook
Tensioning mechanism
- Steel ST
- Sheet metal parts
- Case hardening steel C10, zinc plated, blue passivated
- Bearing pins tempered
- Bearing rivets case hardened
- Stainless steel AISI 304 NI
- Moving parts lubricated with special grease
Draw hook
- Steel St 37 for ST
- Zinc plated, blue passivated
- Stainless steel AISI 301 for NI
Handle
Plastic
Red, oil resistant

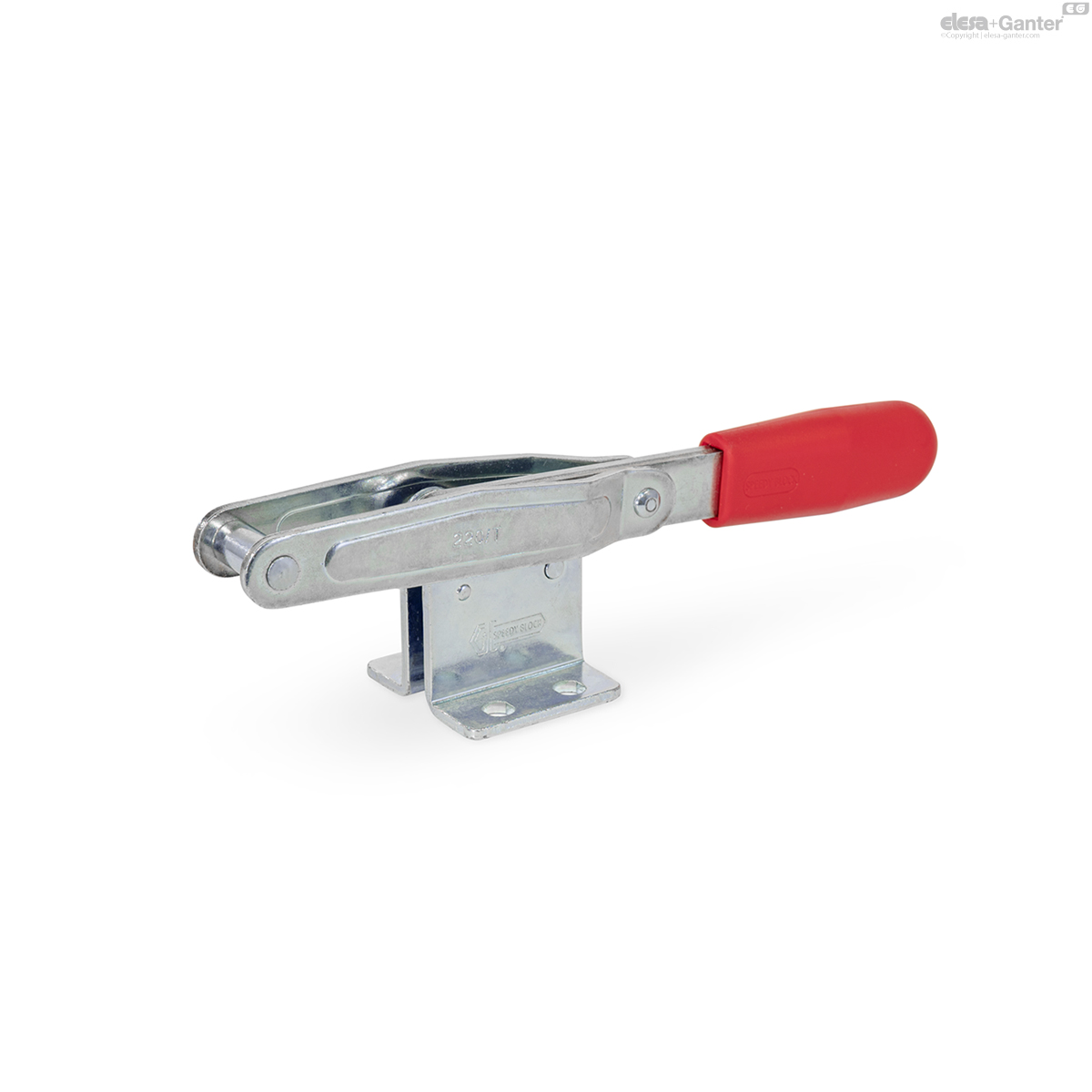

Latch type toggle clamps GN 850 are suited for rapid closing and fastening of lids, covers and molds.
During clamping, the pivoting motion of the clamping lever is transformed into an axial movement of the draw axle or draw hook and ensures a form-fit hold.
Latch type toggle clamps of type T are equipped with a draw axle firmly attached to the clamping arm. Type TF has a draw hook that can be adjusted within the adjustable range w2. The draw hook is supplied unmounted.
- without draw hook (Type TFN)
