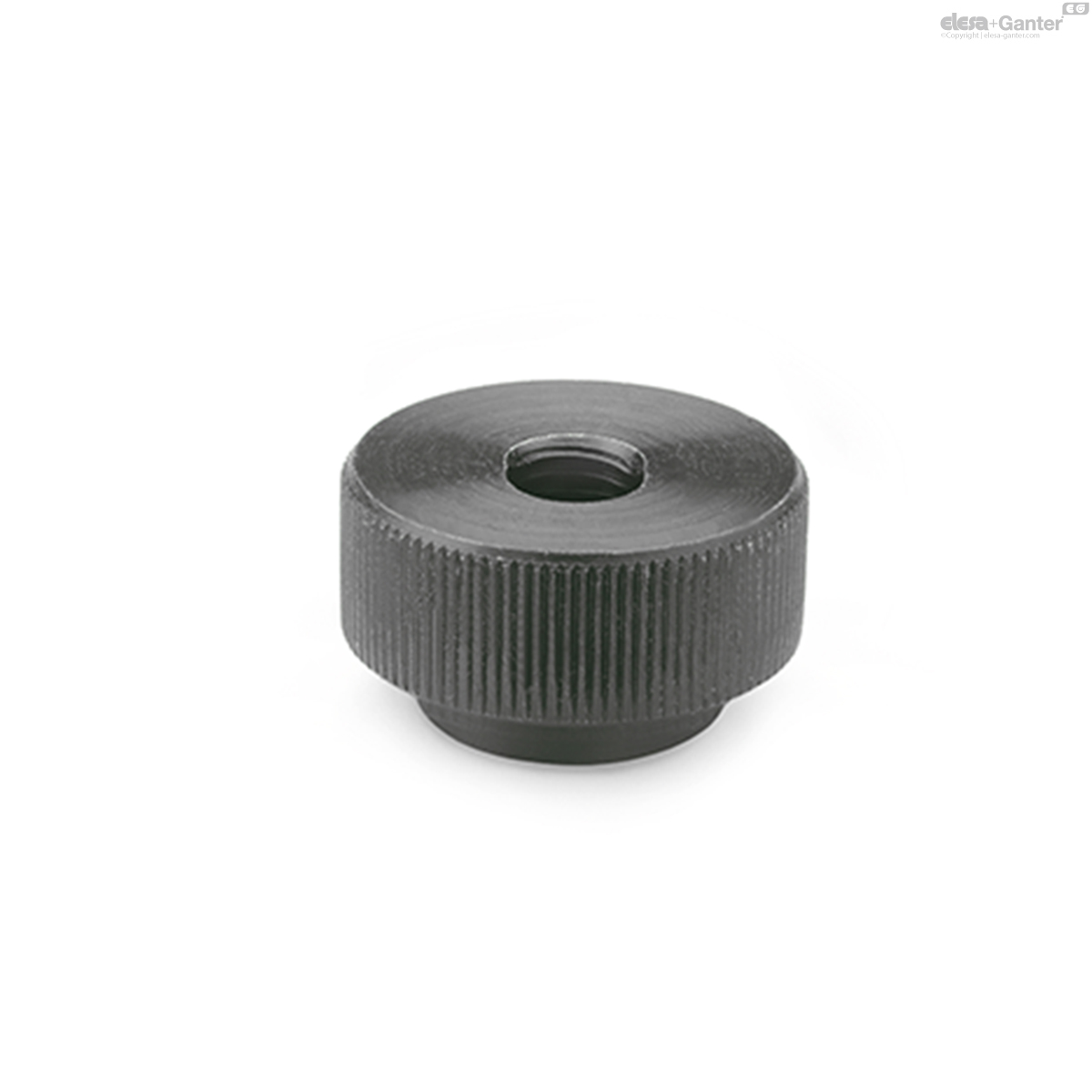

6303.1-M10 GN 6303.1 Staal

6303.1-M10

GN 6303.1 Staal

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 6303.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 6303.1-M10
d1
M 10
d2
36
d3
28
d4
11
h
20
k
14
120

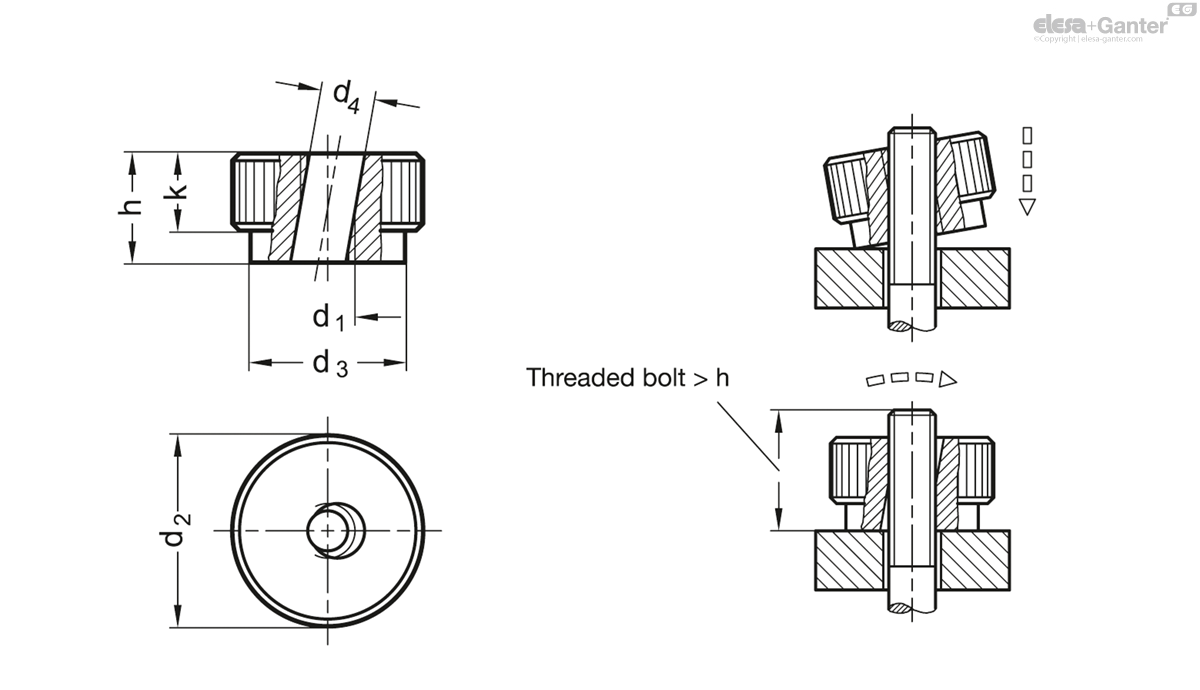

6303.1-M10 drawing

Version in Steel

  • Tensile strength class 5
  • blackened

Version in Stainless Steel AISI 303 NI

  • matte shot-blasted

Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.

The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
