607.1-6-A-ST GN 607.1 Indexeerbouten, staal

607.1-6-A-ST

GN 607.1 Indexeerbouten, staal

Staal / roestvrij staal met rustpositie
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 607.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 607.1-6-A-ST
d1 Pin -0.02/-0.05 Bore H7
6
d2
M 12 x 1.5
d3
25
e ≈
19.6
l1
45
l2 ±0.5
6
l3 -0.15
10
l4
5
A/F
17
Spring load in N ≈
initial
11
Spring load in N ≈
end
28
Axial load in N
400
47

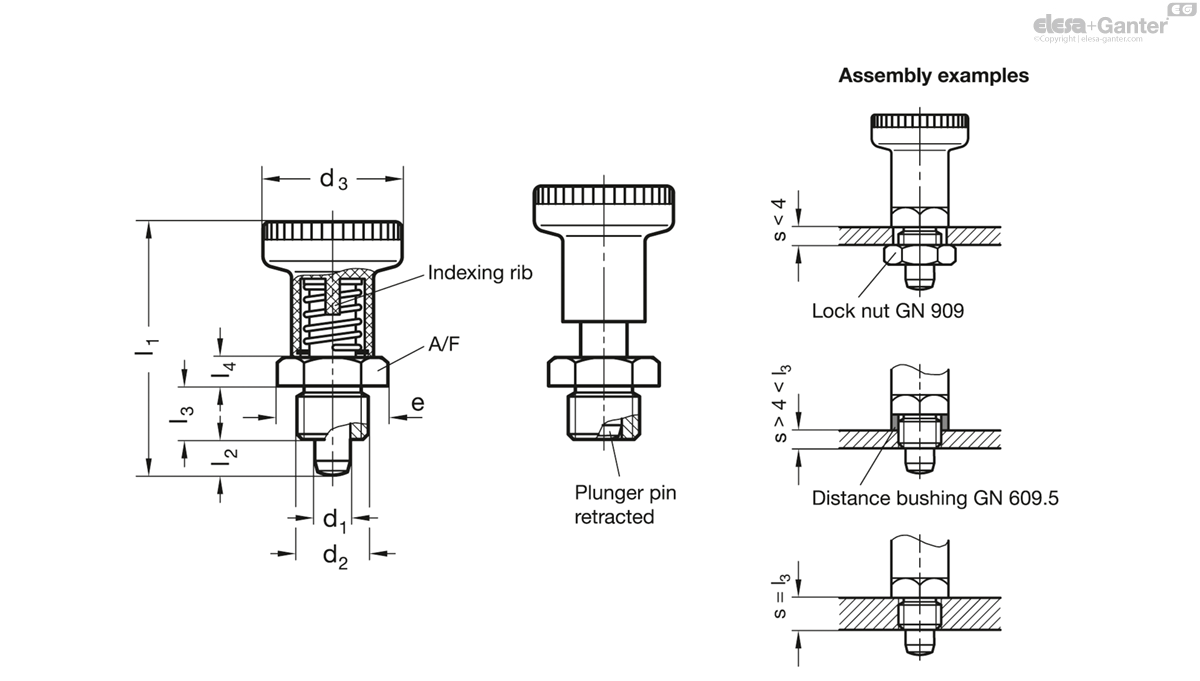

607.1-6-A-ST drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel ST

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.
