706.4-65-B40-AL GN 706.4-AL Aluminium

706.4-65-B40-AL

GN 706.4-AL Aluminium

Staal/aluminium/roestvrij staal, met verstelbare hendel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 706.4

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 706.4-65-B40-AL
d1
65
d2 H10
B 40
b ±0.2
15
d3
M 6
d4
13
l1
47.5
l2
45
s
4
130
706.4-65-B40-AL drawing
null

Shaft Collar

  • Steel ST
  • Sintered
  • Black oxidized with vapor
  • Aluminum AL
  • Turned, tumbled
  • Stainless steel AISI 316L NI
  • Sintered

Adjustable hand lever

Zinc die casting

  • Powder coated
  • Black RAL 9005, textured finish
  • Screw insert / Retaining screw
  • Stainless steel AISI 303

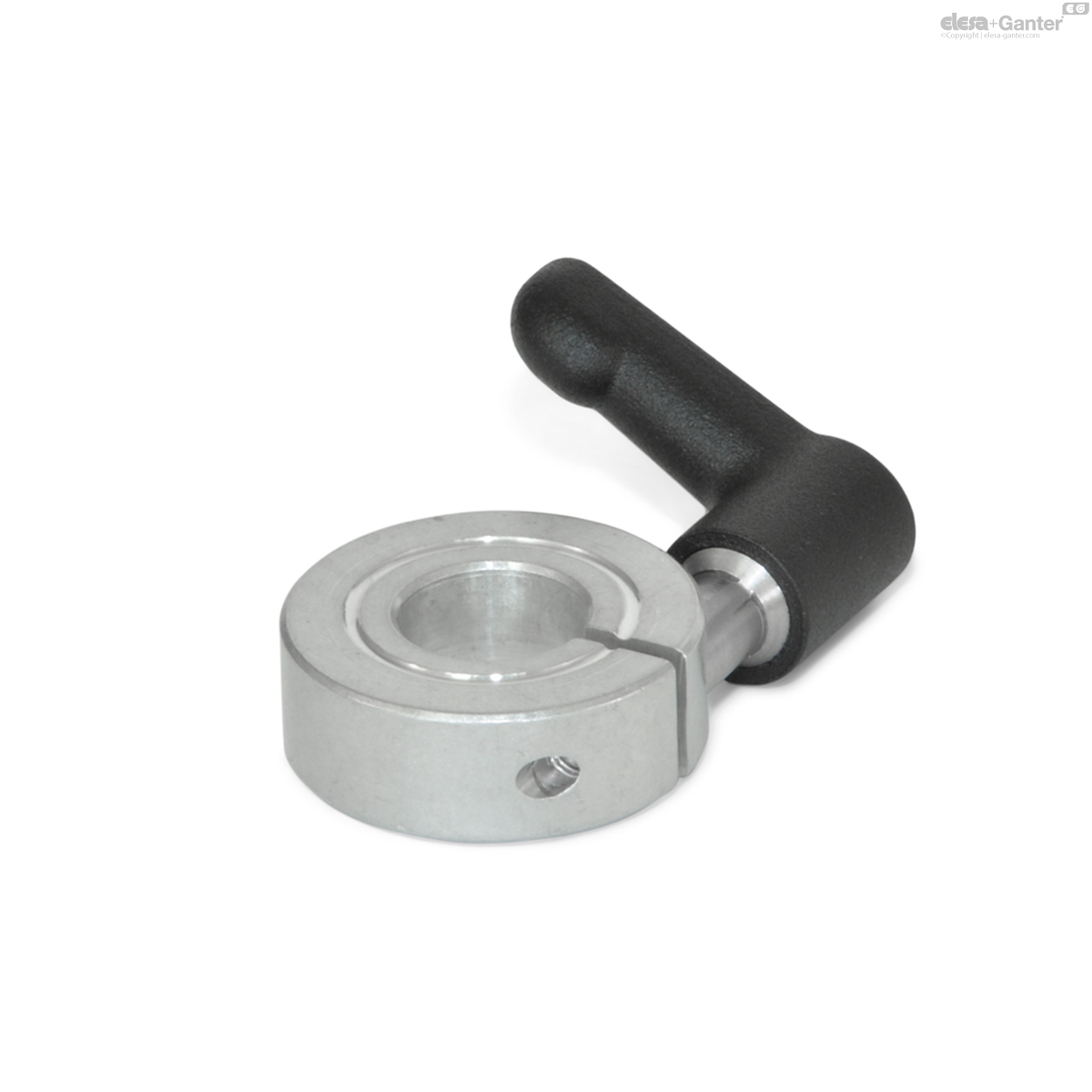

Semi-split shaft collars GN 706.4 can safely and simply be clamped by reducing the slot height by using an adjustable hand lever and thus they act, for instance, like an end stop.

This version offers great advantages especially for applications that demand new positions of the shaft collar.

The thread d3 for sizes d1 = 32 and 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
