5339.5-40-M8-D-MT

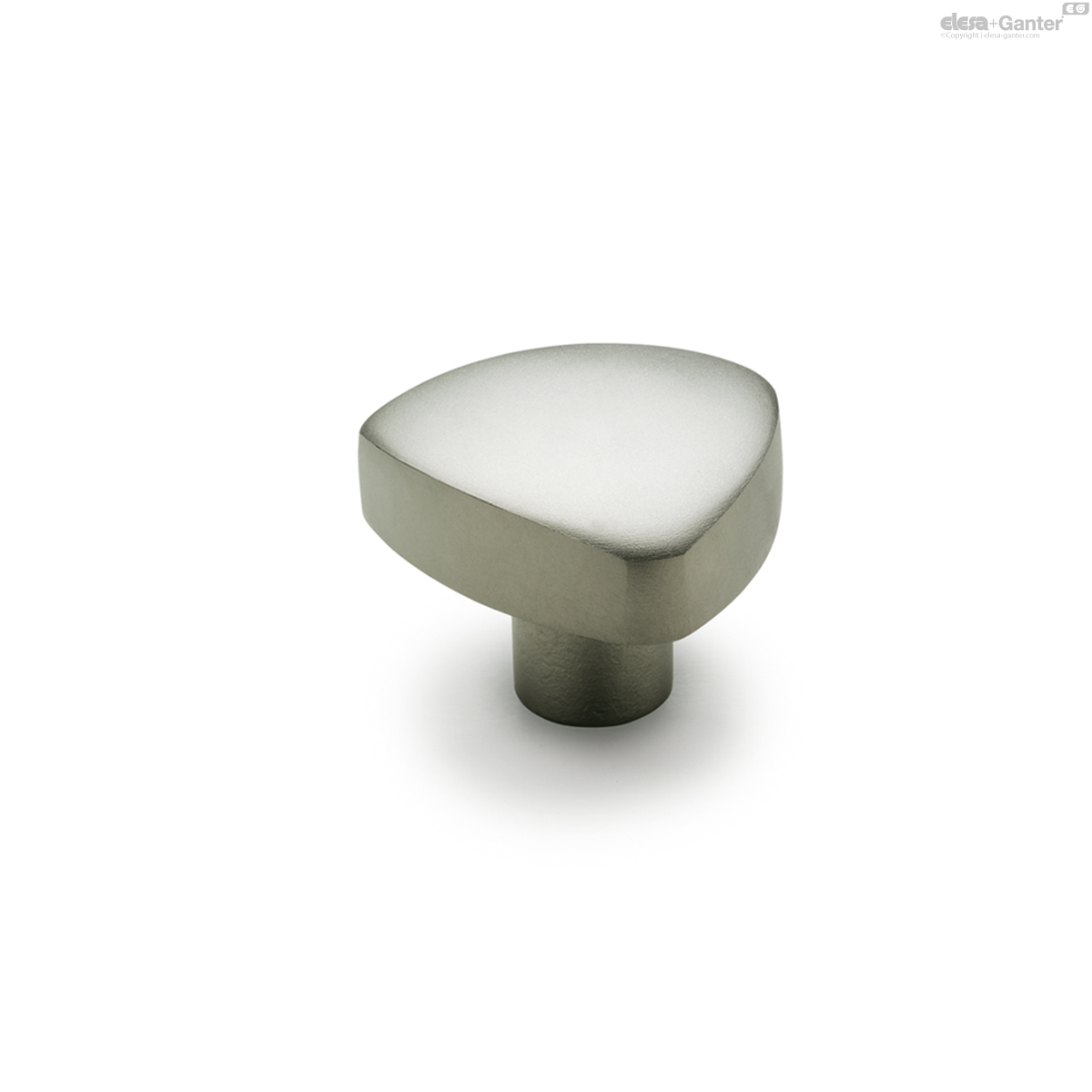

GN 5339.5 Driekantknoppen
Op voorraad Alle maten en varianten van GN 5339.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

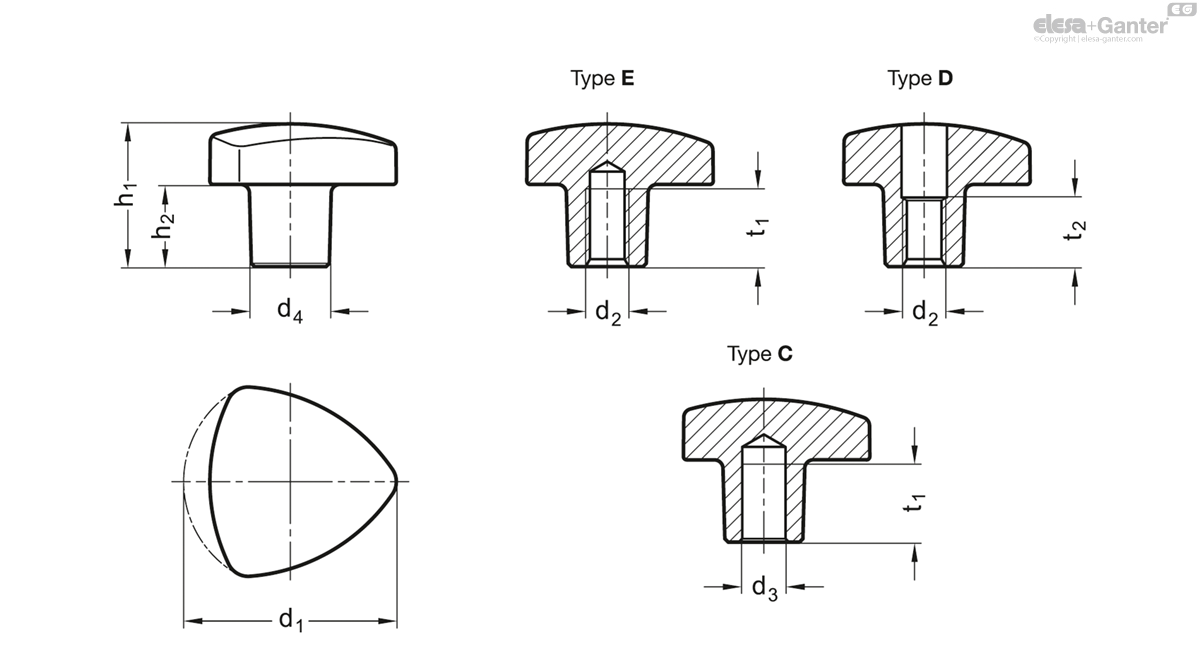

Technische gegevens
- Code
- GN 5339.5-40-M8-D-MT
- d1
- 40
- d2
- M 8
- d4
- 14
- h1 ≈
- 26
- h2 ≈
- 14
- t2
- 13
- 83
Types
- Type E: with threaded blind bore
- Type D: with threaded through bore
- Type C: with plain blind bore H7
Stainless Steel precision casting
- AISI CF-8
- matt shot-blasted MT
- highly polished PL (only type D and E)
Stainless Steel-Triangular knobs GN 5339.5 have been specially designed for use on machinery in the food industry.
The smooth and enclosed areas as well as the corner radii comply with the requirements of hygiene standards.
Original ELESA-Design, manufactured in metal version under permission of ELESA s.p.a.
