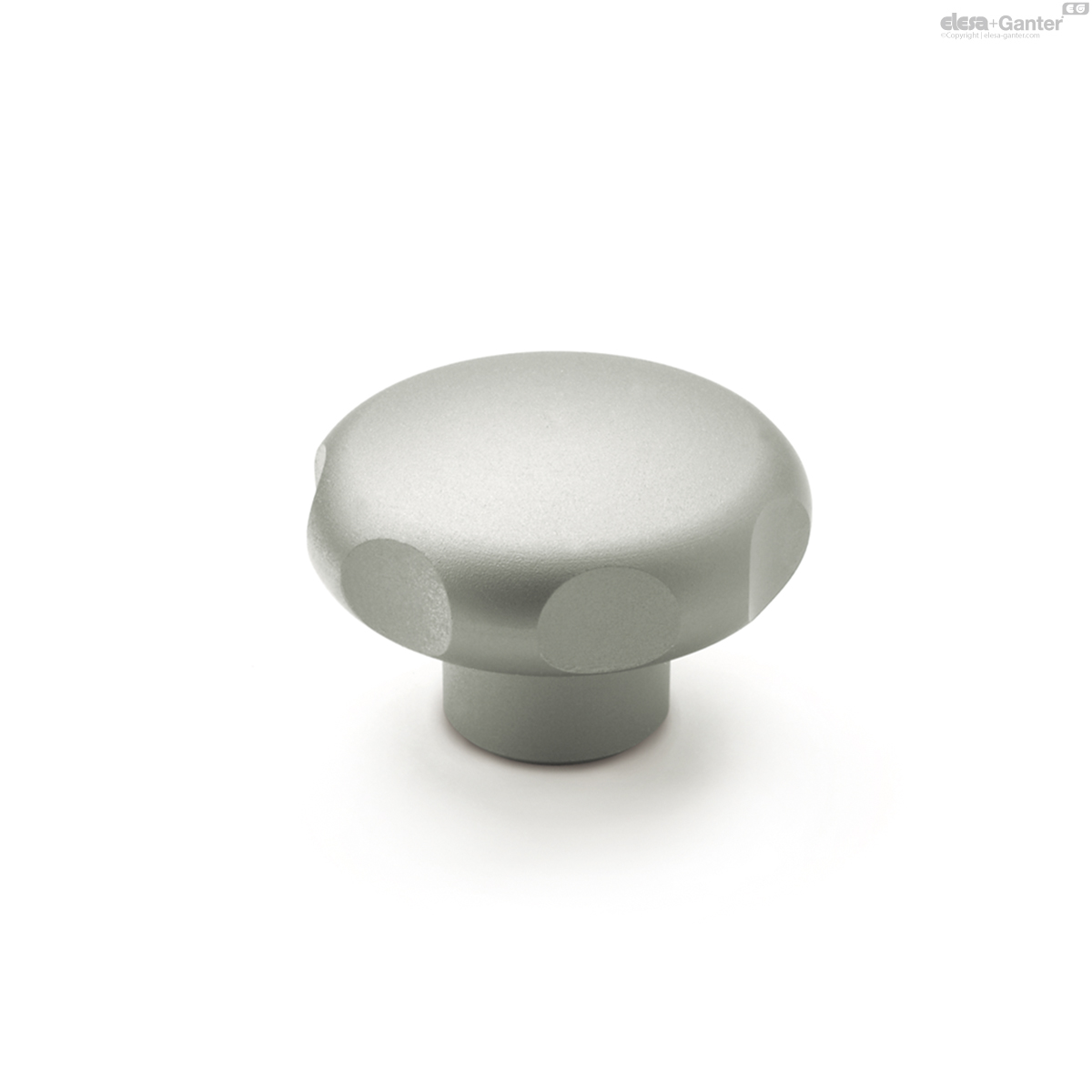

5335-40-B8-C GN 5335 met binnendraad

5335-40-B8-C

GN 5335 met binnendraad

AISI 303
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 5335

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 5335-40-B8-C
d1
40
d3 H7
B 8
d4
18
h1
30.5
h2
15
t1 min.
15
131
5335-40-B8-C drawing

Version with female thread:

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 303

  • matt shot-blasted
  • highly polished PL (only type D and E)

Version with threaded bolt:

Stainless Steel AISI 303

  • matt shot-blasted

Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
