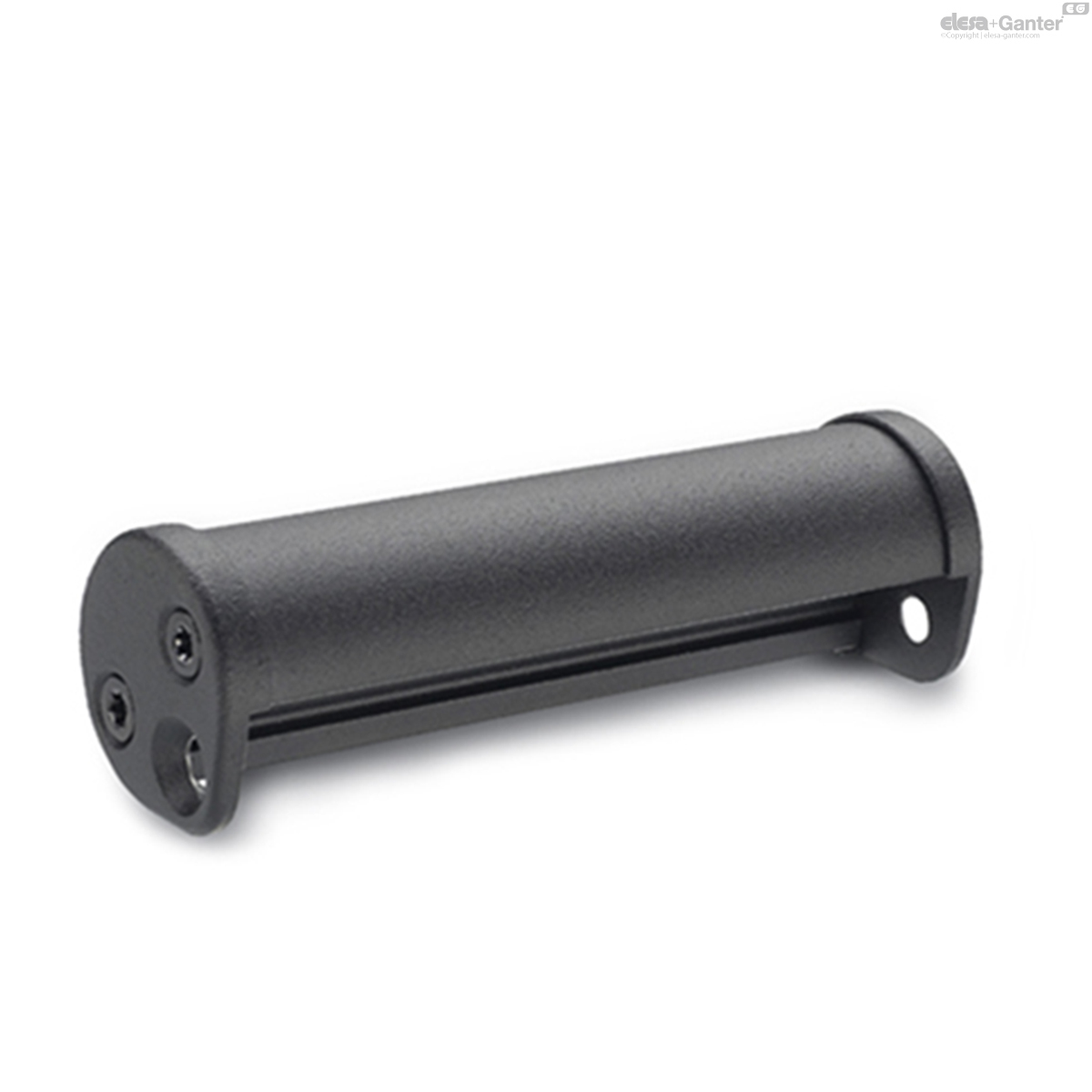

481-30-100-SW GN 481 Handgrepen

481-30-100-SW

GN 481 Handgrepen

Handgreepprofiel aluminium, eindstukken zinkspuitgietwerk
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 481

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 481-30-100-SW
d1 -0.5
30
l1
100
l1 +2
100
l1 ±2
100
a1
18
a2
9
d2
32
h1
34.5
h2 -0.1
14.5
l2
106
95

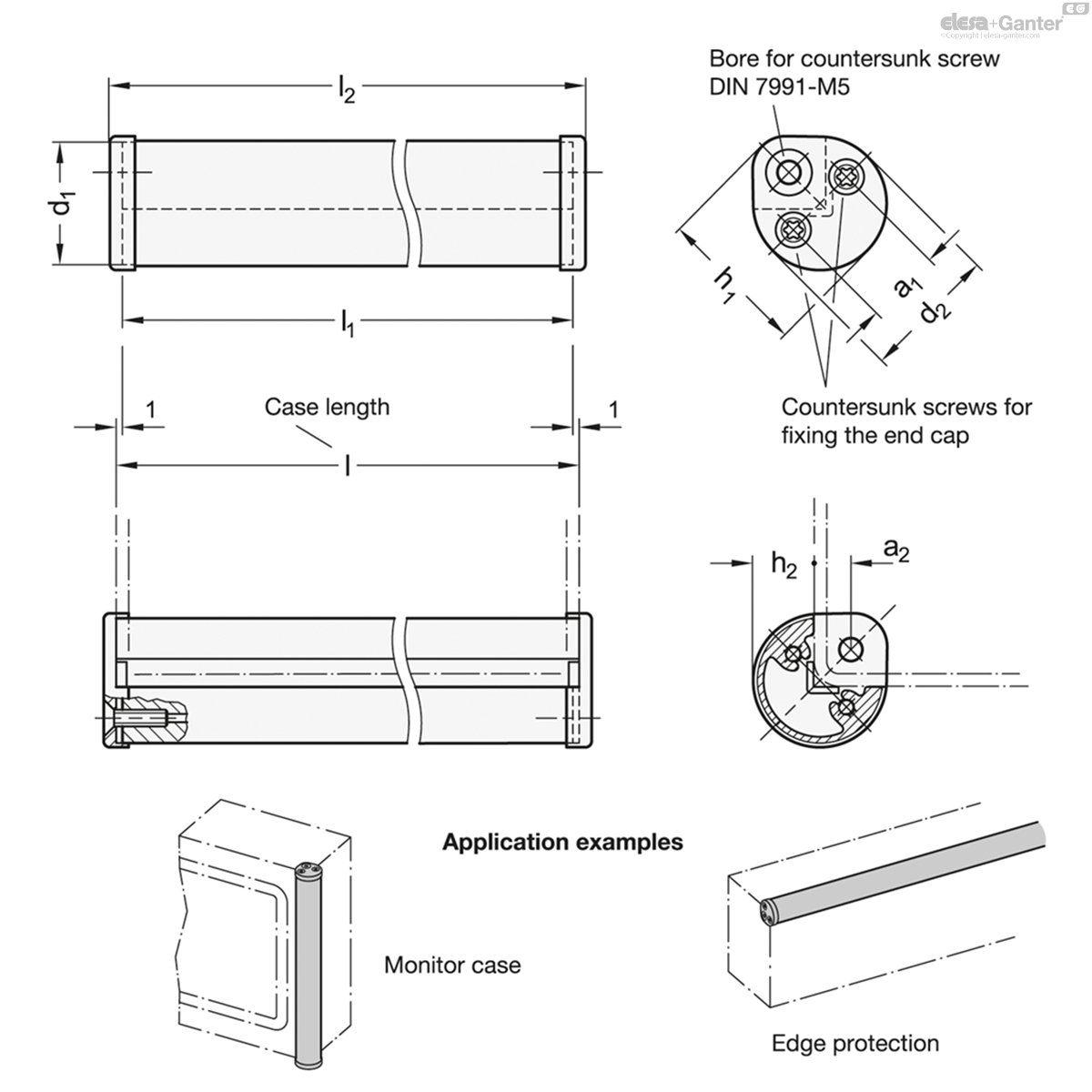

481-30-100-SW drawing

Handle profile

Aluminum

  • Black, RAL 9005, textured finish SW
  • Anodized, natural color ES

End pieces

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Countersunk screws

  • Self tapping, with internal hexalobular
  • Black, zinc plated

Edge handles GN 481 are particularly compact and are used, for example, on the side of monitor housings as a handling aid or generally to protect the edges of housings.

Tolerance compensation of 1 mm per end cap simplifies installation. The two end caps are mounted to the handle profile with self-tapping countersunk screws so they can be screwed back on after adjusting the length of the handle without requiring readjustment. This allows the length of the housing to be adapted to any desired size.

Other lengths l1

Other finishes
